ABB 3HNA015202-001 Gear Pump 6.0 CCM – Hydraulic Drive Unit for IRB6640 Series
When the hydraulic gear pump on an ABB IRB6640 robot fails, the entire production line comes to a halt. The balancing cylinder loses pressure, the robot arm can no longer hold its position under load, and safety interlocks force an emergency stop. Every minute of unplanned downtime in an automotive body shop or heavy-duty manufacturing cell can cost thousands of dollars. The ABB 3HNA015202-001 Gear Pump (6.0 CCM) is the OEM-specified replacement that restores full hydraulic pressure and gets your robot back online — precisely and reliably.
The 3HNA015202-001 is the primary hydraulic gear pump unit designed for ABB’s IRB6640 large-payload robot series, working in conjunction with part numbers 3HNA014320-001 (hydraulic unit assembly), USB3HAC028357-024 (controller interface), and DSQC679 (FlexPendant). Within the IRB6640 platform — one of ABB’s most widely deployed heavy-payload robots globally — this 6.0 CCM displacement pump maintains the precise oil flow required for the gravity-compensation balancing system, ensuring consistent arm positioning accuracy across multi-shift operations.
Technical Specifications
- Part Number: 3HNA015202-001
- Cross-Reference / Related Parts: 3HNA014320-001, USB3HAC028357-024, DSQC679

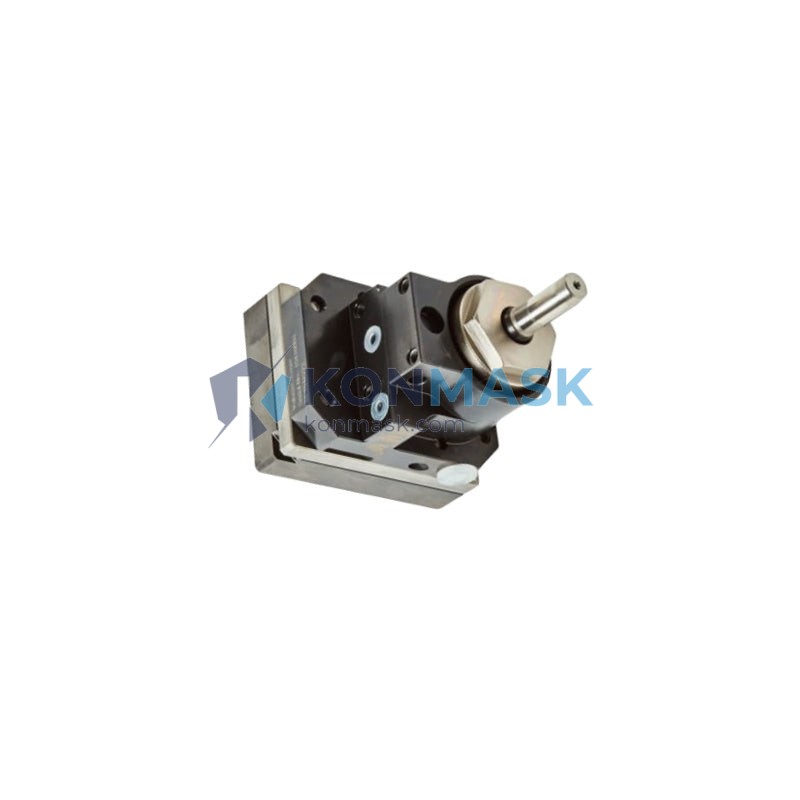

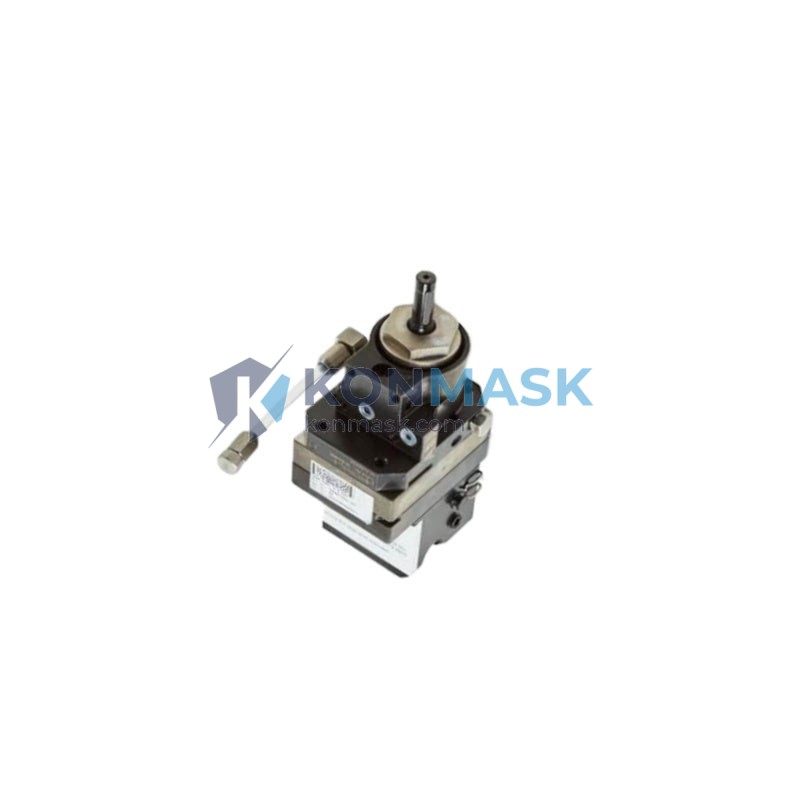

- Compatible Robot: ABB IRB6640 Series (IRB6640/3HAC026269-003)
- Pump Type: Gear Pump
- Displacement: 6.0 CCM (cubic centimeters per revolution)
- Application: Hydraulic balancing cylinder drive unit
- Weight: 800 g (approx.)
- Manufacturer: ABB Robotics
- Condition: New / Refurbished (specify on inquiry)
Key Features & Benefits
- OEM-Specified Displacement: 6.0 CCM rating matches ABB factory specifications for the IRB6640 hydraulic balancing system — no performance compromise.
- Precision Gear Tolerances: Tight internal gear clearances maintain consistent volumetric efficiency, preventing pressure drop under continuous duty cycles.
- Drop-In Replacement: Direct fit to the 3HNA014320-001 hydraulic unit assembly; no modification required.
- Reduced Downtime: Stocked and ready to ship — critical for minimizing robot downtime in automotive, foundry, and heavy manufacturing environments.
- Broad Compatibility: Supports all IRB6640 payload variants (130/3.2, 185/2.8, 235/2.55) that use the hydraulic balancing option.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white welding cells, press-tending, and heavy component handling with ABB IRB6640 robots.
- Foundry & Die Casting: High-temperature, high-payload extraction applications where hydraulic balancing is essential.
- Metal Fabrication: Robotic cutting, grinding, and material handling lines requiring sustained arm-load compensation.
- General Heavy Industry: Any facility running ABB IRB6640 robots with the factory-installed hydraulic balancing cylinder option.
System Integration & Compatible Parts
The 3HNA015202-001 gear pump is part of the IRB6640 hydraulic balancing sub-system. Commonly ordered together with:
- 3HNA014320-001 – Hydraulic Unit Assembly (complete unit including pump, reservoir, and valve block)
- USB3HAC028357-024 – Controller interface / USB module (DSQC679 accessory)
- DSQC679 – ABB FlexPendant (IRC5 teach pendant)
- 3HAC026269-003 – IRB6640 mechanical unit spare parts reference
If you are unsure which configuration applies to your robot serial number, our technical team can verify compatibility before shipment.
Our Quality Assurance Process
- Source Verification: All parts are sourced from authorized ABB distributors or directly from ABB Robotics supply chains.
- Incoming Inspection: Each unit undergoes visual inspection, dimensional check, and documentation review upon receipt.
- Functional Testing: Where applicable, hydraulic components are bench-tested for pressure integrity before dispatch.
- Traceability: Full lot traceability maintained; certificates of conformance available on request.
- Packaging: Anti-static, moisture-proof packaging with original or equivalent protective materials.
How to Order
- Submit an inquiry via the Contact / Request a Quote form on this page.
- Provide your robot serial number and current part number for cross-reference confirmation.
- Our team will respond within 1 business day with availability, lead time, and pricing.
- Upon agreement, we issue a proforma invoice; shipment is arranged via DHL / FedEx / UPS with full tracking.
Why Choose Konmask.com?
- Industrial Automation Specialists: Focused exclusively on PLC, DCS, robot, and drive components — not a generalist marketplace.
- Global B2B Supply: Serving maintenance engineers, MRO buyers, and system integrators in 40+ countries.
- Technical Support: Pre-sales engineering consultation to confirm part compatibility and application fit.
- Fast Response: Inquiries answered within 24 hours; urgent requests prioritized.
- Secure Transactions: T/T, L/C, and other B2B payment terms available.
Frequently Asked Questions
- Q: Is the 3HNA015202-001 compatible with all IRB6640 variants?
- A: It is compatible with IRB6640 robots equipped with the hydraulic balancing cylinder option. Please provide your robot serial number so we can confirm the exact configuration.
- Q: What does 6.0 CCM mean for this gear pump?
- A: CCM stands for cubic centimeters per revolution — the volumetric displacement of the pump. 6.0 CCM is the OEM-specified value for the IRB6640 hydraulic balancing system, ensuring correct oil flow and pressure.
- Q: Can I order just the gear pump, or do I need the full hydraulic unit (3HNA014320-001)?
- A: You can order the 3HNA015202-001 pump separately if only the pump element has failed. If the entire hydraulic unit is damaged, we recommend the complete 3HNA014320-001 assembly.
- Q: What is the lead time?
- A: Lead time depends on current stock. Please submit an inquiry and we will confirm availability and estimated delivery within 1 business day.
- Q: Do you provide a warranty?
- A: Yes. We offer a standard warranty on all parts. Terms are confirmed at the time of quotation based on part condition (new or refurbished).
