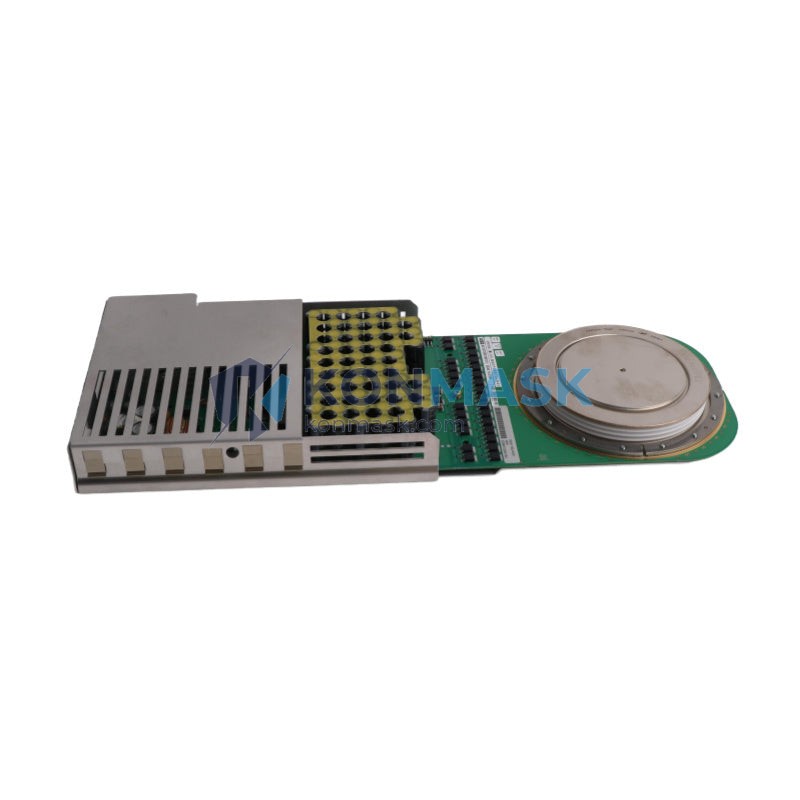

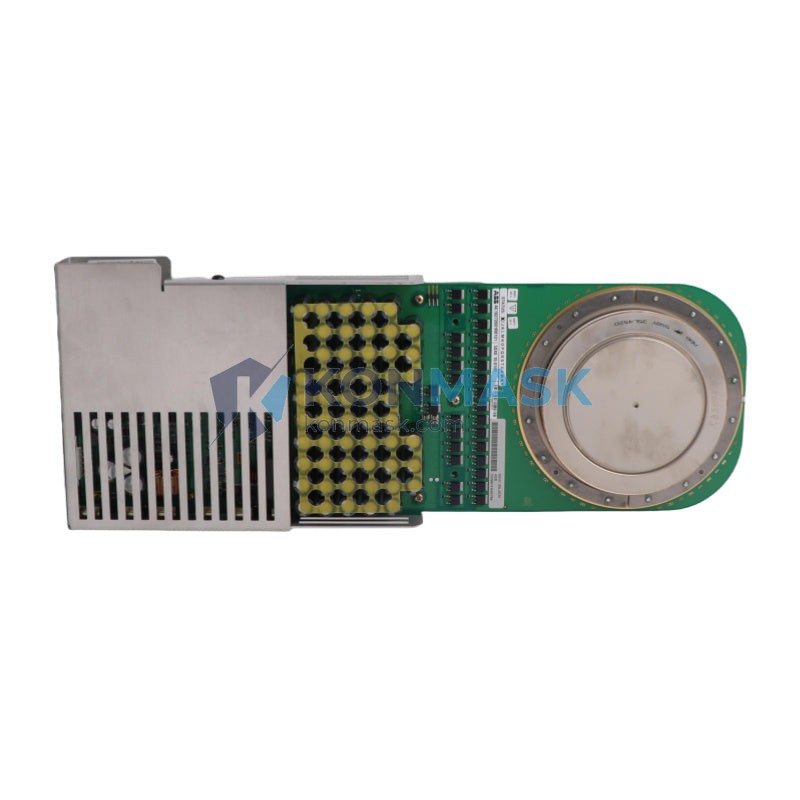

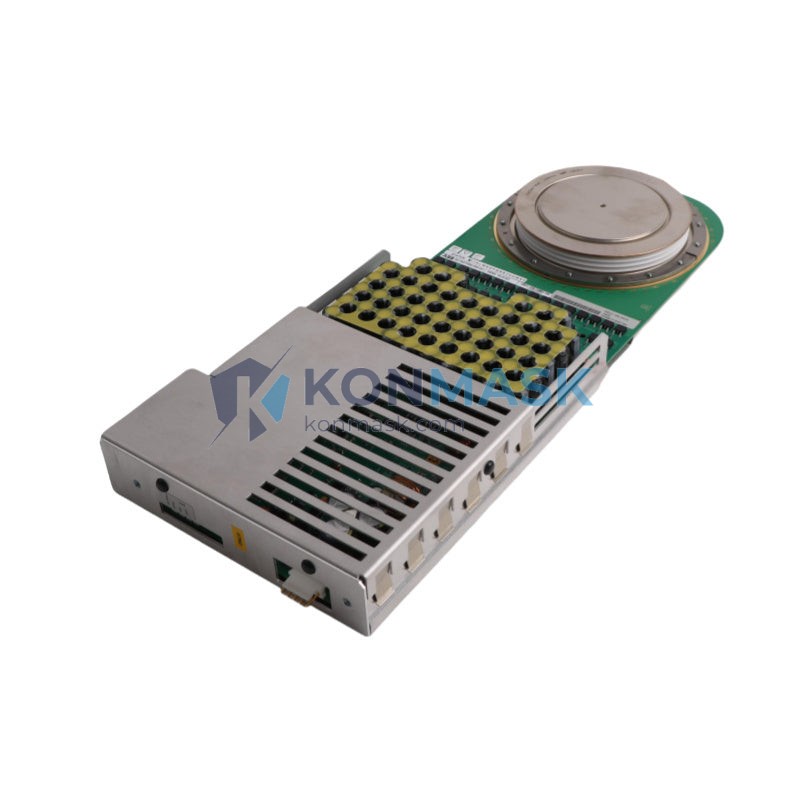

ABB 5SHY35L4520 – High-Power IGCT Gate-Commutated Thyristor Module | 5SHX Series Platform
Engineering Background: The Integrated Gate-Commutated Thyristor (IGCT) is ABB’s proprietary power semiconductor technology, engineered to combine the low conduction losses of a GTO with the fast, reliable switching of an IGBT. The 5SHY35L4520 is a production-grade IGCT module designed for megawatt-class power conversion systems where thermal efficiency, switching precision, and long-term reliability are non-negotiable.
Product Positioning: This module targets OEM drive manufacturers, traction system integrators, and industrial power conversion engineers who require a drop-in, fully characterized IGCT solution for medium-voltage (MV) inverter and converter topologies. It is a direct replacement and upgrade path for legacy GTO-based designs within ABB’s 5SHX platform ecosystem.
Complete Technical Specifications
- Part Number: 5SHY35L4520
- Supplementary References: 5SXE10-0181 / AC10272001R0101
- Device Type: Integrated Gate-Commutated Thyristor (IGCT)
- Platform / Series: ABB 5SHX IGCT Series
- Repetitive Peak Off-State Voltage (VDRM): 4,500 V
- Average On-State Current (IT(AV)): 3,500 A (approx., per datasheet)
- Gate Unit Reference: 5SXE10-0181 (integrated gate drive unit)
- Cooling Method: Double-side direct liquid cooling (deionized water)
- Mounting Style: Press-pack / stud-mount
- Weight: 2,820 g
- Country of Origin: Switzerland (ABB Semiconductors, Lenzburg)
- RoHS Compliance: Compliant
- Datasheet Reference: AC10272001R0101
Proven Application Environments
- Medium-voltage variable-speed drives (MV-VSD) for pumps, fans, compressors, and mills
- Railway traction inverters and locomotive power converters
- STATCOM and SVC reactive power compensation systems
- Wind turbine full-power converters (DFIG and direct-drive)
- Industrial UPS and energy storage interface converters
- High-power DC-DC converters for HVDC light applications
- Marine propulsion drive systems
Engineering Advantages
- Ultra-Low Conduction Loss: IGCT technology achieves on-state voltage drop comparable to GTOs, significantly reducing thermal load at rated current.
- Hard-Driven Gate: The integrated gate unit (5SXE10-0181) delivers a high di/dt gate pulse that ensures uniform turn-off across the entire silicon area, eliminating current filamentation.
- Snubberless Operation: Designed for snubberless turn-off in most topologies, reducing BOM complexity and improving system power density.
- Press-Pack Reliability: Hermetically sealed press-pack construction eliminates bond-wire fatigue failures — the dominant failure mode in module-style IGBTs under power cycling.
- Predictable Failure Mode: Press-pack devices fail short-circuit, enabling series-redundant converter designs with graceful degradation.
- Long Service Life: Rated for >10⁶ power cycles at ΔTj = 40 K, suitable for 20+ year industrial service intervals.
System Architecture & Signal Flow
The 5SHY35L4520 operates within a closed-loop converter control architecture as follows:
- Control Layer: DSP/FPGA-based PWM controller generates gate firing signals via fiber-optic link to the gate unit (5SXE10-0181).
- Gate Unit (5SXE10-0181): Amplifies the optical trigger into a high-current gate pulse (peak gate current >1,000 A for <1 µs) applied directly to the IGCT gate terminal.
- Power Stage (5SHY35L4520): Commutates the main power current; anode-cathode voltage clamped by snubber or bus capacitance depending on topology.
- Thermal Management: Deionized water coolant circulates through integrated heat spreaders on both anode and cathode faces; coolant conductivity must be maintained <0.5 µS/cm.
- Protection: Overcurrent and dv/dt protection implemented at gate unit level; desaturation detection not applicable (current-controlled device).
Sourcing & Quality Verification
- Source: Konmask.com sources 5SHY35L4520 units from decommissioned OEM equipment, authorized surplus channels, and verified industrial distributors.
- Inspection Protocol: Each unit undergoes visual inspection (cosmetic integrity, label legibility, terminal condition), dimensional verification, and where applicable, static gate-cathode resistance check prior to shipment.
- Traceability: Date codes and lot markings are documented and available upon request.
- Packaging: Anti-static foam insert, individual carton, outer export carton with shock indicators. Suitable for international air and sea freight.
- Warranty: 90-day DOA warranty. Extended warranty available upon request for volume orders.
Procurement Process
- Step 1 – Inquiry: Submit your requirement via the product page or email support@konmask.com with your target quantity and delivery timeline.
- Step 2 – Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 1 business day.
- Step 3 – Order Confirmation: Confirm PO; payment via T/T, PayPal, or credit card accepted.
- Step 4 – Shipment: Units dispatched within 3–5 business days; DHL/FedEx express available for urgent requirements.
- Step 5 – After-Sales: Technical support available post-delivery for installation and commissioning queries.
Technical FAQ
Q: Is the 5SXE10-0181 gate unit included with the 5SHY35L4520?
A: The gate unit is a separate assembly. Please specify at time of order whether you require the IGCT device only or a matched IGCT + gate unit set.
Q: Can this module replace a GTO in an existing converter?
A: In most cases yes, but the gate drive circuit must be replaced with the ABB IGCT gate unit. The power circuit layout may also require modification to accommodate snubberless operation. Consult your system OEM or contact our technical team.
Q: What coolant specification is required?
A: Deionized water with conductivity <0.5 µS/cm, pH 6.5–8.0, inlet temperature ≤40°C, and flow rate per ABB thermal design guidelines (typically 4–8 L/min per device).
Q: Do you provide test reports or incoming inspection data?
A: Visual inspection reports are standard. Electrical parametric test data (if available from original OEM records) can be provided upon request for volume orders.
Q: What is the lead time for large quantities (>10 units)?
A: Lead time varies by stock availability. Contact us for a real-time inventory check and volume pricing.
