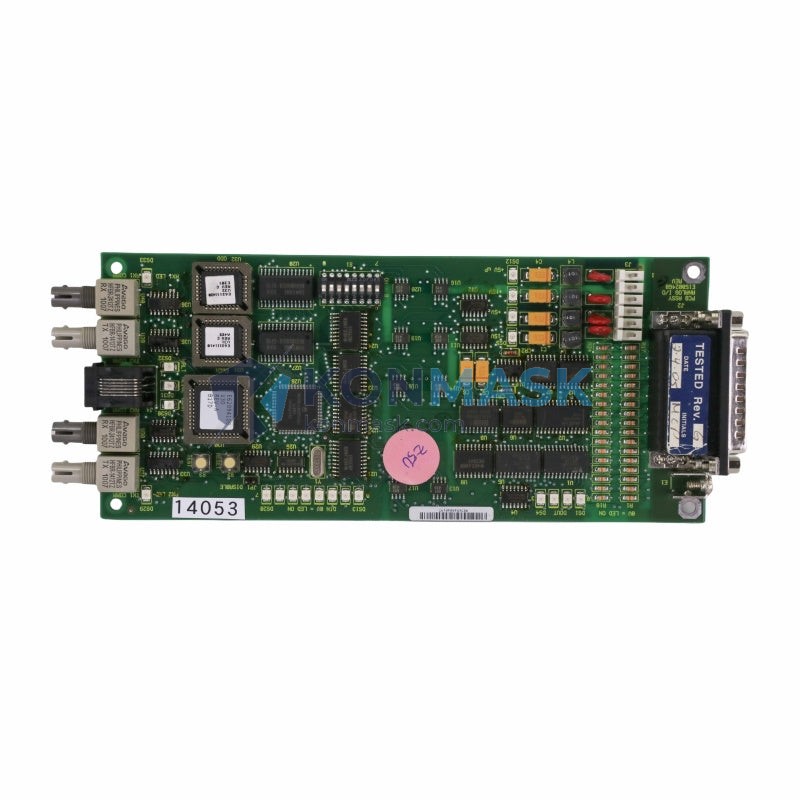

ABB DSQC 377B (3HAC025562-001/06) Axis Computer PCB Assembly | VARIAN E15002460 / 3HNE01586-1 | IRC5 Robot Controller Platform
Engineering Background: The DSQC 377B is ABB’s dedicated Axis Computer Board engineered for the IRC5 and S4C+ robot controller families. It serves as the primary motion-control processing unit, executing real-time axis interpolation, servo drive communication, and safety interlock logic. Part number 3HAC025562-001 (revision /06) is the production-release variant; 3HNE01586-1 is the field-service assembly reference. VARIAN E15002460 is the OEM cross-reference used in semiconductor and precision-manufacturing environments where ABB robots are integrated into wafer-handling and vacuum-transfer systems.
Product Positioning: Konmask.com supplies this PCB assembly as a verified, shelf-ready spare for maintenance engineers and procurement teams who require a drop-in replacement with zero re-engineering. Each unit is sourced from qualified channels, inspected against ABB’s published hardware revision matrix, and shipped with full traceability documentation.
Complete Technical Specifications
- Manufacturer: ABB Robotics (OEM); VARIAN (OEM cross-reference)
- Primary Part Number: 3HAC025562-001 / Revision 06
- Field-Service Assembly: 3HNE01586-1
- OEM Cross-Reference: VARIAN E15002460
- Board Designation: DSQC 377B — Axis Computer Board
- Compatible Controller Platform: ABB IRC5 / S4C+
- Function: Real-time axis motion control, servo interpolation, safety I/O arbitration
- Communication Interface: Internal IRC5 backplane bus; SERCOS / Drive Module interface
- Operating Voltage: 24 V DC (supplied via IRC5 controller backplane)
- Operating Temperature: 0 °C to +55 °C (controller cabinet ambient)
- Form Factor: Single-slot PCB assembly, IRC5 card-cage compatible
- Revision Level: /06 (latest production release as of sourcing date)
- Condition: New / Refurbished-to-OEM-spec (specify at inquiry)
- Country of Origin: Sweden (ABB Robotics, Västerås)
- Weight (approx.): 500 g
- HS Code: 8537.10 (Boards, panels, consoles for electric control)
Proven Application Environments
- Semiconductor Fab: VARIAN ion-implant systems using ABB IRB robots for wafer cassette transfer — E15002460 is the primary cross-reference in this context
- Automotive Body-in-White: ABB IRB 6600 / IRB 7600 spot-welding cells requiring IRC5 axis computer replacement during scheduled PM
- Palletizing & Material Handling: IRB 460 / IRB 660 high-speed palletizing lines where axis board failure causes full-line stoppage
- Precision Assembly: IRB 1600 / IRB 2600 cells in electronics manufacturing with tight cycle-time SLAs
- Foundry & Die-Casting: High-ambient-temperature environments requiring verified thermal-grade components
Engineering Advantages
- Drop-In Compatibility: Revision /06 maintains full backward compatibility with IRC5 controller firmware versions 5.x and 6.x — no parameter migration required
- Dual Part-Number Traceability: Ships with both ABB (3HAC025562-001) and VARIAN (E15002460) documentation, satisfying dual-source procurement requirements
- Reduced MTTR: Shelf-ready stock eliminates 8–16 week OEM lead times; critical for unplanned downtime scenarios
- Revision Integrity: Each unit is verified against ABB’s hardware revision matrix to prevent firmware-hardware mismatch faults (ERR_AXIS_COMPUTER)
- ESD-Safe Packaging: Shipped in anti-static shielding bag with moisture-barrier outer packaging
System Architecture & Signal Flow
Within the IRC5 controller cabinet, the DSQC 377B occupies the Axis Computer slot of the Main Computer Unit (MCU). It receives motion trajectories from the Main Computer (DSQC 652 / DSQC 1000) via the internal VME-style backplane, translates them into real-time servo references, and transmits drive commands to the Drive Module (DSQC 508 / DSQC 601) via the SERCOS fiber-optic ring. Simultaneously, it arbitrates safety signals from the Safety Board (DSQC 400 / DSQC 611), ensuring E-stop and safeguard logic is enforced at the axis level. Replacing the DSQC 377B restores this complete signal chain without requiring reconfiguration of adjacent boards.
Sourcing & Quality Verification
- All units sourced from ABB-authorized distributors or decommissioned OEM equipment with full chain-of-custody records
- Visual inspection: PCB trace integrity, component seating, connector pin condition
- Functional bench test against ABB IRC5 controller reference unit prior to shipment
- Revision label and serial number photographed and included in shipment documentation
- 30-day DOA warranty; extended warranty available on request
Procurement Process
- Confirm compatibility: Provide your IRC5 controller serial number and current firmware version to our technical team
- Request quotation: Contact support@konmask.com or call +0086 19859288691 for volume pricing and lead time
- Place order: Purchase directly via this listing or via PO for B2B accounts
- Receive & verify: Inspect unit against provided documentation; our team supports remote installation guidance if required
Technical FAQ
Q: Is 3HAC025562-001/06 compatible with my IRC5 controller running RobotWare 6.x?
A: Yes. Revision /06 is fully compatible with RobotWare 5.14 through 6.x. No firmware downgrade is required.
Q: What is the difference between 3HAC025562-001 and 3HNE01586-1?
A: 3HAC025562-001 is the ABB manufacturing part number for the PCB assembly. 3HNE01586-1 is the field-service/spare-part assembly number used in ABB’s service documentation. Both refer to the same physical board.
Q: Why does my VARIAN system reference E15002460 instead of the ABB part number?
A: VARIAN integrated ABB robots into their ion-implant platforms and assigned internal cross-reference numbers (E-series) to all robot spare parts for their internal MRO system. E15002460 maps directly to 3HAC025562-001 / DSQC 377B.
Q: Can I exchange my faulty board for a refurbished unit?
A: Yes. Contact us to discuss exchange/repair programs. Turnaround is typically 5–10 business days.
Q: Do you provide installation support?
A: Yes. Our engineers can provide remote guidance for board swap procedures, including IRC5 controller power-down sequence, ESD precautions, and post-installation axis calibration verification.
