ABB DriveWindow Light 745745 – PC-Based Drive Commissioning & Diagnostic Tool | ACS/DCS Series Platform
Engineering Background: ABB DriveWindow Light (part number 745745, firmware/software reference 3AFE64532871) is ABB’s dedicated PC-based commissioning, parameter management, and diagnostic software for the ACS and DCS series of variable frequency drives (VFDs) and DC drives. Developed by ABB’s Drives division in Finland, it provides procurement engineers and system integrators with a standardized, reliable interface for drive setup, fault analysis, and parameter backup across multi-drive installations.
Product Positioning: Designed for industrial automation environments where precise drive configuration and rapid fault diagnosis are critical, DriveWindow Light eliminates the need for manual keypad programming on individual drives. It is the preferred tool for OEM machine builders, panel integrators, and MRO teams managing ABB drive fleets in manufacturing, HVAC, water treatment, and process industries.
Complete Technical Specifications
- Part Number: 745745
- Software Reference: 3AFE64532871
- Product Name: DriveWindow Light
- Manufacturer: ABB Ltd. (Drives Division)
- Platform Compatibility: ABB ACS series (ACS55, ACS150, ACS310, ACS355, ACS550, ACS800, ACS880), DCS series DC drives
- Communication Interface: RS-232 / USB-to-serial adapter (RUSB-02 or equivalent), DDCS fiber optic (via NDPA-02 panel bus adapter)
- Operating System: Windows XP / Vista / 7 / 10 (32-bit & 64-bit)
- Key Functions: Parameter upload/download, real-time monitoring, fault log retrieval, drive-to-drive parameter copy, trend recording
- License Type: Single-user perpetual license (hardware dongle or software key, per ABB delivery)
- Language: English (multi-language support per version)
- Media: CD-ROM / downloadable installer (per ABB supply)
- Country of Origin: Finland (ABB Drives, Helsinki)
- HS Code Reference: 8523.49 (recorded media for software)
Proven Application Environments
- Manufacturing plant drive commissioning and annual parameter audits
- HVAC system VFD setup for pumps, fans, and compressors
- Water & wastewater treatment facility drive management
- Pulp & paper, oil & gas, and mining process drive fleets
- OEM machine builder pre-delivery drive configuration
- MRO teams performing drive replacement and parameter restoration
- Panel integrators managing multi-drive ACS800/ACS880 cabinet builds
Engineering Advantages
- Batch Parameter Management: Upload and download parameters across multiple drives simultaneously, reducing commissioning time by up to 70% versus keypad entry.
- Fault Log Analysis: Retrieve and export timestamped fault histories for root-cause analysis and maintenance reporting.
- Real-Time Trend Recording: Monitor up to 8 signal channels simultaneously with configurable sampling rates for dynamic process analysis.
- Drive-to-Drive Copy: Clone parameter sets between identical drive models for rapid fleet standardization.
- Offline Parameter Editing: Edit and validate parameter files without a live drive connection, enabling pre-commissioning preparation.
- ABB OEM Software: Fully supported by ABB technical documentation (3AFE64532871 release notes) and compatible with ABB’s DriveWindow full version upgrade path.
System Architecture & Signal Flow

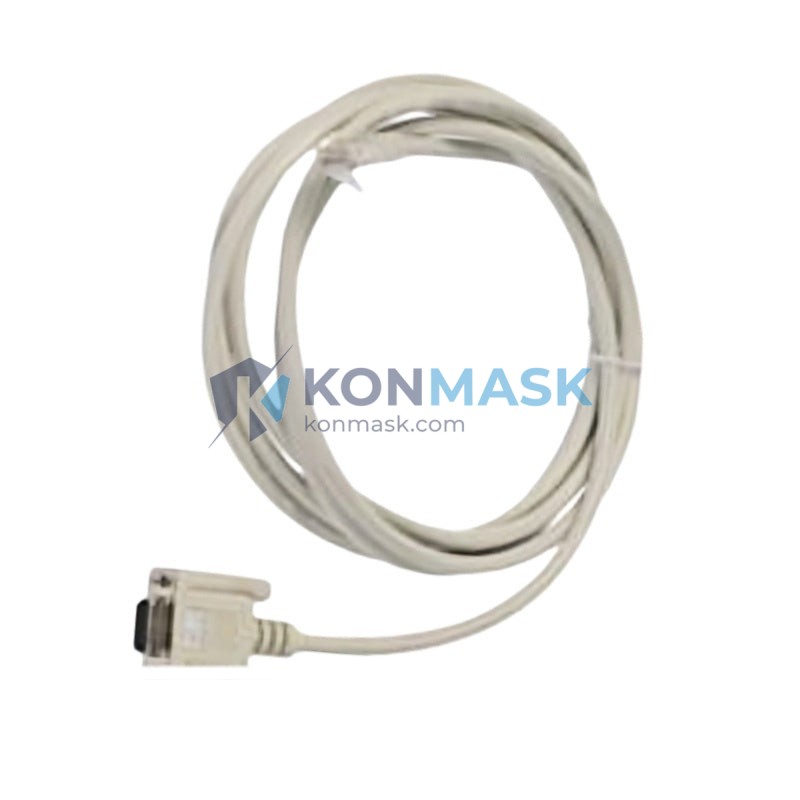

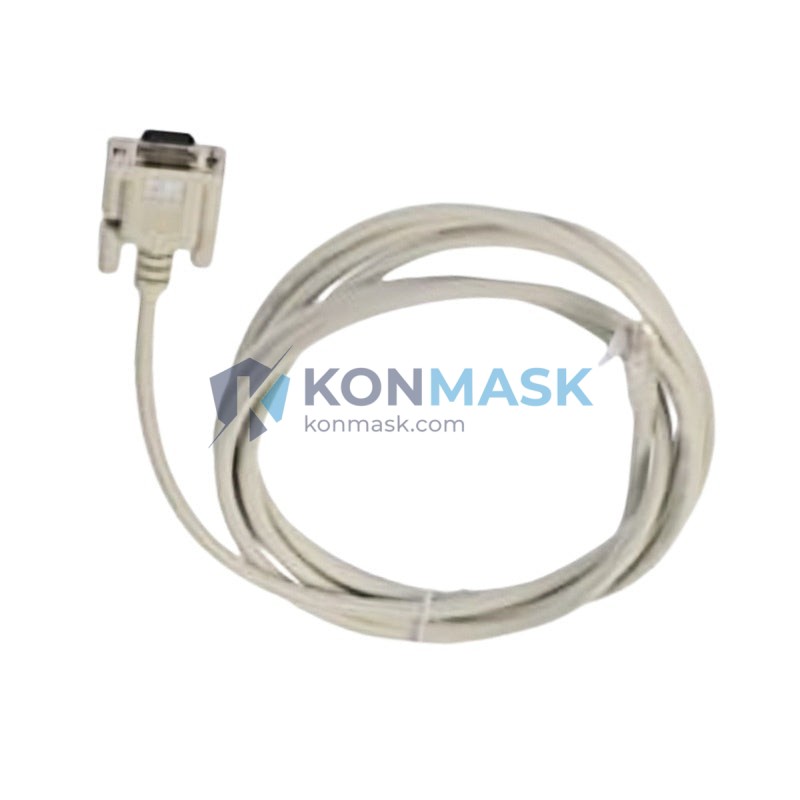

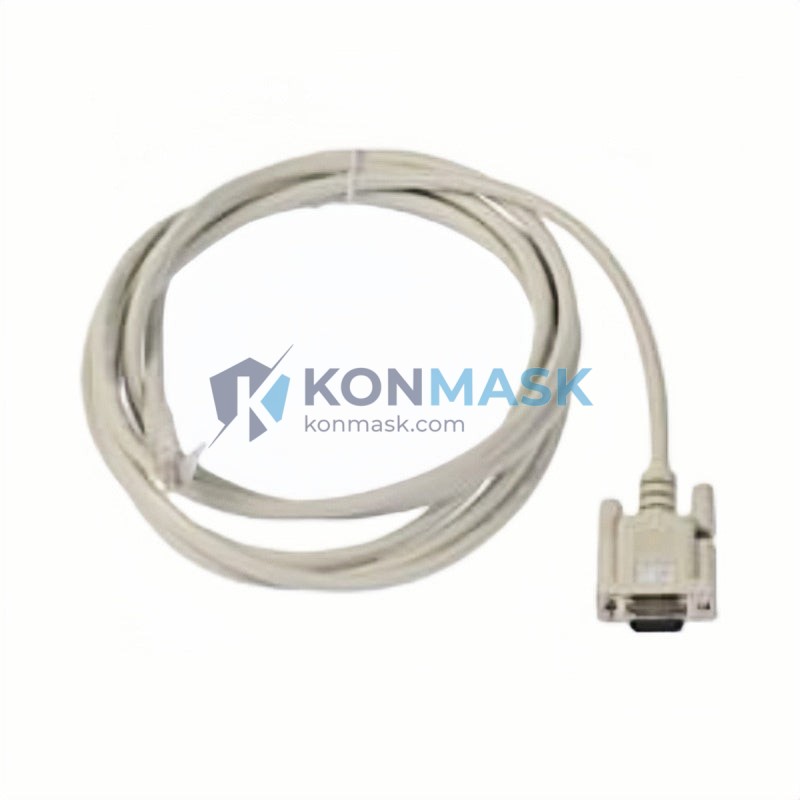

DriveWindow Light connects to ABB drives via the drive’s RS-232 control panel port (RJ-45 or D-sub) using a standard PC serial cable or USB-to-serial adapter (ABB RUSB-02 recommended). For multi-drive panel bus configurations, the NDPA-02 adapter enables DDCS fiber optic communication to ACS800/DCS800 drives. The software communicates using ABB’s proprietary DDCS protocol, providing full parameter namespace access. Parameter files are stored locally in .dw format, compatible with DriveWindow full version for advanced analysis.
Signal Flow: PC (USB/COM Port) → USB-Serial Adapter (RUSB-02) → Drive Control Panel Port (RJ-45) → Drive Parameter RAM/Flash → DriveWindow Light GUI
Sourcing & Quality Verification
- Source: Konmask.com sources ABB DriveWindow Light 745745 / 3AFE64532871 from authorized ABB distributors and verified OEM surplus channels.
- Inspection: Each unit is inspected for original ABB packaging integrity, label authenticity (part number, date code, country of origin), and media/dongle completeness before dispatch.
- Traceability: ABB part number 745745 and software reference 3AFE64532871 are cross-referenced against ABB’s official product catalog prior to listing.
- Warranty: 12-month Konmask operational warranty. Defective units replaced or refunded within warranty period.
Procurement Process
- Confirm compatibility with your ABB drive model and Windows OS version.
- Add ABB DriveWindow Light 745745 / 3AFE64532871 to cart and complete checkout.
- Konmask issues proforma invoice within 1 business day (B2B PO accepted).
- Item ships within 2–5 business days via DHL / FedEx with full tracking.
- Post-delivery technical support available via support@konmask.com.
Technical FAQ
Q: Is DriveWindow Light compatible with ACS880?
A: Yes, DriveWindow Light supports ACS880 via the drive’s assistant control panel port. For full ACS880 parameter management, ABB also recommends Drive Composer (successor product). DriveWindow Light remains fully functional for ACS880 basic commissioning.
Q: What is the difference between DriveWindow Light and DriveWindow (full version)?
A: DriveWindow Light (745745 / 3AFE64532871) is a streamlined, single-drive commissioning tool. The full DriveWindow version adds multi-drive network management, advanced trend analysis, and plant-level drive topology mapping. Light is sufficient for most single-drive and small fleet commissioning tasks.
Q: Do I need a hardware dongle?
A: Delivery format (dongle vs. software key) depends on the specific supply batch. Konmask will confirm the license format prior to shipment. Contact support@konmask.com for clarification before ordering if this is critical.
Q: Can I use this with a USB port directly?
A: DriveWindow Light requires a COM (serial) port connection to the drive. For modern PCs without a native COM port, ABB’s RUSB-02 USB-to-serial adapter is required and sold separately.
Q: Is this product new or refurbished?
A: Konmask lists both new OEM and verified surplus units. The listing condition is specified at checkout. Contact us for condition confirmation on specific stock.
