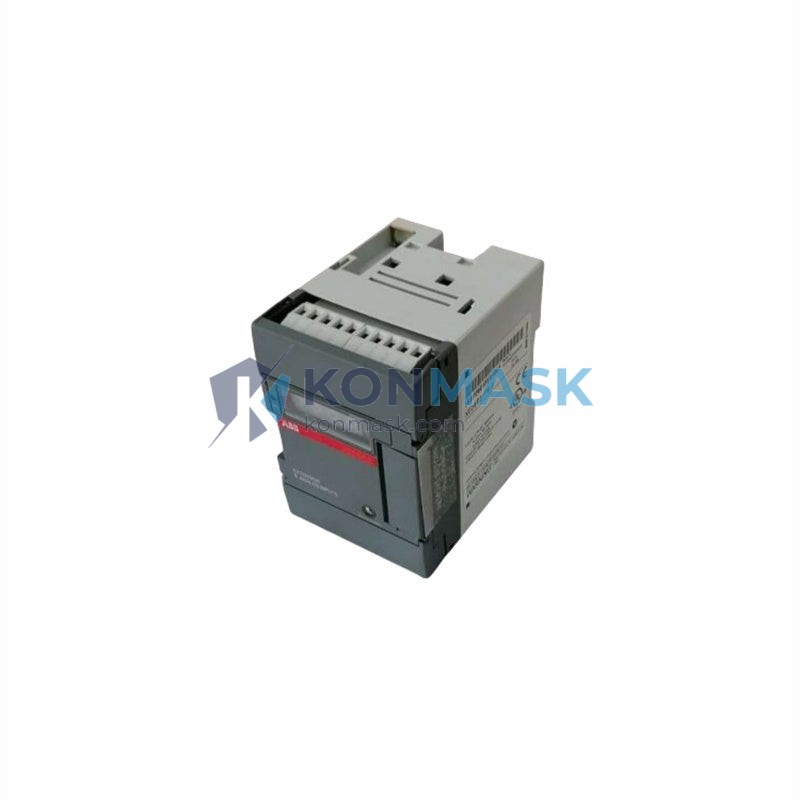

ABB ACS101-H75-1 – 0.75kW Single-Phase Frequency Converter Drive | ACS101 Series
Engineering Background
The ABB ACS101 series represents ABB’s compact, cost-effective variable frequency drive platform engineered for light industrial and OEM applications. Designed and manufactured in Finland under ABB’s stringent quality protocols, the ACS101 series delivers reliable motor speed control in space-constrained panel environments where performance and simplicity are equally critical.
Product Positioning
The ACS101-H75-1 is a 0.75kW (1HP) single-phase input frequency converter drive targeting procurement engineers who require a proven, drop-in ABB solution for pump, fan, conveyor, and general-purpose motor control applications. As an authorized distributor, Konmask.com supplies this unit with full traceability and OEM-grade quality assurance.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | ACS101-H75-1 |
| Brand | ABB |
| Series | ACS101 |
| Power Rating | 0.75 kW (1 HP) |
| Input Voltage | Single-Phase 200–240 VAC ±10% |
| Input Frequency | 50/60 Hz |
| Output Voltage | 3-Phase 0–240 VAC |
| Output Frequency Range | 0–400 Hz |
| Input Current (max) | ~7.5 A |
| Output Current (rated) | 4.3 A |
| Control Method | V/f (Scalar) Control |
| Protection Class | IP20 |
| Ambient Temperature | -10°C to +40°C (operating) |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5–95% RH (non-condensing) |
| Altitude | Up to 1000 m (derating above) |
| Braking | DC Injection Braking |
| Communication | Local keypad / external reference |
| Country of Origin | Finland |
| Approvals / Certifications | CE, UL (series) |
| Weight | Approx. 0.9 kg |
Proven Application Environments
- Pump & Fan Control – Smooth ramp-up/ramp-down for centrifugal loads, reducing mechanical stress and energy consumption.
- Conveyor & Material Handling – Precise speed regulation for belt conveyors in light manufacturing and packaging lines.
- HVAC Systems – Single-phase supply compatibility makes it ideal for retrofit HVAC fan control in commercial buildings.
- OEM Machine Integration – Compact footprint fits standard DIN-rail panel designs; minimal wiring complexity for OEM builders.
- General-Purpose Motor Drives – Suitable for any 3-phase induction motor up to 0.75kW requiring variable speed operation.
Engineering Advantages
- Single-Phase to Three-Phase Conversion – Enables 3-phase motor operation from single-phase supply infrastructure, eliminating costly electrical upgrades.
- ABB ACS101 Platform Reliability – Built on ABB’s proven drive architecture with field-validated MTBF performance in industrial environments.
- Compact DIN-Rail Ready Design – Minimal panel footprint reduces enclosure costs and simplifies system integration.
- Integrated Motor Protection – Electronic overload protection, over-voltage, under-voltage, and short-circuit protection built-in.
- Simple Commissioning – Intuitive parameter structure with local keypad; no specialist drive software required for standard applications.
- Energy Savings – Variable speed operation reduces energy consumption by up to 50% vs. fixed-speed motor operation on variable-torque loads.
System Architecture & Signal Flow
The ACS101-H75-1 accepts single-phase 200–240 VAC input, rectifies to DC bus, and inverts via IGBT switching to produce a variable-frequency, variable-voltage 3-phase output. Speed reference can be set via the integrated keypad or via an external analog/digital signal. The drive’s V/f control algorithm maintains constant volts-per-hertz ratio across the speed range, ensuring stable torque delivery for general-purpose motor loads.
Signal Flow: Single-Phase AC Input → EMC Filter → Rectifier Bridge → DC Bus Capacitor Bank → IGBT Inverter → 3-Phase AC Output → Motor
Sourcing & Quality Verification
- OEM Traceability – Each unit supplied with verifiable ABB production batch documentation upon request.
- Pre-Shipment Inspection – All drives undergo functional power-on verification and visual inspection before dispatch.
- Authentic ABB Components – Konmask.com sources exclusively from authorized ABB distribution channels; no gray-market or refurbished units.
- Packaging Integrity – Original ABB packaging preserved; anti-static protection for all PCB assemblies.
Procurement Process
- Confirm Specification – Verify motor nameplate data (kW, voltage, current) matches ACS101-H75-1 output ratings.
- Request Quote – Contact support@konmask.com for volume pricing, lead time, and freight options.
- Place Order – Purchase directly via Konmask.com checkout or via PO for B2B accounts.
- Shipment & Documentation – Commercial invoice, packing list, and CE declaration of conformity provided with each shipment.
- Technical Support – Post-delivery commissioning support available via email or phone.
Technical FAQ
Q: Can the ACS101-H75-1 run a 3-phase motor from a single-phase supply?
A: Yes. The drive accepts single-phase 200–240 VAC input and outputs 3-phase variable frequency voltage to the motor.
Q: What motor types are compatible?
A: Standard 3-phase AC induction motors up to 0.75kW / 240V are fully compatible.
Q: Is PLC integration supported?
A: The ACS101-H75-1 supports external analog and digital speed references, enabling integration with PLC-controlled systems via standard I/O wiring.
Q: What protection features are built in?
A: Over-voltage, under-voltage, over-current, short-circuit, motor overload (electronic), and over-temperature protection are all standard.
Q: Is this unit CE certified?
A: Yes. The ACS101 series carries CE marking in compliance with applicable EU directives for low-voltage drives.
Q: What is the warranty?
A: Konmask.com provides a 12-month warranty against manufacturing defects. Contact support@konmask.com for warranty claims.
