ABB SAFT190APC | SAFT 190 APC Power Supply Card | Replacement, Equivalent & Selection Guide

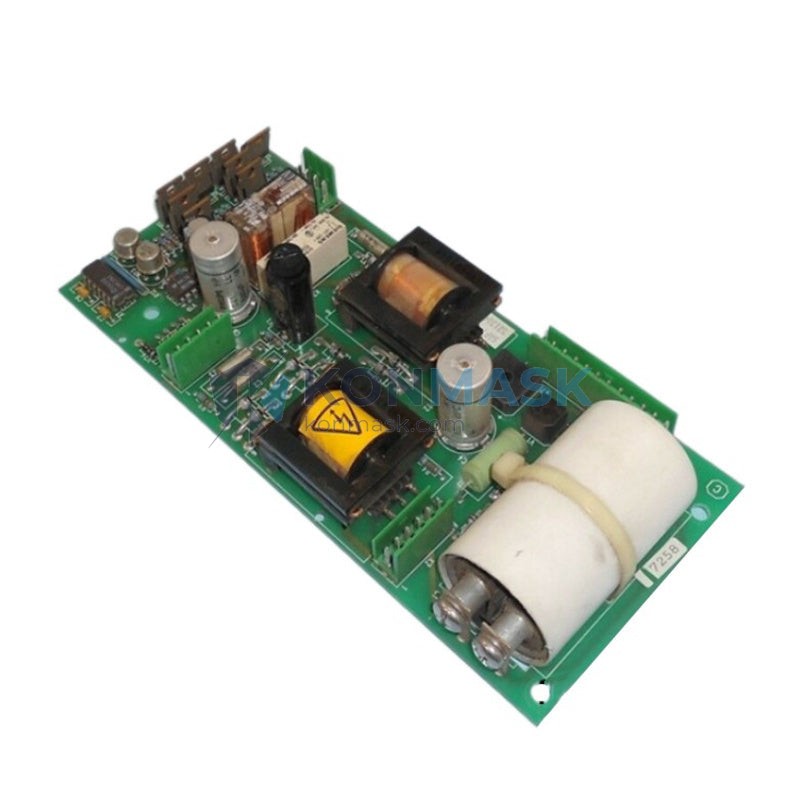

The ABB SAFT190APC (SAFT 190 APC) is a dedicated power supply card designed for ABB’s SAFT 190 series drive control systems. This card provides stable, regulated DC power to the control electronics of ABB AC drives, ensuring reliable operation in demanding industrial automation environments. Konmask.com stocks genuine and equivalent-grade units, fully tested and ready to ship.
Technical Specifications
- Part Number: SAFT190APC / SAFT 190 APC
- Manufacturer: ABB
- Function: Power Supply Card for SAFT 190 Series Drive Control Board
- Compatible Drive Series: ABB SAFT 190 / ACS 600 / ACS 800 (select variants)
- Output: Regulated DC supply to control logic and I/O boards
- Form Factor: PCB plug-in card
- Weight: Approx. 300 g
- Operating Temperature: 0°C to +55°C (standard industrial range)
- Compliance: CE marked; RoHS-compatible sourcing available
Note: Full electrical specifications (input voltage range, output rails, current ratings) should be verified against the ABB SAFT 190 hardware manual or confirmed with our technical team prior to ordering.
Compatible Replacement & Equivalent Models
When the original SAFT190APC is unavailable or discontinued, the following models may serve as direct or functional replacements depending on your drive revision and firmware version:
- SAFT190APC — Original ABB part (this listing)
- SAFT 190 APC — Alternate hyphenated designation (same unit)
- SAFT188APC — Earlier revision; verify connector and firmware compatibility
- SAFT192APC — Later revision; may require firmware update on host board
- 3AFE64527029 — ABB internal reference number (cross-check with your drive serial)
Important: Always verify the hardware revision and firmware compatibility before substituting power supply cards. Contact Konmask.com technical support for a compatibility check at no charge.
Why Choose the Original Model
- Guaranteed Fit: Designed specifically for SAFT 190 series — no adaptation required
- Stable Power Delivery: Factory-calibrated output rails prevent control board brownouts
- Reduced Commissioning Risk: No firmware or parameter changes needed
- Long Service Life: Industrial-grade components rated for continuous duty cycles
- OEM Traceability: Full ABB part traceability for audit and warranty purposes
Typical Applications
- AC drive control system power restoration after card failure
- Preventive maintenance stock for SAFT 190 series drives
- Pulp & paper, cement, mining, and marine drive systems using ABB ACS/SAFT platforms
- Steel mill and heavy industry variable speed drive (VSD) installations
- OEM machine builders using ABB SAFT 190 control architecture
System Compatibility
| Drive Platform | Compatible | Notes |
|---|---|---|
| ABB ACS 600 | ✅ Yes | Verify SAFT 190 control board revision |
| ABB ACS 800 | ⚠️ Conditional | Depends on control board variant; confirm before ordering |
| ABB DCS 600 | ⚠️ Conditional | DC drive variant — contact support for confirmation |
| ABB SAMI / SAMI GS | ❌ Not compatible | Different power supply architecture |
Selection Guide
Use the following criteria to confirm the SAFT190APC is the correct part for your application:
- Step 1 — Identify your drive: Locate the drive nameplate and confirm the model is within the ACS 600 / SAFT 190 family.
- Step 2 — Locate the control board: Open the drive cabinet and identify the SAFT 190 control board. The power supply card slots into a dedicated connector on this board.
- Step 3 — Check the existing card label: The failed card should be labeled SAFT190APC or SAFT 190 APC. If the label shows a different suffix (e.g., APC-01, APC-02), note the full part number and contact us.
- Step 4 — Confirm hardware revision: Match the PCB revision number if possible to ensure pin and firmware compatibility.
- Step 5 — Order: Place your order via Konmask.com or contact support@konmask.com with your drive serial number for a pre-order compatibility check.
Quality Assurance & Sourcing
- Source: Genuine ABB stock and certified equivalent-grade units from authorized industrial distributors
- Testing: Each unit undergoes functional power-on testing and visual inspection before dispatch
- Packaging: Anti-static ESD packaging with foam cushioning for safe international shipping
- Warranty: 12-month warranty against manufacturing defects (see terms at Konmask.com)
- Lead Time: In-stock units ship within 1–3 business days; out-of-stock units sourced within 7–15 business days
How to Order
- Click Add to Cart on this page, or
- Email support@konmask.com with your drive model, serial number, and required quantity
- Our team will confirm compatibility, provide a formal quotation, and arrange shipping
- Payment via T/T bank transfer, PayPal, or other agreed methods
- Tracking number provided upon dispatch
Replacement & Compatibility FAQ
Q: Can I use SAFT188APC instead of SAFT190APC?
A: Possibly, but hardware revision and firmware compatibility must be verified. Contact us before substituting.
Q: Is this card repairable if damaged?
A: Component-level repair is possible for some failure modes. Contact us for a repair assessment if cost is a concern.
Q: Do you provide installation support?
A: Yes. Our technical team can provide installation guidance and commissioning checklists via email or video call.
Q: What is the lead time if out of stock?
A: Typically 7–15 business days for sourcing from our supplier network. We will confirm at time of order.
Q: Can I return the card if it does not fit?
A: Yes, within 30 days of receipt in original condition. See our returns policy at Konmask.com.
