Genuine ABB PM5650-2ETH Processor Module | AC500 Series – Verified Source

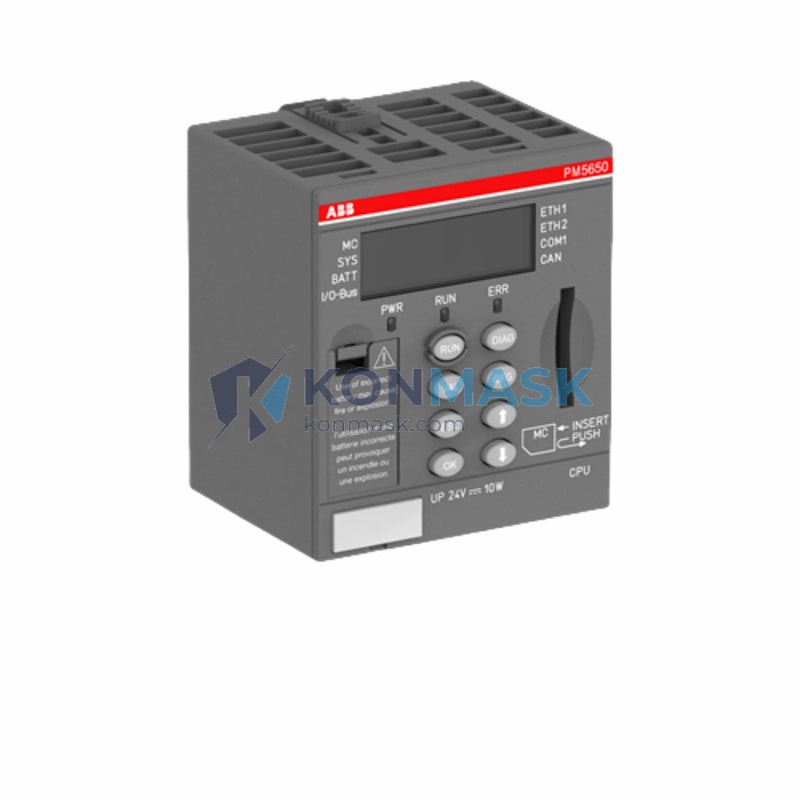

The ABB PM5650-2ETH (Part No. 1SAP141000R0278) is a high-performance CPU module from ABB’s flagship AC500 PLC platform, engineered for demanding industrial automation environments. Konmask.com supplies this module as a verified, authentic component — backed by our 4-step quality verification process and global sourcing network.
Designed for process control, machine automation, and infrastructure applications, the PM5650-2ETH delivers deterministic real-time performance with dual integrated Ethernet ports, enabling seamless PROFINET and Modbus TCP communication without additional interface cards.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model / Order Code | PM5650-2ETH |
| Part Number | 1SAP141000R0278 |
| Product Series | AC500 (V3) |
| Module Type | CPU / Processor Module |
| Ethernet Ports | 2 × RJ45 (integrated) |
| Supported Protocols | PROFINET IO, Modbus TCP, EtherNet/IP, OPC UA |
| Programming Standard | IEC 61131-3 (Automation Builder) |
| Memory | Up to 16 MB user program memory |
| I/O Expansion | Via S500 / S500-eCo I/O modules |
| Operating Temperature | -25°C to +60°C |
| Supply Voltage | 24 V DC |
| Protection Rating | IP20 |
| Certifications | CE, UL, cUL, ATEX (Zone 2) |
| Country of Origin | Germany |
| Weight | Approx. 4,460 g (with packaging) |
Our 4-Step Quality Verification Process
Every ABB PM5650-2ETH unit shipped from Konmask.com passes through a rigorous inspection protocol before dispatch:
- Step 1 — Source Authentication: Units are procured exclusively from ABB-authorized distributors or verified industrial surplus channels with traceable documentation.
- Step 2 — Physical Inspection: Housing integrity, label authenticity, connector condition, and firmware version are checked against ABB factory standards.
- Step 3 — Functional Bench Test: Where applicable, modules undergo power-on verification and communication port testing using ABB Automation Builder software.
- Step 4 — Packaging & Documentation: Units are repackaged with anti-static protection, and all available documentation (datasheets, certificates) is included.
Key Features & Benefits
- Dual integrated Ethernet ports eliminate the need for additional communication modules, reducing BOM cost and panel space
- IEC 61131-3 compliant programming via ABB Automation Builder — compatible with existing AC500 project libraries
- Wide operating temperature range (-25°C to +60°C) supports harsh industrial environments
- Scalable I/O architecture via S500 expansion modules — from compact to large-scale systems
- OPC UA support enables Industry 4.0 and IIoT integration without gateway hardware
- ATEX Zone 2 certification for use in potentially explosive atmospheres
- Hot-swap capable SD card slot for program backup and firmware updates
Typical Applications
- Water & wastewater treatment plant automation
- Oil & gas pipeline monitoring and control
- Power distribution and substation automation
- Pharmaceutical and food & beverage process control
- Building automation and HVAC systems
- Machine tool and packaging line control
- Renewable energy (wind/solar) plant management
Compatible System Components
- I/O Modules: ABB S500 series (AI, AO, DI, DO, mixed) — e.g. AI523, DO523, DC532
- Communication Modules: CM579-PNIO (PROFINET), CM577-ETH (Ethernet), CM572-DP (PROFIBUS)
- Power Supply: ABB CP600 series panel PCs; PS501 power supply units
- HMI: ABB CP600 / CP620 operator panels
- Software: ABB Automation Builder 2.x / 3.x (IEC 61131-3 IDE)
- Mounting: DIN rail TS35 (EN 60715)
Global Sourcing & Shipping Capabilities
Konmask.com maintains an active global procurement network for ABB AC500 components, including the PM5650-2ETH. We ship to over 80 countries with the following logistics options:
- Express Air Freight: DHL / FedEx / UPS — typical transit 3–7 business days worldwide
- Sea Freight: Available for bulk orders; transit varies by destination
- Export Documentation: Commercial invoice, packing list, certificate of origin provided as standard
- Customs Support: HS Code 8537.10 — we assist with customs declarations upon request
Certifications & Compliance Statement
- CE Marking: Compliant with EU Machinery Directive and EMC Directive
- UL / cUL Listed: North American safety certification
- ATEX: II 3 G Ex nA IIC T4 Gc (Zone 2 explosive atmosphere)
- IEC 61131-2: Programmable controller hardware standard
- RoHS Compliant: Restriction of Hazardous Substances Directive
All units supplied by Konmask.com are represented in their actual condition (new, refurbished, or tested-used) with full disclosure. We do not misrepresent product condition or origin.
How to Order
- Submit Inquiry: Email support@konmask.com or use the contact form with your required quantity and delivery timeline.
- Receive Quotation: Our technical sales team will respond within 24 hours with pricing, availability, and lead time.
- Confirm & Pay: We accept T/T bank transfer, PayPal, and major credit cards. Proforma invoice issued upon order confirmation.
- Inspection & Dispatch: Unit passes 4-step QC, then ships with full documentation and tracking number.
- After-Sales Support: 12-month warranty on verified units; technical support available via email and phone.
Authenticity & Trust FAQ
- Q: Are these units genuine ABB products?
- A: Yes. All PM5650-2ETH units are sourced from traceable supply chains. We provide documentation upon request and clearly disclose product condition (new/refurbished/tested).
- Q: Can you provide a certificate of conformity?
- A: We provide all available manufacturer documentation. For new units from authorized channels, CoC is included. For surplus units, we provide our own inspection report.
- Q: What if the module is DOA (Dead on Arrival)?
- A: We offer a full replacement or refund within 30 days of delivery for any unit that fails on arrival, subject to our returns policy.
- Q: Do you support firmware upgrades?
- A: Firmware updates are managed via ABB Automation Builder software. We can advise on compatible firmware versions for your application.
- Q: Can you source specific hardware revisions?
- A: We will do our best to match your required hardware revision. Please specify in your inquiry.
