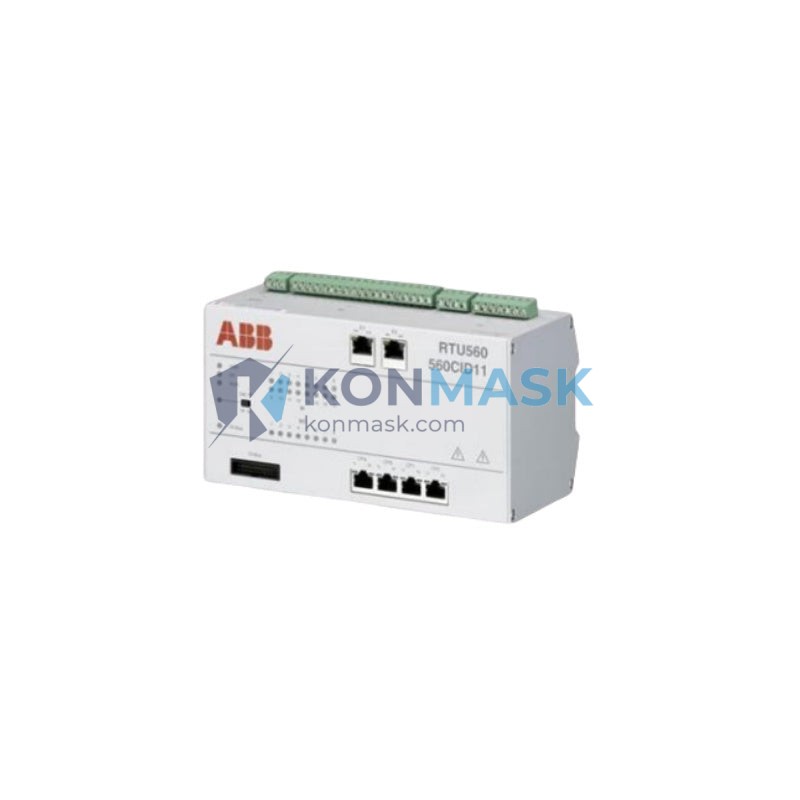

ABB 560CID11 (1KGT030400R0001) – AC500 S500 I/O Base Module | Communication Interface Platform
Engineering Background: The ABB 560CID11, part number 1KGT030400R0001, is a dedicated base module within ABB’s AC500 PLC platform, designed to serve as the physical and electrical foundation for S500 I/O expansion modules. It provides the mechanical mounting interface, backplane communication bus, and power distribution rail that enable modular I/O expansion in demanding industrial control architectures.
Product Positioning: Targeted at automation engineers and system integrators who require a reliable, OEM-certified base for building scalable S500 I/O stations. The 560CID11 is the preferred choice for new AC500 installations and legacy system expansions where verified ABB hardware compatibility is non-negotiable.
Complete Technical Specifications
- Manufacturer: ABB Ltd.
- Part Number / SKU: 560CID11 / 1KGT030400R0001
- Product Family: AC500 / S500 I/O
- Module Type: Base Module (Communication Interface)
- Mounting: DIN Rail (EN 60715 35 mm)
- Backplane Bus: S500 I/O internal communication bus
- Power Supply: Via AC500 CPU or dedicated S500 power module
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +70°C
- Relative Humidity: 5–95% (non-condensing)
- Protection Class: IP20
- Weight: Approx. 800 g
- Compliance: CE, UL, cUL, IEC 61131-2
- Country of Origin: Germany / EU
Proven Application Environments
- Process automation and DCS integration in oil & gas, chemical, and water treatment plants
- Machine automation for packaging, printing, and material handling lines
- Building automation and HVAC control systems
- Power distribution and energy management infrastructure
- Railway and transportation control panels
- Modular I/O expansion for existing AC500 CPU stations
Engineering Advantages
- Plug-and-Play Modularity: Snap-on DIN rail mounting with tool-free I/O module insertion reduces commissioning time.
- Robust Backplane Communication: High-speed internal bus ensures deterministic data exchange between CPU and I/O modules.
- Wide Temperature Range: Rated for -25°C to +60°C ambient, suitable for outdoor cabinets and harsh industrial environments.
- OEM Certified: Genuine ABB hardware with full traceability, CE/UL compliance, and IEC 61131-2 conformance.
- Scalable Architecture: Supports multi-station I/O expansion via PROFIBUS, PROFINET, EtherNet/IP, or Modbus TCP fieldbus adapters.
System Architecture & Signal Flow
The 560CID11 base module interfaces directly with the AC500 CPU module via the S500 backplane bus. I/O signal modules (digital input, digital output, analog input, analog output) are inserted into the base module slots. The CPU cyclically reads input data and writes output data across the backplane at the configured task cycle time. For remote I/O stations, a fieldbus coupler (e.g., CI501, CI502, CI504) replaces the CPU interface, enabling distributed I/O over PROFIBUS DP, PROFINET IO, or EtherNet/IP networks.
Sourcing & Quality Verification
- Origin: Sourced directly from ABB authorized distributors and certified secondary market channels.
- Inspection: Every unit undergoes visual inspection, label verification (part number, date code, country of origin), and functional continuity check prior to shipment.
- Packaging: Ships in original ABB anti-static packaging or equivalent ESD-safe packaging with foam protection.
- Documentation: Certificate of conformity and test report available upon request.
- Warranty: 12-month replacement warranty against manufacturing defects.
Procurement Process
- Confirm part number 560CID11 / 1KGT030400R0001 matches your BOM or existing station configuration.
- Contact support@konmask.com or call +0086 19859288691 for stock availability, lead time, and volume pricing.
- Submit purchase order with delivery address and preferred freight method (DHL, FedEx, sea freight).
- Receive proforma invoice; confirm payment via T/T, PayPal, or trade finance terms.
- Shipment dispatched within 1–3 business days of payment confirmation; tracking number provided.
Technical FAQ
Q: Is the 560CID11 compatible with all AC500 CPU variants?
A: Yes. The 560CID11 base module is compatible with the full AC500 CPU range (PM554, PM564, PM572, PM581, PM582, PM583, PM591, PM592) and all S500 I/O signal modules.
Q: Can I use the 560CID11 as a remote I/O station without a local CPU?
A: Yes, by pairing it with a fieldbus coupler module (CI501-PNIO, CI502-PNIO, CI504-PNIO, etc.), the base module can operate as a remote I/O station on PROFINET, PROFIBUS, or EtherNet/IP networks.
Q: What is the maximum number of I/O modules per base?
A: The S500 I/O system supports up to 10 signal modules per station (local or remote), depending on the CPU or coupler variant.
Q: Do you provide the ABB Automation Builder configuration file or GSD/GSDML file?
A: GSDML and GSD files are available for download from the ABB Library. We can assist with sourcing the correct firmware version upon request.
Q: What is the lead time for bulk orders (>10 units)?
A: Typical lead time for bulk orders is 5–15 business days depending on stock availability. Contact us for a dedicated quote.
