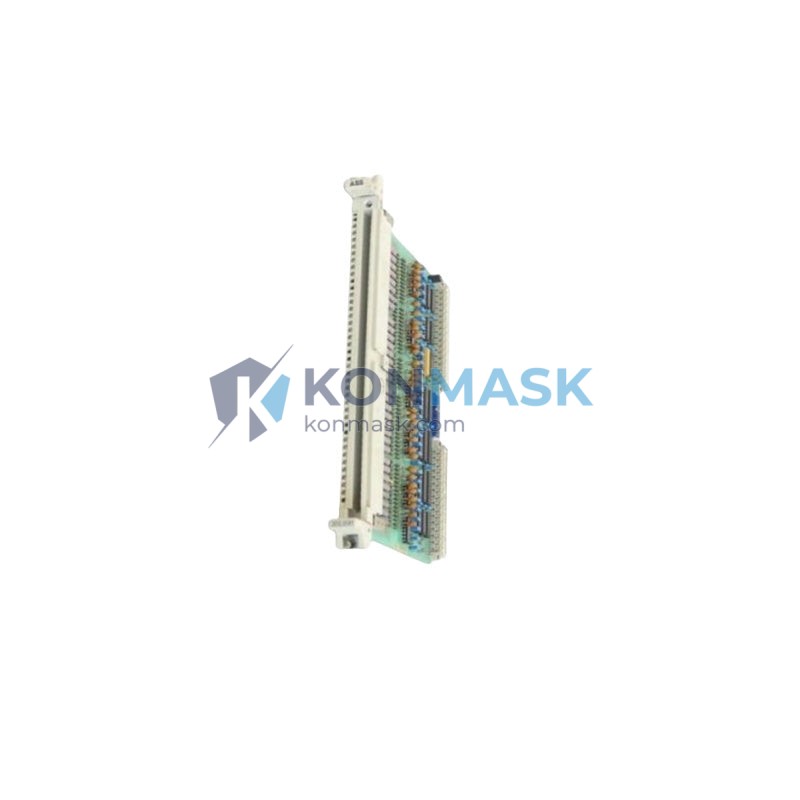

ABB GJR5143200R0001 Bus Coupler Unit | Replacement, Equivalent & Selection Guide
The ABB GJR5143200R0001 (also referenced as 3BSE091) is a Bus Coupler Unit designed for ABB’s Advant / AC 31 / S800 I/O automation platforms. It serves as the communication bridge between the fieldbus network and I/O modules, enabling reliable data exchange in distributed control architectures. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: GJR5143200R0001
- Cross Reference: 3BSE091 / ABBGJR5143200R0001
- Manufacturer: ABB
- Product Family: Advant / AC 31 / S800 I/O Series
- Module Type: Bus Coupler Unit
- Function: Fieldbus-to-I/O module communication interface
- Weight: 220 g (approx.)
- Mounting: DIN rail
- Operating Temperature: 0 °C to +55 °C (typical ABB S800 range)
- Communication Protocol: PROFIBUS-DP / Advant Fieldbus AF100 (verify with datasheet)
- Power Supply: 24 V DC (via backplane / bus)
- Certifications: CE, UL (refer to ABB official datasheet for current certifications)
Compatible Replacement & Equivalent Models
When the GJR5143200R0001 is discontinued, hard to source, or cost-prohibitive, the following models may serve as functional equivalents. Always verify electrical and firmware compatibility before substitution.
- ABB TB820V2 – ModuleBus Optical Bus Coupler (S800 I/O, PROFIBUS-DP), direct functional successor in many S800 topologies
- ABB TB840A – PROFIBUS-DP Bus Coupler for S800 I/O, supports redundant configurations
- ABB TB811 – S800 I/O Bus Coupler for Advant Fieldbus AF100
- ABB TB815 – S800 I/O Bus Coupler for PROFIBUS-DP (non-optical)
- ABB CI840A – PROFIBUS-DP Communication Interface for AC 800M (system-level upgrade path)
Note: Replacement suitability depends on firmware version, rack configuration, and fieldbus topology. Contact [email protected] for a compatibility assessment.
Why Choose the Original GJR5143200R0001
- Proven Reliability: Factory-tested ABB hardware with documented performance in live industrial environments.
- Drop-in Compatibility: No firmware reconfiguration required when replacing a like-for-like unit in existing racks.
- Warranty & Traceability: Genuine parts come with manufacturer traceability and support ABB’s service agreements.
- Reduced Commissioning Risk: Eliminates integration uncertainty associated with third-party alternatives.
Typical Applications
- Power generation and distribution substations
- Oil & gas upstream / downstream process control
- Pulp and paper mill automation
- Water and wastewater treatment plants
- Chemical and pharmaceutical batch processing
- Marine and offshore control systems
- Building automation and HVAC control panels
System Compatibility
- ABB Advant Controller AC 31 / AC 70 / AC 80
- ABB S800 I/O System (with appropriate bus coupler variant)
- ABB Freelance DCS (via PROFIBUS-DP gateway)
- ABB AC 800M (as legacy I/O extension with appropriate CI module)
- Third-party PROFIBUS-DP masters (Siemens S7, Schneider Modicon, etc.) — verify GSD file compatibility
Selection Guide
Use the criteria below to confirm the GJR5143200R0001 is the right choice, or to identify the best alternative:
- Step 1 – Identify your fieldbus protocol: AF100, PROFIBUS-DP, or Modbus? Match to the correct coupler variant.
- Step 2 – Check rack generation: S800 I/O racks require specific coupler models; confirm rack part number.
- Step 3 – Redundancy requirement: If redundant bus is needed, consider TB840A or TB820V2 instead.
- Step 4 – Optical vs. copper: Long-distance or noise-sensitive runs benefit from optical bus couplers (TB820V2).
- Step 5 – Firmware baseline: Confirm controller firmware supports the coupler’s GSD/EDS version before ordering.
Quality Assurance & Sourcing
- All units at Konmask.com are sourced from authorized distributors or verified surplus channels.
- Each module undergoes visual inspection and functional verification prior to dispatch.
- Anti-static packaging and shock-resistant shipping materials used as standard.
- Certificates of conformity and test reports available upon request.
- Refurbished / reconditioned units clearly labeled and priced separately from new stock.
How to Order
- Click Add to Cart or Buy Now on this page.
- For bulk orders (>5 units) or urgent requirements, email [email protected] for a dedicated quote.
- Lead time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days.
- Payment: T/T bank transfer, PayPal, credit card, and trade-term options (EXW / FOB Xiamen) available.
- Export documentation (commercial invoice, packing list, CO) provided for international shipments.
Replacement & Compatibility FAQ
Q: Can the GJR5143200R0001 be used with Siemens PROFIBUS masters?
A: Yes, provided the correct GSD file is loaded into the Siemens engineering tool (TIA Portal / STEP 7). Contact us for the GSD file.
Q: Is the TB820V2 a direct drop-in replacement?
A: The TB820V2 uses optical fiber connections and may require different cabling. It is functionally equivalent for PROFIBUS-DP but not physically identical. Rack slot compatibility must be verified.
Q: Do you supply refurbished units?
A: Yes. Refurbished units are tested, clearly labeled, and offered at a reduced price. Contact us for availability.
Q: What is the warranty on your stock?
A: New genuine units carry the standard ABB warranty. Konmask-verified surplus units carry a 90-day functional warranty.
Q: Can you help with system migration from AC 31 to AC 800M?
A: Yes. Our technical team can advise on migration paths, compatible I/O modules, and required communication interfaces.
