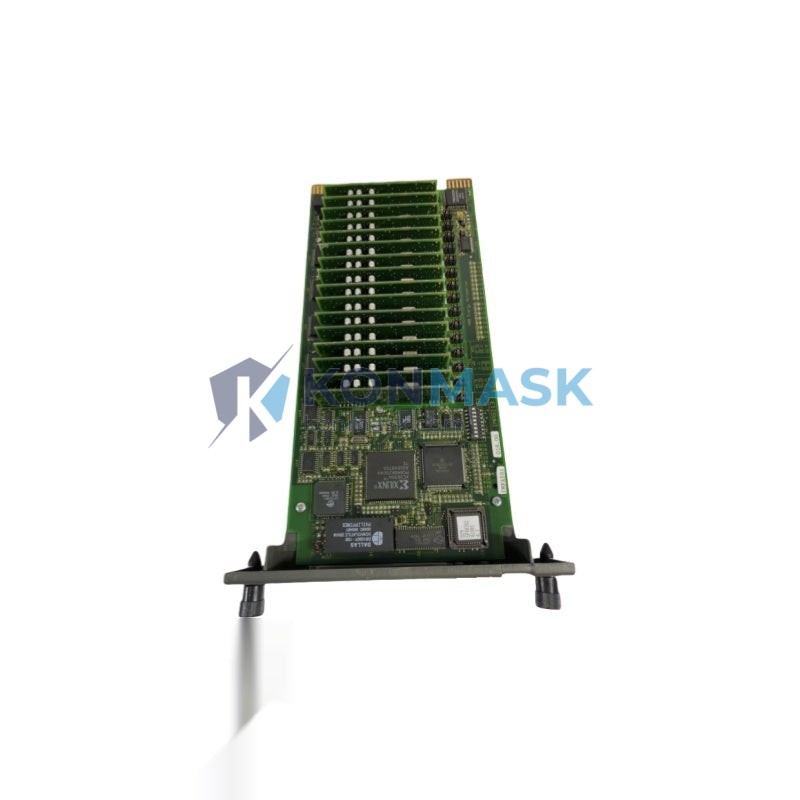

Analog Input Solution – ABB IMFAI01 | S800 I/O Series
The ABB IMFAI01 is an 8-channel analog input module engineered for the S800 I/O system, the distributed I/O backbone of ABB’s AC 800M process automation controller. Designed for continuous process industries, it delivers high-accuracy signal acquisition from field transmitters in demanding plant environments.
Where This Product Is Used
The IMFAI01 is specified across a wide range of process-critical applications where reliable analog signal acquisition is non-negotiable:
- Oil & Gas Upstream/Downstream: Flow, pressure, and temperature measurement on wellheads, separators, and pipeline SCADA systems.
- Chemical & Petrochemical Plants: Reactor temperature profiling, level monitoring in storage tanks, and feed-rate control loops.
- Power Generation: Boiler drum level, turbine inlet pressure, and generator cooling system monitoring via 4–20 mA transmitters.
- Pulp & Paper Mills: Consistency, pH, and flow measurement integrated into AC 800M-based DCS architectures.
- Water & Wastewater Treatment: Dissolved oxygen, turbidity, and flow inputs for SCADA-controlled treatment processes.
- Pharmaceutical Manufacturing: GMP-compliant process variable acquisition for validated batch control systems.
Technical Specifications
- Model: IMFAI01
- Part Number / SKU: IMFAI01
- Series: S800 I/O
- Compatible Controller: ABB AC 800M (PM851, PM856, PM860, PM861, PM864, PM866)
- Number of Channels: 8 analog input channels
- Signal Types: 4–20 mA (active/passive), 0–20 mA, HART protocol support
- Resolution: 16-bit
- Accuracy: ±0.1% of full scale
- Input Impedance: <250 Ω (current input)
- Isolation: Channel-to-bus isolation
- Power Supply: Via S800 I/O bus (no external power required)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: −40°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Protection Class: IP20
- Dimensions (W×H×D): Approx. 40 × 130 × 100 mm
- Weight: ~800 g (with MTU)
- Mounting: DIN rail via S800 I/O MTU (Module Termination Unit)
- Communication Bus: S800 I/O optical bus / Modulebus
Why Engineers Specify This Model
- HART Pass-Through: Enables asset management and diagnostics via ABB Asset Vision or third-party HART tools without additional hardware.
- Hot-Swap Capability: Modules can be replaced under power without shutting down the controller or adjacent channels — critical for continuous process plants.
- Redundancy Support: Compatible with redundant S800 I/O bus configurations for SIL-rated safety loops.
- Compact Footprint: 8 channels in a single slim module reduces cabinet space and wiring costs versus discrete I/O solutions.
- Proven Platform: S800 I/O has over 20 years of installed base in global process industries, ensuring long-term spare parts availability.
- Seamless AC 800M Integration: Native Modulebus communication eliminates gateway hardware and simplifies engineering in ABB 800xA / Symphony Plus environments.
Complete System Bill of Materials
A fully operational IMFAI01 installation typically requires the following components:
- IMFAI01 — Analog Input Module (this item)
- MTU (Module Termination Unit) — e.g., TU810V1 or TU812V1 for field wiring termination
- S800 I/O Bus Coupler — e.g., CI830 / CI840 for Modulebus or PROFIBUS DP connection
- AC 800M Controller — e.g., PM864A or PM866A
- S800 I/O Power Supply — e.g., SD821 / SD822
- DIN Rail & Cabinet Hardware — for panel mounting
- Field Transmitters — 4–20 mA / HART-compatible (customer-supplied)
Contact support@konmask.com for a complete BOM quotation tailored to your project.
Compliance & Industry Standards
- IEC 61131-2 — Programmable controllers: Equipment requirements and tests
- IEC 61511 — Functional safety for process industry sectors (SIL-capable configurations)
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- ATEX / IECEx — Suitable for use with certified barriers in Zone 1/2 hazardous areas (verify with project SIL assessment)
- RoHS Compliant — Restriction of Hazardous Substances Directive
- HART Communication Foundation — HART 5/6/7 compatible
Quality Assurance & Sourcing
At Konmask.com, every ABB module is sourced through verified industrial supply channels. Our quality process includes:
- Visual and dimensional inspection against ABB factory specifications
- Firmware version verification and label authenticity check
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator cards
- Full traceability documentation available on request
We supply both new-in-box (NIB) and factory-refurbished units. Condition is clearly stated on each listing. All units carry a 12-month warranty against manufacturing defects.
How to Source This Part
- In Stock: Order directly via this page for same-day or next-business-day dispatch.
- Lead Time Items: Contact us for ETA on high-volume or project orders.
- Urgent Requirements: WhatsApp / WeChat: +0086 19859288691 for expedited sourcing.
- Project Quotations: Email support@konmask.com with your full BOM for a consolidated quote.
- Export & International Shipping: We ship worldwide. DDP/DAP terms available for major markets.
Application-Specific FAQ
Q: Is the IMFAI01 compatible with the AC 800M PM864A controller?
A: Yes. The IMFAI01 is fully compatible with all AC 800M controller variants including PM851, PM856, PM860, PM861, PM864, PM864A, PM866, and PM866A via the S800 I/O Modulebus.
Q: Can I use IMFAI01 in a SIL 2 safety loop?
A: The S800 I/O platform supports SIL 2 configurations when used with appropriate redundancy and certified safety logic in ABB 800xA. Consult your functional safety engineer and the ABB SIL certificate documentation for your specific loop design.
Q: Does IMFAI01 support HART pass-through to the DCS?
A: Yes. HART communication is passed through to the AC 800M controller, enabling device diagnostics and parameterization via ABB Asset Vision or compatible HART masters.
Q: What MTU (termination unit) do I need?
A: The IMFAI01 requires a compatible S800 MTU. Common options are TU810V1 (non-isolated) and TU812V1 (isolated). Selection depends on your field wiring and isolation requirements.
Q: Can I hot-swap the IMFAI01 without process interruption?
A: Yes, the S800 I/O system supports hot-swap replacement. The controller will detect the new module and resume I/O scanning automatically, minimizing process downtime.
Q: Do you supply the MTU and bus coupler as well?
A: Yes. Contact us with your full requirements and we will provide a consolidated quote for all S800 I/O components.
