Industrial Robot Joint Solution – ABB IRB6700 Pinion RV-80 | 3HNA011788-001 / 3HAC057431-001 / 3HAC043074-001 / 3HAC043074-002
Where This Product Is Used
The ABB IRB6700 Pinion RV-80 is a precision joint-drive gear component installed in the axis gearbox assemblies of the ABB IRB6700 large-payload industrial robot series. It is specified by maintenance engineers and OEM integrators across the following application environments:
- Automotive Body-in-White (BIW) Welding Lines – Axis 1–3 gearbox replacement during scheduled overhaul on high-cycle spot-welding robots.
- Heavy Stamping & Press Tending – Restoring joint torque accuracy on IRB6700-235/2.65 and IRB6700-300/2.7 models after high-load fatigue cycles.
- Foundry & Die-Casting Cells – Replacement of worn pinion gears in harsh thermal and vibration environments.
- Palletizing & Material Handling – Maintaining repeatability (±0.05 mm) on high-throughput end-of-line palletizing stations.
- Aerospace Sub-Assembly – Precision joint restoration for drilling and fastening robots requiring tight angular accuracy.
- General MRO (Maintenance, Repair & Overhaul) – Drop-in replacement for field service teams performing gearbox rebuilds.
Technical Specifications

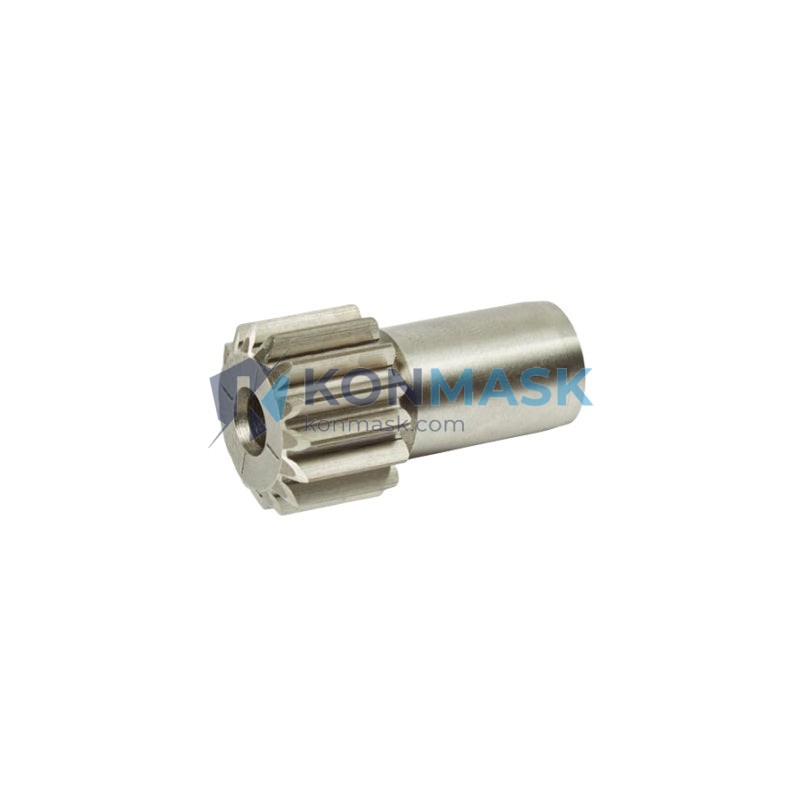

- OEM Part Numbers: 3HNA011788-001 | 3HAC057431-001 | 3HAC043074-001 | 3HAC043074-002
- Compatible Robot: ABB IRB6700 Series (all payload variants: 150 / 200 / 235 / 245 / 300 kg)
- Component Type: Pinion Gear – RV-80 Cycloidal Reducer Interface
- Gear Type: RV (Rotary Vector) Cycloidal Pinion
- Reducer Model Compatibility: Nabtesco RV-80 / RV-80E series
- Application Axis: Axis 1 / Axis 2 / Axis 3 (model-dependent)
- Material: Alloy steel, precision-ground tooth profile
- Weight: Approx. 600 g
- Condition: New / OEM-equivalent
Why Engineers Specify This Model
- Direct OEM Cross-Reference: Part numbers 3HNA011788-001 and 3HAC057431-001 are the primary ABB service references; 3HAC043074-001 / -002 are the superseded predecessor numbers — all are interchangeable in the field.
- Cycloidal Precision: The RV-80 pinion interfaces with the Nabtesco cycloidal reducer to deliver zero-backlash torque transmission, critical for maintaining robot TCP (Tool Center Point) accuracy over millions of cycles.
- Drop-In Fit: Manufactured to OEM dimensional tolerances — no shimming or custom fitting required during gearbox reassembly.
- Reduced Downtime: Stocking this pinion enables same-shift gearbox swap, avoiding multi-day lead times on emergency OEM orders.
- Broad Variant Coverage: A single SKU covers multiple IRB6700 payload configurations, simplifying spare-parts inventory management.
Complete System Bill of Materials
For a full IRB6700 axis gearbox overhaul, engineers typically source the following alongside this pinion:
- Nabtesco RV-80E Cycloidal Reducer Assembly
- ABB IRB6700 Axis Gearbox Housing (axis-specific)
- Input Shaft Bearing Set (axis-specific)
- Gearbox Sealing Kit (O-rings + shaft seal)
- ABB Robot Grease – LGEP 2 / Mobilux EP 2 (per ABB lubrication spec)
- Axis Motor Coupling / Flange (if replacing motor simultaneously)
Contact support@konmask.com for a complete BOM quote for your IRB6700 variant.
Compliance & Industry Standards
- Designed and manufactured to ABB Robotics OEM dimensional and material specifications
- Compatible with ISO 9283 robot performance and accuracy standards
- Suitable for use in CE-marked robot cells (EU Machinery Directive 2006/42/EC)
- RoHS-compliant materials (no restricted hazardous substances)
- Traceable batch documentation available upon request for aerospace and automotive Tier-1 customers
Quality Assurance & Sourcing
- Source: Sourced from authorized ABB spare-parts channels and verified OEM-equivalent manufacturers
- Inspection: Each unit undergoes dimensional verification of tooth profile, bore diameter, and surface finish prior to dispatch
- Packaging: Anti-corrosion wrap + rigid foam insert to prevent transit damage to precision gear teeth
- Warranty: 12-month warranty against manufacturing defects under normal operating conditions
- Documentation: Certificate of Conformance (CoC) and packing list included; material test reports available on request
How to Source This Part
- Add to Cart directly on this page for standard stock orders.
- Request a Quote for volume orders (5+ units) or multi-line BOM sourcing — email support@konmask.com.
- Urgent / Emergency Orders: Call or WhatsApp +0086 19859288691 for same-day shipping confirmation on in-stock units.
- Cross-Reference Check: If your maintenance record shows part number 3HAC043074-001 or 3HAC043074-002, this listing is the correct current replacement.
Application-Specific FAQ
Q: Is this pinion compatible with both the IRB6700-200/2.60 and IRB6700-300/2.7?
A: Yes. The RV-80 pinion is shared across the IRB6700 platform for the relevant axis positions. Always verify your robot’s axis configuration against the ABB spare-parts manual (document 3HAC043074) before installation.
Q: What is the expected service life of this pinion?
A: Under normal operating conditions and correct lubrication intervals (per ABB maintenance schedule), the RV-80 pinion typically achieves 20,000–40,000 operating hours before replacement is required.
Q: Can I replace only the pinion without replacing the full RV-80 reducer?
A: In many cases, yes — if the cycloidal reducer housing and output bearings are within tolerance. A qualified ABB-certified technician should assess reducer wear before deciding on a pinion-only vs. full reducer replacement.
Q: Do you supply the matching Nabtesco RV-80 reducer?
A: Yes. Contact us with your robot serial number and axis for a matched pinion + reducer bundle quote.
Q: What is the lead time for out-of-stock units?
A: Standard lead time is 3–7 business days for restocked units. Emergency sourcing typically 1–3 business days. Contact us for real-time availability.
