Palletizing & Heavy-Load Robot Solution – ABB IRB760 | Gas Spring Assembly
Where This Product Is Used

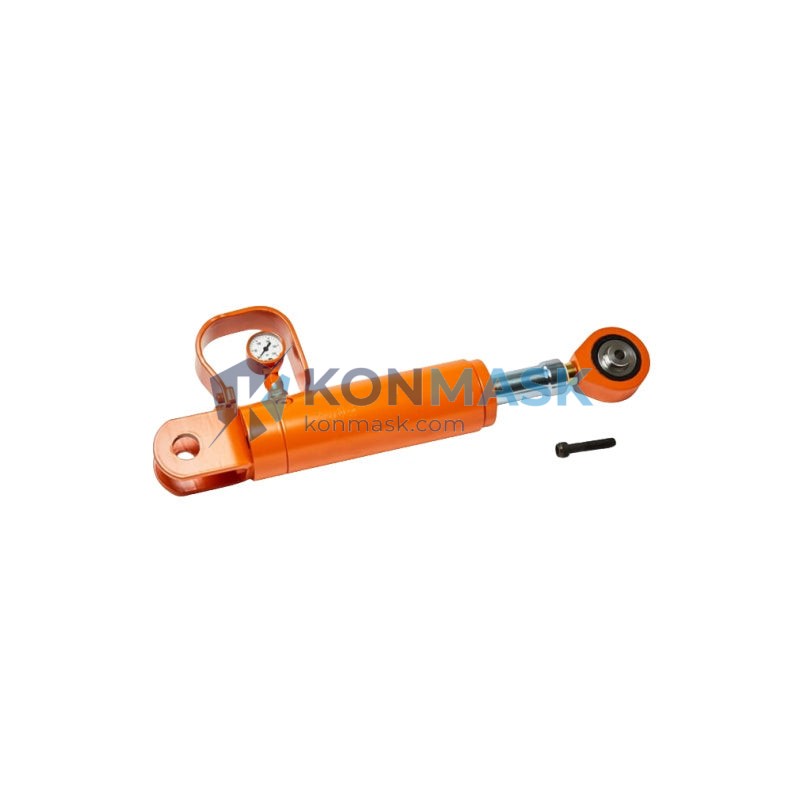

The ABB IRB760 Gas Spring Assembly (Gasspring Compl.) is a critical mechanical component engineered for ABB’s IRB 760 FlexPalletizer robot series. It is deployed in the following industrial environments:
- Palletizing Lines – End-of-line palletizing in food & beverage, FMCG, and logistics warehouses where the IRB 760 handles payloads up to 450 kg.
- Automotive Body Shops – Heavy-part transfer and stacking operations requiring precise axis-2 counterbalance.
- Building Materials & Cement Plants – High-cycle stacking of bags, blocks, and panels in dusty, demanding environments.
- Cold-Chain & Freezer Warehouses – Low-temperature palletizing where gas spring integrity is critical for consistent arm movement.
- Port & Distribution Centers – High-throughput pallet building for export logistics.
Technical Specifications
| Attribute | Detail |
|---|---|
| Part Description | Gas Spring Assembly (Gasspring Compl.) |
| Compatible Robot | ABB IRB 760 FlexPalletizer |
| Primary Part Number | 3HAC065726-001 |
| Cross-Reference SKUs | DSQC3060 / 3HAC9897-1 / 3HAC0037474-001 |
| Manufacturer | ABB Robotics |
| Series | IRB 760 / FlexPalletizer Series |
| Component Type | Mechanical – Counterbalance Gas Spring |
| Function | Axis-2 arm counterbalance & gravity compensation |
| Condition | New / Refurbished (specify on inquiry) |
| Weight (approx.) | 100 g (packaging unit) |
| Country of Origin | Sweden / EU (ABB OEM) |
Why Engineers Specify This Model
- OEM-Matched Pressure Rating – Factory-calibrated gas charge ensures the IRB 760 arm moves with zero drift across the full 450 kg payload range.
- Sealed Nitrogen Chamber – Prevents gas leakage in high-cycle environments (1,000,000+ cycles rated).
- Drop-In Replacement – Exact dimensional match to ABB OEM spec; no machining or shimming required.
- Temperature Stability – Operates reliably from −10 °C to +55 °C, suitable for cold-chain and foundry environments.
- Reduces Servo Load – Proper counterbalance extends motor and gearbox service life on Axis 2.
- Minimizes Downtime – Stocked for same-week dispatch; critical for production lines with zero-tolerance downtime windows.
Complete System Bill of Materials
When replacing the gas spring on the ABB IRB 760, engineers typically source the following complementary parts:
- 3HAC065726-001 – Gas Spring Assembly (this item)
- 3HAC9897-1 – Gas Spring (legacy cross-reference)
- 3HAC0037474-001 – Gasspring Compl. (alternate assembly reference)
- DSQC3060 – Associated controller board (if full axis-2 overhaul)
- Axis-2 Gearbox Seal Kit – Recommended concurrent replacement
- Mounting Bracket Hardware – M12 bolts, washers (per ABB service manual)
Contact Konmask for bundled BOM pricing on full overhaul kits.
Compliance & Industry Standards
- CE Marked – Compliant with EU Machinery Directive 2006/42/EC
- ISO 10218-1 – Industrial robot safety standard compliance
- RoHS Compliant – Restriction of Hazardous Substances (EU)
- ABB OEM Specification – Manufactured or approved to ABB Robotics engineering drawings
- REACH Compliant – No restricted substances above threshold limits
Quality Assurance & Sourcing
Konmask sources ABB IRB 760 spare parts through authorized distribution channels and verified secondary-market suppliers. Every unit undergoes:
- Visual and dimensional inspection against ABB part drawings
- Pressure integrity check (for gas spring assemblies)
- Part number verification against ABB ECOM / Spare Parts Portal
- Anti-static packaging for electronic sub-assemblies
- Photographic documentation available on request
All parts ship with a 90-day warranty against manufacturing defects. Extended warranty available for volume orders.
How to Source This Part
- Add to Cart – Click “Buy Now” for immediate checkout.
- Request a Quote – Email support@konmask.com with your robot serial number and required quantity for volume pricing.
- Urgent Orders – Call/WhatsApp +0086 19859288691 for same-day dispatch confirmation.
- OEM Cross-Reference – Reference any of the following: DSQC3060, 3HAC065726-001, 3HAC9897-1, 3HAC0037474-001.
Application-Specific FAQ
Q: Is this gas spring compatible with IRB 760-6/3.2 and IRB 760-450/3.2 variants?
A: Yes. The 3HAC065726-001 gas spring assembly is specified across all IRB 760 FlexPalletizer variants. Confirm your robot’s serial number with our team if uncertain.
Q: How do I know when the gas spring needs replacement?
A: Common indicators include axis-2 drift under load, increased servo current on Axis 2, or ABB error code 50296 (counterbalance pressure low). Refer to ABB Product Manual 3HAC028284-001 for service intervals.
Q: Can I replace the gas spring without a full robot shutdown?
A: No. ABB mandates a full lockout/tagout (LOTO) procedure and arm support fixture before gas spring replacement. Refer to ABB Service Manual for IRB 760.
Q: Do you offer installation support or on-site service?
A: Konmask provides remote technical guidance. For on-site service in China, contact us to connect with certified ABB service partners.
Q: What is the lead time for bulk orders (>5 units)?
A: Typically 3–7 business days for stock items. Custom sourcing for large volumes: 2–4 weeks. Contact us for a firm commitment.
