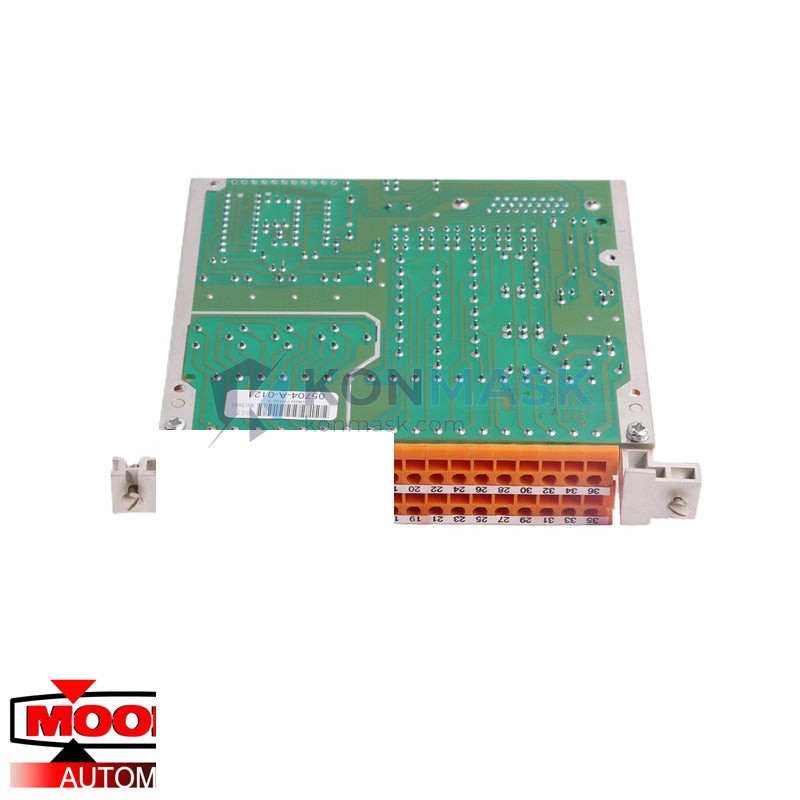

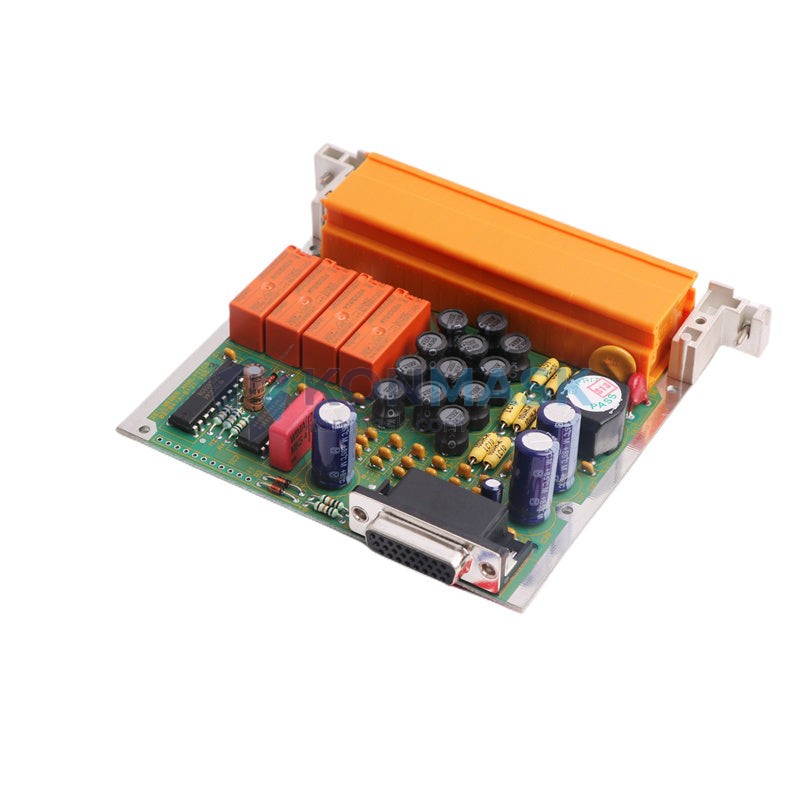

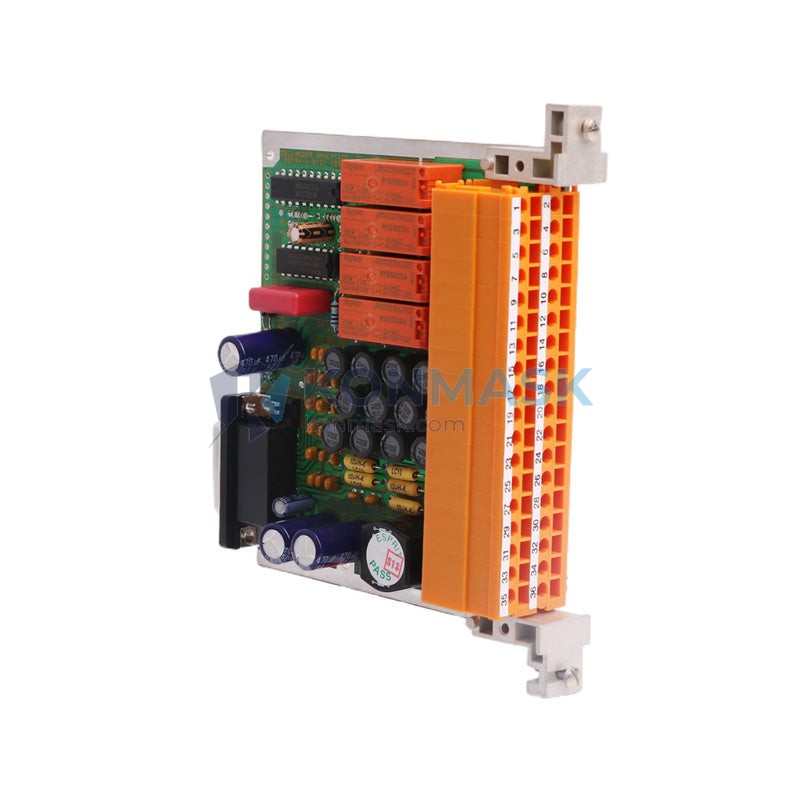

Honeywell 05704-A-0121 – Process Control PC Board | TDC 3000 / TotalPlant Series
Engineering Background: The Honeywell TDC 3000 (Total Distributed Control) platform has been a cornerstone of distributed control architecture in continuous-process industries since the 1980s. Deployed across refineries, power generation facilities, and large-scale water treatment plants worldwide, TDC 3000 remains operational in thousands of brownfield installations where replacement with a modern DCS is cost-prohibitive or operationally disruptive. The 05704-A-0121 is a printed circuit board assembly (PCBA) that serves as a functional sub-assembly within TDC 3000 controller or I/O chassis hardware, providing the logic, signal conditioning, or communication backbone required for sustained process loop control.
Product Positioning: Unlike generic replacement boards, the 05704-A-0121 is a Honeywell OEM-designed assembly with firmware and hardware revisions specific to TDC 3000 compatibility. It is not interchangeable with boards from the Experion PKS or PlantScape series without engineering validation. This part is the correct choice when the target system is a legacy TDC 3000 chassis requiring like-for-like board replacement to maintain system certification and avoid re-commissioning costs. It is not suitable as a standalone controller and must be installed within a compatible Honeywell TDC 3000 module housing.
Complete Technical Specifications
Electrical
- Part Number: 05704-A-0121
- Assembly Type: Printed Circuit Board Assembly (PCBA)
- Platform Compatibility: Honeywell TDC 3000 / TotalPlant Series
- Supply Voltage: Per host module specification (typically +5 VDC / ±15 VDC backplane)
- Signal Interface: Backplane bus via edge connector; signal type determined by host module function
- Logic Family: CMOS/TTL hybrid (generation-specific)
Mechanical
- Form Factor: Single-board PCB assembly for TDC 3000 module chassis
- Weight: Approx. 220 g (as listed)
- Connector Type: Card-edge / backplane pin header (OEM-specific)
- Mounting: Guided card-slot insertion within Honeywell TDC 3000 module enclosure
Environmental
- Operating Temperature: 0°C to +60°C (per TDC 3000 system specification)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration / Shock: Per IEC 60068-2 (system-level qualification)
Certifications
- Designed and manufactured under Honeywell’s ISO 9001-certified quality management system
- CE marking applicable to TDC 3000 system-level assembly
- UL/CSA recognition at system level
Data source: Honeywell TDC 3000 hardware documentation, OEM part records, and supplier technical references. Specifications subject to hardware revision; confirm with engineering datasheet prior to installation.
Proven Application Environments
- Petroleum Refining: Crude distillation unit (CDU) | Honeywell TDC 3000 DCS | Continuous 24/7 operation with high-temperature process loops requiring stable board-level logic
- Petrochemical Complex: Ethylene cracker control system | TDC 3000 controller chassis | High-cycle I/O scanning with redundant power backplane
- Thermal Power Generation: Boiler management system (BMS) | TDC 3000 process manager | Safety-critical loop control with SIL-rated interlock integration
- Water & Wastewater Treatment: Municipal SCADA-integrated DCS | TDC 3000 legacy installation | Long-lifecycle operation requiring OEM-compatible spare board inventory
- Pulp & Paper: Recovery boiler control | TDC 3000 multi-module chassis | High-humidity environment with corrosive gas exposure requiring conformal-coated PCBA
- LNG / Gas Processing: Compressor train control | TDC 3000 distributed I/O | Hazardous area installation with strict OEM part traceability requirements
Engineering Advantages
- For aging TDC 3000 installations facing board-level failures, this PC board enables like-for-like replacement without system re-engineering, because it preserves the original backplane signal mapping and firmware compatibility.
- For plants operating under change-management freeze policies, this OEM part number satisfies MOC (Management of Change) requirements, because it is a direct Honeywell-manufactured assembly with traceable part lineage.
- For procurement teams managing multi-site DCS spares, this board reduces cross-site inventory complexity, because a single part number covers multiple TDC 3000 module variants sharing the same PCBA sub-assembly.
- For maintenance engineers executing hot-standby switchovers, this board supports rapid field swap procedures, because the card-edge connector design allows guided insertion without calibration tools.
- For facilities in remote or offshore locations, this board’s compact form factor and robust packaging reduce logistics risk, because it ships as a single ESD-protected unit with full traceability documentation.
- For reliability engineers tracking MTBF targets, sourcing a verified surplus OEM board extends system life at a fraction of new-module cost, because the original Honeywell manufacturing process and component selection are preserved.
System Architecture & Signal Flow
Within the TDC 3000 architecture, the 05704-A-0121 PCBA is installed inside a module housing that interfaces with the Local Control Network (LCN) or the Universal Control Network (UCN) backplane. Signal flow follows the path: field instrument → I/O termination assembly → backplane bus → this PC board (logic/conditioning layer) → LCN/UCN communication → operator console. The board handles the intermediate processing layer between raw field signals and the network communication stack.
Compatible Modules / Assemblies: Compatible with Honeywell TDC 3000 module housings that accept the 05704-series PCBA form factor. Cross-reference with Honeywell part families 05701-x, 05702-x, and 05703-x for adjacent board positions within the same chassis. Compatibility with Experion PKS hardware requires engineering validation and is not assumed.
Substitution Conditions: Substitution with a different revision suffix (e.g., 05704-A-0122) requires confirmation of backward compatibility via Honeywell engineering bulletin or site-specific FAT documentation. Do not substitute without written engineering approval in SIL-rated loops.
Sourcing & Quality Verification
This part is sourced from verified surplus channels including decommissioned plant equipment, authorized distributor overstock, and OEM-certified refurbishment programs. All units undergo a structured incoming inspection before listing.
4-Step Inspection Process:
- Visual Inspection: Board examined for physical damage, corrosion, burnt components, cracked solder joints, and missing ICs under magnification.
- Part Number & Revision Verification: OEM silkscreen, label, and barcode cross-referenced against Honeywell part records to confirm authenticity and revision level.
- Functional Bench Test (where applicable): Board powered in a compatible test fixture to verify logic response and signal integrity at key test points.
- ESD Packaging & Documentation: Unit sealed in anti-static bag with desiccant, labeled with part number, revision, and inspection date.
Available Documentation: Certificate of conformance (CoC) | Inspection report | High-resolution photographs of actual unit | Honeywell OEM datasheet (where available) | Export compliance documentation (HS code, country of origin)
Procurement Process
- Submit Inquiry: Contact Konmask.com via the product page inquiry form or directly at [email protected] with your required quantity, delivery timeline, and any site-specific documentation requirements.
- Quotation & Stock Confirmation: A response with pricing, available stock condition, lead time, and documentation package will be provided within 24 hours on business days.
- Order & Shipment: Upon purchase order confirmation, the unit is prepared with full ESD packaging, inspection documentation, and shipped via tracked international freight. Technical support is available post-delivery for installation queries, compatibility confirmation, and warranty claims.
Technical Support Types Available: Pre-sale compatibility verification | Post-sale installation guidance | Cross-reference and substitution analysis | Documentation requests for site MOC packages
Technical FAQ
- Q: Is the 05704-A-0121 compatible with both LCN and UCN-based TDC 3000 configurations?
- A: Compatibility depends on the specific module housing in which the board is installed. The PCBA itself interfaces with the module backplane; whether that module connects to the LCN or UCN is determined by the host module type. Confirm the host module part number before ordering to ensure the correct board revision is supplied.
- Q: Can the 05704-A-0121 replace a 05704-A-0120 or 05704-A-0122 revision in the field?
- A: Revision-to-revision substitution within the 05704-A series may be permissible depending on the engineering change notice (ECN) history for that revision step. Minor revision increments are often backward compatible, but this must be confirmed against the site’s Honeywell system documentation or via a Honeywell technical support inquiry before installation in a safety-rated loop.
- Q: Does this board carry SIL certification, and can it be used in a SIL 2 safety loop?
- A: The 05704-A-0121 is an OEM Honeywell component designed for TDC 3000 process control applications. SIL certification is assessed at the system level, not the individual board level. Use in a SIL-rated safety instrumented function (SIF) requires validation of the complete safety loop architecture per IEC 61511. Consult the site’s functional safety engineer and Honeywell’s Safety Manual for TDC 3000 before deploying this board in a SIL 2 application.
