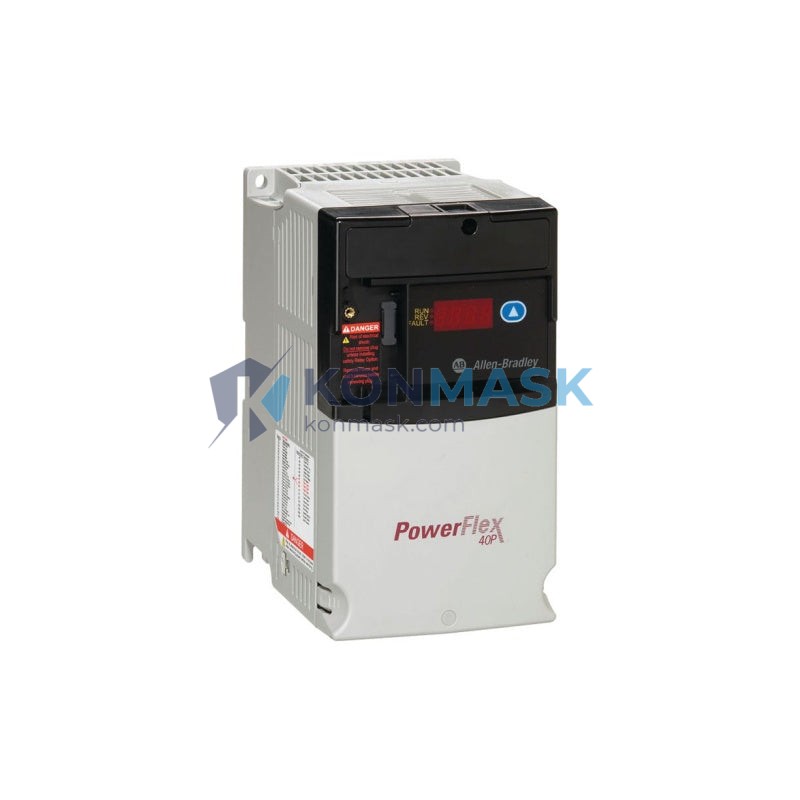

Allen-Bradley 22D-D012N104 – 5HP Variable Frequency AC Drive | PowerFlex 40P Platform
Engineering Background: The PowerFlex 40P is Rockwell Automation’s purpose-built AC drive for pump and fan applications requiring precise flow control, energy savings, and seamless integration with Allen-Bradley control architectures. Designed for demanding industrial environments, it delivers robust performance across HVAC, water treatment, and process industries worldwide.
Product Positioning: The 22D-D012N104 is a 5HP (3.7kW), 380–480V three-phase input drive with 12A output current rating. It occupies the mid-range of the PowerFlex 40P family, offering a balance of power density, feature richness, and cost-effectiveness for OEM machine builders and end-user retrofit projects alike.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 22D-D012N104 |
| Series | PowerFlex 40P |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Power Rating | 5 HP / 3.7 kW |
| Input Voltage | 380–480V AC, ±10% |
| Input Phases | 3-Phase |
| Input Frequency | 47–63 Hz |
| Output Current | 12.0 A (Normal Duty) |
| Output Frequency Range | 0–500 Hz |
| Control Method | V/Hz, Sensorless Vector (SVC) |
| Enclosure Rating | IP20 / NEMA Type 1 (Open) |
| Ambient Temperature | 0°C to +50°C (operating) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH, non-condensing |
| Altitude | Up to 1000m without derating |
| Communication Options | DSI port (RS-485); optional DeviceNet, EtherNet/IP via adapter |
| Digital Inputs | 6 programmable digital inputs |
| Analog Inputs | 2 × 0–10V / 4–20mA selectable |
| Relay Outputs | 2 × Form C relay outputs |
| Braking | Dynamic braking transistor built-in |
| Protection Features | Overcurrent, overvoltage, undervoltage, overtemperature, ground fault |
| Approvals | UL, cUL, CE, C-Tick |
| Weight | ~2.0 kg |
| Country of Origin | United States |
Proven Application Environments
- HVAC Systems: Variable-speed control of supply/return air fans, cooling tower fans, and chilled water pumps — delivering 30–50% energy savings vs. throttle control.
- Water & Wastewater: Booster pump stations, lift stations, and aeration blowers requiring precise pressure/flow regulation with PID feedback.
- Food & Beverage Processing: Conveyor drives, mixer drives, and packaging line motors where hygienic operation and repeatable speed control are critical.
- OEM Machine Building: Integrated into custom machinery where compact footprint, DSI communication, and Allen-Bradley ecosystem compatibility are required.
- General Industrial: Compressors, agitators, extruders, and material handling equipment across manufacturing plants.
Engineering Advantages
- Pump & Fan Optimized: Built-in PID controller with sleep/wake function eliminates external PLC logic for simple pressure/flow loops.
- Sensorless Vector Control: Delivers ±0.5% speed regulation without encoder feedback — ideal for retrofit applications.
- DSI Communication: Native RS-485 DSI port enables daisy-chain networking with PanelView terminals and MicroLogix/CompactLogix PLCs.
- Compact Footprint: Panel-mount design with minimal depth — fits standard 300mm deep enclosures without modification.
- Built-in Dynamic Braking Transistor: Supports external braking resistor for fast deceleration without additional hardware.
- Rockwell Ecosystem Integration: Fully compatible with Studio 5000, RSLogix 500, and Connected Components Workbench for unified programming.
System Architecture & Signal Flow
The 22D-D012N104 accepts 3-phase 380–480V AC input, rectifies to DC bus, then inverts via IGBT switching at programmable carrier frequency (2–16 kHz) to produce variable-voltage, variable-frequency output. The DSI serial port connects upstream to a PLC or HMI for speed reference and status feedback. Analog input 1 typically carries the process variable (e.g., pressure transducer 4–20mA); the internal PID computes the error and adjusts output frequency to maintain setpoint. Digital inputs handle start/stop, direction, and preset speed selection. Relay outputs signal run status and fault conditions to the supervisory control system.
Sourcing & Quality Verification
Konmask.com sources Allen-Bradley drives through authorized distribution channels and verified secondary-market suppliers with documented chain of custody. Every unit undergoes our 4-step verification protocol before shipment:
- Visual Inspection: Label authenticity, catalog number verification, housing integrity, and connector condition checked against OEM reference standards.
- Firmware & Parameter Read: Drive is powered and parameters read via DSI to confirm firmware version and factory defaults — counterfeit units typically fail at this stage.
- Functional Power Test: No-load output voltage and frequency sweep performed; all protection trips verified at correct thresholds.
- Documentation Package: Serial number, firmware version, and test results recorded and provided with shipment on request.
Procurement Process
- Submit Inquiry: Email support@konmask.com or call +0086 19859288691 with your catalog number, quantity, and required delivery date.
- Receive Quotation: We respond within 1 business day with pricing, lead time, and available stock confirmation.
- Order Confirmation: Purchase order or proforma invoice issued; payment terms discussed (T/T, L/C, or trade assurance).
- Quality Check & Dispatch: Unit verified per 4-step protocol, packed in anti-static foam, and shipped via DHL / FedEx / UPS with tracking number provided.
- After-Sales Support: Technical assistance available for installation, parameter setup, and troubleshooting via email or video call.
Technical FAQ
Q: Is the 22D-D012N104 compatible with single-phase input?
A: No. This catalog number requires 3-phase 380–480V input. For single-phase applications, refer to the PowerFlex 40 (22B) series.
Q: Can I use this drive with a 460V motor rated for 60Hz in a 50Hz country?
A: Yes. Program the base frequency to 60Hz and the drive will maintain correct V/Hz ratio for the motor’s nameplate ratings.
Q: What communication adapter is needed for EtherNet/IP?
A: The 22-COMM-E adapter module connects to the DSI port and provides full EtherNet/IP connectivity for integration with ControlLogix/CompactLogix systems.
Q: Is a line reactor recommended?
A: Yes, for installations with high line impedance variation or where IEEE 519 harmonic compliance is required, a 3% impedance line reactor on the input is recommended.
Q: What is the warranty on units supplied by Konmask?
A: We offer a 12-month warranty against defects in materials and workmanship from date of shipment, with advance replacement available for critical applications.
