Drive Control & Process Automation Solution — ABB HIEE400109R1 | CSA465 AE01 Logic Module
Where This Product Is Used

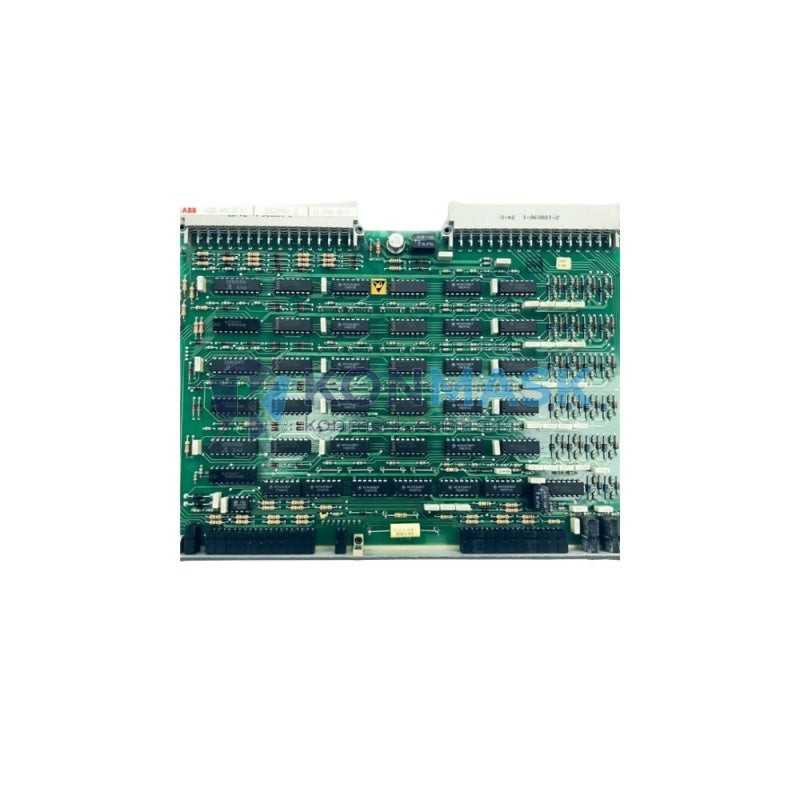

The ABB HIEE400109R1 (CSA465 AE01) Logic Module is a core control board deployed in ABB’s AC drive and DCS automation platforms. It is specified by control engineers and system integrators across the following industrial environments:
- Oil & Gas: Pump and compressor drive control in upstream and midstream facilities
- Power Generation: Turbine auxiliary drive systems and excitation control panels
- Pulp & Paper / Metals: Line-speed regulation and tension control in continuous process lines
- Water & Wastewater: Variable-speed pump stations requiring precise flow management
- Marine & Offshore: Thruster and winch drive control in harsh environments
- Chemical & Petrochemical: Hazardous-area drive panels with SIL-rated control loops
- Mining: Conveyor, hoist, and crusher drive systems demanding high-reliability logic control
Technical Specifications
| Manufacturer | ABB |
| Part Number | HIEE400109R1 |
| Module Designation | CSA465 AE01 |
| Module Type | Logic / Control Board |
| Platform Compatibility | ABB ACS / DCS / Drive Control Systems |
| Weight | 1,050 g (approx.) |
| Vendor SKU | HIEE400109R1 |
| Condition | New / Surplus / Refurbished (specify on inquiry) |
| Lead Time | Contact for availability |
Why Engineers Specify This Model
- Platform-native logic execution: Designed specifically for ABB drive architectures, ensuring deterministic scan times and seamless firmware compatibility
- Drop-in replacement: Maintains original I/O mapping and parameter sets — minimises commissioning time during maintenance shutdowns
- Proven field reliability: Widely deployed in critical process industries where unplanned downtime carries significant operational cost
- Long product lifecycle: ABB’s industrial automation modules are supported with extended spare-parts availability, reducing obsolescence risk
- Compact form factor: Board-level module integrates directly into existing drive cabinets without mechanical modification
Complete System Bill of Materials
The HIEE400109R1 is typically specified alongside the following ABB components for a complete drive control system:
- ABB ACS800 / ACS880 Series AC Drive (main power unit)
- RDCO-03 / RDCO-04 Communication Adapter (DDCS / optical fiber link)
- RINT-5611C / RINT-5514C Rectifier Control Board
- NAMC-11 / NAMC-51 Application Control Module
- RMIO-11C / RMIO-02C Motor Control Board
- RDIO-01C Digital I/O Extension Module
- RAIO-01C Analogue I/O Extension Module
- Panel-mount HMI (ACS-CP-D or equivalent)
Contact Konmask for bundle pricing and cross-reference verification for your specific drive series.
Compliance & Industry Standards
- Manufactured under ABB’s ISO 9001-certified quality management system
- Designed to comply with IEC 61800 (Adjustable Speed Electrical Power Drive Systems)
- Compatible with installations governed by IEC 61511 / IEC 61508 functional safety frameworks
- CE marking applicable for EU market deployments
- RoHS-compliant materials (verify revision with ABB documentation for specific batch)
Quality Assurance & Sourcing
- Traceability: All units sourced with verifiable supply-chain documentation; counterfeit-risk screening applied
- Inspection: Visual and functional pre-shipment inspection available on request
- Packaging: ESD-safe anti-static packaging; original ABB carton where available
- Warranty: 12-month limited warranty against manufacturing defects (terms apply)
- Condition grading: New, Surplus-New, or Tested-Refurbished — stated explicitly on invoice
How to Source This Part
- Submit an RFQ: Email support@konmask.com with your required quantity, condition preference, and delivery timeline
- Receive a quotation: We respond within 1 business day with pricing, lead time, and stock confirmation
- Order confirmation: Purchase order accepted via email; proforma invoice issued for payment processing
- Shipment: DHL / FedEx / sea freight options available; export documentation provided for international orders
- After-sales support: Technical cross-reference and installation guidance available from our engineering team
Application-Specific FAQ
Q: Is HIEE400109R1 compatible with all ACS800 variants?
A: Compatibility depends on the drive firmware version and hardware revision. Please provide your drive nameplate data when submitting an RFQ so we can confirm fitment.
Q: Can this module be used as a direct replacement for an older CSA465 revision?
A: In most cases yes, but revision-level differences may affect parameter defaults. Our team can advise on any required parameter backup and restore procedures.
Q: Do you supply the module with a test report?
A: Functional test reports are available for refurbished units. New and surplus-new units ship with ABB factory documentation where available.
Q: What is the typical lead time for this part?
A: Stock availability varies. Contact us for a real-time availability check — we maintain relationships with authorised distributors and surplus inventory networks globally.
Q: Can Konmask assist with on-site installation or commissioning?
A: We provide remote technical support. For on-site commissioning, we can refer you to certified ABB service partners in your region.
