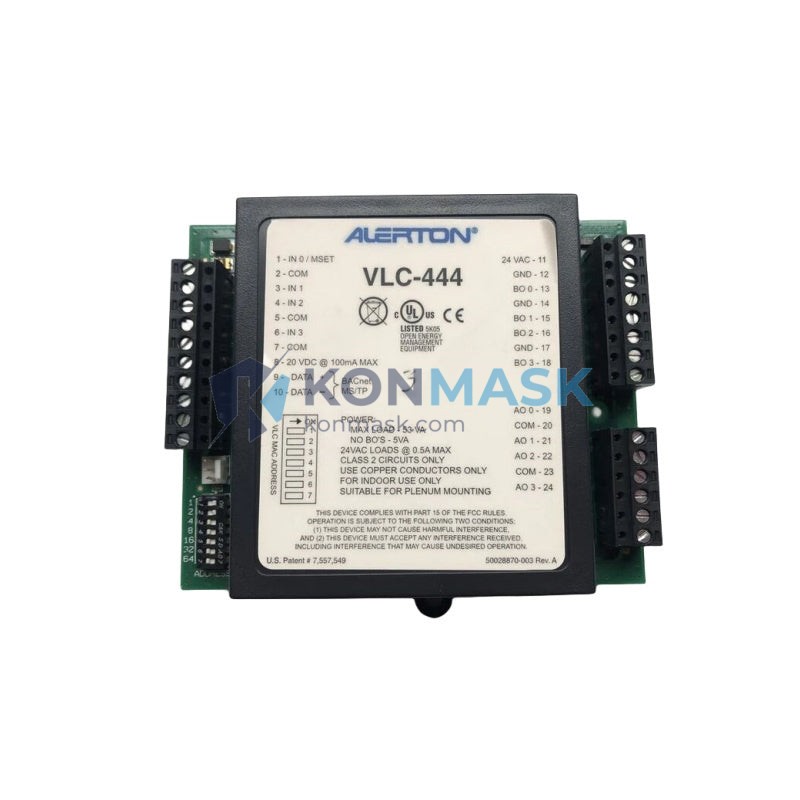

ALERTON VLC-444 Field Controller | Replacement, Equivalent & Selection Guide
The ALERTON VLC-444 is a high-performance Variable Air Volume (VAV) / general-purpose field controller designed for building automation systems (BAS). Engineered for precision HVAC control, it integrates seamlessly into Alerton’s Envision and IBEX platforms via BACnet MS/TP, making it a trusted choice for commercial and institutional facilities worldwide. Whether you are sourcing an original unit, seeking a compatible replacement, or evaluating equivalent alternatives, this guide provides the technical depth and selection criteria you need.
Technical Specifications
- Model: VLC-444
- Manufacturer: Alerton (Honeywell Building Technologies)
- Controller Type: Programmable Field Controller (VAV / General Purpose)
- Communication Protocol: BACnet MS/TP (EIA-485)
- Universal Inputs: 4 (configurable: 0–10 VDC, 4–20 mA, thermistor, dry contact)
- Binary Inputs: 4
- Analog Outputs: 4 (0–10 VDC)
- Binary Outputs: 4 (triac / relay)
- Power Supply: 24 VAC, 50/60 Hz
- Power Consumption: ≤ 10 VA
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Storage Temperature: −40 °C to 70 °C
- Humidity: 10–90% RH, non-condensing
- Enclosure: DIN-rail or panel mount
- Certifications: CE, UL 916, FCC Part 15 Class B
- Firmware: Field-upgradeable via Alerton Envision / IBEX tools
Compatible Replacement & Equivalent Models
When the VLC-444 is discontinued, obsolete, or unavailable, the following models are commonly evaluated as replacements. Always verify I/O count, protocol version, and firmware compatibility before substitution.
- Alerton VLC-454 — Direct successor with expanded I/O (4UI / 4BI / 4AO / 4BO + 2 additional UIs); drop-in BACnet MS/TP replacement for most applications.
- Alerton VLC-Pro — Higher-end programmable controller; suitable when additional processing power or Ethernet connectivity is required.
- Honeywell Excel 10 W7751 — Honeywell-branded equivalent for BACnet VAV control; compatible with Alerton-integrated Honeywell BAS environments.
- Siemens PXC3.E72 — BACnet/IP field controller; requires protocol gateway if replacing in pure MS/TP topology.
- Johnson Controls FX-PCV1 — VAV controller with BACnet MS/TP; comparable I/O profile, requires Metasys integration for full feature parity.
- Distech Controls ECB-VAV — BACnet MS/TP VAV controller; widely used as a third-party replacement in Alerton-based systems.
Note: Third-party replacements may require re-programming and re-commissioning. Contact Konmask for sourcing and compatibility assessment.
Why Choose the Original Model
- Native Alerton Integration: Plug-and-play with Envision and IBEX supervisory platforms — no gateway or protocol translation required.
- Proven Field Reliability: Deployed in thousands of commercial buildings; extensive field history in HVAC, VAV, and AHU control loops.
- Firmware Ecosystem: Supports Alerton’s proprietary programming environment for advanced sequence-of-operations without third-party tools.
- Warranty & Support: Genuine units sourced through authorized channels carry manufacturer warranty and access to Alerton technical support.
- Lowest Commissioning Risk: Identical hardware profile eliminates re-wiring, re-addressing, and re-programming costs associated with cross-brand substitution.
Typical Applications
- Variable Air Volume (VAV) terminal unit control
- Air Handling Unit (AHU) supply air temperature and pressure control
- Fan coil unit (FCU) control in commercial office buildings
- Chilled water and hot water valve modulation
- Exhaust fan and damper sequencing
- Institutional facilities: hospitals, universities, government buildings
- Retrofit and modernization of legacy pneumatic control systems
System Compatibility
- Supervisory Platforms: Alerton Envision for BACtalk, Alerton IBEX
- Network Topology: BACnet MS/TP (EIA-485), up to 76.8 kbps
- Integration: Compatible with BACnet/IP routers for Ethernet backbone integration
- Programming Tools: Alerton Envision Engineering Tool, BACtalk Programming Environment
- Interoperability: BACnet PICS compliant; interoperable with third-party BACnet devices
- Sensor Compatibility: Alerton room sensors, CO₂ sensors, and third-party 0–10 V / 4–20 mA transmitters
Selection Guide
Use the following criteria to determine whether the VLC-444 is the right controller for your project:
- I/O Requirements: Confirm your application requires ≤ 4UI + 4BI + 4AO + 4BO. If more I/O is needed, consider the VLC-454 or VLC-Pro.
- Protocol: Verify your BAS backbone uses BACnet MS/TP. For BACnet/IP-only networks, a router or upgraded model is required.
- Existing Platform: If the site runs Alerton Envision or IBEX, the VLC-444 is the lowest-risk choice. For Metasys or EBI sites, evaluate Johnson Controls or Honeywell equivalents.
- Application Type: VAV terminal units → VLC-444 is purpose-built. Complex AHU sequences with many I/O points → consider VLC-Pro or a modular controller.
- Budget vs. Risk: Genuine VLC-444 units minimize commissioning cost. Third-party equivalents may reduce hardware cost but increase engineering and labor cost.
- Availability: If VLC-444 is on extended lead time, Konmask maintains stock of both genuine and vetted equivalent units — contact us for availability.
Quality Assurance & Sourcing
- Genuine Units: Sourced from authorized Alerton distributors and verified supply chains. Each unit includes original packaging, documentation, and firmware version confirmation.
- Refurbished / Tested Units: Fully tested to factory specifications; includes 90-day functional warranty. Ideal for budget-sensitive retrofit projects.
- Inspection: All units undergo visual inspection, power-on test, and I/O verification prior to shipment.
- Documentation: Datasheet, wiring diagram, and firmware version provided with every order.
- Export Compliance: Units shipped with proper HS code classification and export documentation for international orders.
How to Order
- Step 1: Confirm the exact model number (VLC-444) and firmware version required from your existing system documentation or Alerton project engineer.
- Step 2: Add to cart and proceed to checkout, or contact us directly for bulk pricing, lead time, and availability confirmation.
- Step 3: Provide your shipping address and preferred freight method. We support DHL, FedEx, UPS, and sea freight for large orders.
- Step 4: Receive order confirmation with tracking number within 1 business day of payment clearance.
- Bulk / Project Orders: Email support@konmask.com with quantity, delivery timeline, and project details for a dedicated quotation.
Replacement & Compatibility FAQ
Q: Can I replace a VLC-444 with a VLC-454 without re-programming?
A: In most cases, yes — the VLC-454 is backward-compatible with VLC-444 programs. However, the additional I/O points on the VLC-454 must be mapped correctly. A brief re-commissioning check is recommended.
Q: Is the VLC-444 still in production?
A: The VLC-444 has been superseded by newer Alerton models. Konmask maintains stock of genuine and refurbished units. Contact us for current availability.
Q: Can a third-party BACnet controller replace the VLC-444 in an Alerton system?
A: Yes, any BACnet MS/TP compliant controller can communicate on the same network. However, Alerton-specific programming sequences must be re-created in the third-party tool, which requires engineering effort.
Q: What is the warranty on units purchased from Konmask?
A: Genuine units carry the manufacturer’s standard warranty. Refurbished/tested units carry a 90-day functional warranty from Konmask.
Q: Do you provide installation support?
A: We provide technical documentation and wiring diagrams. For on-site commissioning support, we can refer you to certified Alerton integrators in your region.
