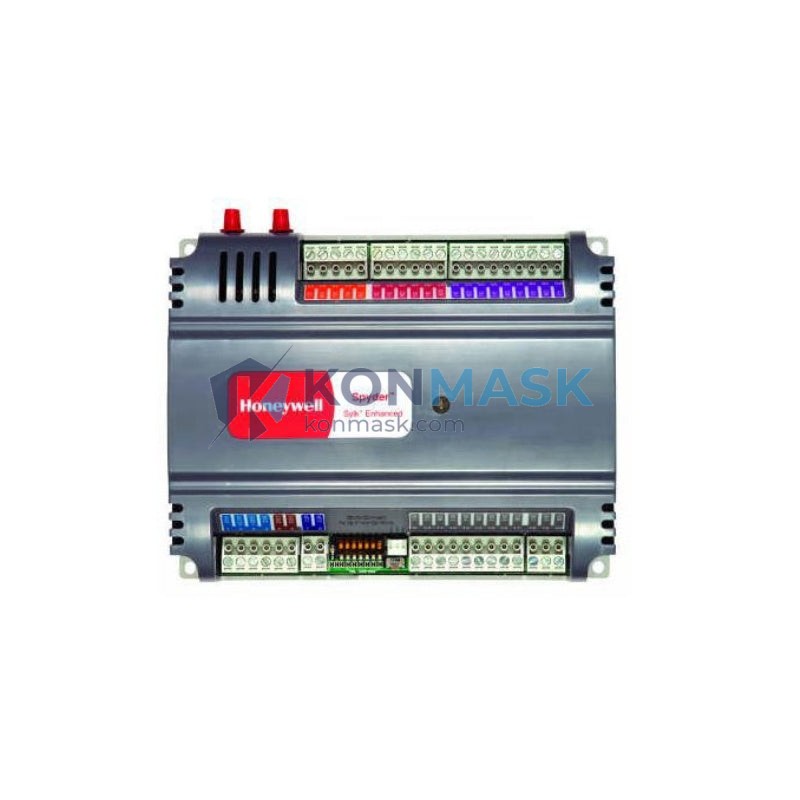

Honeywell PVL6438N – Programmable VAV Controller | Spyder™ DDC Platform
Engineering Background: Variable Air Volume (VAV) systems are the backbone of energy-efficient climate control in commercial buildings. Precise zone-level control demands a controller that combines flexible I/O, open-protocol communication, and field-programmable logic — exactly what the Honeywell PVL6438N delivers within the proven Spyder™ DDC controller family.
Product Positioning: The PVL6438N is a standalone, fully programmable VAV controller designed for single-duct, fan-powered, and parallel fan-powered VAV terminal units. It communicates natively over BACnet MS/TP, integrates with Honeywell’s WEBs-AX and NIAGARA 4 supervisory platforms, and is field-configured via the Spyder Tool software — making it the preferred choice for mechanical contractors and controls engineers specifying open, scalable building automation systems.
Complete Technical Specifications
| Part Number | PVL6438N |
| Manufacturer | Honeywell Building Technologies |
| Series / Platform | Spyder™ Programmable DDC Controllers |
| Controller Type | Programmable VAV Terminal Unit Controller |
| Communication Protocol | BACnet MS/TP (EIA-485) |
| Universal Inputs (UI) | 4 × Universal Inputs (0–10 V DC, 4–20 mA, thermistor, dry contact) |
| Binary Outputs (BO) | 4 × Triac Binary Outputs (24 VAC, 0.5 A max each) |
| Analog Outputs (AO) | 2 × Analog Outputs (0–10 V DC) |
| Power Supply | 24 VAC ±15%, 50/60 Hz, Class 2 |
| Power Consumption | ≤ 10 VA |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | –40 °C to 70 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Enclosure / Mounting | DIN rail or surface mount, IP20 |
| Dimensions (W × H × D) | Approx. 155 × 110 × 55 mm |
| Weight | 220 g |
| Programming Tool | Honeywell Spyder Tool (PC-based, free download) |
| Supervisory Integration | WEBs-AX, NIAGARA 4 / Tridium |
| Certifications | CE, UL 916, FCC Part 15 Class B, BACnet BTL Listed |
| Country of Origin | USA / Mexico (Honeywell manufacturing) |
Proven Application Environments
- Single-Duct VAV Boxes — Pressure-independent airflow control with integrated flow sensor input; maintains zone setpoint regardless of duct static pressure variation.
- Series Fan-Powered VAV (FPVAV) — Controls primary damper + ECM fan speed via AO; maintains minimum ventilation during low-load periods.
- Parallel Fan-Powered VAV — Sequences primary damper and parallel fan; binary outputs drive fan contactor and electric reheat stages.
- Electric Reheat VAV — Up to 4 stages of electric reheat via triac binary outputs; sequenced with damper position for energy-optimal heating.
- Hot Water Reheat VAV — Analog output modulates 2-way or 3-way HW valve; coordinated with damper for simultaneous heating/cooling deadband control.
- Dual-Duct VAV — Dual damper control using both AOs; mixed-air temperature calculation via UI inputs.
- Laboratory / Critical Environment VAV — High-accuracy pressure-independent control for fume hood exhaust and supply tracking in BSL-2/BSL-3 labs.
- Retail & Commercial Office Fit-Outs — Rapid commissioning via Spyder Tool; BACnet integration to building-wide BMS without proprietary gateways.
Engineering Advantages
- Open Protocol Native: BACnet MS/TP BTL-listed — no proprietary drivers, no gateway cost, direct integration to any BACnet-compliant BMS or SCADA.
- Flexible Universal Inputs: Each UI auto-detects signal type (voltage, current, resistance, digital) — reduces wiring errors and supports mixed sensor types on a single controller.
- Pressure-Independent Control Algorithm: Built-in PI/PID loop with airflow linearization; compensates for duct static pressure fluctuations without external flow controller hardware.
- Free Programming Environment: Spyder Tool provides drag-and-drop logic blocks, pre-built VAV application templates, and one-click download — cuts commissioning time by up to 40% vs. custom-coded controllers.
- Scalable Network Architecture: Up to 127 nodes per MS/TP segment; daisy-chain wiring with end-of-line termination — minimizes field wiring cost in large multi-zone projects.
- Supervisory Platform Agnostic: Native Niagara 4 driver available; also integrates with third-party JACE, Distech, and Schneider EcoStruxure via standard BACnet objects.
- Compact Form Factor: DIN rail mount fits inside standard VAV box control enclosures; no additional panel space required.
System Architecture & Signal Flow
The PVL6438N sits at the field device layer of a three-tier BAS architecture:
- Sensor Layer → UI Inputs: Zone temperature sensor (10 kΩ NTC), differential pressure transducer (0–10 V), occupancy sensor (dry contact), and CO₂ sensor (4–20 mA) wire directly to the 4 universal inputs.
- Control Layer → PVL6438N: Onboard PID loops calculate damper position and fan speed commands. Logic executes locally — no supervisory dependency for zone-level control.
- Actuator Layer → Outputs: AO1 drives VAV damper actuator (0–10 V); AO2 drives ECM fan (0–10 V); BO1–BO4 sequence reheat stages or fan contactors (24 VAC triac).
- Network Layer → BACnet MS/TP: Controller exposes all I/O points, setpoints, and alarms as standard BACnet objects (AI, AO, BI, BO, AV, BV, Schedule, Trend). Supervisory JACE or WEBs-AX polls via MS/TP at configurable COV or polling intervals.
- Supervisory Layer → WEBs-AX / Niagara 4: Centralized scheduling, alarm management, energy dashboards, and remote override — all without proprietary middleware.
Sourcing & Quality Verification
- Authorized Supply Chain: Konmask.com sources PVL6438N units exclusively from Honeywell-authorized distributors and verified OEM surplus channels with full traceability documentation.
- Incoming Inspection: Every unit undergoes visual inspection, label verification (date code, country of origin, Honeywell hologram), and functional power-on test before dispatch.
- Counterfeit Prevention: Serial numbers cross-referenced against Honeywell’s product authentication database. Units with tampered labels or mismatched firmware versions are rejected.
- Packaging Integrity: Shipped in original Honeywell ESD-safe packaging with desiccant; outer carton double-boxed for international freight.
- Documentation Included: Honeywell installation guide, wiring diagram, Spyder Tool download link, and Konmask quality inspection certificate.
Procurement Process
- Submit RFQ: Email support@konmask.com with quantity, required delivery date, and project name. Response within 4 business hours.
- Quotation & Lead Time: Firm price and confirmed stock availability provided. Express air freight available for urgent project timelines.
- Purchase Order: Issue PO to Konmask Technology Co., Ltd. Wire transfer (T/T), PayPal, and credit card accepted.
- Quality Hold Option: Request pre-shipment inspection report and photos before payment release — standard for orders ≥ 5 units.
- Shipping & Tracking: DHL / FedEx / UPS express with real-time tracking. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- After-Sales Support: 12-month warranty. Technical support for Spyder Tool configuration and BACnet commissioning available via email and WhatsApp.
Technical FAQ
Q: Is the PVL6438N compatible with Niagara 4 (N4) supervisory controllers?
A: Yes. Honeywell provides a native Niagara 4 driver for the Spyder controller family. The PVL6438N appears as a standard BACnet device in the N4 station and can be bound to Px graphics, schedules, and alarm extensions without additional licensing.
Q: Can the PVL6438N control a fan-powered VAV box without a separate fan controller?
A: Yes. AO2 (0–10 V) can directly command an ECM fan motor, while BO1 can drive the fan contactor for on/off control. Both series and parallel FPVAV configurations are supported via pre-built Spyder Tool application templates.
Q: What flow sensor types are compatible with the universal inputs?
A: The UI inputs accept 0–10 V DC and 4–20 mA signals, making them compatible with all major differential pressure transducers (Setra, Dwyer, Mamac) and direct-reading airflow sensors used in VAV applications.
Q: How many PVL6438N controllers can share a single BACnet MS/TP segment?
A: Up to 127 MAC addresses per MS/TP segment. In practice, 60–80 controllers per segment is recommended for optimal token-passing performance at 76.8 kbps baud rate.
Q: Is the Spyder Tool software free, and what PC requirements are needed?
A: Yes, Spyder Tool is a free download from Honeywell’s partner portal. It requires Windows 10/11 (64-bit), a USB-to-RS485 adapter for direct connection, or network access via a WEBs-AX/JACE for remote programming.
Q: Does Konmask provide Spyder Tool programming support?
A: Yes. Our technical team can provide pre-configured Spyder Tool application files (.wire) for standard VAV sequences (single-duct, FPVAV, reheat) upon request with your order.
