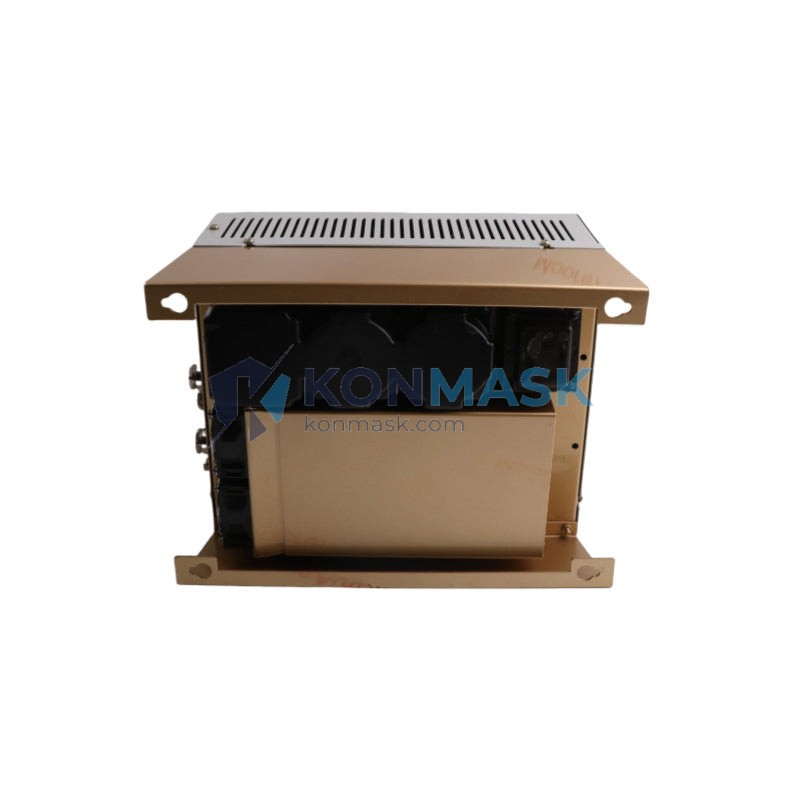

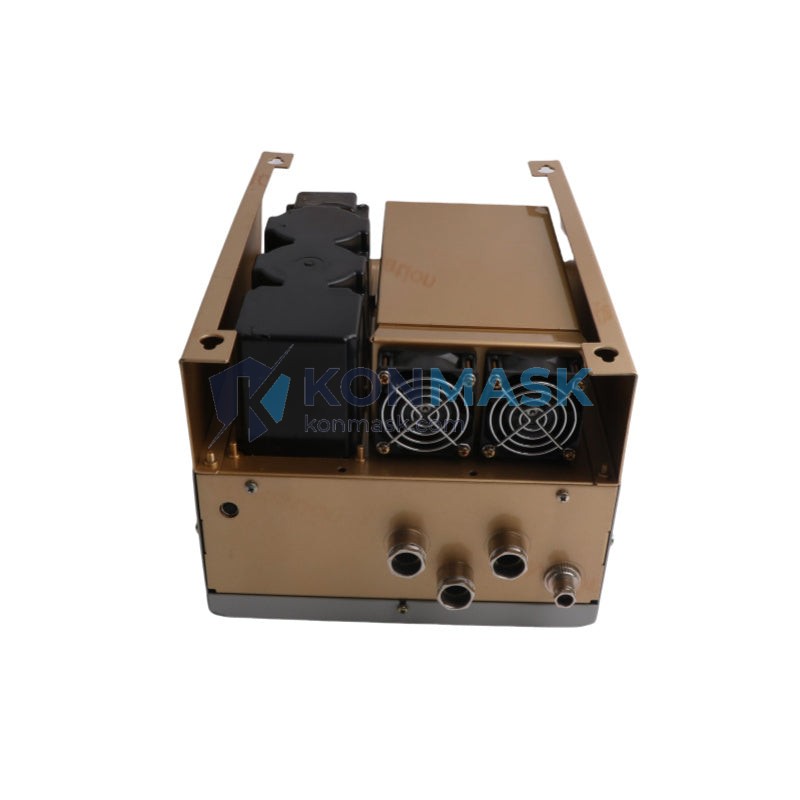

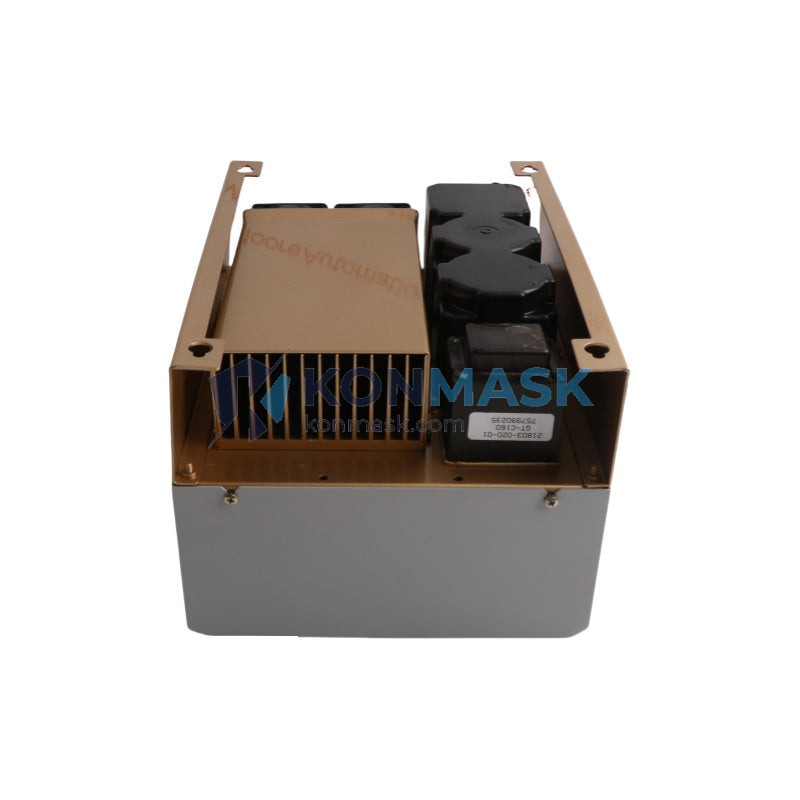

Allen-Bradley 1336F-BRF100-AE-EN Brake Resistor Filter Module – 1336 PLUS II AC Drive Series
When a high-inertia load decelerates rapidly—a centrifuge spinning down, a crane lowering a heavy load, or a press returning to home position—the regenerative energy has nowhere to go. Without a properly rated brake resistor filter module, that energy surges back into the DC bus, triggering overvoltage faults, nuisance trips, and in worst cases, catastrophic drive failure that halts an entire production line. The Allen-Bradley 1336F-BRF100-AE-EN is the engineered solution that safely dissipates this regenerative energy, protecting your 1336 PLUS II drive investment and keeping your process running without interruption.
The 1336F-BRF100-AE-EN is a factory-specified brake resistor filter module within the Allen-Bradley 1336 PLUS II (Bulletin 1336F) AC drive family—one of Rockwell Automation’s most widely deployed variable frequency drive platforms across global manufacturing, material handling, and process industries. Designed to work in concert with the drive’s internal dynamic braking transistor, this module provides the external resistance and EMI filtering necessary for controlled, repeatable deceleration performance in demanding industrial environments.
Technical Specifications
- Part Number / SKU: 1336F-BRF100-AE-EN
- Bulletin: 1336 PLUS II (1336F)
- Module Type: Brake Resistor Filter Module
- Manufacturer: Allen-Bradley / Rockwell Automation
- Compatible Drive Series: 1336 PLUS II AC Variable Frequency Drives
- Function: Dynamic braking energy dissipation with integrated EMI/RFI filtering
- Mounting: External panel-mount, compatible with standard 1336F drive enclosure configurations
- Standards Compliance: CE marked; meets applicable IEC and UL industrial drive accessory standards
- Weight: Approx. 11.78 kg
Note: Detailed electrical ratings (resistance value, power dissipation, voltage class) should be confirmed against the official Allen-Bradley 1336 PLUS II product documentation or by contacting Konmask.com for a technical datasheet.
Key Features & Benefits
- Overvoltage Protection: Safely absorbs regenerative energy during motor deceleration, preventing DC bus overvoltage faults and protecting drive IGBTs.
- Integrated EMI/RFI Filter: Reduces conducted and radiated electromagnetic interference, supporting compliance with CE and industrial EMC requirements.
- Plug-and-Play Compatibility: Engineered specifically for the 1336 PLUS II drive family—no custom wiring adapters or firmware changes required.
- Robust Industrial Construction: Built to withstand the thermal cycling, vibration, and electrical stress of continuous industrial duty cycles.
- Reduced Downtime: Eliminates nuisance overvoltage trips, improving overall drive availability and OEE (Overall Equipment Effectiveness).
- Genuine OEM Part: Sourced from authorized channels, ensuring full compatibility and traceability for maintenance records and warranty purposes.
Industry & Equipment Applications
- Material Handling: Cranes, hoists, conveyors, and elevators with frequent start/stop and regenerative braking cycles.
- Packaging Machinery: High-speed wrappers, fillers, and palletizers requiring precise deceleration control.
- Printing & Converting: Web tension control systems where rapid deceleration is critical to product quality.
- Pump & Fan Systems: Large centrifugal loads with high rotational inertia.
- Machine Tools & CNC: Spindle drives and servo-adjacent axis drives requiring smooth, controlled stops.
- Water & Wastewater Treatment: Pump station drives subject to emergency stop requirements.
System Integration & Compatible Parts
The 1336F-BRF100-AE-EN is designed for use within the broader Allen-Bradley 1336 PLUS II ecosystem. Commonly paired components include:
- 1336 PLUS II AC Drive main units (various horsepower ratings)
- 1336-MOD-L2 / L3 option modules for expanded I/O
- 1336-BRB series dynamic braking transistor assemblies
- 1336-GM1 / GM2 operator interface modules
- PowerFlex 700 series (for system modernization projects requiring cross-reference)
Contact support@konmask.com for cross-reference assistance and system compatibility verification.
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley module undergoes a rigorous multi-stage inspection before shipment:
- Visual Inspection: Checking for physical damage, corrosion, and counterfeit indicators on labels, holograms, and date codes.
- Part Number Verification: Cross-referencing the catalog number, revision level, and firmware version against Rockwell Automation’s official product database.
- Functional Testing: Where applicable, modules are bench-tested using compatible drive hardware to verify operational integrity.
- Secure Packaging: Anti-static packaging with moisture barrier bags and shock-absorbing foam to protect against transit damage.
- Documentation: Each shipment includes a packing list with part number, serial number (if applicable), and inspection sign-off.
How to Order
- Submit an Inquiry: Email support@konmask.com or call +0086 19859288691 with your part number (1336F-BRF100-AE-EN) and required quantity.
- Receive a Quote: Our technical sales team will respond within 24 hours with pricing, lead time, and availability confirmation.
- Order Confirmation: Approve the proforma invoice and confirm your shipping address and preferred freight method.
- Shipment & Tracking: We ship via DHL, FedEx, UPS, or sea freight. A tracking number is provided upon dispatch.
- After-Sales Support: Our engineering team is available post-delivery for installation guidance and technical questions.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: Focused exclusively on PLC, DCS, AC drives, and automation components—not a generalist distributor.
- ✅ Global Sourcing Network: Access to genuine Allen-Bradley / Rockwell Automation parts from authorized and verified supply channels worldwide.
- ✅ Technical Expertise: Our team includes experienced automation engineers who understand your application, not just the part number.
- ✅ Fast Response: Inquiries answered within 24 hours; urgent requirements handled with priority processing.
- ✅ Competitive Pricing: Direct sourcing relationships allow us to offer market-competitive pricing without compromising authenticity.
- ✅ Worldwide Shipping: Serving customers in Europe, Southeast Asia, the Middle East, and the Americas.
Frequently Asked Questions
Q: Is the 1336F-BRF100-AE-EN a genuine Allen-Bradley / Rockwell Automation part?
A: Yes. Konmask.com sources parts from verified supply channels. Each unit is inspected for authenticity before shipment.
Q: What drives is the 1336F-BRF100-AE-EN compatible with?
A: It is designed for use with Allen-Bradley 1336 PLUS II (Bulletin 1336F) series AC variable frequency drives. Please confirm your specific drive model and horsepower rating with our team for exact compatibility.
Q: Can you provide a datasheet or technical documentation?
A: Yes. Contact us at support@konmask.com and we will provide the relevant Allen-Bradley product documentation upon request.
Q: What is the lead time for this part?
A: Lead time varies by current stock availability. Submit an inquiry and we will confirm availability and estimated delivery within 24 hours.
Q: Do you offer a warranty on this module?
A: Yes. We offer a standard warranty on all parts supplied. Warranty terms are confirmed at the time of order. Contact us for details.
Q: Can you help with installation or commissioning?
A: Our technical team can provide guidance on installation and integration. For on-site commissioning support, please discuss your requirements with our sales team.
{
