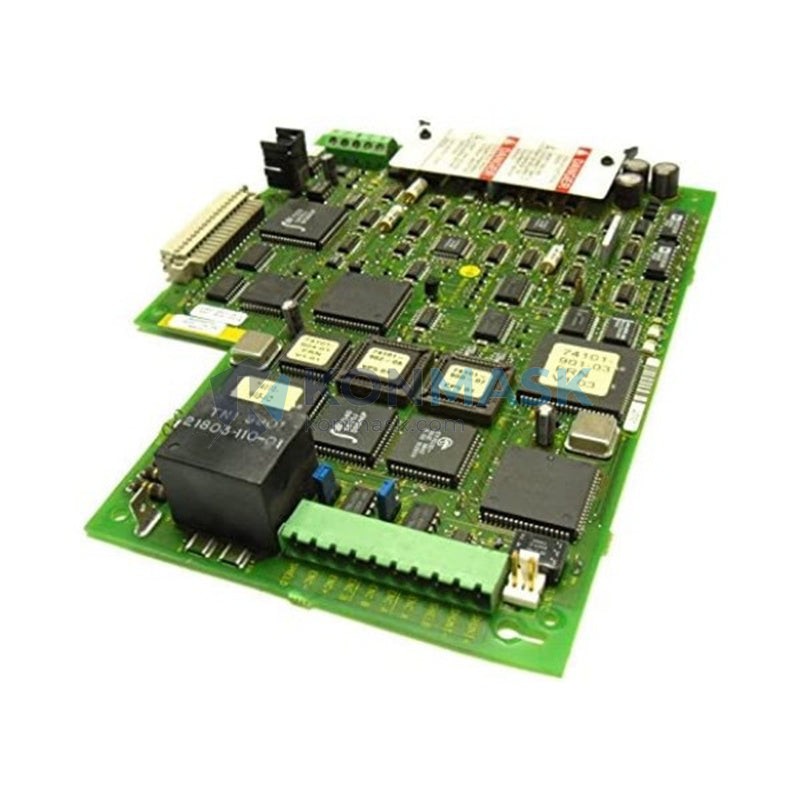

Allen-Bradley 1336T-MCB-SP34B Main Control Board – 1336 PLUS II AC Drive Series
When a main control board fails inside an Allen-Bradley 1336 PLUS II AC drive, the consequences ripple instantly across the production floor. Variable-speed motor control is lost, conveyor lines halt, pump systems lose regulation, and HVAC or compressor loops go into fault — all without warning. Downtime in these scenarios is measured not in hours but in lost production batches, emergency maintenance calls, and costly unplanned shutdowns. The Allen-Bradley 1336T-MCB-SP34B (P/N 74101-772-54) Main Control Board is the precision-engineered heart of the 1336 PLUS II drive, and sourcing a verified replacement quickly is the only path back to full operation.
Within the 1336 PLUS II family — Rockwell Automation’s flagship general-purpose AC drive platform deployed across hundreds of thousands of industrial installations worldwide — the 1336T-MCB-SP34B serves as the central intelligence layer. It manages PWM switching logic, closed-loop speed and torque regulation, fault diagnostics, and communication interfacing. Its part number suffix SP34B designates a specific firmware and hardware revision that ensures compatibility with matched power structures and I/O boards in the 1336T drive frame. This board is a critical spare for any facility running 1336 PLUS II drives in manufacturing, water treatment, oil & gas, or building automation environments.
Technical Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- Part Number: 1336T-MCB-SP34B
- Reference P/N: 74101-772-54
- Board Type: Main Control Board (MCB)
- Compatible Drive Series: 1336 PLUS II (1336T)
- Function: PWM control, speed/torque regulation, fault management, communication interface
- Weight: 400 g (approx.)
- Condition: New / Surplus / Refurbished (specify at inquiry)
Note: Specifications above are based on published Allen-Bradley documentation. Do not substitute this board across incompatible drive frames without consulting Rockwell Automation’s compatibility matrix.
Key Features & Benefits
- Drop-in Replacement: Designed as a direct OEM replacement for 1336 PLUS II drives — no firmware re-flashing required when matched to the correct drive revision.
- Integrated Fault Diagnostics: Onboard logic supports real-time fault code generation, enabling rapid root-cause analysis and reduced MTTR (Mean Time to Repair).
- Closed-Loop Regulation: Supports both V/Hz and vector control modes, maintaining precise motor speed and torque across variable load conditions.
- Communication Ready: Compatible with Allen-Bradley’s DPI (Drive Peripheral Interface) communication architecture for integration with PLC networks.
- Robust Industrial Design: Engineered to withstand industrial EMI environments, temperature cycling, and vibration typical of heavy manufacturing settings.
- Traceable Part Number: Dual-referenced by both catalog number (1336T-MCB-SP34B) and internal P/N (74101-772-54) for procurement and MRO traceability.
Industry & Equipment Applications
- Manufacturing & Assembly: Conveyor drives, robotic axis controllers, and machine tool spindle drives running on 1336 PLUS II platforms.
- Water & Wastewater: Pump and blower VFD control in municipal treatment plants where continuous uptime is a regulatory requirement.
- Oil & Gas: Compressor and fan drive control in upstream and midstream facilities with 1336T installed base.
- HVAC & Building Automation: Chiller pump drives, cooling tower fans, and air handling units using 1336 PLUS II for energy-efficient variable-speed operation.
- Pulp, Paper & Metals: High-inertia load applications where precise torque control and fault resilience are critical.
System Integration & Compatible Parts
The 1336T-MCB-SP34B operates within the modular architecture of the Allen-Bradley 1336 PLUS II drive. Common companion components include:
- 1336 PLUS II Power Structures (frame-size matched)
- 1336-GM1 / 1336-GM2 Gate Driver Boards
- 1336-L4E / 1336-L6E I/O Expansion Boards
- 1336-BRF / 1336-BRB Dynamic Braking Modules
- 1336-PB / 1336-PBK Precharge Boards
- 20-COMM-E / 20-COMM-D Communication Adapters (DPI-compatible)
Always verify drive frame revision and firmware version compatibility before installation. Contact our technical team for cross-reference support.
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley control board passes through a structured verification process before shipment:
- Visual Inspection: PCB examined for physical damage, corrosion, burnt components, and solder joint integrity.
- Part Number Verification: Catalog number and internal P/N cross-checked against Rockwell Automation documentation.
- Functional Test (where applicable): Boards sourced as tested-good are bench-verified on compatible drive test rigs.
- ESD-Safe Packaging: All boards shipped in anti-static bags with foam cushioning to prevent transit damage.
- Documentation: Test reports and condition certificates available upon request for MRO and audit compliance.
How to Order
Konmask.com operates as a B2B inquiry-based platform. To request a quote for the 1336T-MCB-SP34B:
- Submit your inquiry via the Contact / RFQ form on this page.
- Include your required quantity, preferred condition (new, surplus, or refurbished), and any urgency requirements.
- Our sourcing team will respond within 1 business day with availability, lead time, and pricing.
- Upon agreement, we issue a proforma invoice and arrange secure international shipping with full tracking.
For urgent requirements, contact us directly at support@konmask.com or +0086 19859288691.
Why Choose Konmask.com?
- Specialized Industrial Focus: We source exclusively in the industrial automation and control systems space — Allen-Bradley, Siemens, ABB, Schneider, and more.
- Global Sourcing Network: Access to surplus, new-in-box, and refurbished inventory across verified international suppliers.
- Technical Expertise: Our team includes engineers with hands-on experience in PLC, VFD, and DCS systems — not just sales staff.
- Fast Response: RFQ responses within 1 business day; expedited sourcing available for critical downtime situations.
- Secure Transactions: Proforma invoice, bank transfer, and escrow payment options for international B2B buyers.
- Export Compliance: Experienced in cross-border documentation, commercial invoices, and customs requirements for industrial components.
Frequently Asked Questions
Q: Is the 1336T-MCB-SP34B compatible with all 1336 PLUS II drive frames?
A: The SP34B revision is specific to certain 1336T frame configurations. Compatibility depends on your drive’s catalog number, frame size, and existing firmware revision. Please provide your full drive catalog number when submitting an inquiry so we can confirm compatibility.
Q: What is the difference between a new, surplus, and refurbished board?
A: New boards are unused OEM stock. Surplus boards are new-in-box but may have been stored for extended periods. Refurbished boards have been inspected, repaired if necessary, and tested to OEM specifications. All conditions are clearly disclosed at the time of quotation.
Q: Can you ship internationally?
A: Yes. Konmask.com ships globally via DHL, FedEx, and UPS with full export documentation. Lead times and shipping costs are confirmed at the quotation stage.
Q: Do you offer a warranty on this board?
A: Warranty terms vary by condition and sourcing channel. Tested-good and refurbished units typically carry a 90-day functional warranty. Details are specified in the proforma invoice.
Q: How do I know if my 1336 PLUS II drive needs a new main control board?
A: Common indicators include persistent fault codes (F002, F005, F012, etc.) that do not clear after power cycling, loss of communication with the drive, erratic speed/torque behavior, or visible damage to the PCB. Our technical team can assist with fault diagnosis remotely.
