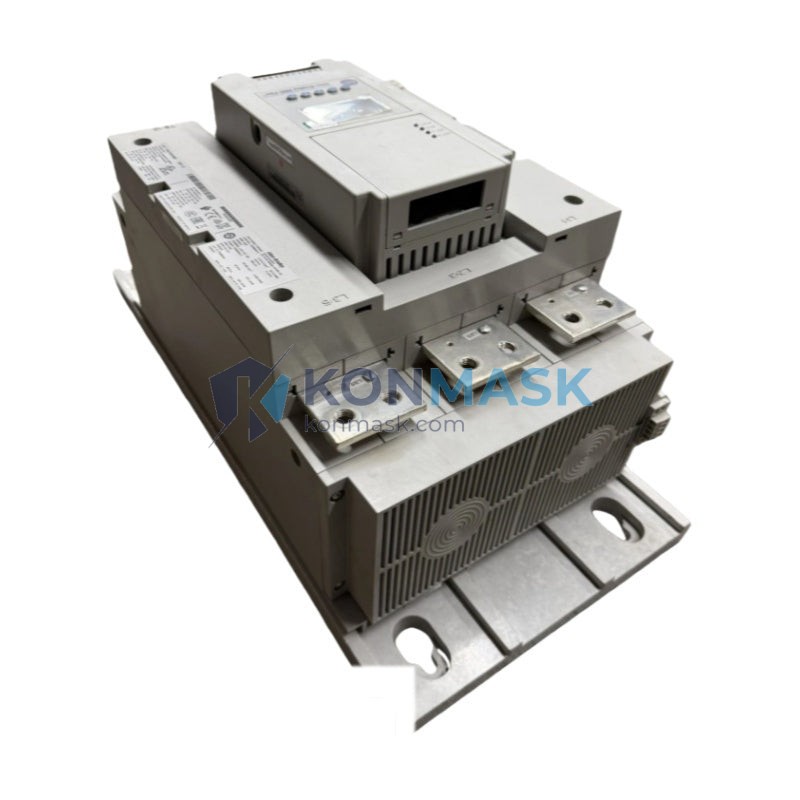

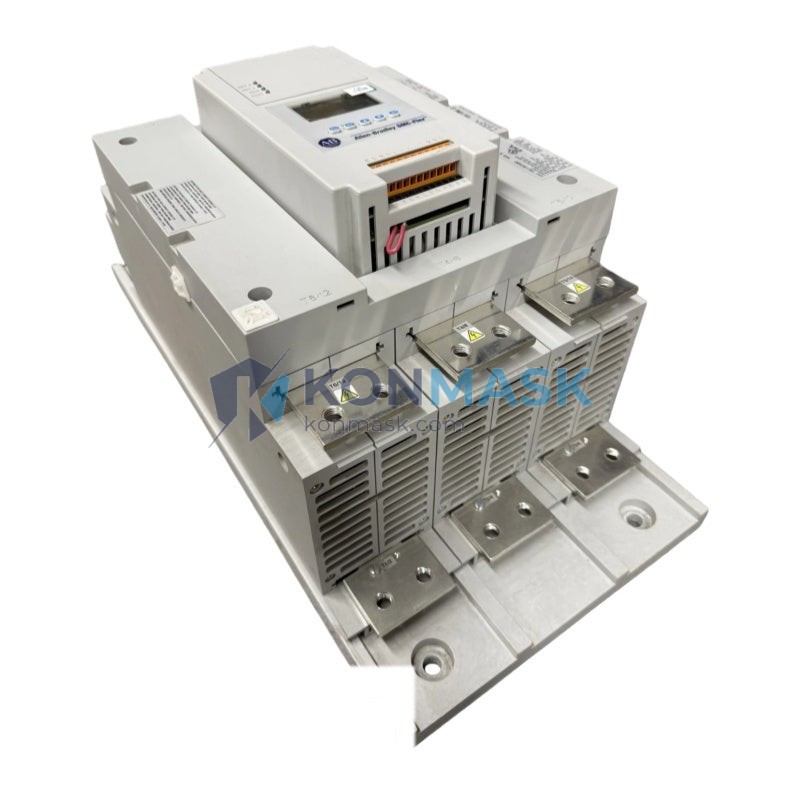

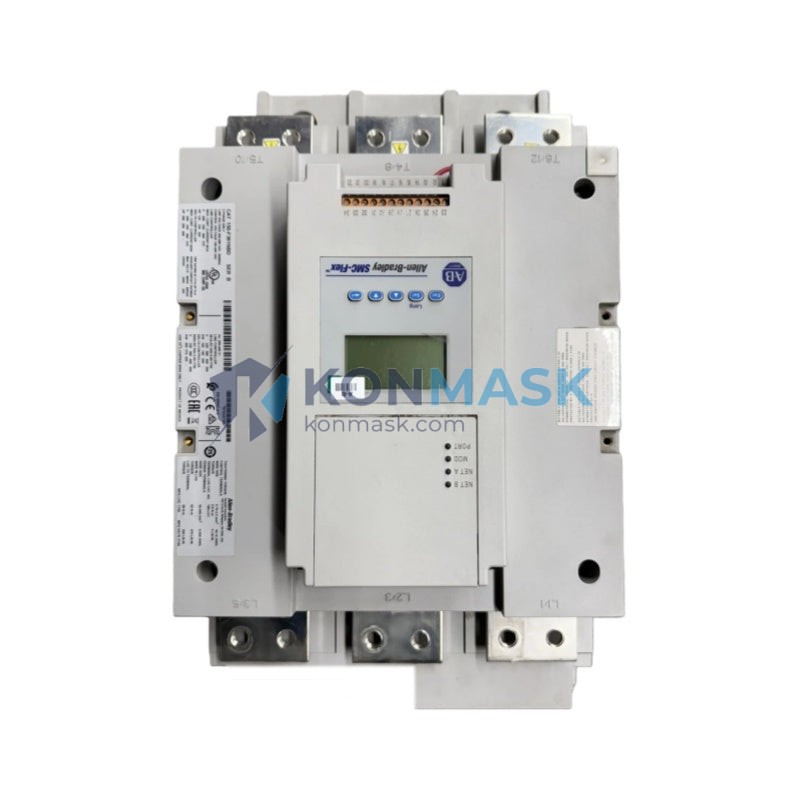

Allen-Bradley 150-F361NBDD SMC-Flex Smart Motor Controller – 361A 480V 3-Phase
When a smart motor controller fails on the production floor, the consequences are immediate and severe: uncontrolled motor starts send mechanical shock through couplings and gearboxes, current surges trip upstream breakers, and entire production lines grind to a halt. Downtime costs mount by the minute, and without the right replacement part, recovery can take days. The Allen-Bradley 150-F361NBDD is not a commodity component — it is the precision control interface between your power infrastructure and your rotating machinery, and its absence is felt across every connected system.
Within the SMC-Flex (150 Series) product family, the 150-F361NBDD occupies the heavy-duty tier, rated at 361 amperes for 480V three-phase applications. This positions it as the go-to solution for large pump stations, compressors, fans, and conveyor drives in process-intensive industries. Rockwell Automation’s SMC-Flex platform has established itself as a global benchmark for solid-state motor control, deployed in thousands of facilities across oil & gas, water treatment, mining, and manufacturing sectors worldwide.
Technical Specifications
- Part Number / SKU: 150-F361NBDD
- Brand: Allen-Bradley (Rockwell Automation)
- Series: SMC-Flex (150 Series)
- Current Rating: 361 A
- Voltage Rating: 200–480 V AC, 3-Phase
- Control Voltage: 100–240 V AC
- Enclosure Type: Open / Panel Mount (Frame F)
- Communication: DeviceNet (N suffix)
- Bypass: Internal Bypass (B suffix)
- Overload Protection: Electronic, Class 10/15/20/30 selectable
- Starting Modes: Soft Start, Current Limit Start, Kickstart, Full Voltage
- Stopping Modes: Soft Stop, Coast-to-Rest, Braking
- Protection Features: Phase loss, phase reversal, ground fault, stall, jam, underload
- Certifications: UL Listed, CE Marked, CSA
Key Features & Benefits
- Solid-State Soft Starting: Eliminates mechanical shock and reduces inrush current by up to 70%, extending motor and drivetrain service life.
- Internal Bypass Contactor: Reduces heat generation during run mode, improving energy efficiency and panel thermal management.
- DeviceNet Connectivity: Enables real-time parameter monitoring, remote diagnostics, and integration into Rockwell’s FactoryTalk ecosystem.
- Comprehensive Motor Protection: Built-in electronic overload with multiple trip classes eliminates the need for a separate overload relay.
- Selectable Control Modes: Adapts to diverse load profiles — from centrifugal pumps requiring gentle ramp-up to compressors needing kickstart torque.
- Compact Frame F Design: Optimized footprint for MCC (Motor Control Center) bucket installation and panel-mount applications.
- Parameter Storage: Onboard EEPROM retains configuration through power cycles, reducing recommissioning time after maintenance.
Industry & Equipment Applications
- Oil & Gas: Pipeline pumps, compressor stations, wellhead drives
- Water & Wastewater: Centrifugal pump stations, aeration blowers, filter drives
- Mining & Minerals: Conveyor systems, crusher drives, slurry pumps
- Pulp & Paper: Refiner drives, fan systems, roll drives
- HVAC & Building Automation: Large chiller compressors, cooling tower fans, air handling units
- Food & Beverage: Mixer drives, conveyor systems, refrigeration compressors
- Marine & Offshore: Ballast pumps, deck machinery, HVAC systems
System Integration & Compatible Parts
The 150-F361NBDD is designed for seamless integration within Rockwell Automation’s control architecture. Compatible and commonly paired components include:
- DeviceNet Scanner: 1756-DNB (ControlLogix), 1769-SDN (CompactLogix)
- Programming Software: RSLogix 5000 / Studio 5000 Logix Designer
- HMI Integration: PanelView Plus series via FactoryTalk View
- Power Distribution: Allen-Bradley 140M Motor Protection Circuit Breakers
- Bypass Contactors: 100-C Series IEC Contactors (for external bypass configurations)
- Parameter Configuration: 20-HIM-A6 / 20-HIM-C6S Human Interface Modules
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley 150-F361NBDD unit undergoes a rigorous multi-stage inspection before shipment:
- ✅ Visual Inspection: Housing integrity, terminal condition, label verification against OEM specifications
- ✅ Part Number Authentication: Cross-referenced against Rockwell Automation’s official catalog and date code records
- ✅ Functional Pre-Check: Power-on verification and communication port testing where applicable
- ✅ Anti-Static Packaging: ESD-safe bags and foam-lined cartons for safe international transit
- ✅ Documentation: Certificate of conformity and inspection report included with every shipment
How to Order
- Submit your inquiry via the Contact / Quote Request form on this page
- Provide your required quantity, delivery timeline, and destination country
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 hours
- Upon order confirmation, we arrange secure packaging and international freight (DHL / FedEx / sea freight)
- Tracking information and shipping documents (commercial invoice, packing list, COC) provided upon dispatch
Why Choose Konmask.com?
- 🌐 Global B2B Supplier specializing in industrial automation components from leading brands
- 🔍 Authentic Parts Only — no counterfeits, no grey-market risk
- ⚡ Fast Response — quote within 24 hours, technical support from certified engineers
- 📦 Secure International Shipping — export-compliant documentation for customs clearance
- 🤝 Long-Term Partnership — preferred supplier for MRO procurement teams and system integrators worldwide
Frequently Asked Questions
Q: Is the 150-F361NBDD a new or refurbished unit?
A: We supply both new-in-box (NIB) and professionally refurbished units. Please specify your preference when submitting your inquiry, and we will confirm availability and pricing accordingly.
Q: What is the difference between the 150-F361NBDD and the 150-F361NBD?
A: The additional “D” suffix in 150-F361NBDD typically denotes a specific option package or regional certification variant. Please contact our technical team to confirm the exact configuration differences for your application.
Q: Can this unit be used as a direct replacement for an existing SMC-Flex in my MCC?
A: In most cases, yes — provided the voltage, current rating, and communication options match your existing installation. Our engineers can review your existing configuration to confirm compatibility before you order.
Q: Do you provide warranty on this product?
A: Yes. All units supplied by Konmask.com carry a minimum 12-month warranty against manufacturing defects. Extended warranty options are available upon request.
Q: What shipping options are available for international orders?
A: We ship worldwide via DHL Express, FedEx International, and sea freight for bulk orders. All shipments include full export documentation. Typical transit times: 3–7 business days (air), 20–35 days (sea).
