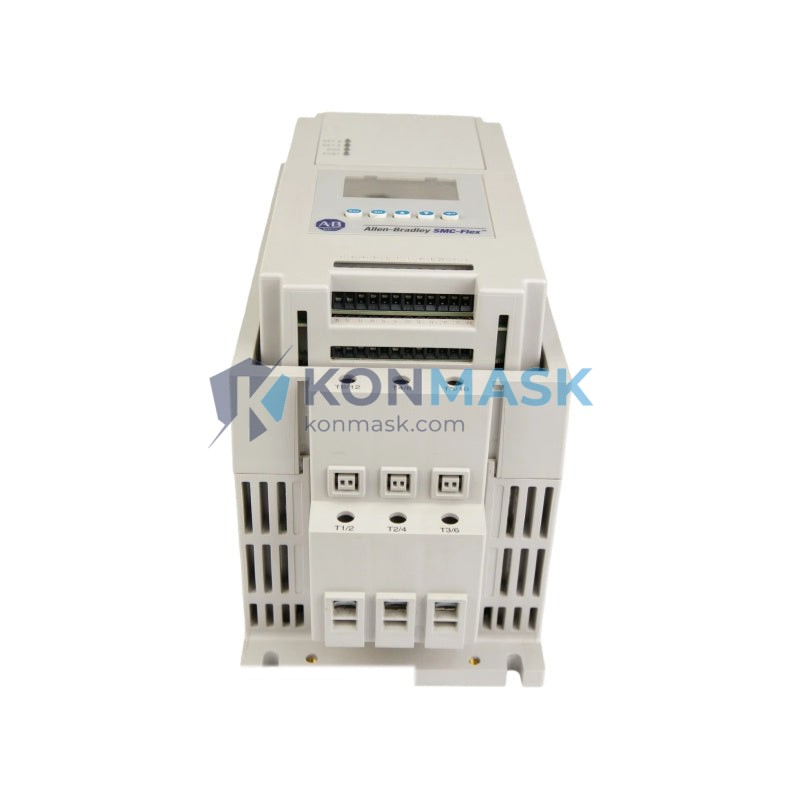

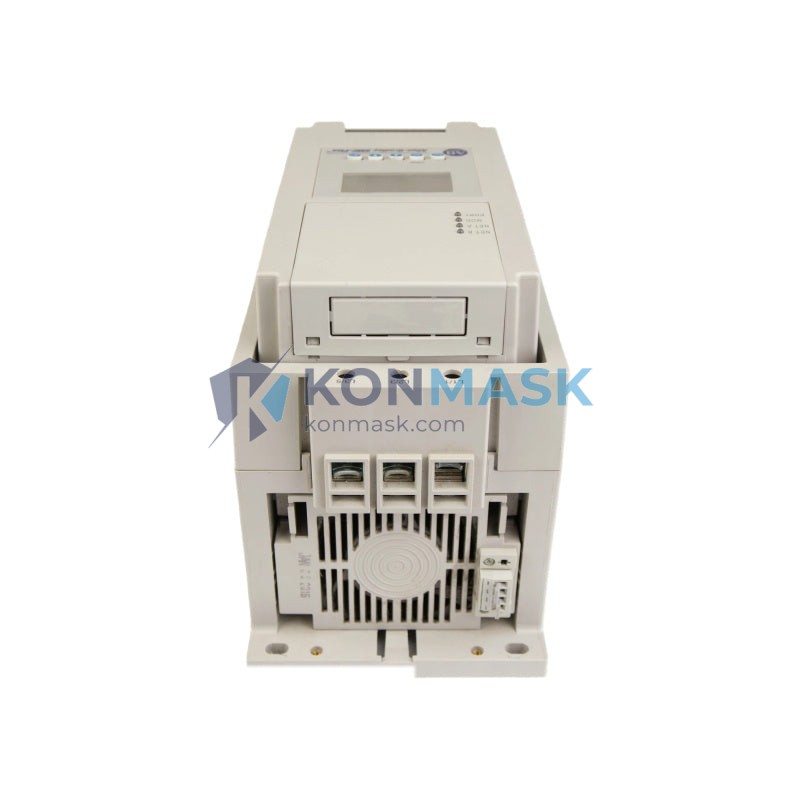

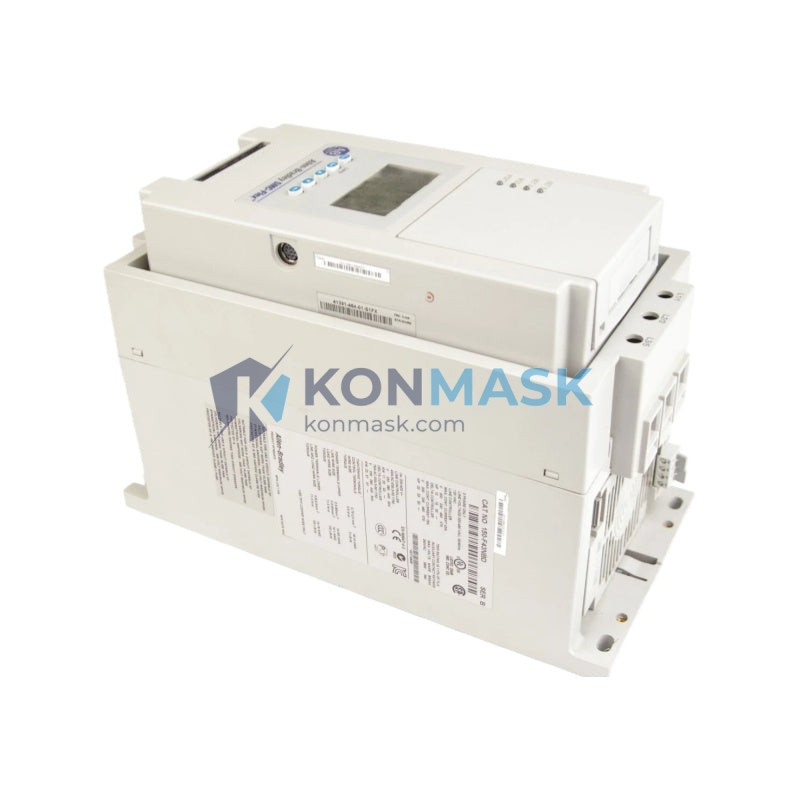

Allen-Bradley 150-F43NBD SMC Flex Smart Motor Controller | Replacement, Equivalent & Selection Guide
The Allen-Bradley 150-F43NBD is a 43A, 480V AC SMC Flex Smart Motor Controller from Rockwell Automation. Designed for soft-start and soft-stop motor control applications, it delivers precise current limiting, pump control, and energy savings for industrial motor systems. This page provides full technical specifications, compatible replacement models, and a selection guide to help engineers and procurement teams make the right choice.
Technical Specifications
| Part Number | 150-F43NBD |
| Brand | Allen-Bradley (Rockwell Automation) |
| Series | SMC Flex |
| Output Current Rating | 43A |
| Supply Voltage | 200–480V AC, 3-Phase |
| Control Voltage | 100–240V AC |
| Motor Power (480V) | Up to 25 HP |
| Communication | DeviceNet (built-in) |
| Enclosure | Open Type (IP00) |
| Bypass Contactor | Not included (external required) |
| Soft Start Functions | Current Limit, Voltage Ramp, Tachometer Feedback |
| Protection Features | Overload, Phase Loss, Stall, Jam, Underload |
| Weight | 5.7 kg |
| Standards | UL, CE, CSA |
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or direct replacements for the 150-F43NBD. Always verify voltage, current, and communication requirements before substituting.
| Model | Brand | Current | Voltage | Notes |
|---|---|---|---|---|
| 150-F43NZD | Allen-Bradley | 43A | 480V | Same specs, no DeviceNet |
| 150-F43NBD-R | Allen-Bradley | 43A | 480V | Factory reconditioned |
| 3RW4036-1BB14 | Siemens | 45A | 400–480V | Cross-brand equivalent |
| ATS22D47S6 | Schneider Electric | 47A | 200–480V | Altistart 22 equivalent |
| PSR45-600-70 | ABB | 45A | 208–600V | PSR series equivalent |
Note: Cross-brand replacements may require wiring and parameter adjustments. Contact our technical team for assistance.
Why Choose the Original Model
- Native DeviceNet Integration: Seamless communication with Allen-Bradley PLCs and ControlLogix/CompactLogix systems without additional gateways.
- SMC Flex Ecosystem: Compatible with all SMC Flex accessories including bypass contactors, parameter modules, and communication adapters.
- Advanced Motor Protection: Built-in overload, phase loss, jam, stall, and underload protection reduces external relay requirements.
- Rockwell Automation Support: Full lifecycle support, firmware updates, and spare parts availability through authorized channels.
- Proven Reliability: Widely deployed in water/wastewater, HVAC, and manufacturing industries globally.
Typical Applications
- Pump soft-start and soft-stop control (water treatment, HVAC)
- Conveyor and compressor motor starting
- Fan and blower applications requiring smooth acceleration
- Industrial machinery requiring motor protection and energy savings
- OEM machine builders integrating DeviceNet networks
System Compatibility
- PLC Platforms: ControlLogix, CompactLogix, MicroLogix (via DeviceNet scanner)
- Networks: DeviceNet (native), EtherNet/IP (with 150-SM4 adapter)
- Software: RSLogix 5000 / Studio 5000, RSNetWorx for DeviceNet
- Bypass Contactors: 100-C43 or 100-C60 Allen-Bradley contactors recommended
- Parameter Module: 150-SM1 (optional, for parameter backup and copy)
Selection Guide
Use the following criteria to confirm the 150-F43NBD is the right model for your application:
- Motor FLA ≤ 43A — verify motor nameplate full-load amps
- Supply voltage: 200–480V AC 3-phase — confirm site voltage
- Control voltage: 100–240V AC — confirm control panel voltage
- DeviceNet communication required — if not needed, consider 150-F43NZD
- Open-type enclosure acceptable — if IP protection needed, install in suitable enclosure
- External bypass contactor required — size per motor FLA
If your motor exceeds 43A, consider the 150-F54NBD (54A) or 150-F72NBD (72A) as next-tier options.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each unit inspected and tested prior to shipment
- Original manufacturer packaging preserved where available
- Certificate of conformance available upon request
- Warranty: 12 months from date of shipment
Konmask.com specializes in industrial automation components for B2B buyers. We maintain stock of Allen-Bradley SMC Flex controllers and can source hard-to-find or obsolete part numbers.
How to Order
- Online: Add to cart directly on this page
- Email: support@konmask.com with your PO or RFQ
- Phone/WhatsApp: +0086 19859288691
- Lead Time: In-stock items ship within 1–3 business days; sourced items 5–15 business days
- Payment: T/T, PayPal, credit card accepted
- Export: Worldwide shipping available; export documentation provided
Replacement & Compatibility FAQ
Q: Can I replace 150-F43NBD with 150-F43NZD?
A: Yes, the 150-F43NZD is identical except it lacks the DeviceNet communication port. If your system does not use DeviceNet, it is a direct drop-in replacement.
Q: Is the 150-F43NBD compatible with ControlLogix?
A: Yes, via a DeviceNet scanner module (e.g., 1756-DNB) installed in the ControlLogix chassis.
Q: What bypass contactor should I use?
A: Allen-Bradley 100-C43 (43A) or 100-C60 (60A) contactors are recommended for use with the 150-F43NBD.
Q: Can this unit be used with a Siemens PLC?
A: Yes, with a DeviceNet master scanner compatible with Siemens systems, or via hardwired I/O using the built-in digital inputs/outputs.
Q: Do you offer reconditioned units?
A: Yes. Please contact us for availability and pricing on factory-reconditioned 150-F43NBD units.
