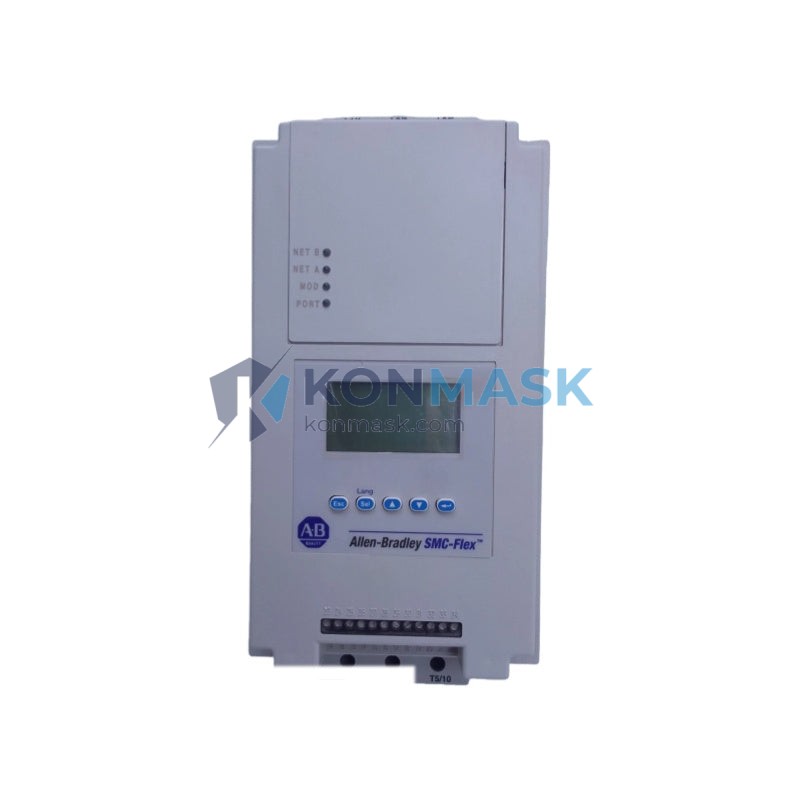

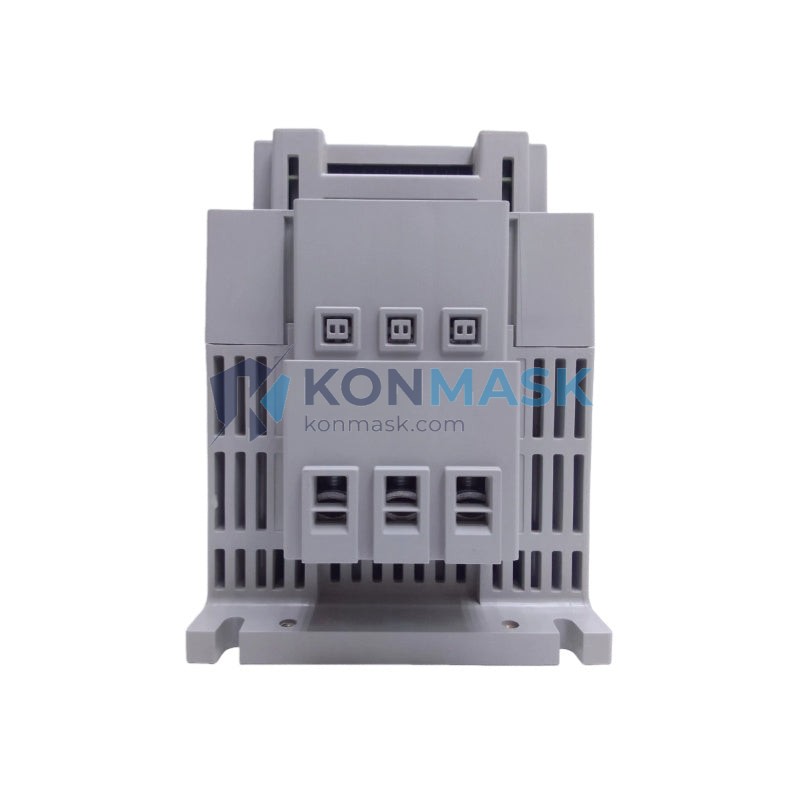

Allen-Bradley 150-F60NBD SMC Flex Smart Motor Controller – SMC Flex Series
Imagine a critical pump or compressor on your production line starting at full voltage — the mechanical shock ripples through couplings, belts, and gearboxes, while the electrical surge trips upstream breakers and shortens motor winding life. Without a reliable soft starter, uncontrolled motor starts are one of the leading causes of unplanned downtime in industrial facilities worldwide. The Allen-Bradley 150-F60NBD SMC Flex Smart Motor Controller eliminates this risk by delivering precisely controlled acceleration and deceleration, protecting both the motor and the driven load from the moment power is applied.
The 150-F60NBD occupies a pivotal position within Rockwell Automation’s SMC Flex series — the flagship line of intelligent soft starters engineered for demanding industrial environments. Rated at 60 Amperes for 3-phase applications with an integrated bypass contactor (the “B” suffix), this unit is purpose-built for mid-range motor loads where energy efficiency, process protection, and network integration are non-negotiable. The SMC Flex platform is deployed across tens of thousands of installations globally, from oil & gas facilities in the Middle East to automotive assembly plants in Europe and Asia, making the 150-F60NBD one of the most trusted motor control solutions in the Rockwell Automation portfolio.

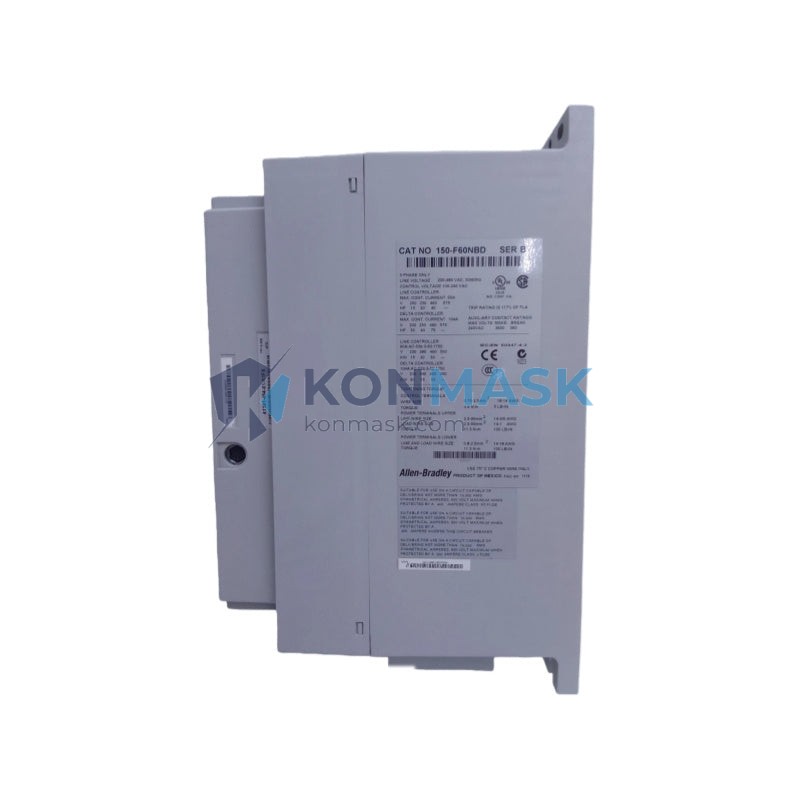

Technical Specifications
- Part Number / SKU: 150-F60NBD
- Series: SMC Flex (Allen-Bradley / Rockwell Automation)
- Current Rating: 60 A (full-load motor current)
- Phase: 3-Phase AC
- Bypass: Integrated bypass contactor (suffix “B”)
- Control Voltage: 100–240V AC (suffix “N” = standard control voltage range)
- Communication: DeviceNet ready (optional network module)
- Protection Features: Overload, phase loss, phase imbalance, stall, jam, underload, ground fault (with optional module)
- Start Modes: Soft start, current limit start, full voltage start, preset slow speed
- Stop Modes: Soft stop, coast-to-rest, brake (with optional brake module)
- Enclosure: Open type (panel mount)
- Weight: Approx. 5.7 kg
- Standards: UL Listed, CE Marked, IEC 60947-4-2
Key Features & Benefits
- Integrated Bypass Contactor: Eliminates external bypass wiring, reduces panel space, and lowers installation cost — the motor runs across-the-line after acceleration is complete, minimizing heat generation in the SCR power section.
- Advanced Motor Protection: Built-in electronic overload relay with class 5–30 trip curves protects motors without additional relay hardware, reducing BOM cost and panel complexity.
- Smooth Acceleration & Deceleration: Adjustable ramp times (1–30 seconds) and current limit settings prevent mechanical shock on conveyors, pumps, fans, and compressors, extending equipment service life.
- Diagnostic & Fault Logging: Onboard LCD display and fault history log enable rapid troubleshooting without specialized tools, reducing MTTR (Mean Time to Repair).
- Network Integration Ready: Optional DeviceNet, Profibus, or Modbus RTU communication modules allow seamless integration into existing PLC/SCADA architectures.
- Energy Savings: Soft start reduces peak demand charges; optional energy saver mode reduces voltage to lightly loaded motors, cutting energy consumption by up to 10%.
- Compact Footprint: Optimized for standard industrial control panels, with DIN rail or panel-mount options.
Industry & Equipment Applications
- Oil & Gas: Pipeline pumps, compressors, wellhead equipment
- Water & Wastewater: Centrifugal pumps, blowers, aerators
- Mining & Minerals: Conveyor drives, crushers, ball mills
- HVAC: Chillers, cooling tower fans, air handling units
- Food & Beverage: Mixers, conveyors, packaging lines
- Automotive Manufacturing: Transfer lines, robotic cell auxiliaries, press room ventilation
- Pulp & Paper: Refiners, pumps, winders
- Marine & Offshore: Ballast pumps, HVAC compressors, deck machinery
System Integration & Compatible Parts
The 150-F60NBD is designed to integrate seamlessly within Allen-Bradley and Rockwell Automation control architectures. Compatible and commonly paired components include:
- PLC Platforms: Allen-Bradley ControlLogix (1756 series), CompactLogix (1769 series), MicroLogix
- Communication Modules: 150-SM2 (DeviceNet), 150-SM3 (Profibus DP), 150-SM4 (Modbus RTU)
- Operator Interface: PanelView Plus terminals for remote monitoring and parameter adjustment
- Upstream Protection: Allen-Bradley 140M Motor Protection Circuit Breakers
- Power Distribution: Allen-Bradley 1492 terminal blocks and wiring systems
- Related SMC Flex Models: 150-F43NBD (43A), 150-F85NBD (85A), 150-F108NBD (108A)
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley 150-F60NBD unit undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: Units are sourced exclusively from authorized distributors, certified resellers, or directly from factory-sealed inventory. We do not deal in counterfeit or refurbished-as-new parts.
- Visual & Physical Inspection: Each unit is inspected for label integrity, housing condition, connector pin alignment, and factory seal status.
- Documentation Check: Serial numbers are cross-referenced against manufacturer records where applicable. Original factory documentation and certificates of conformity are included.
- Secure Packaging: Anti-static packaging, foam cushioning, and moisture-barrier bags protect units during international transit.
- Traceability: Full purchase and inspection records are maintained for every order, supporting your incoming inspection and audit requirements.
How to Order
- Submit your inquiry via the Contact Us form or email support@konmask.com with your required quantity and delivery timeline.
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange secure packaging and international freight (DHL, FedEx, UPS, or sea freight for bulk orders).
- Tracking information and commercial invoice are provided upon shipment.
- After-sales technical support is available for installation and commissioning queries.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: We focus exclusively on PLC, DCS, drives, and motion control components — not a generalist marketplace.
- ✅ Global B2B Supply: Serving OEMs, system integrators, EPCs, and MRO teams across 50+ countries.
- ✅ Fast Response: Dedicated account managers respond to RFQs within 24 hours.
- ✅ Competitive Pricing: Direct sourcing relationships enable competitive pricing on both single units and bulk orders.
- ✅ Reliable Logistics: Experienced in export documentation, customs compliance, and international freight for industrial components.
- ✅ Technical Expertise: Our team includes qualified automation engineers who can assist with compatibility, application, and integration questions.
Frequently Asked Questions
Q: What does the “B” suffix mean in 150-F60NBD?
A: The “B” suffix indicates that this unit includes an integrated bypass contactor. After the motor reaches full speed, the bypass contactor closes and the SCR power section is bypassed, eliminating heat generation and improving efficiency during normal running.
Q: What is the difference between 150-F60NBD and 150-F60NRD?
A: The 150-F60NBD includes an integrated bypass contactor (“B”), while the 150-F60NRD does not. The bypass version is preferred for continuous-duty applications where the soft starter remains energized for extended periods.
Q: Can the 150-F60NBD be controlled via DeviceNet?
A: Yes. With the optional 150-SM2 DeviceNet communication module installed, the 150-F60NBD can be fully controlled and monitored over a DeviceNet network from a compatible Allen-Bradley PLC or scanner.
Q: What motor sizes is the 150-F60NBD suitable for?
A: The 150-F60NBD is rated for 60A full-load motor current. Suitable motor sizes depend on supply voltage — typically up to approximately 30 kW (40 HP) at 400V AC or 22 kW (30 HP) at 230V AC. Always verify against the specific motor nameplate data.
Q: Do you provide a warranty on the 150-F60NBD?
A: Yes. All units supplied by Konmask.com are covered by our standard warranty policy. Please contact us for specific warranty terms applicable to your order.
Q: Can you supply multiple units for a large project?
A: Absolutely. We regularly fulfill bulk orders for OEMs, EPCs, and system integrators. Contact us with your project BOM for a consolidated quotation.
