Motor Soft-Start & Protection Solution – Allen-Bradley 150-F60NBRB | SMC-Flex Series

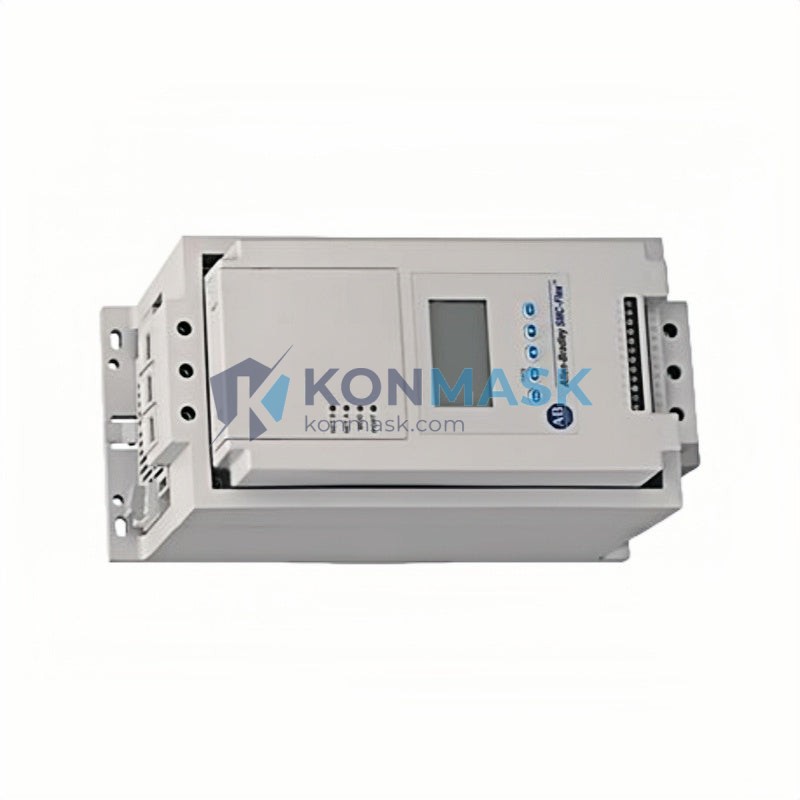

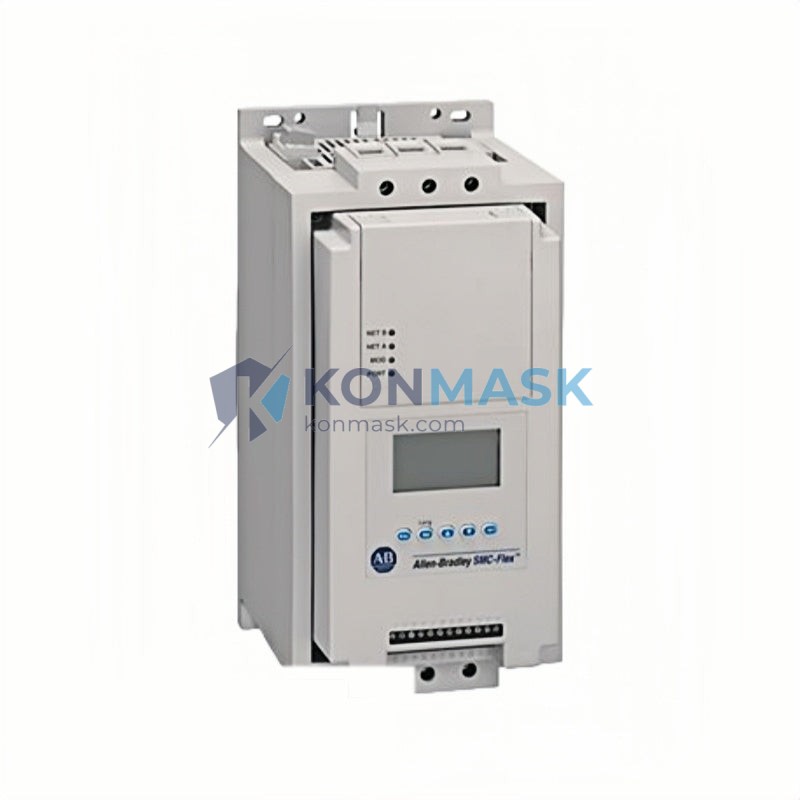

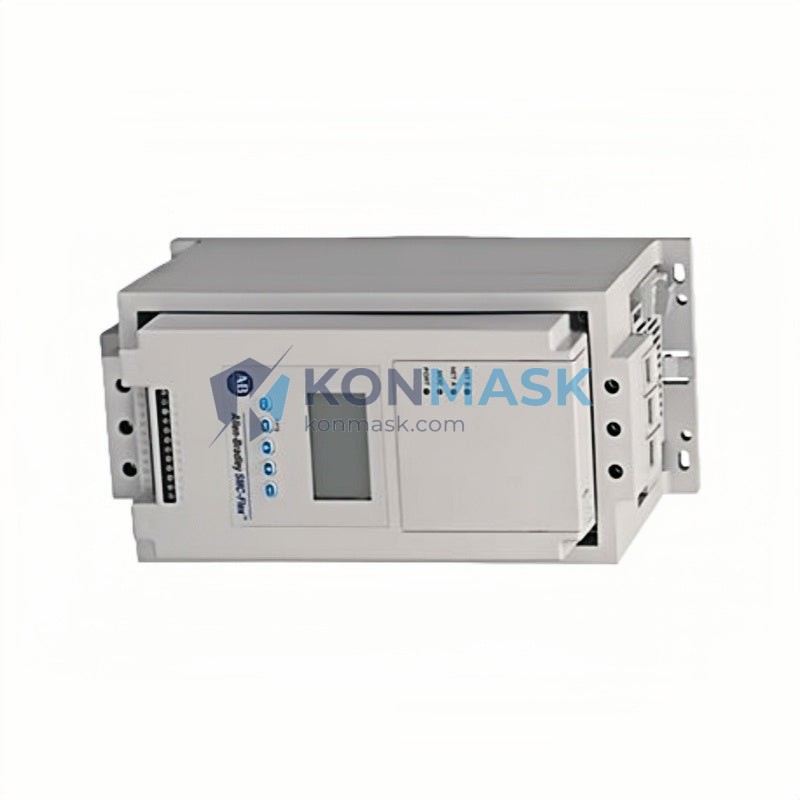

The Allen-Bradley 150-F60NBRB is a full-featured Smart Motor Controller from Rockwell Automation’s SMC-Flex platform, engineered for 60-ampere motor loads operating on 200–480V AC three-phase systems. Designed for procurement engineers who demand reliable, spec-accurate components, this unit delivers controlled soft-start and soft-stop functionality that extends motor and mechanical drivetrain life in demanding industrial environments.
Where This Product Is Used
The 150-F60NBRB is specified across a broad range of motor-driven applications where across-the-line starting causes mechanical stress, voltage sag, or excessive inrush current:
- Conveyor & Material Handling Systems — Eliminates belt jerk and product spillage on startup; reduces gearbox wear on long conveyor lines in warehouses, ports, and mining operations.
- Pump Stations & Water Treatment — Prevents water hammer in pipeline systems; widely used in municipal water/wastewater plants, irrigation pump stations, and HVAC chilled-water loops.
- HVAC Fan & Blower Applications — Reduces mechanical stress on fan blades and ductwork during startup; common in air-handling units, cooling towers, and industrial ventilation systems.
- Compressor Drives — Controls inrush current on reciprocating and screw compressors in oil & gas, refrigeration, and pneumatic systems.
- Mixer & Agitator Drives — Provides smooth torque ramp-up for chemical processing, food & beverage mixing, and wastewater aeration equipment.
- Crusher & Mill Drives — Manages high-inertia loads in aggregate, cement, and mining applications where full-voltage starting is impractical.
Technical Specifications
| Part Number | 150-F60NBRB |
| Brand / Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series / Platform | SMC-Flex |
| Rated Current | 60 A |
| Supply Voltage | 200–480V AC, 3-Phase, 50/60 Hz |
| Control Voltage | 100–240V AC (internal control power) |
| Motor Power (approx.) | Up to 37 kW / 50 HP @ 480V |
| Starting Modes | Soft Start, Current Limit Start, Full Voltage, Preset Slow Speed |
| Stopping Modes | Soft Stop, Coast-to-Rest, Brake |
| Communication | DeviceNet (optional module), DPI port |
| Protection Functions | Overload, Phase Loss, Phase Imbalance, Stall, Jam, Underload, Ground Fault (optional) |
| Bypass Contactor | Internal bypass (full-voltage run) |
| Enclosure | Open / Panel Mount (IP00) |
| Mounting | DIN Rail or Panel |
| Weight | 5.7 kg (approx.) |
| Country of Origin | United States |
| Catalog / SKU | 150-F60NBRB |
Why Engineers Specify This Model
- Internal Bypass Contactor — The “B” suffix denotes a built-in bypass contactor, eliminating the need for an external bypass panel and reducing panel footprint by up to 30%.
- SMC-Flex Intelligence — Onboard diagnostics, event logging, and parameter storage via DPI port allow rapid commissioning and predictive maintenance integration.
- Flexible Starting Profiles — Independently adjustable initial torque, ramp time (1–30 s), and current limit (50–600% FLA) accommodate diverse load characteristics without external components.
- Integrated Motor Protection — Replaces separate overload relay, phase-loss relay, and jam relay — reducing BOM count and wiring complexity.
- Network-Ready Architecture — Optional DeviceNet module enables full integration into Allen-Bradley ControlLogix / CompactLogix PLC architectures with RSLogix 5000 / Studio 5000 programming.
- Proven Reliability — SMC-Flex is a globally installed platform with millions of operating hours across process, discrete, and infrastructure industries.
Complete System Bill of Materials
For a complete motor starter panel using the 150-F60NBRB, engineers typically specify the following complementary components:
- 150-F60NBRB — SMC-Flex Smart Motor Controller (this unit)
- 140M-C2E-C16 — Motor Circuit Protector (upstream short-circuit protection)
- 100-C60D10 — IEC Contactor (isolation contactor, if required by local code)
- 193-EC1CB — E3 Plus Overload Relay (redundant protection for critical loads)
- 20-COMM-D — DeviceNet Communication Adapter (for network integration)
- 1492-CABLE010Y — Pre-wired DPI Cable (for HMI / PLC connection)
- 2711P-T7C22D9P — PanelView Plus 7 HMI (operator interface)
Compliance & Industry Standards
- UL 508 Listed — Industrial Control Equipment
- CSA C22.2 No. 14 Certified
- CE Marked — Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- IEC 60947-4-2 — AC Semiconductor Motor Controllers
- NEMA ICS 2 — Industrial Control Devices
- RoHS Compliant
Quality Assurance & Sourcing
Konmask.com sources Allen-Bradley components exclusively through authorized distribution channels and verified surplus networks. Every 150-F60NBRB unit undergoes the following verification process before shipment:
- Visual inspection against Rockwell Automation factory cosmetic standards
- Label and date-code authentication (counterfeit screening)
- Functional power-on test with parameter read-back via DPI port
- Packaging integrity check and ESD-safe repackaging where required
- Certificate of conformance available upon request
How to Source This Part
Procurement teams can acquire the 150-F60NBRB through the following channels:
- Add to Cart — Immediate checkout for stocked units with same-day or next-business-day dispatch.
- Request a Quote — For volume orders (5+ units), OEM blanket orders, or project-based procurement, contact our technical sales team for tiered pricing.
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–2 business days; ex-stock orders typically 3–7 business days depending on origin warehouse.
- Export Documentation: Commercial invoice, packing list, COO, and ECCN classification available for international shipments.
Application-Specific FAQ
Q: Can the 150-F60NBRB be used with a VFD on the same motor?
A: No. SMC-Flex controllers are designed for across-the-line motor applications. Using a soft starter and VFD on the same motor simultaneously is not supported and will damage both devices. Choose one technology based on your speed-control requirements.
Q: What is the difference between 150-F60NBRB and 150-F60NBR?
A: The trailing “B” in 150-F60NBRB denotes the inclusion of an internal bypass contactor. The 150-F60NBR (without trailing B) requires an external bypass contactor to be wired separately. The NBRB variant simplifies panel design and reduces installation cost.
Q: Is DeviceNet communication included as standard?
A: No. The base 150-F60NBRB includes a DPI port for local parameter access and HMI connection. DeviceNet communication requires the optional 20-COMM-D adapter module, ordered separately.
Q: What motor protection is built in without additional modules?
A: Standard protection includes electronic overload (Class 10/15/20/30 selectable), phase loss, phase imbalance, stall, jam, underload, and open-circuit fault detection. Ground fault protection requires an optional external CT module.
Q: Can this unit be programmed via Studio 5000 / RSLogix 5000?
A: Yes, when equipped with the DeviceNet or EtherNet/IP communication module, the 150-F60NBRB can be fully configured and monitored from a ControlLogix or CompactLogix PLC using the appropriate Add-On Profile (AOP) in Studio 5000.
