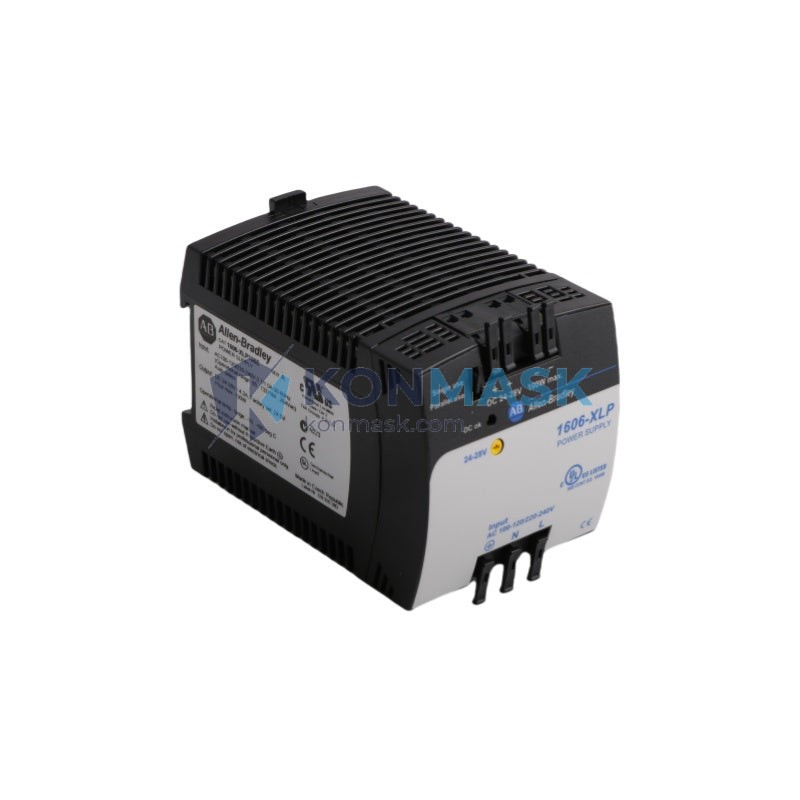

Allen-Bradley 1606-XLP100E – 24VDC 4A 100W DIN Rail Power Supply | 1606-XLP Series
Engineering Background: The Allen-Bradley 1606-XLP series represents Rockwell Automation’s benchmark solution for reliable DC power distribution in industrial control panels. Designed to meet the demanding requirements of factory automation, process control, and machine safety applications, the 1606-XLP100E delivers stable 24VDC output with wide-range AC input, making it the preferred choice for procurement engineers specifying power infrastructure for PLC-based systems.
Product Positioning: The 1606-XLP100E is a 100W single-output DIN rail power supply engineered for continuous-duty industrial environments. It integrates seamlessly with Allen-Bradley PLCs (ControlLogix, CompactLogix, MicroLogix), safety relays, I/O modules, and HMI panels. Its compact DIN rail form factor and universal AC input make it a versatile, globally deployable power solution.
Complete Technical Specifications
- Part Number / SKU: 1606-XLP100E
- Manufacturer: Allen-Bradley / Rockwell Automation
- Series: 1606-XLP (Extra Low Profile)
- Output Voltage: 24VDC (adjustable 24–28VDC)
- Output Current: 4A continuous
- Output Power: 100W
- Input Voltage: 85–264VAC, 47–63Hz (universal input)
- Input Current: 1.5A @ 120VAC / 0.8A @ 240VAC
- Efficiency: ≥ 89% typical
- Inrush Current: ≤ 20A peak @ 230VAC
- Hold-Up Time: ≥ 20ms @ full load, 120VAC
- Output Ripple & Noise: ≤ 150mVp-p
- Regulation (Load): ≤ ±1%
- Regulation (Line): ≤ ±0.5%
- Operating Temperature: -25°C to +70°C (derating above 60°C)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5–95% non-condensing
- Mounting: 35mm DIN rail (EN 50022)
- Dimensions (W×H×D): 45 × 124 × 117 mm
- Weight: Approx. 360g
- Protection: OVP, OCP, SCP, OTP
- Certifications: UL 508, CE, cULus, ATEX Zone 2 (Class I Div 2)
- MTBF: > 500,000 hours @ 25°C, full load
- Parallel Operation: Supported (for redundancy)
- Status Indicator: Green DC OK LED
- Connections: Screw terminals (AC input & DC output)
Proven Application Environments
- Allen-Bradley ControlLogix & CompactLogix PLC control panels
- MicroLogix and Micro800 series controller power rails
- Distributed I/O (Point I/O, FLEX I/O) power distribution
- Safety relay and safety PLC (GuardLogix) auxiliary power
- PanelView HMI and operator interface power supply
- Motor control center (MCC) auxiliary control circuits
- Conveyor, packaging, and assembly line automation
- Oil & gas, water treatment, and utilities SCADA panels
- Hazardous location panels (Class I Div 2 / Zone 2)
Engineering Advantages
- Universal AC Input: 85–264VAC eliminates the need for input voltage selection — deploy globally without modification.
- Extra Low Profile (XLP) Design: 45mm width minimizes panel real estate while delivering full 100W output.
- Adjustable Output: 24–28VDC trim allows compensation for long cable runs and voltage drop in distributed systems.
- Parallel Redundancy: Two units can be paralleled with diode modules for N+1 redundant power architectures.
- Full Protection Suite: OVP, OCP, SCP, and OTP ensure system integrity under fault conditions without nuisance tripping.
- ATEX / Class I Div 2 Rated: Suitable for use in light hazardous area panels without additional enclosure requirements.
- High MTBF: >500,000 hours ensures long service intervals and low lifecycle cost.
- Rockwell Ecosystem Native: Fully compatible with Studio 5000 / RSLogix 5000 power budget calculations and Rockwell panel design standards.
System Architecture & Signal Flow
The 1606-XLP100E accepts wide-range AC mains input (L, N, PE terminals) and converts via an isolated switch-mode topology to a regulated 24VDC bus. The DC output (+V, –V, PE) feeds the control panel 24VDC rail, supplying PLCs, I/O modules, sensors, and actuators. The DC OK relay contact (if wired) provides a dry-contact signal to the PLC input card for power health monitoring. Output voltage is adjustable via front-panel trim potentiometer. For redundant architectures, two 1606-XLP100E units feed a common bus through Schottky diode ORing modules (e.g., 1606-XLRED4), ensuring seamless failover with zero output interruption.
Sourcing & Quality Verification
- Origin: Genuine Allen-Bradley / Rockwell Automation product, manufactured in the USA.
- Traceability: Each unit ships with Rockwell Automation factory label, date code, and serial number for full supply chain traceability.
- Inspection: All units at Konmask.com are inspected for physical integrity, label authenticity, and functional verification prior to dispatch.
- Warranty: Covered under Rockwell Automation standard warranty policy. Konmask.com provides 90-day return-to-base warranty on all verified genuine units.
- Counterfeit Risk: Procurement engineers are advised to verify the Rockwell Automation holographic label and factory serial number. Konmask.com sources exclusively from authorized distribution channels.
Procurement Process
- Lead Time: In-stock units ship within 1–3 business days. Contact us for volume availability and expedited freight options.
- MOQ: 1 unit. Volume pricing available for orders of 5+ units.
- Documentation: Datasheet, declaration of conformity, and test report available upon request.
- Export Compliance: ECCN EAR99. No export license required for most destinations. Contact us for restricted country inquiries.
- Payment: T/T, PayPal, credit card, and trade finance options available for qualified buyers.
- Shipping: DHL Express, FedEx International Priority, and sea freight consolidation available worldwide.
Technical FAQ
Q: Can the 1606-XLP100E power a ControlLogix chassis directly?
A: The 1606-XLP100E supplies the 24VDC I/O and field device rail. The ControlLogix chassis power supply (e.g., 1756-PA75) is a separate unit. The 1606-XLP100E is ideal for powering the 24VDC I/O bus, sensors, and distributed devices associated with the chassis.
Q: Is parallel operation supported for redundancy?
A: Yes. Two 1606-XLP100E units can be paralleled using Rockwell’s 1606-XLRED4 diode ORing module to create a redundant 24VDC supply. This is the recommended architecture for high-availability applications.
Q: What is the derating curve above 60°C?
A: Above 60°C ambient, output power must be derated linearly to 50% at 70°C. Ensure adequate panel ventilation for installations in high-ambient environments.
Q: Is this unit suitable for Class I Division 2 hazardous locations?
A: Yes. The 1606-XLP100E carries ATEX Zone 2 and Class I Division 2 certification, making it suitable for use in panels installed in light hazardous areas without additional explosion-proof enclosures.
Q: What is the difference between 1606-XLP100E and 1606-XLP100B?
A: The suffix denotes the input voltage range variant. The ‘E’ suffix indicates the universal input (85–264VAC) version suitable for global deployment. The ‘B’ suffix is the 120VAC-optimized North American variant. For international projects, always specify the ‘E’ variant.
