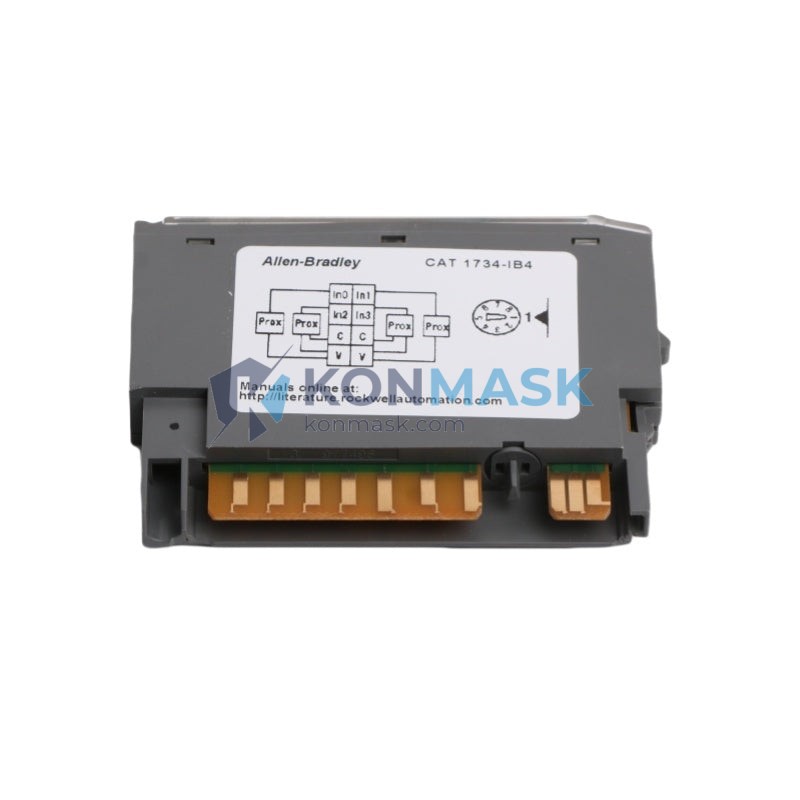

Allen-Bradley 1734-IB4 – 4-Point 24VDC Sink Input Module | POINT I/O Platform
Engineering Background
The Allen-Bradley 1734-IB4 is a compact, high-density digital input module engineered for the Rockwell Automation POINT I/O modular I/O system. Designed to interface directly with 24VDC sinking field devices, it delivers deterministic signal acquisition in space-constrained panel environments where every millimeter and millisecond counts.
Product Positioning
Targeted at OEM machine builders, system integrators, and plant automation engineers, the 1734-IB4 serves as the front-line sensing interface in distributed control architectures. Its single-wide POINT I/O form factor enables granular I/O expansion without over-provisioning, making it the preferred choice for modular machine designs on ControlLogix, CompactLogix, and FlexLogix platforms.
Complete Technical Specifications
- Catalog Number: 1734-IB4
- Series: POINT I/O (1734 Series)
- Manufacturer: Allen-Bradley / Rockwell Automation
- Module Type: Digital DC Input
- Number of Input Points: 4
- Input Voltage: 24V DC (nominal)
- Input Voltage Range: 10–28.8V DC
- Input Current: 6 mA @ 24V DC (typical)
- Signal Type: Sinking (NPN)
- ON-State Voltage: 10–28.8V DC
- OFF-State Voltage: 0–5V DC
- ON-State Current: 2 mA minimum
- OFF-State Current: 1.5 mA maximum
- Input Delay (OFF→ON): 0.1 ms (hardware filter)
- Input Delay (ON→OFF): 0.1 ms (hardware filter)
- Backplane Current (5V): 30 mA
- Backplane Current (24V): 0 mA
- Power Dissipation: 0.15 W (max)
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Relative Humidity: 5–95% non-condensing
- Vibration: 2g @ 10–500 Hz
- Shock: 30g operational
- Enclosure Rating: Open type (IP20)
- Wiring: Removable terminal block (RTB), 1 conductor per terminal
- Wire Size: 0.34–1.5 mm² (22–16 AWG)
- Module Width: Single-wide POINT I/O slot
- Weight: Approx. 40 g
- Certifications: UL, CE, C-Tick, ATEX Zone 2
- Publication Reference: 1734-UM011 (POINT I/O User Manual)
Proven Application Environments
- Discrete Manufacturing: Conveyor line presence detection, part-in-place sensing, end-of-travel limit switches
- Packaging Machinery: Photoelectric sensor inputs, proximity switch feedback, door interlock monitoring
- Food & Beverage: Wash-down adjacent panel installations with IP20 enclosure protection
- Automotive Assembly: High-cycle fixture sensing with sub-millisecond filter response
- Water/Wastewater: Pump run/fault status, valve position feedback in distributed remote I/O racks
- Oil & Gas (Zone 2): ATEX-certified installations in classified hazardous areas
Engineering Advantages
- Single-Wide Density: 4 inputs per slot minimizes panel footprint versus traditional 8-point fixed I/O blocks
- Removable Terminal Block: Pre-wire RTB before module installation; swap modules without rewiring
- Configurable Input Filter: Software-selectable filter times (0.1 ms to 8 ms) via RSLogix 5000 / Studio 5000
- Diagnostic LED per Point: Green input status LED per channel for rapid field troubleshooting
- Hot-Swap Capable: Replace module under power without system shutdown (with appropriate adapter)
- EtherNet/IP & DeviceNet Ready: Compatible with all POINT I/O communication adapters (1734-AENT, 1734-ADN, etc.)
- ATEX Zone 2 Rated: Suitable for Group IIC hazardous location installations
System Architecture & Signal Flow
The 1734-IB4 mounts on a POINT I/O base (1734-TB or 1734-TBS) and communicates via the POINT I/O backplane to a network adapter (e.g., 1734-AENT for EtherNet/IP). Field 24VDC sinking devices connect to the removable terminal block. Input state data is transmitted to the controller (ControlLogix, CompactLogix) over the selected network at the adapter’s RPI (Requested Packet Interval). Studio 5000 Logix Designer maps each input point to a BOOL tag in the controller’s I/O tree for ladder logic or function block consumption.
Typical Signal Path: Field Device → RTB Terminal → 1734-IB4 Input Circuit → POINT I/O Backplane → 1734-AENT Adapter → EtherNet/IP → ControlLogix Controller → Studio 5000 Tag
Sourcing & Quality Verification
- All 1734-IB4 modules sourced through verified industrial distribution channels with full traceability
- Each unit inspected for authentic Rockwell Automation labeling, holographic seals, and catalog number conformance
- Functional power-on verification performed prior to shipment
- Original factory packaging preserved where available; repackaged units clearly identified
- Counterfeit risk mitigation: serial number cross-referenced against Rockwell Automation product authentication guidelines
Procurement Process
- Step 1: Confirm catalog number 1734-IB4 and required quantity with your engineering BOM
- Step 2: Add to cart or contact support@konmask.com for volume pricing and lead time
- Step 3: Receive order confirmation with tracking within 1 business day
- Step 4: Expedited DHL/FedEx international shipping available; HK export documentation provided
- Step 5: Post-delivery technical support available via email or WhatsApp (+0086 19859288691)
Technical FAQ
- Q: Is the 1734-IB4 compatible with ControlLogix and CompactLogix?
- A: Yes. The 1734-IB4 works with any POINT I/O communication adapter, which in turn connects to ControlLogix, CompactLogix, FlexLogix, and SoftLogix platforms via EtherNet/IP, DeviceNet, PROFIBUS, or ControlNet.
- Q: What is the difference between 1734-IB4 and 1734-IB8?
- A: The 1734-IB4 provides 4 input points in a single-wide slot; the 1734-IB8 provides 8 input points in a double-wide slot. Choose IB4 for granular I/O allocation; choose IB8 for higher density.
- Q: Can I use sourcing (PNP) sensors with the 1734-IB4?
- A: No. The 1734-IB4 is a sinking (NPN) input module. For sourcing (PNP) sensors, use the 1734-IV4 (4-point sourcing input module).
- Q: Does the 1734-IB4 support ATEX hazardous area installation?
- A: Yes. The module carries ATEX Zone 2 certification (Group IIC, T4) when installed per Rockwell Automation publication 1734-IN009.
- Q: What terminal block is required?
- A: The 1734-IB4 uses the 1734-TB (screw-type) or 1734-TBS (spring-clamp) removable terminal block, sold separately.
