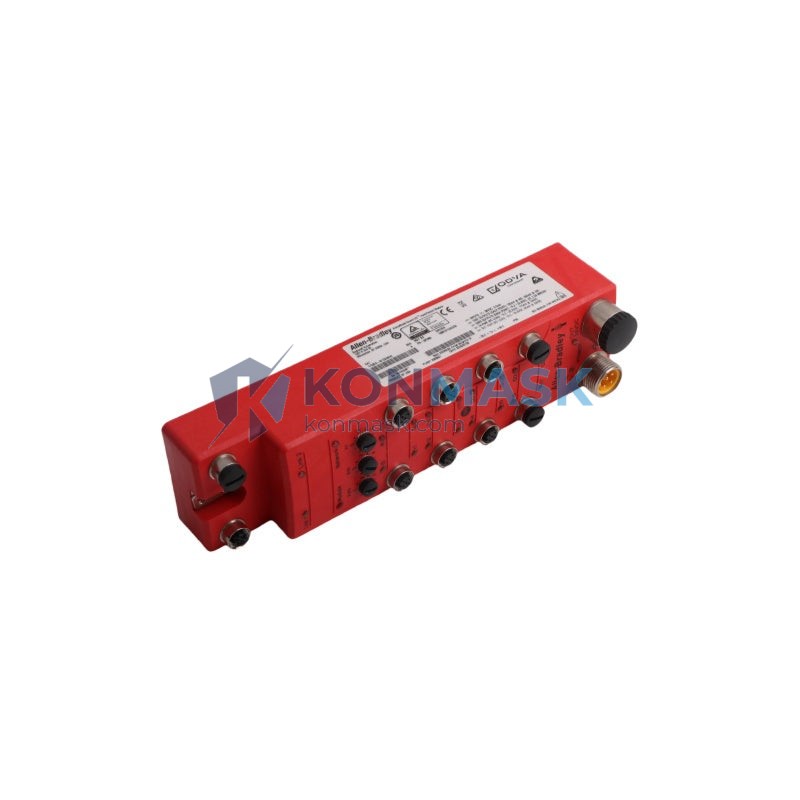

Allen-Bradley 1732ES-IB12XOBV2 Digital Safety Combination I/O Module | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1732ES-IB12XOBV2 is a compact ArmorBlock Guard I/O safety combination module designed for machine safety applications on EtherNet/IP networks. It integrates 12 safe digital inputs and 2 safe digital outputs in a single IP67-rated housing, enabling SIL 2 / PLd safety functions without a dedicated safety controller cabinet. At Konmask.com, we specialize in sourcing, cross-referencing, and supplying this module along with verified equivalents and replacements.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1732ES-IB12XOBV2 |
| Brand / Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | ArmorBlock Guard I/O (1732ES) |
| Module Type | Digital Safety Combination I/O |
| Safe Inputs | 12 × 24 V DC (IEC 61131-2 Type 3) |
| Safe Outputs | 2 × 24 V DC, 0.5 A (solid-state) |
| Communication | EtherNet/IP (CIP Safety) |
| Safety Rating | SIL 2 (IEC 62061), PLd Cat. 3 (ISO 13849-1) |
| Protection Rating | IP67 |
| Supply Voltage | 24 V DC (±10%) |
| Operating Temperature | -20 °C to +60 °C |
| Connector Type | M12 (D-coded for network; A-coded for I/O) |
| Dimensions (W×H×D) | Approx. 200 × 60 × 45 mm |
| Weight | ~800 g |
| Certifications | UL, CE, cULus, TÜV |
Compatible Replacement & Equivalent Models
When the 1732ES-IB12XOBV2 is unavailable or requires a cost-effective alternative, the following models offer functional equivalence or direct drop-in replacement potential:
| Model | Brand | Inputs / Outputs | Protocol | Notes |
|---|---|---|---|---|
| 1732ES-IB12XOBV2 | Allen-Bradley | 12 DI / 2 DO | EtherNet/IP | Original — reference model |
| 1732ES-IB8XOBV4 | Allen-Bradley | 8 DI / 4 DO | EtherNet/IP | Same series, different I/O ratio |
| 1732ES-IB16 | Allen-Bradley | 16 DI / 0 DO | EtherNet/IP | Input-only variant, same housing |
| TBPN-L1-FDIO1-2IOL | Phoenix Contact | 8 DI / 4 DO | PROFINET | Cross-brand; protocol adapter required |
| SFIO-4DI-4DO-M12 | Pilz | 4 DI / 4 DO | EtherNet/IP | Smaller I/O count; verify SIL level |
⚠ Always verify firmware compatibility, safety function mapping, and CIP Safety configuration before substituting modules in a validated safety system.
Why Choose the Original 1732ES-IB12XOBV2
- Validated Safety Architecture: Factory-certified SIL 2 / PLd — no re-validation required when replacing like-for-like.
- Seamless Studio 5000 Integration: Native EDS/AOP support in Rockwell Studio 5000 Logix Designer for rapid commissioning.
- IP67 Rugged Housing: Suitable for wash-down, outdoor, and harsh industrial environments without additional enclosures.
- Reduced Wiring Cost: M12 quick-disconnect connectors eliminate terminal block wiring and reduce installation time.
- Dual-Channel Input Support: Enables single-channel and dual-channel safety input configurations for flexible machine safety design.
Typical Applications
- Emergency stop (E-stop) circuits and safety gate monitoring
- Light curtain and safety mat integration on packaging and press lines
- Robot cell perimeter guarding (collaborative and industrial robots)
- Conveyor and material handling safety interlocks
- Food & beverage processing lines requiring IP67 wash-down protection
- Automotive body-in-white welding and assembly stations
System Compatibility
- Safety Controllers: GuardLogix 5580, GuardLogix 5570, Compact GuardLogix 5380, Compact GuardLogix 5370
- Standard Controllers (via CIP Safety): ControlLogix 5580, CompactLogix 5380 (with safety task)
- Network Infrastructure: Stratix 5700 / 5400 managed switches; any CIP Safety-compliant EtherNet/IP scanner
- Software: Studio 5000 Logix Designer v21.0+; RSLinx Classic / FactoryTalk Linx
- Power Supply: 1606-XLP, 1606-XLS series 24 V DC power supplies (Rockwell) or equivalent 24 V DC Class 2 supply
Selection Guide
Use the decision matrix below to confirm the 1732ES-IB12XOBV2 is the right module for your application:
| Requirement | 1732ES-IB12XOBV2 | Action if Not Met |
|---|---|---|
| Need ≥ 12 safe digital inputs | ✅ 12 DI | Consider 1732ES-IB16 (16 DI) |
| Need ≥ 2 safe digital outputs | ✅ 2 DO | Consider 1732ES-IB8XOBV4 (4 DO) |
| EtherNet/IP / CIP Safety network | ✅ Native | Select PROFINET or DeviceNet variant |
| SIL 2 / PLd safety rating required | ✅ Certified | Verify third-party equivalents independently |
| IP67 environmental protection | ✅ IP67 | Add enclosure if using non-rated alternative |
| Rockwell / Studio 5000 ecosystem | ✅ Native AOP | Use cross-brand with EDS import |
Quality Assurance & Sourcing
- Authentic Parts: All units sourced from authorized distributors or verified surplus channels with full traceability.
- Pre-shipment Inspection: Visual inspection, label verification, and functional power-on test performed before dispatch.
- Warranty: 90-day replacement warranty against manufacturing defects.
- Packaging: Original OEM packaging retained where available; ESD-safe packaging for all units.
- Documentation: Certificate of conformance and test report available on request.
How to Order
- Confirm part number: 1732ES-IB12XOBV2
- Specify required quantity and delivery timeline.
- Contact us via the form below or directly at support@konmask.com or +0086 19859288691.
- Receive quotation within 24 business hours with lead time and shipping options.
- Confirm order — we handle export documentation, customs HS code (8537.10), and international freight.
Replacement & Compatibility FAQ
Q: Can I replace 1732ES-IB12XOBV2 with 1732ES-IB8XOBV4 without re-validation?
A: Not directly — the I/O count differs (12 DI vs 8 DI; 2 DO vs 4 DO). A safety function re-assessment is required per IEC 62061 / ISO 13849.
Q: Is this module compatible with a standard ControlLogix (non-safety) controller?
A: CIP Safety modules require a safety controller or a controller with a safety task. Standard ControlLogix without a safety task cannot consume CIP Safety data.
Q: What is the lead time for 1732ES-IB12XOBV2?
A: Typically 3–7 business days for in-stock units; 4–8 weeks for factory-new orders. Contact us for current availability.
Q: Do you supply the M12 cables and connectors separately?
A: Yes. We can supply compatible M12 D-coded and A-coded cordsets. Please specify cable length and connector gender when ordering.
Q: Can this module be used in a PROFINET safety network?
A: No. The 1732ES series is EtherNet/IP (CIP Safety) only. For PROFINET PROFIsafe, consider Phoenix Contact or Siemens ET 200 safety I/O alternatives.
