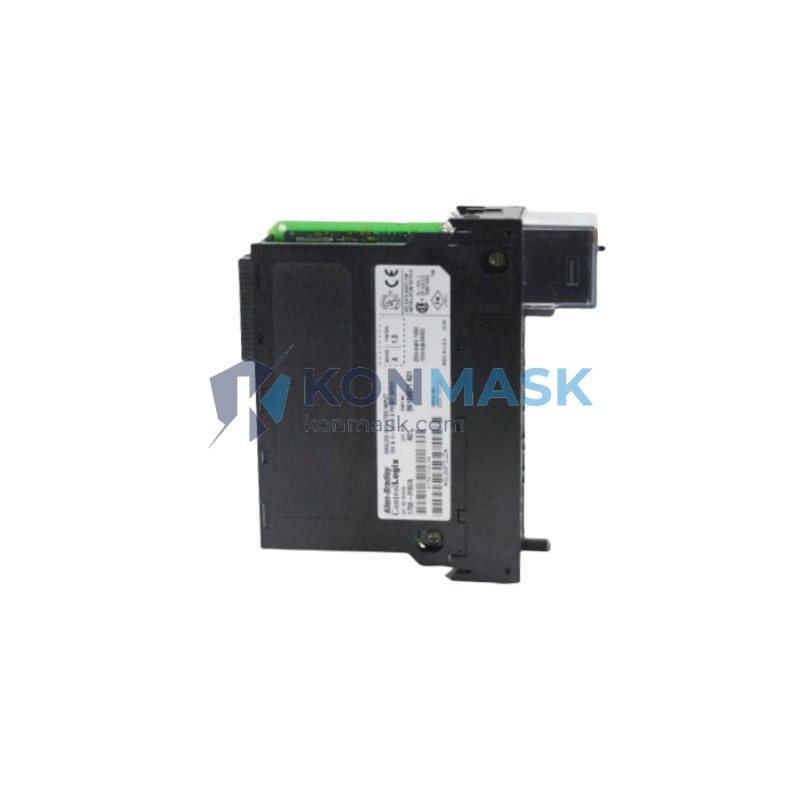

Allen-Bradley 1756-IF6I – Isolated Analog Input Module | ControlLogix Platform
Engineering Background: In high-voltage industrial environments — power generation plants, chemical processing facilities, and heavy manufacturing lines — ground loops and electrical noise are silent destroyers of measurement accuracy. When a standard non-isolated analog input module is deployed across equipment with different ground potentials, the resulting common-mode interference corrupts sensor signals, triggers nuisance faults, and in worst cases causes unplanned shutdowns that cost thousands of dollars per hour. The Allen-Bradley 1756-IF6I was engineered specifically to eliminate this failure mode, delivering channel-to-channel and channel-to-backplane isolation that keeps your process data clean regardless of the electrical environment.
Product Positioning: The 1756-IF6I occupies a critical niche within the ControlLogix 1756 platform — it is the go-to isolated analog input module for applications where signal integrity cannot be compromised. With six independently isolated channels, it serves industries ranging from oil & gas to water treatment, and is recognized globally as a benchmark for reliable analog acquisition in Rockwell Automation’s flagship PLC architecture. Its compatibility with the full ControlLogix ecosystem — including redundant chassis, GuardLogix safety controllers, and Studio 5000 Logix Designer — makes it a cornerstone component in mission-critical control systems worldwide.
Complete Technical Specifications
- Part Number: 1756-IF6I
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Series / Platform: ControlLogix 1756
- Module Type: Isolated Analog Input
- Number of Input Channels: 6 (individually isolated)
- Input Signal Types: Voltage and Current (configurable per channel)
- Voltage Input Range: ±10V, 0–10V, 0–5V, 1–5V
- Current Input Range: 0–20 mA, 4–20 mA
- Resolution: 16-bit
- Isolation: Channel-to-channel and channel-to-backplane
- Common Mode Voltage: ±10V (channel-to-channel), ±250V AC/DC (channel-to-backplane)
- Update Rate: Configurable (real-time sampling)
- Backplane Current: 250 mA @ 5V DC; 3 mA @ 24V DC
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Relative Humidity: 5–95% non-condensing
- Dimensions (H × W × D): 94 × 45 × 99 mm (3.7 × 1.77 × 3.9 in)
- Weight: Approx. 400 g
- Certifications: UL, CE, C-Tick
- Country of Origin: United States
Proven Application Environments
- Oil & Gas: Wellhead pressure and temperature monitoring with isolated transmitters across long cable runs
- Power Generation: Generator excitation control and turbine analog feedback where ground differentials are significant
- Chemical & Petrochemical: Multi-point flow and level measurement in electrically noisy process areas
- Water & Wastewater Treatment: pH, dissolved oxygen, and flow sensor acquisition across distributed pump stations
- Automotive Manufacturing: Press force monitoring and robotic welding current feedback
- Pharmaceutical: Validated batch process control requiring high-accuracy, noise-free analog data
- Mining & Metals: Conveyor load cell and furnace temperature acquisition in high-EMI environments
Engineering Advantages
- True Per-Channel Isolation: Each of the 6 channels is independently isolated, preventing fault propagation between sensors and eliminating ground loop interference
- High Common-Mode Rejection: ±250V AC/DC channel-to-backplane isolation protects the entire ControlLogix chassis from field-side voltage transients
- 16-Bit Resolution: Delivers 0.0015% full-scale accuracy for precision process control and regulatory compliance
- Flexible Signal Configuration: Supports voltage and current inputs on the same module, reducing hardware count and cabinet space
- Seamless Studio 5000 Integration: Full Add-On Profile (AOP) support enables drag-and-drop configuration, online diagnostics, and automatic tag generation
- Hot-Swap Capable: Modules can be replaced under power in a ControlLogix chassis without system shutdown (with appropriate chassis configuration)
- Diagnostic Reporting: Over-range, under-range, and wire-off detection with controller-level fault reporting
System Architecture & Signal Flow
The 1756-IF6I connects field-side sensors (4–20 mA transmitters, ±10V transducers, RTDs via signal conditioners) through a terminal block to the module’s isolated input circuitry. Each channel passes through an independent isolation barrier before being digitized by a 16-bit ADC. Digitized values are transferred across the ControlLogix backplane to the controller’s I/O tree, where they appear as scaled engineering-unit tags in Studio 5000 Logix Designer. The module supports both direct connection (1:1 with controller) and rack-optimized connection modes for bandwidth-efficient multi-module chassis configurations. Compatible controllers include the 1756-L8x (ControlLogix 5580), 1756-L7x (ControlLogix 5570), and GuardLogix 5580 safety controllers.
Sourcing & Quality Verification
- All 1756-IF6I units sourced through verified industrial automation supply channels
- Each module undergoes functional power-on testing prior to shipment
- Original manufacturer labeling, firmware version, and serial number intact
- Packaging inspected for physical damage; ESD-safe handling throughout
- Traceability documentation available upon request for regulated industries
- Both new-surplus and refurbished grades available — condition clearly stated on inquiry response
Procurement Process
- Submit Inquiry: Contact us via the form below or email support@konmask.com with your required quantity and delivery timeline
- Receive Quote: Our team responds within 24 hours with pricing, lead time, and stock availability
- Order Confirmation: Confirm purchase order; we accept T/T, L/C, and major payment platforms
- Quality Check & Dispatch: Module tested, packed with ESD protection, and shipped via DHL / FedEx / UPS with tracking
- After-Sales Support: Technical assistance available post-delivery for integration and commissioning questions
Technical FAQ
Q: What is the difference between 1756-IF6I and 1756-IF6CIS?
A: The 1756-IF6I provides standard isolated analog inputs. The 1756-IF6CIS is a HART-enabled variant that supports HART pass-through communication for smart field devices. If your transmitters are HART-capable and you need device diagnostics, the IF6CIS is the appropriate choice.
Q: Can the 1756-IF6I be used in a redundant ControlLogix chassis?
A: Yes. The 1756-IF6I is compatible with ControlLogix redundancy configurations (1756-RM2/A redundancy modules). Ensure your Studio 5000 project is configured for redundancy and that the module firmware meets the minimum version required by your redundancy firmware bundle.
Q: What terminal block is required for field wiring?
A: The 1756-IF6I uses a 1756-TBNH (36-pin, cage clamp) or 1756-TBS6H (spring clamp) terminal block. These are ordered separately and must be specified when placing your inquiry.
Q: Is the 1756-IF6I still in active production?
A: Rockwell Automation has transitioned some 1756 series modules to active/mature lifecycle status. Konmask.com maintains stock of both new-surplus and tested-refurbished units to support ongoing maintenance and expansion projects. Contact us for current availability.
Q: What firmware version should I specify?
A: Firmware version should match your controller’s major revision. Konmask.com can advise on compatible firmware versions based on your existing ControlLogix system revision — please include your controller catalog number and firmware in your inquiry.
