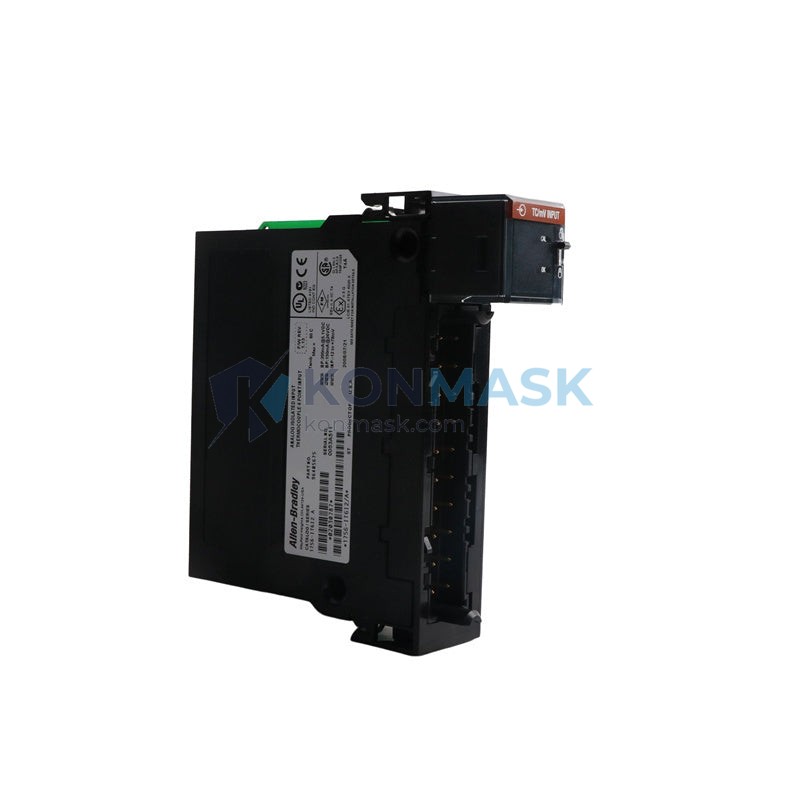

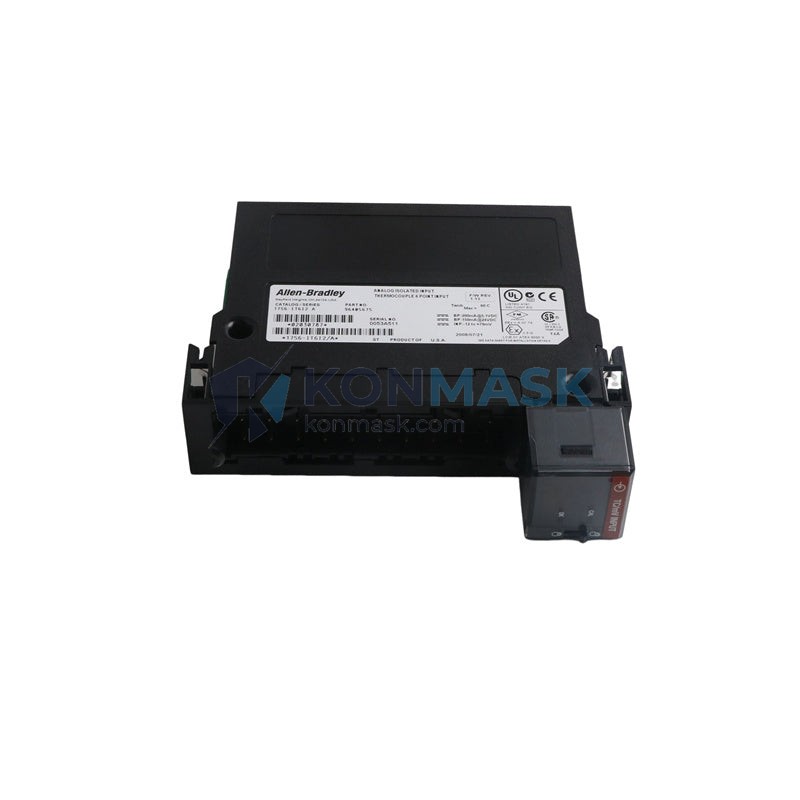

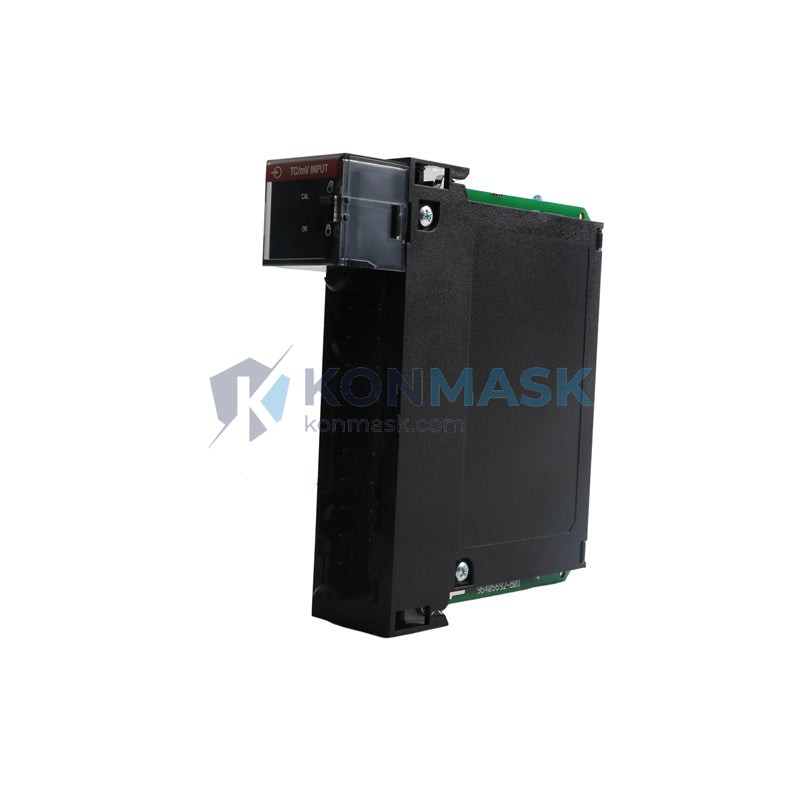

Allen-Bradley 1756-IT6I2 Thermocouple Input Module – ControlLogix Enhanced Analog Series
When a thermocouple input module fails mid-process in a continuous manufacturing line — a glass furnace, a pharmaceutical sterilization tunnel, or a petrochemical reactor — the consequences are not a simple alarm. Temperature data disappears from the control loop, the PLC falls back to fail-safe defaults, and operators face an unplanned shutdown that can cost tens of thousands of dollars per hour. The 1756-IT6I2 exists precisely to prevent that scenario: a purpose-built, isolated thermocouple input module that keeps six independent temperature measurement channels alive and accurate, even in electrically noisy industrial environments.
Within the ControlLogix 1756 platform, the IT6I2 occupies a specific technical niche. It is the enhanced-isolation variant of the thermocouple input family, offering channel-to-channel isolation that the standard IT6I does not provide. This makes it the preferred choice for applications where ground loops, common-mode voltage differences between measurement points, or compliance with IEC 61511 functional safety requirements demand true electrical separation between channels. Globally, the ControlLogix platform powers critical infrastructure across more than 100 countries, and the 1756-IT6I2 is a recurring specification in engineering BOMs for high-temperature process industries.
Technical Specifications
Electrical
- Number of Input Channels: 6 (individually isolated)
- Input Type: Thermocouple types B, E, J, K, N, R, S, T; ±150 mV millivolt input
- Resolution: 16-bit (including sign bit)
- Accuracy: ±0.1% of full scale at 25°C
- Input Impedance: >1 MΩ
- Channel-to-Channel Isolation: 250 V AC continuous
- Channel-to-Backplane Isolation: 250 V AC continuous
- Backplane Current Draw: 75 mA @ 5 V DC; 2 mA @ 24 V DC
- Power Dissipation: 0.4 W (max)
Mechanical
- Form Factor: Single-slot ControlLogix 1756 chassis module
- Wiring: Removable terminal block (RTB), 36-pin
- Weight: Approx. 280 g
- Dimensions: Standard 1756 module profile
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 68-2-6 compliant
- Shock: IEC 68-2-27 compliant
Certifications & Standards
- UL Listed, CE Marked, C-Tick
- ATEX Zone 2 (with appropriate barriers)
- Conforms to IEC 61131-2 programmable controller standards
- Industry standard reference: IEC 60584 thermocouple type definitions apply to all TC input configurations.
Key Features & Benefits
- Channel-to-channel isolation at 250 V AC — Eliminates ground loop interference between measurement points on separate equipment frames, a common failure mode in multi-furnace installations.
- 16-bit resolution across ±150 mV full scale — Delivers temperature resolution finer than 0.05°C for Type K thermocouples in the 0–500°C range, meeting the measurement accuracy requirements of pharmaceutical validation protocols (FDA 21 CFR Part 11 environments).
- Open-circuit detection on all 6 channels — The module flags a broken thermocouple wire within one scan cycle, allowing the control program to activate redundant measurement or safe-state logic before the process drifts out of spec.
- Cold junction compensation (CJC) built-in — Eliminates the need for external reference junction hardware, reducing panel wiring complexity and potential calibration drift points.
- Hot-swap capable within live ControlLogix chassis — Module replacement does not require a chassis power-down, reducing maintenance downtime to the time it takes to swap and reconnect the RTB — typically under 10 minutes.
- Conforms to IEC 61131-2 — Ensures compatibility with any ControlLogix controller revision and simplifies documentation for CE-marked machine exports to European markets.
Industry & Equipment Applications
- Oil & Gas / Petrochemical: Reactor temperature profiling, fired heater tube skin monitoring, distillation column tray temperature measurement — applications where channel isolation prevents ground faults from corrupting multiple readings simultaneously.
- Pharmaceutical & Life Sciences: Autoclave and sterilization tunnel validation, lyophilizer shelf temperature mapping, clean-in-place (CIP) system monitoring — where 21 CFR Part 11 audit trails require traceable, high-accuracy temperature data.
- Metals & Glass Manufacturing: Continuous casting mold temperature control, glass tank crown and bottom temperature profiling, annealing lehr zone control — high-temperature environments where Type B and Type S thermocouples are standard.
- Food & Beverage Processing: Pasteurization and UHT system temperature verification, retort process monitoring, spray dryer inlet/outlet temperature control — HACCP-critical measurement points.
- Power Generation: Turbine exhaust gas temperature (EGT) monitoring, boiler drum and superheater temperature measurement, transformer winding temperature trending.
- Automotive & Heat Treatment: Batch furnace zone control, carburizing and nitriding atmosphere temperature management, paint oven cure profile verification — multi-zone applications that benefit directly from 6-channel isolated inputs in a single slot.
System Integration & Compatible Parts
Upstream Controllers (compatible): 1756-L71, 1756-L72, 1756-L73, 1756-L74, 1756-L75, 1756-L81E, 1756-L82E, 1756-L83E, 1756-L84E, 1756-L85E — all ControlLogix V20+ firmware controllers.
Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 (any standard ControlLogix chassis).
Power Supplies: 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75.
Wiring Accessories: 1756-TBCH (36-pin cage clamp RTB), 1756-TBS6H (spring clamp RTB).
Equivalent / Alternate Models:
- 1756-IT6I — Non-isolated variant; suitable as a substitute only when channel-to-channel isolation is not required by the application or safety specification.
- 1756-IR6I — RTD/resistance input module; use when Pt100 or Pt1000 sensors are installed instead of thermocouples.
- 1756-IF8 — General-purpose 4–20 mA / 0–10 V analog input; not a direct substitute for TC measurement but used in parallel for transmitter-based temperature loops.
Note: Always verify firmware compatibility between the module and the target controller revision before substitution in a validated or safety-rated system.
Our Quality Assurance Process
Every 1756-IT6I2 unit sourced and shipped by Konmask.com passes through a four-step verification process:
- Visual & Physical Inspection: Housing integrity, connector pin condition, label legibility, and date code verification against known production batches.
- Functional Power-On Test: Module is seated in a live ControlLogix chassis and polled by RSLogix 5000 / Studio 5000 to confirm backplane communication, channel enumeration, and diagnostic status bits.
- Firmware & Revision Check: Module firmware revision is recorded and disclosed in the shipment documentation.
- Packaging & ESD Protection: Units are packed in anti-static bags with foam cushioning and humidity indicator cards for international shipments.
Available documentation upon request: Test report, product photos (pre-shipment), firmware revision record, certificate of conformance (CoC), and commercial invoice for customs clearance.
How to Order
- Submit your RFQ: Send your part number (1756-IT6I2), required quantity, and destination country to [email protected] or use the inquiry form on this page.
- Receive your quote: Our team will respond within 24 hours with availability, lead time, unit price, and shipping options — no commitment required at this stage.
- Confirm & ship: Once you approve the proforma invoice, we arrange export documentation, ESD-safe packaging, and dispatch via your preferred freight method (DHL, FedEx, sea freight, or forwarder pickup).
📞 +0086 19859288691 | ✉ [email protected]
Why Choose Konmask.com?
- Specialist in ControlLogix & PLC components: We stock and source Allen-Bradley, Siemens, Schneider, ABB, and Yokogawa automation parts — not a general electronics distributor.
- Transparent pre-shipment inspection: Every unit is tested and photographed before dispatch; you receive the actual photos of your specific unit upon request.
- Export-ready documentation: Commercial invoice, packing list, CoC, and country-of-origin declaration prepared for customs clearance in CN, EU, US, and Southeast Asian markets.
- Responsive B2B communication: Dedicated account handling for engineering teams and procurement departments — 24-hour RFQ response, no automated chatbots.
- Flexible logistics: DHL Express, FedEx International Priority, sea freight consolidation, or forwarder handover at Xiamen/Shenzhen — you choose the Incoterm.
Frequently Asked Questions
Q: What is the difference between the Allen-Bradley 1756-IT6I2 and the 1756-IT6I, and when should I specify the IT6I2?
A: The 1756-IT6I2 provides channel-to-channel isolation (250 V AC) in addition to channel-to-backplane isolation. The standard 1756-IT6I shares a common reference across all six channels. Specify the IT6I2 whenever your thermocouples are attached to equipment at different electrical potentials — for example, multiple furnace zones with separate grounding systems — or when your functional safety specification (IEC 61511 SIL 1/2) requires independent channel integrity.
Q: Can I use the 1756-IT6I2 with a ControlLogix L8x controller running Studio 5000 v32 or later?
A: Yes. The 1756-IT6I2 is compatible with all ControlLogix chassis and controllers from the L6x generation onward. Studio 5000 v21 and later include the module profile natively in the Add-On Profile (AOP) library. No additional EDS file installation is required for v32. Confirm the module firmware revision matches the AOP revision in your project to avoid minor descriptor mismatches.
Q: How do I source a verified Allen-Bradley 1756-IT6I2 with short lead time for an emergency plant shutdown repair?
A: Contact Konmask.com directly at [email protected] or call +0086 19859288691. For emergency requirements, specify your deadline and destination port in the first message. We will confirm stock availability and DHL Express transit time (typically 3–5 business days to most destinations) within a few hours. Pre-shipment photos and a test report can be provided the same business day for urgent orders.
