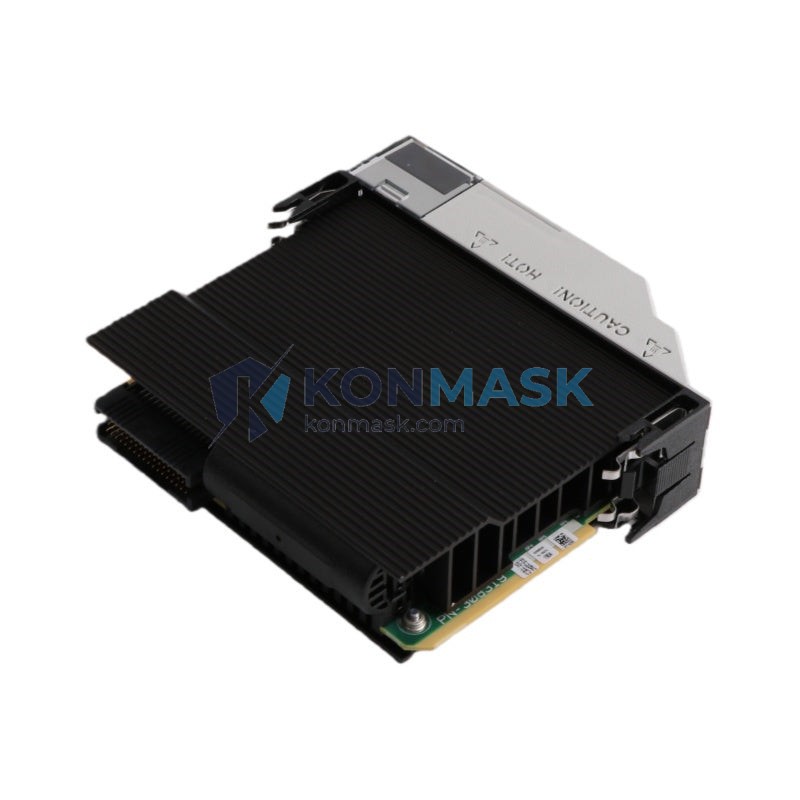

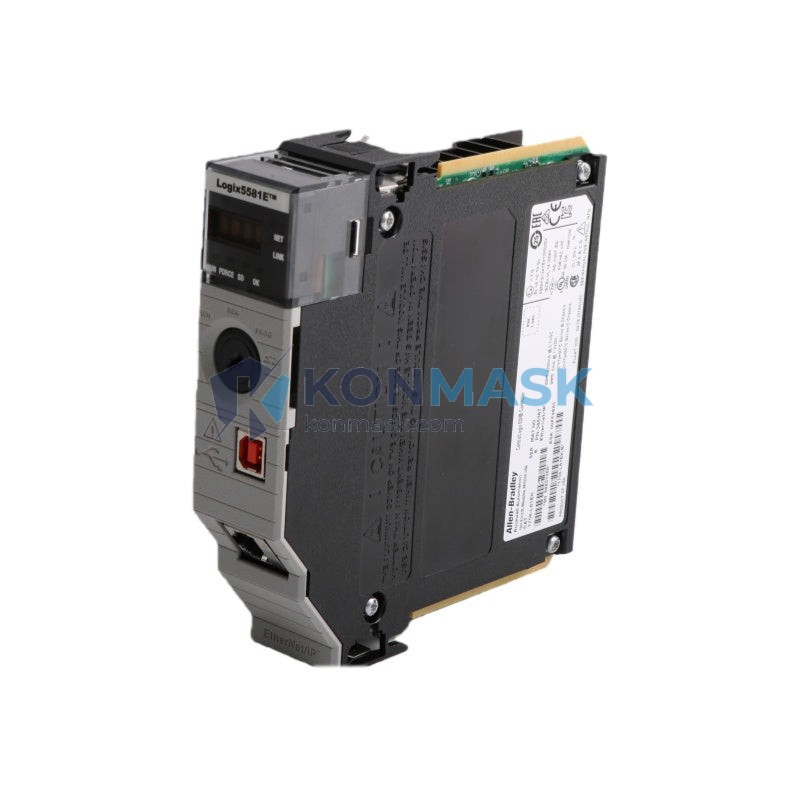

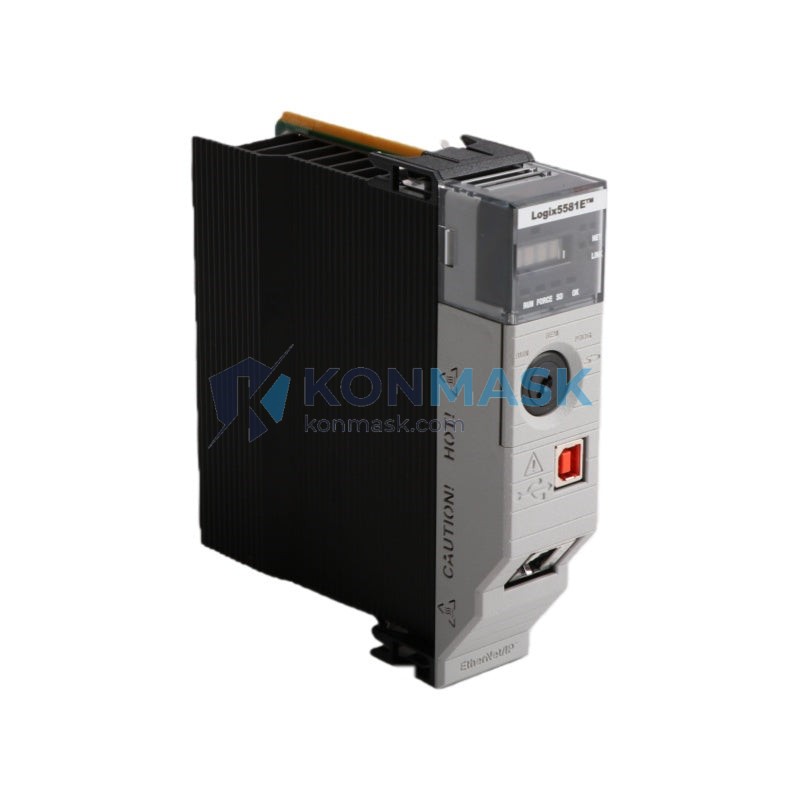

Industrial Automation Solution – Allen-Bradley 1756-L81E | ControlLogix Series
The Allen-Bradley 1756-L81E is a high-performance ControlLogix programmable automation controller (PAC) featuring an integrated EtherNet/IP communication port and 40MB of user memory. Engineered for demanding discrete, process, motion, and safety control applications, this controller is the backbone of modern industrial automation architectures across oil & gas, automotive, food & beverage, and water treatment industries.
Where This Product Is Used
The 1756-L81E is deployed across a wide range of industrial environments where high-speed, reliable control is non-negotiable:
- Oil & Gas Processing Plants – Pipeline SCADA systems, compressor station control, and wellhead automation requiring redundant EtherNet/IP networks.
- Automotive Manufacturing – Body-in-white welding lines, paint shop conveyors, and powertrain assembly cells demanding deterministic motion coordination.
- Food & Beverage Production – Batch processing, CIP (Clean-In-Place) systems, and high-speed packaging lines with integrated safety zones.
- Water & Wastewater Treatment – Pump station control, chemical dosing, and SCADA-integrated distributed I/O networks.
- Pharmaceutical Manufacturing – FDA 21 CFR Part 11-compliant batch control and environmental monitoring systems.
- Power Generation & Utilities – Turbine control, substation automation, and load management with high-availability redundancy.
Technical Specifications
- Part Number: 1756-L81E
- Series: ControlLogix 5580
- User Memory: 40 MB
- I/O Memory: 4 MB
- Communication Port: Dual-port EtherNet/IP (integrated)
- Tasks Supported: 32 tasks, 100 programs per task
- Motion Axes: Up to 256 axes
- Backplane Current Draw: 1.2A @ 1.2V DC; 0.98A @ 5.1V DC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Certifications: UL, CE, C-Tick, ATEX Zone 2
- Chassis Compatibility: 1756 ControlLogix chassis (all sizes)
- Programming Software: Studio 5000 Logix Designer v30 or later
- Weight: 400 g
Why Engineers Specify This Model
- Integrated Dual EtherNet/IP Port – Eliminates the need for a separate 1756-EN2T communication module, reducing chassis slot usage and BOM cost.
- 40MB User Memory – Supports large, complex programs with extensive tag databases, ideal for multi-axis motion and process batch applications.
- ControlLogix 5580 Architecture – Delivers up to 4× faster task execution vs. previous 5570 generation, critical for high-speed packaging and press control.
- CIP Security & Device Level Ring (DLR) – Native support for network-level cybersecurity and ring topology fault tolerance without additional hardware.
- Seamless Redundancy Upgrade Path – Compatible with 1756-RM2 redundancy modules for SIL 2 / high-availability architectures.
- Studio 5000 Ecosystem – Full integration with Rockwell Automation’s Integrated Architecture, including FactoryTalk View, AssetCentre, and Historian.
Complete System Bill of Materials
A typical 1756-L81E control panel build includes the following components:
- 1756-L81E – ControlLogix Controller (this item)
- 1756-A7 / 1756-A10 / 1756-A13 – ControlLogix Chassis (7, 10, or 13 slots)
- 1756-PA75 / 1756-PB75 – ControlLogix Power Supply (120/240V AC or 18-32V DC)
- 1756-IB16 / 1756-OB16E – Digital Input / Output Modules
- 1756-IF8 / 1756-OF8 – Analog Input / Output Modules
- 1756-M02AE – Servo Drive Interface Module (for motion applications)
- 1756-EN2T – Additional EtherNet/IP Bridge Module (for expanded network segments)
- 1756-DNB – DeviceNet Scanner (for legacy device integration)
Compliance & Industry Standards
- UL Listed (UL 508)
- CE Marked (EN 61131-2, EN 61000 series)
- ATEX / IECEx Zone 2 (Gas Group IIC, T4)
- ISA-99 / IEC 62443 Cybersecurity Compliance
- IEC 61511 Functional Safety (SIL 2 capable with redundancy)
- RoHS Compliant
- C-Tick (Australia/New Zealand EMC)
Quality Assurance & Sourcing
All Allen-Bradley 1756-L81E units supplied by Konmask.com are:
- Sourced from authorized distributors and verified secondary market channels
- Inspected for firmware version, physical condition, and functional integrity prior to dispatch
- Shipped with original packaging where available; anti-static protection guaranteed
- Backed by Konmask’s 90-day quality assurance warranty
- Traceable via serial number documentation provided with each shipment
How to Source This Part
Ready to procure the 1756-L81E for your project? Here’s how to work with us:
- In-Stock Orders: Add to cart and check out directly — most orders ship within 1–3 business days.
- Bulk / Project Quotes: Email [email protected] with your BOM for volume pricing.
- Urgent Requirements: Call or WhatsApp +0086 19859288691 for same-day availability confirmation.
- Export & Cross-Border: We ship globally with full commercial invoice and HS code documentation for customs clearance.
Application-Specific FAQ
Q: Can the 1756-L81E replace a 1756-L75 in an existing chassis?
A: Yes. The 1756-L81E is backward-compatible with existing 1756 chassis and power supplies. A program conversion via Studio 5000 is required; I/O module wiring remains unchanged.
Q: Does the 1756-L81E support ProfiNet or Modbus TCP natively?
A: The native protocol is EtherNet/IP (CIP). Modbus TCP is supported via MSG instruction add-on profiles. ProfiNet requires a third-party gateway module.
Q: What is the maximum number of I/O modules supported?
A: Up to 31 modules per local chassis slot; remote I/O via EtherNet/IP supports thousands of distributed I/O points across multiple chassis.
Q: Is this controller suitable for SIL 2 safety applications?
A: The 1756-L81E itself is a standard controller. For SIL 2 applications, pair it with a 1756-L8SP GuardLogix Safety Controller or implement a redundant 1756-L81E pair with 1756-RM2 modules.
Q: What Studio 5000 version is required?
A: Studio 5000 Logix Designer v30.00 or later is required. Rockwell Automation recommends v33 or higher for full 5580-series feature support.
