Genuine Allen-Bradley 1762-L24BXBR MicroLogix 1200 PLC Controller | 24-Point I/O Module – Verified Source

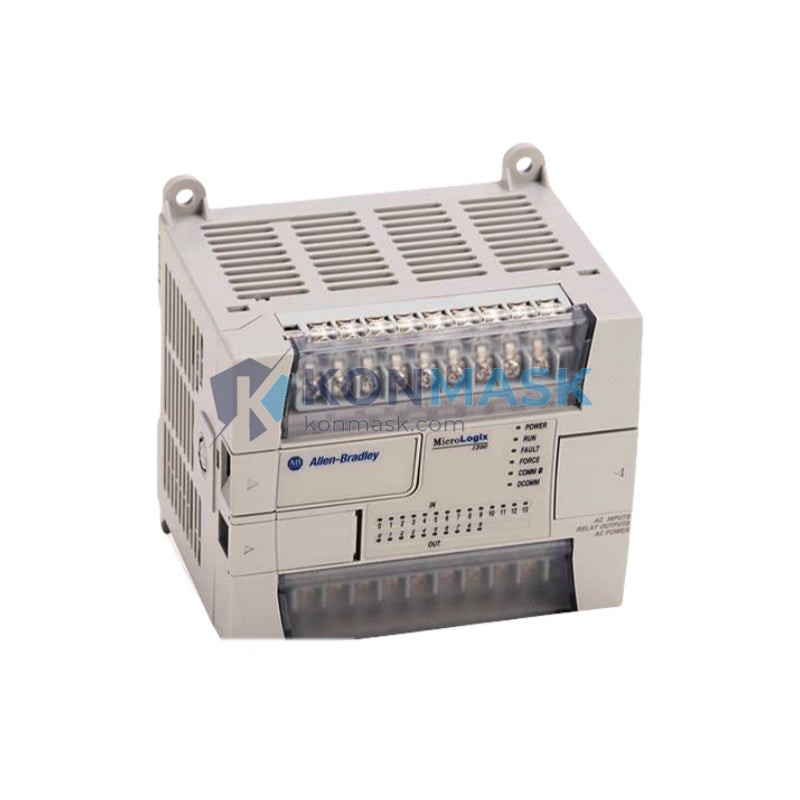

The Allen-Bradley 1762-L24BXBR is a MicroLogix 1200 series programmable logic controller (PLC) featuring 24 built-in I/O points — 14 DC inputs and 10 relay outputs — designed for demanding industrial automation environments. Sourced directly through verified distribution channels, every unit sold by Konmask.com undergoes a rigorous 4-step authenticity and quality verification process before shipment.
Technical Specifications
- Part Number / SKU: 1762-L24BXBR
- Series: MicroLogix 1200
- Manufacturer: Allen-Bradley / Rockwell Automation
- Total I/O Points: 24 (14 Inputs + 10 Outputs)
- Input Type: 24V DC Sink/Source
- Output Type: Relay (Form A)
- Power Supply: 24V DC
- Communication Port: RS-232 (DH-485 / DF1)
- Memory: 4K words user program / 1K words data
- Expandable I/O: Up to 6 expansion modules (1762 series)
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Enclosure Rating: IP20 / NEMA Open Type
- Weight: Approx. 700 g
- Certifications: UL, CE, CSA, RCM
- Programming Software: RSLogix 500 / Studio 5000 Logix Designer (via RSLogix 500)
Our 4-Step Quality Verification Process
At Konmask.com, every Allen-Bradley 1762-L24BXBR unit passes through our standardized verification protocol before it reaches you:
- Step 1 — Source Authentication: Units are procured exclusively from authorized distributors or factory-sealed surplus channels. All supplier documentation is retained on file.
- Step 2 — Physical Inspection: Our technicians inspect label integrity, housing condition, connector pins, and firmware version markings against Rockwell Automation’s published specifications.
- Step 3 — Functional Bench Test: Each unit is powered on and tested for I/O response, communication port functionality, and program upload/download capability using RSLogix 500.
- Step 4 — Packaging & Documentation Review: Units are repackaged with anti-static protection, and all accompanying documentation (datasheet, test report) is included in the shipment.
Key Features & Benefits
- ✅ Compact, high-density I/O — 24 points in a single base unit reduces panel space requirements
- ✅ Relay outputs — Suitable for controlling motors, solenoids, and high-inrush loads without external relays
- ✅ Expandable architecture — Add up to 6 × 1762-series expansion modules for analog, specialty, or additional digital I/O
- ✅ Dual-port RS-232 — Supports simultaneous HMI and programming connections
- ✅ Battery-backed memory — Retains program and data during power loss
- ✅ Wide operating temperature range — Reliable performance in harsh industrial environments
- ✅ RSLogix 500 compatible — Familiar programming environment for Allen-Bradley ladder logic engineers
Typical Applications
- Conveyor and material handling control
- Pump and motor sequencing
- HVAC and building automation
- Packaging machinery
- Water and wastewater treatment systems
- Food and beverage processing lines
- OEM machine control panels
Compatible System Components
- Expansion I/O: 1762-IA8, 1762-OA8, 1762-IQ8, 1762-OW8, 1762-IF4, 1762-OF4
- Communication Modules: 1761-NET-ENI (Ethernet), 1761-NET-DNI (DeviceNet), 1761-NET-AIC (Advanced Interface Converter)
- HMI Panels: PanelView 300 Micro, PanelView Component C200/C400/C600/C1000
- Programming Cable: 1761-CBL-PM02 (RS-232 to DH-485)
- Power Supply: 1762-PA4 (120/240V AC to 24V DC)
- Memory Module: 1762-MM1 (for program backup and transfer)
Global Sourcing & Shipping Capabilities
Konmask.com ships the Allen-Bradley 1762-L24BXBR worldwide from our warehouse in China. We support the following shipping options:
- Standard International: DHL / FedEx / UPS — 5–10 business days
- Express: DHL Express / FedEx Priority — 2–4 business days
- Economy: ePacket / China Post Registered — 15–30 business days
- Freight: Available for bulk orders (5+ units) — contact us for a quote
All shipments include a commercial invoice, packing list, and tracking number. Export documentation for customs clearance is provided upon request. We have successfully shipped to customers in the USA, EU, Southeast Asia, Middle East, and Latin America.
Certifications & Compliance Statement
The Allen-Bradley 1762-L24BXBR is manufactured by Rockwell Automation and carries the following certifications:
- UL Listed — UL 508 (Industrial Control Equipment)
- CE Marked — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- CSA Certified — C22.2 No. 142
- RCM Mark — Australian/New Zealand compliance
- RoHS Compliant — Restriction of Hazardous Substances
Konmask.com does not manufacture or modify this product. We are an independent reseller of genuine Rockwell Automation / Allen-Bradley components. All trademarks remain the property of their respective owners.
How to Order
- Add to Cart — Click “Add to Cart” or “Buy Now” above.
- Request a Quote — For orders of 3+ units, email [email protected] for volume pricing.
- Payment Methods — We accept T/T (bank transfer), PayPal, credit card (Visa/Mastercard), and Western Union.
- Lead Time — In-stock units ship within 1–2 business days. Out-of-stock units: 7–15 business days sourcing lead time.
- Purchase Orders — Accepted from verified corporate and government buyers. Contact us to set up a net-30 account.
Authenticity & Trust FAQ
- Q: Are these units genuine Allen-Bradley / Rockwell Automation products?
- A: Yes. All units are sourced from authorized distributors or verified surplus channels. We do not sell counterfeit, cloned, or refurbished-as-new products.
- Q: Do you provide a warranty?
- A: We offer a 12-month warranty against manufacturing defects. If a unit fails under normal operating conditions within the warranty period, we will replace it or issue a full refund.
- Q: Can I verify the unit’s authenticity after receiving it?
- A: Yes. You can verify the serial number directly with Rockwell Automation’s product authentication portal, or contact our support team and we will provide the original procurement documentation.
- Q: What if I receive a damaged or incorrect item?
- A: Contact us within 7 days of receipt at [email protected]. We will arrange a replacement or refund at no additional cost.
- Q: Do you accept returns?
- A: Yes. Unused, unopened units may be returned within 30 days for a full refund (minus return shipping). Units that have been installed or powered on are subject to a restocking fee.
- Q: Can you provide a Certificate of Conformance (CoC) or test report?
- A: Yes, upon request. Please specify your documentation requirements at the time of order.
