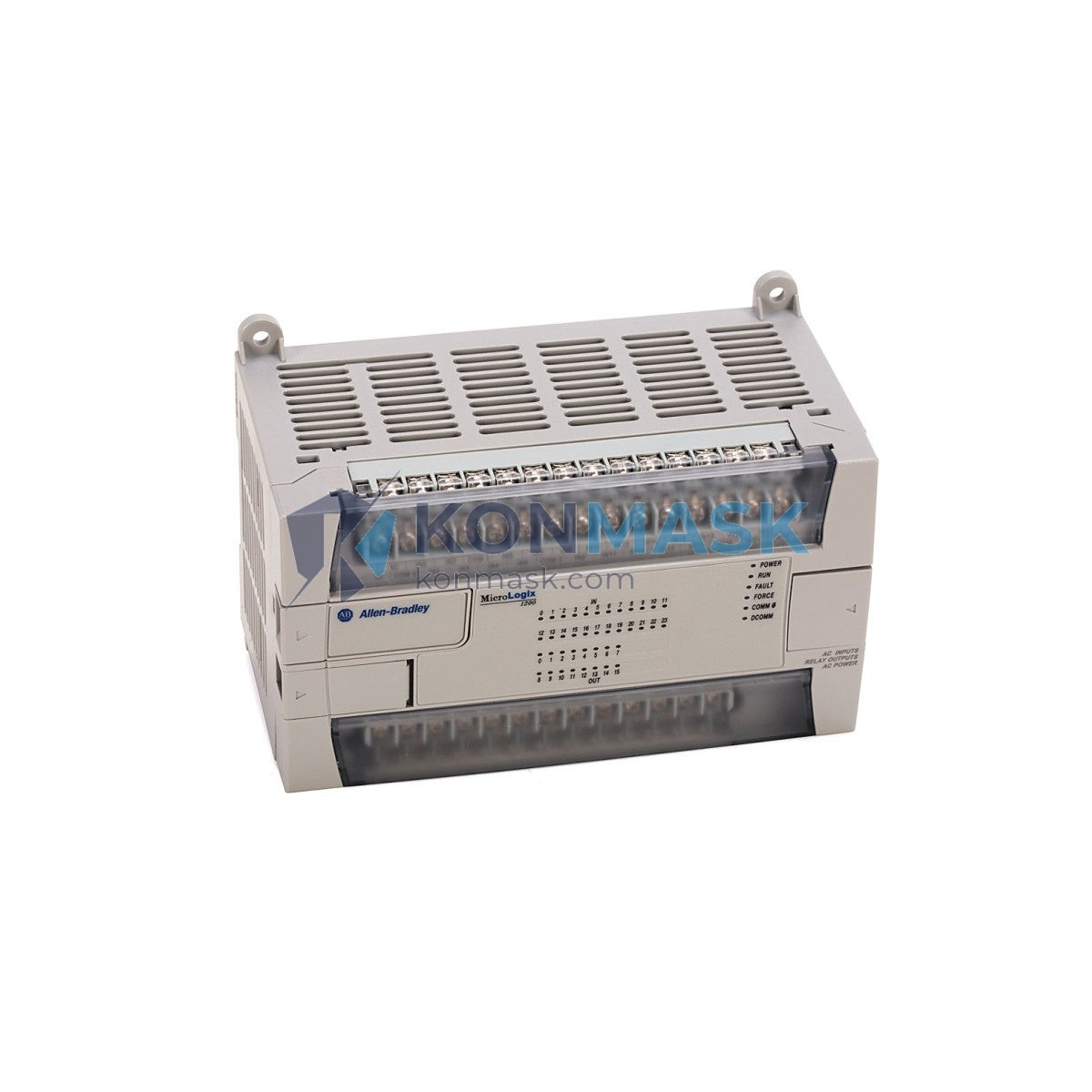

Allen-Bradley 1762-L40BWA MicroLogix 1200 40-Point Controller | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1762-L40BWA is a 40-point MicroLogix 1200 programmable logic controller (PLC) featuring 24V DC inputs and 120/240V AC relay outputs. Designed for compact automation applications, it delivers reliable performance in machine control, process automation, and OEM equipment. This page serves as a comprehensive selection guide to help engineers identify compatible replacements, equivalent models, and upgrade paths.
Technical Specifications
- Part Number: 1762-L40BWA
- Series: MicroLogix 1200
- Manufacturer: Allen-Bradley / Rockwell Automation
- Total I/O Points: 40 (24 Inputs / 16 Outputs)
- Input Voltage: 24V DC
- Output Type: Relay (120/240V AC)
- Power Supply: 120/240V AC
- Memory: 8K words user program
- Communication Ports: RS-232 (Channel 0), RS-232/RS-485 (Channel 1)
- Expansion Capability: Up to 6 expansion modules (1762 series)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Dimensions (H×W×D): 90 × 180 × 87 mm (approx.)
- Weight: ~700 g
- Certifications: UL, CE, CSA
- Country of Origin: USA
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the 1762-L40BWA. Always verify I/O count, voltage ratings, and communication requirements before substitution.
- 1762-L40BWAR — Series B revision; functionally identical, improved firmware support
- 1762-L40AWA — Same I/O count; 120V AC input variant (verify input voltage compatibility)
- 1762-L40BXB — 24V DC input / 24V DC transistor output; suitable for DC-only panels
- 1762-L24BWA — Smaller 24-point variant; use when reduced I/O is acceptable
- 1766-L32BWA (MicroLogix 1400) — Upgraded platform with built-in Ethernet; recommended for new designs
- 1769-L16ER-BB1B (CompactLogix) — Higher-tier upgrade for complex applications requiring EtherNet/IP
Note: Third-party compatible units may be available. Contact support@konmask.com for cross-reference assistance.
Why Choose the Original Model
- Proven Reliability: The 1762-L40BWA has a long field history in industrial environments with documented MTBF performance.
- Native RSLogix 500 Support: Full compatibility with Allen-Bradley programming software without additional configuration.
- Relay Output Flexibility: AC relay outputs support a wide range of load types including solenoids, contactors, and pilot lights.
- Expansion Ecosystem: Seamless integration with the full 1762 expansion module family (analog, specialty, communication).
- Spare Parts Availability: Widely stocked globally, reducing downtime risk for maintenance-critical applications.
Typical Applications
- Conveyor and material handling systems
- Pump and motor control panels
- HVAC and building automation
- Packaging and labeling machines
- Water and wastewater treatment
- OEM machine control (food & beverage, plastics, textiles)
System Compatibility
- Programming Software: RSLogix 500 / Studio 5000 Logix Designer (via legacy mode)
- HMI Compatibility: PanelView 300, 550, 600, 1000; third-party HMIs via RS-232/Modbus
- Expansion Modules: 1762-IQ8, 1762-OW8, 1762-IF4, 1762-OF4, 1762-IT4, and more
- Communication Protocols: DF1, DH-485, Modbus RTU (via Channel 1)
- Network Integration: Add 1761-NET-ENI for Ethernet connectivity
Selection Guide
Use the criteria below to confirm the 1762-L40BWA is the right choice, or to identify the best alternative:
- I/O Count: Need exactly 40 points? → 1762-L40BWA ✓ | Need fewer? → 1762-L24BWA | Need more? → 1766-L32BWA
- Output Type: AC relay loads → 1762-L40BWA ✓ | DC transistor loads → 1762-L40BXB
- Input Voltage: 24V DC inputs → 1762-L40BWA ✓ | 120V AC inputs → 1762-L40AWA
- Connectivity: Serial only → 1762-L40BWA ✓ | Ethernet required → 1766-L32BWA or 1769 CompactLogix
- Budget: Cost-sensitive retrofit → 1762-L40BWA ✓ | New design with future-proofing → 1766-L32BWA
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment inspection: visual, functional, and firmware version check
- Original packaging and documentation preserved where available
- Traceability records available upon request for MRO and OEM customers
- Anti-counterfeit verification available — contact us for details
How to Order
- Confirm part number: 1762-L40BWA (specify series revision if required)
- Indicate quantity and required delivery timeline
- Submit RFQ via support@konmask.com or call +0086 19859288691
- Receive quotation within 1 business day
- Payment, export documentation, and shipping arranged per your requirements
Replacement & Compatibility FAQ
Q: Is the 1762-L40BWA still in production?
A: This model has been discontinued by Rockwell Automation. Konmask.com supplies new-surplus and refurbished units with full testing.
Q: Can I replace a 1762-L40BWA with a 1766-L32BWA directly?
A: The 1766-L32BWA is a functional upgrade with more I/O and built-in Ethernet, but requires program migration in RSLogix 500. Not a drop-in replacement.
Q: Does the 1762-L40BWA support Modbus?
A: Yes, via Channel 1 (RS-485) using the Modbus RTU protocol with appropriate configuration in RSLogix 500.
Q: What expansion modules are compatible?
A: All 1762-series expansion modules are compatible, up to 6 modules per base unit.
Q: Can I use a third-party HMI with this controller?
A: Yes. The RS-232 port supports DF1 and Modbus RTU, enabling connectivity with most third-party HMI brands.
