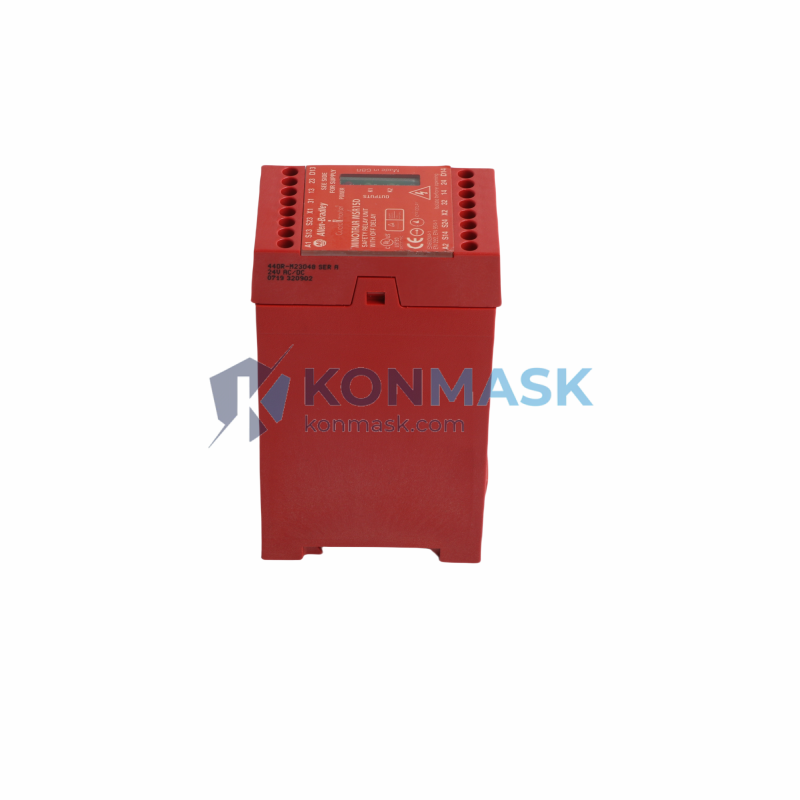

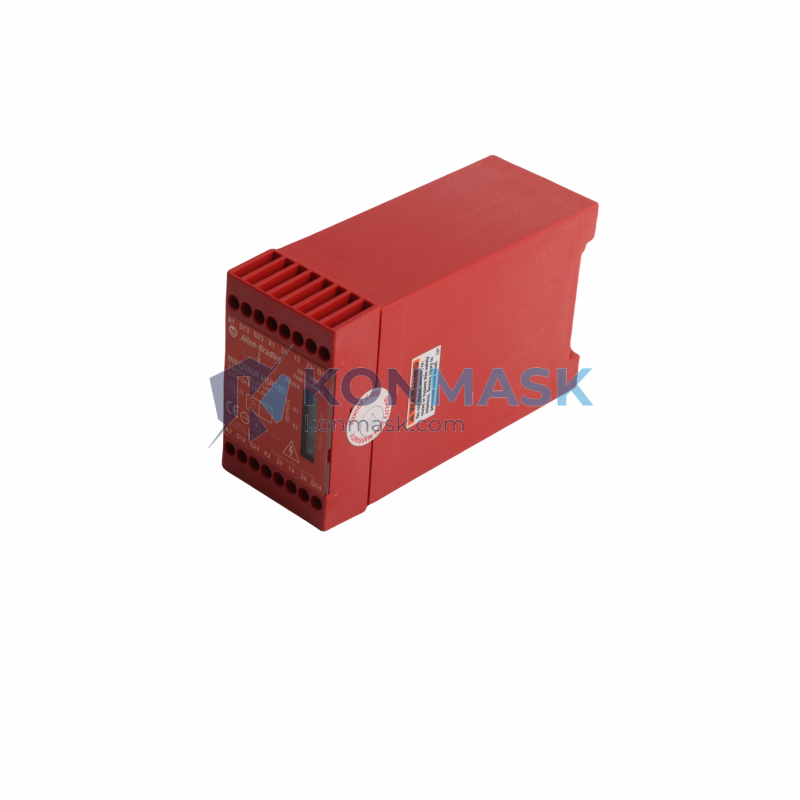

Allen-Bradley 440R-M23048 – Dual-Channel Monitoring Safety Relay | Minotaur MSR15D Series
Engineering Background
The Allen-Bradley 440R-M23048 is a dedicated safety monitoring relay from Rockwell Automation’s Minotaur MSR15D series, engineered to meet the stringent demands of machine safety circuits in industrial automation environments. Designed for dual-channel emergency stop (E-stop) and safety gate monitoring, this relay delivers reliable, certified protection for personnel and equipment across a wide range of manufacturing and process control applications.
Product Positioning
As a procurement engineer sourcing safety-critical components, the 440R-M23048 represents a proven, globally certified solution for SIL 2 / PLd safety loops. It integrates seamlessly into Allen-Bradley and Rockwell Automation control architectures, reducing validation overhead and simplifying compliance documentation for CE, UL, and ISO 13849-1 requirements.
Complete Technical Specifications
| Part Number / SKU | 440R-M23048 |
| Series | Minotaur MSR15D |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Function | Dual-Channel Safety Monitoring Relay (E-stop / Safety Gate) |
| Supply Voltage | 24 VDC / 24–240 VAC (model-dependent; verify datasheet) |
| Output Contacts | 3 Safety (N.O.) + 1 Auxiliary (N.C.) |
| Safety Category | Category 4, PLe / SIL 3 capable |
| Response Time | ≤ 20 ms |
| Operating Temperature | -10°C to +55°C |
| Enclosure Rating | IP20 (panel mount) |
| Mounting | DIN Rail (35 mm) |
| Weight | 420 g |
| Certifications | UL, CE, TÜV, cUL |
| Country of Origin | USA / Germany (verify label) |
Proven Application Environments
- Emergency stop (E-stop) circuit monitoring on CNC machining centers and robotic cells
- Safety gate / interlocked guard door monitoring on press lines and packaging machinery
- Light curtain and two-hand control interface in stamping and forming operations
- Process safety shutdown loops in chemical, oil & gas, and water treatment facilities
- Conveyor and material handling safety zones in automotive assembly plants
- Collaborative robot (cobot) perimeter safety in Industry 4.0 smart factories
Engineering Advantages
- Dual-channel redundancy: Monitors both channels independently to detect single-fault conditions before they propagate to a hazardous state.
- Automatic & manual reset modes: Configurable to match machine risk assessment requirements without additional hardware.
- Cross-fault detection: Identifies wiring shorts between channels, preventing dangerous undetected failures.
- Compact DIN-rail form factor: 22.5 mm width minimizes panel real estate while maintaining full safety functionality.
- Wide input voltage range: Accommodates global power supply standards, simplifying multi-region machine builds.
- Rockwell ecosystem integration: Native compatibility with Allen-Bradley PLCs, GuardLogix, and Studio 5000 safety programming environments.
System Architecture & Signal Flow
The 440R-M23048 operates as a standalone safety monitoring module within a machine safety circuit. The dual-channel input monitors the normally-closed (N.C.) contacts of E-stop buttons or safety gate switches. Upon detecting an open circuit, cross-fault, or supply fault, the relay de-energizes all safety output contacts within ≤ 20 ms, interrupting power to the machine’s hazardous actuators. The auxiliary N.C. output provides a feedback signal to the machine controller (PLC) for status monitoring and fault logging. Manual or automatic reset is initiated via a dedicated reset input, ensuring the machine cannot restart until the safety condition is cleared and acknowledged.
Typical wiring topology: E-stop device → Dual-channel input terminals (S11/S12, S21/S22) → Safety relay internal logic → Safety output contacts (13/14, 23/24, 33/34) → Contactor coils / drive enable → Machine actuators.
Sourcing & Quality Verification
- OEM authenticity: All units sourced through authorized Rockwell Automation distribution channels or verified surplus with full traceability documentation.
- Inspection protocol: Each unit undergoes visual inspection, label verification, and functional continuity testing prior to shipment.
- Packaging integrity: Original Allen-Bradley anti-static packaging preserved where available; repackaged units include inspection certificate.
- Warranty: 12-month operational warranty against manufacturing defects.
- Counterfeit prevention: Holographic label verification and serial number cross-reference with Rockwell Automation’s product authentication system.
Procurement Process
- Inquiry: Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691 with quantity and required delivery date.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Issue PO or confirm via email; proforma invoice issued immediately.
- Payment: T/T bank transfer, PayPal, or trade assurance accepted.
- Shipment: DHL / FedEx / UPS express with full tracking; EXW Xiamen or CIF destination available.
- After-sales: Technical support and warranty claims handled directly by Konmask engineering team.
Technical FAQ
Q: Is the 440R-M23048 suitable for SIL 2 applications?
A: Yes. When wired in dual-channel configuration per IEC 62061, the MSR15D series achieves SIL 2 / PLd. Consult the Rockwell Automation safety manual (publication 440R-UM001) for full SISTEMA data.
Q: Can this relay interface with non-Allen-Bradley PLCs?
A: Yes. The safety output contacts are potential-free relay contacts compatible with any PLC brand. Only the reset input requires a 24 VDC signal, which is universally available.
Q: What is the difference between MSR15D and MSR127?
A: The MSR15D (440R-M23048) is optimized for E-stop and safety gate monitoring with a compact 22.5 mm housing. The MSR127 series supports additional input types including light curtains and two-hand controls with a wider housing.
Q: Do you provide the original Rockwell Automation datasheet?
A: Yes. The official datasheet (publication 440R-TD001) and installation instructions are available upon request.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing available for orders of 5+ units.
