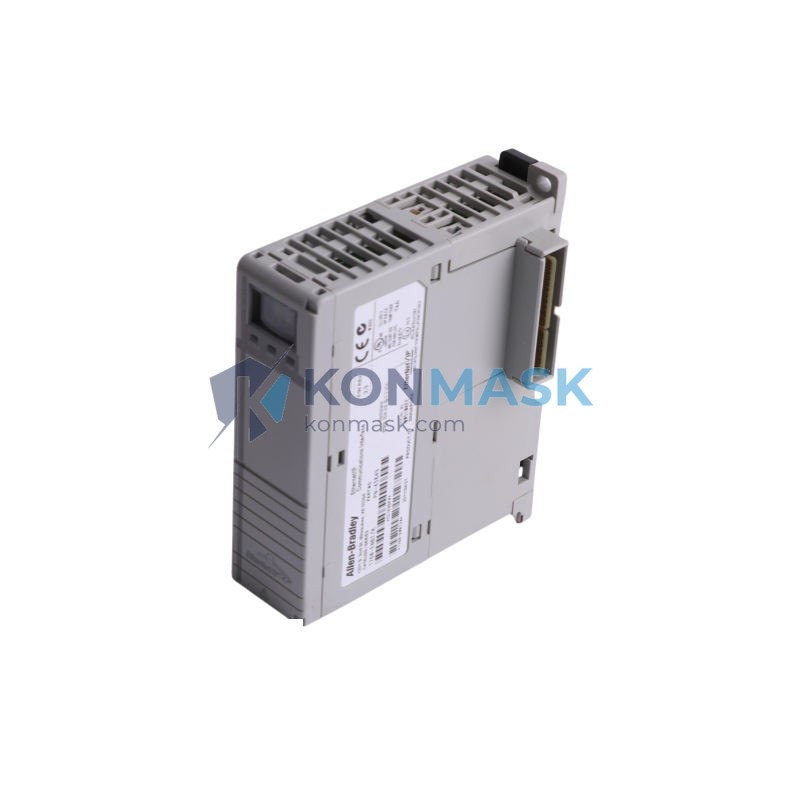

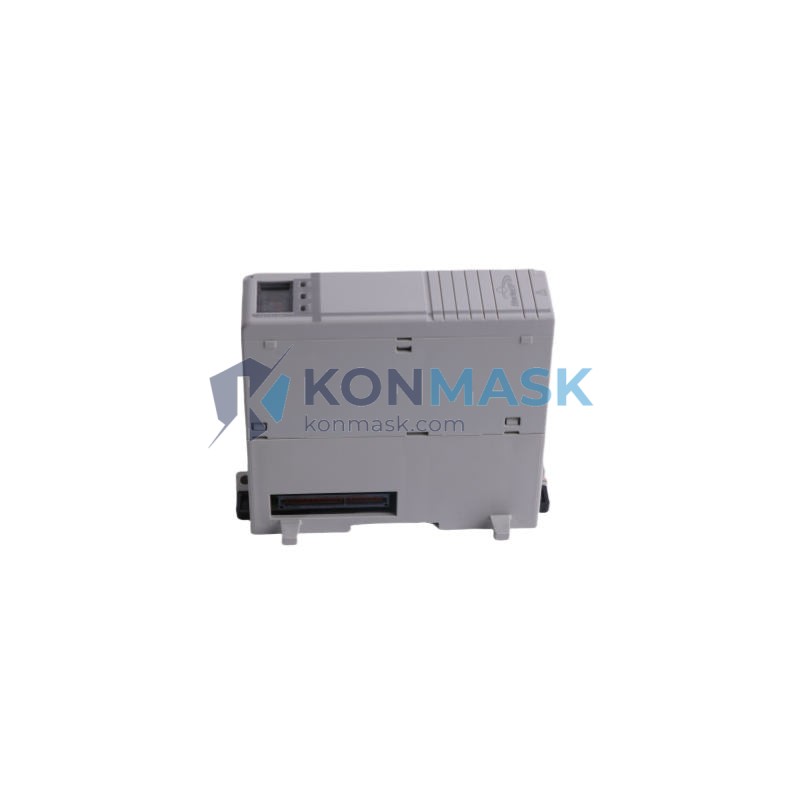

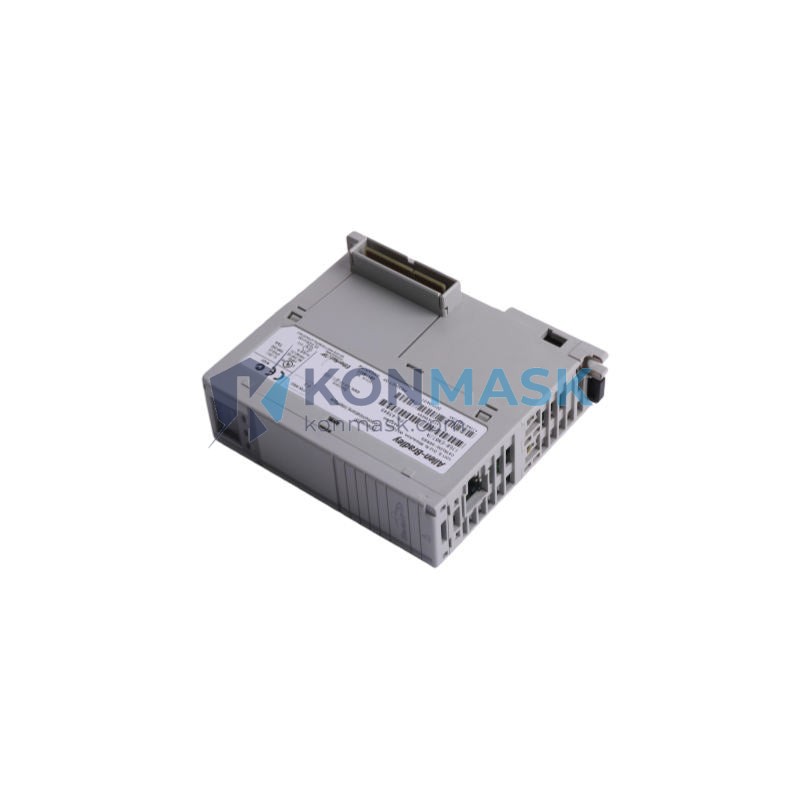

Genuine Allen-Bradley 1768-ENBT EtherNet/IP Bridge Module | CompactLogix Series – Verified Source
The Allen-Bradley 1768-ENBT is a high-performance EtherNet/IP bridge communication module designed for the CompactLogix 1768 platform by Rockwell Automation. It enables seamless integration of CompactLogix controllers into standard EtherNet/IP networks, supporting real-time I/O messaging, explicit messaging, and web-based diagnostics. At Konmask.com, every unit is sourced through verified supply channels and undergoes our rigorous 4-step quality verification before shipment.
Technical Specifications
- Part Number: 1768-ENBT
- Series: Allen-Bradley CompactLogix 1768
- Manufacturer: Rockwell Automation / Allen-Bradley
- Communication Protocol: EtherNet/IP (IEEE 802.3)
- Network Speed: 10/100 Mbps, Auto-negotiate
- Connector Type: RJ-45 (single port)
- Backplane Current Draw: 120 mA @ 5V DC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Dimensions (H × W × D): 118 mm × 35 mm × 87 mm
- Weight: Approx. 200 g
- Certifications: UL, CE, cUL
- Compatible Controllers: 1768-L43, 1768-L45, 1768-L43S, 1768-L45S
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured exclusively from authorized distributors, OEM surplus channels, or factory-certified refurbishers. We maintain full traceability documentation for every SKU.
- Step 2 – Physical Inspection: Each module undergoes visual inspection for label integrity, connector condition, housing damage, and counterfeit indicators (hologram, date codes, PCB markings).
- Step 3 – Functional Bench Test: Units are powered up and tested for backplane communication, Ethernet link negotiation, and LED status response using a live CompactLogix test bench.
- Step 4 – Packaging & Documentation: Verified units are repackaged with anti-static protection, accompanied by a Konmask inspection certificate and, where available, original Rockwell documentation.
Key Features & Benefits
- Bridges CompactLogix 1768 backplane to standard EtherNet/IP networks
- Supports Produced/Consumed tags for real-time peer-to-peer data exchange
- Built-in web server for remote diagnostics and module configuration
- Auto-negotiating 10/100 Mbps port eliminates manual speed configuration
- Compatible with RSLogix 5000 / Studio 5000 programming environments
- Compact single-slot form factor preserves valuable backplane space
- Supports up to 32 Class 1 (I/O) connections simultaneously
Typical Applications
- Factory automation and discrete manufacturing lines
- Process control integration with SCADA/DCS systems via EtherNet/IP
- Machine-level networking in automotive, food & beverage, and packaging industries
- Remote I/O expansion over standard Ethernet infrastructure
- Retrofit and modernization of legacy Allen-Bradley control systems
- Multi-controller peer communication in distributed control architectures
Compatible System Components
- Controllers: 1768-L43, 1768-L45, 1768-L43S, 1768-L45S
- Power Supplies: 1768-PA3, 1768-PB3
- I/O Modules: 1769 CompactLogix I/O series (digital, analog, specialty)
- Programming Software: RSLogix 5000 v16+, Studio 5000 Logix Designer
- Network Infrastructure: Standard IEEE 802.3 Ethernet switches (unmanaged or managed)
- Related Communication Modules: 1768-ENBT/A, 1769-L32E, 1769-L35E
Global Sourcing & Shipping Capabilities
- Stock Location: Warehoused in China with global export capability
- Lead Time: In-stock units ship within 1–3 business days; sourced units within 7–15 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight for bulk orders
- Export Compliance: All shipments comply with applicable export control regulations (EAR/ECCN)
- Customs Documentation: Commercial invoice, packing list, and certificate of origin provided upon request
- Bulk & OEM Orders: Contact us for volume pricing and dedicated account management
Certifications & Compliance Statement
- UL Listed – Underwriters Laboratories (File E65584)
- CE Marked – Compliant with EU EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- cUL Listed – Canadian Standards compliance
- RoHS Compliant – Restriction of Hazardous Substances Directive 2011/65/EU
- REACH Compliant – No substances of very high concern (SVHC) above threshold
- All compliance documentation available upon written request for regulated procurement processes
How to Order
- Online: Add to cart directly on this page — secure checkout with multiple payment options
- Email RFQ: Send your BOM or part list to support@konmask.com for a formal quotation within 24 hours
- Phone/WhatsApp: Call or message +0086 19859288691 for urgent requirements
- Bulk Orders: Minimum order quantities and tiered pricing available — contact us for details
- Payment Terms: T/T (wire transfer), PayPal, credit card; Net-30 available for qualified accounts
Authenticity & Trust FAQ
Q: Are these genuine Allen-Bradley / Rockwell Automation parts?
A: Yes. Every 1768-ENBT unit sold by Konmask.com is sourced from verified supply chains and passes our 4-step quality verification. We do not sell counterfeit or cloned modules.
Q: Do you provide a warranty?
A: We offer a 90-day functional warranty on all verified units. Extended warranty options are available for volume orders.
Q: Can I request a test report or inspection certificate?
A: Yes. A Konmask inspection certificate is included with every shipment. Detailed test reports are available upon request for qualified buyers.
Q: What if the module is DOA (Dead on Arrival)?
A: We provide full replacement or refund for DOA units reported within 7 days of receipt. Please retain original packaging and contact support@konmask.com.
Q: Do you ship to my country?
A: We ship worldwide. Contact us for country-specific shipping rates, lead times, and import duty estimates.
