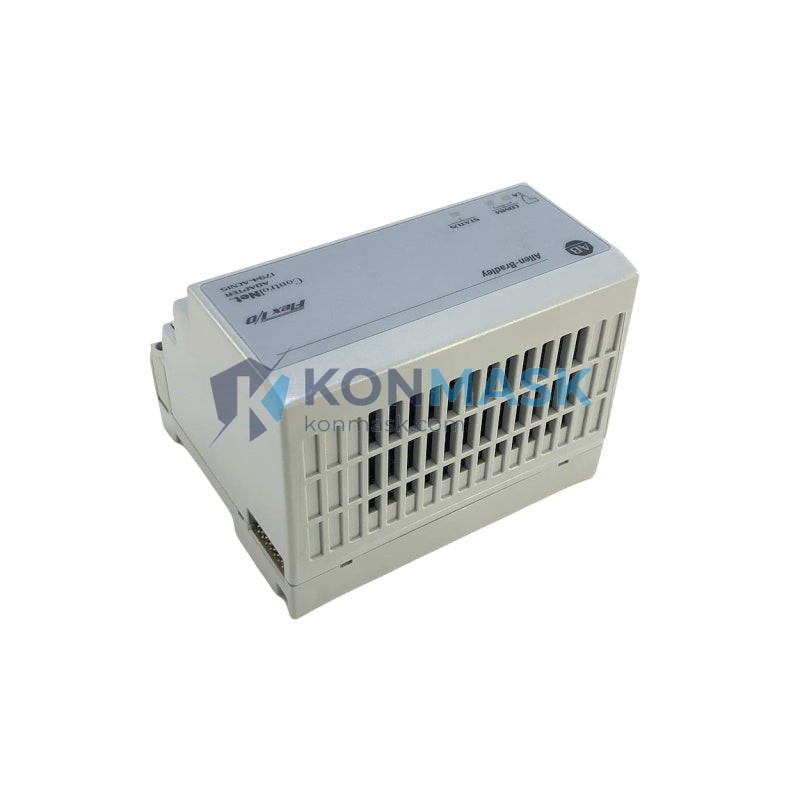

Allen-Bradley 1794-ACN15/C – Flex I/O ControlNet Communication Adapter | Flex I/O Platform
Engineering Background
The 1794-ACN15/C is a ControlNet communication adapter developed by Rockwell Automation (Allen-Bradley) for the Flex I/O distributed I/O platform. ControlNet is a deterministic, high-speed industrial network protocol widely deployed in process-critical and motion-critical manufacturing environments where synchronized, time-stamped data exchange is non-negotiable. This adapter bridges the ControlNet backplane to the Flex I/O terminal base assembly, enabling remote I/O expansion across large-scale plant architectures without sacrificing scan-cycle predictability.
Product Positioning
Designed for procurement engineers and system integrators sourcing verified replacement or expansion components for existing Rockwell Automation ControlNet installations. The 1794-ACN15/C is a direct-fit, firmware-compatible drop-in for legacy and current Flex I/O ControlNet nodes, minimizing re-engineering risk and commissioning time. Konmask.com maintains surplus and refurbished stock with full functional verification to support MRO and capital project timelines.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | 1794-ACN15/C |
| Series / Revision | Series C |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Family | Flex I/O (1794 Series) |
| Network Protocol | ControlNet (IEEE 802.3 / ANSI/ISA-S72.01) |
| Network Data Rate | 5 Mbps |
| Network Topology | Trunk-and-drop coaxial or fiber (with repeaters) |
| Max I/O Modules per Node | 8 Flex I/O modules |
| Max Nodes per Network | 99 (ControlNet node address 1–99) |
| Backplane Current Draw | 800 mA @ 5 VDC |
| Supply Voltage | 24 VDC (via terminal base) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | IP20 (panel-mount, open-style) |
| Dimensions (H × W × D) | Approx. 94 × 45 × 75 mm |
| Weight | Approx. 200 g |
| Certifications | UL, CE, C-Tick, FM (Class I Div 2) |
| Programming / Config Tool | RSNetWorx for ControlNet |
| Compatible Controllers | ControlLogix, CompactLogix, PLC-5/C, SLC 500 (via CNB) |
Proven Application Environments
- Automotive Assembly Lines – Deterministic ControlNet scan cycles support synchronized robot and conveyor control with sub-millisecond jitter tolerance.
- Oil & Gas Processing – FM Class I Division 2 rating enables deployment in hazardous-area panels adjacent to classified zones.
- Water & Wastewater Treatment – Wide operating temperature range and conformal-coat options support outdoor and humid enclosure environments.
- Pharmaceutical Manufacturing – Scheduled data transfer (SDT) on ControlNet supports 21 CFR Part 11-compliant data integrity for batch process control.
- Power Generation & Utilities – Redundant ControlNet media (dual coax) provides fault-tolerant communication for critical load management systems.
- MRO / Spare Parts Programs – Direct catalog-number replacement for installed 1794-ACN15/A and /B nodes with backward-compatible firmware.
Engineering Advantages
- Deterministic Scheduled Communication – ControlNet’s time-division multiple access (TDMA) protocol guarantees fixed update rates, eliminating network-induced variability in I/O scan times.
- Dual-Media Redundancy – Supports redundant coaxial cable runs; automatic media failover with no controller intervention required.
- High Node Density – Up to 99 addressable nodes per network segment, supporting large distributed I/O architectures from a single ControlNet scanner.
- Modular Flex I/O Expansion – Accepts up to 8 Flex I/O modules (digital, analog, specialty) per adapter node, reducing panel footprint versus discrete I/O racks.
- Hot-Swap Terminal Base Compatibility – Flex I/O terminal bases allow module replacement under power in non-safety-rated zones, minimizing planned downtime.
- Series C Firmware Enhancements – Improved diagnostic messaging and extended UCMM (Unconnected Message Manager) support versus earlier series revisions.
System Architecture & Signal Flow

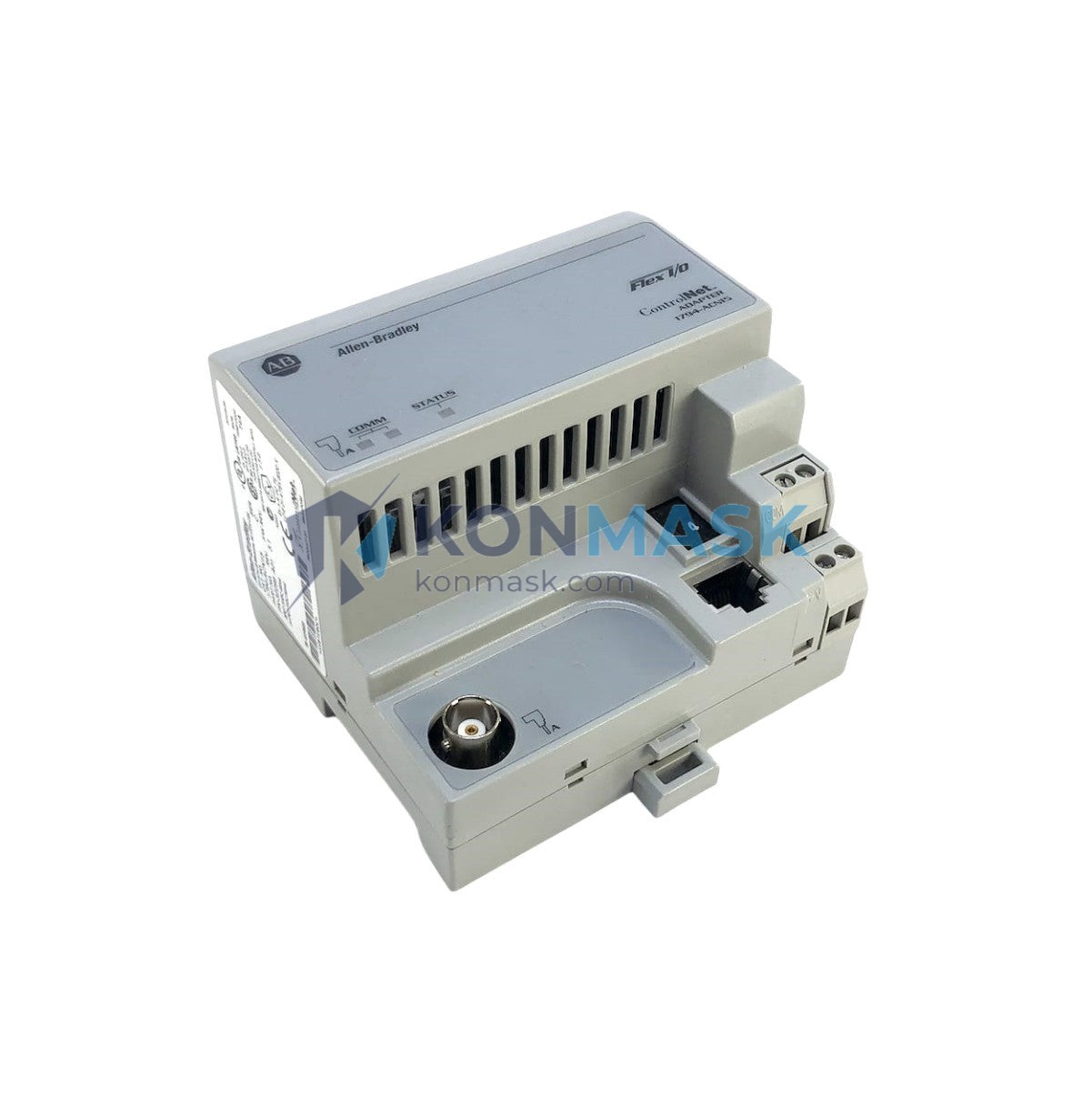

The 1794-ACN15/C mounts on a 1794-TB3 or compatible terminal base and occupies the leftmost (adapter) slot of a Flex I/O node. The ControlNet network connects via BNC coaxial connectors (Channel A and Channel B for redundant media). The adapter communicates upstream to the ControlNet scanner (e.g., 1756-CNB in a ControlLogix chassis) using scheduled and unscheduled connections configured in RSNetWorx for ControlNet.
Downstream, the adapter manages the Flex I/O backplane, polling up to 8 I/O modules at the configured RPI (Requested Packet Interval). I/O data is mapped directly into the controller’s I/O tree via the ControlNet scheduled connection, with unscheduled connections available for explicit messaging and diagnostic reads. Node address is set via rotary switches on the adapter faceplate (1–99).
Sourcing & Quality Verification
- Stock Origin – Surplus new, surplus tested, or factory-refurbished units sourced from verified industrial decommissioning projects and authorized distribution channels.
- Functional Testing – Each unit undergoes power-on verification, ControlNet communication handshake test, and backplane continuity check prior to shipment.
- Firmware Revision Disclosure – Firmware revision is documented and disclosed at time of order confirmation; Series C units are shipped unless otherwise specified.
- Packaging – Anti-static bag, foam-lined carton, and humidity indicator card. ESD-safe handling throughout fulfillment.
- Warranty – 90-day functional warranty against defects in materials and workmanship. Extended warranty available upon request.
- Counterfeit Mitigation – All units inspected against Rockwell Automation genuine-product identifiers including label format, catalog plate, and PCB markings.
Procurement Process
- Confirm Requirement – Verify catalog number (1794-ACN15/C), series revision, and required quantity with your controls engineer or maintenance planner.
- Request Quote – Contact Konmask.com via the product page inquiry form or email support@konmask.com with your PO number, delivery address, and required lead time.
- Order Confirmation – Receive proforma invoice with firmware revision, stock condition (new/tested/refurbished), and estimated ship date within 1 business day.
- Payment & Export Compliance – Payment via T/T bank transfer or approved credit terms. Export classification: EAR99 (no license required for most destinations).
- Shipment & Tracking – Ships via DHL Express, FedEx International Priority, or sea freight for bulk orders. Full tracking provided at dispatch.
- Incoming Inspection – Recommend incoming QC per IPC-A-610 visual inspection standards and functional bench test before installation.
Technical FAQ
Q: Is the 1794-ACN15/C backward compatible with Series A and B nodes?
A: Yes. Series C is firmware-backward compatible. Existing RSNetWorx configurations do not require modification when replacing an earlier series unit with a Series C adapter.
Q: Can this adapter be used on an EtherNet/IP or DeviceNet network?
A: No. The 1794-ACN15/C is exclusively a ControlNet adapter. For EtherNet/IP, use the 1794-AENT; for DeviceNet, use the 1794-ADN.
Q: What is the maximum cable distance between nodes?
A: Per ControlNet specification, maximum trunk cable length is 1,000 m (RG-6 coax) with up to 5 m drop cables. Fiber repeaters extend reach beyond this limit.
Q: Does Konmask provide RSNetWorx configuration support?
A: Konmask provides hardware supply and basic commissioning guidance. For full RSNetWorx network scheduling and configuration services, we recommend engaging a Rockwell Automation Solution Partner or certified system integrator.
Q: What is the lead time for bulk orders (>10 units)?
A: Typical lead time for bulk orders is 5–15 business days depending on stock availability. Contact support@konmask.com for a dedicated bulk quotation.
Q: Is a Certificate of Conformance (CoC) available?
A: Yes. A CoC documenting stock condition, test results, and firmware revision is available upon request at no additional charge.
