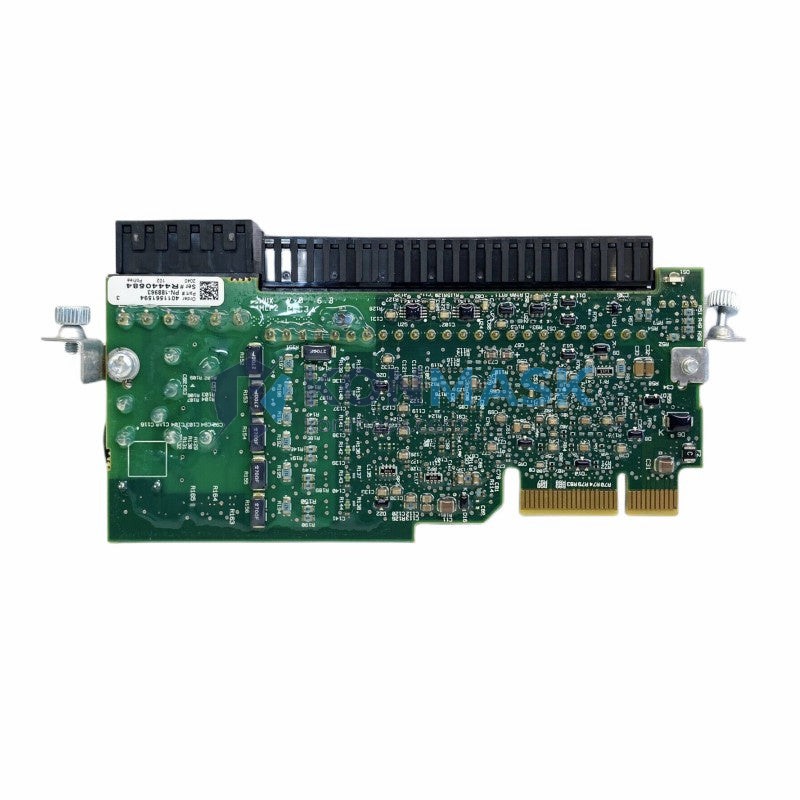

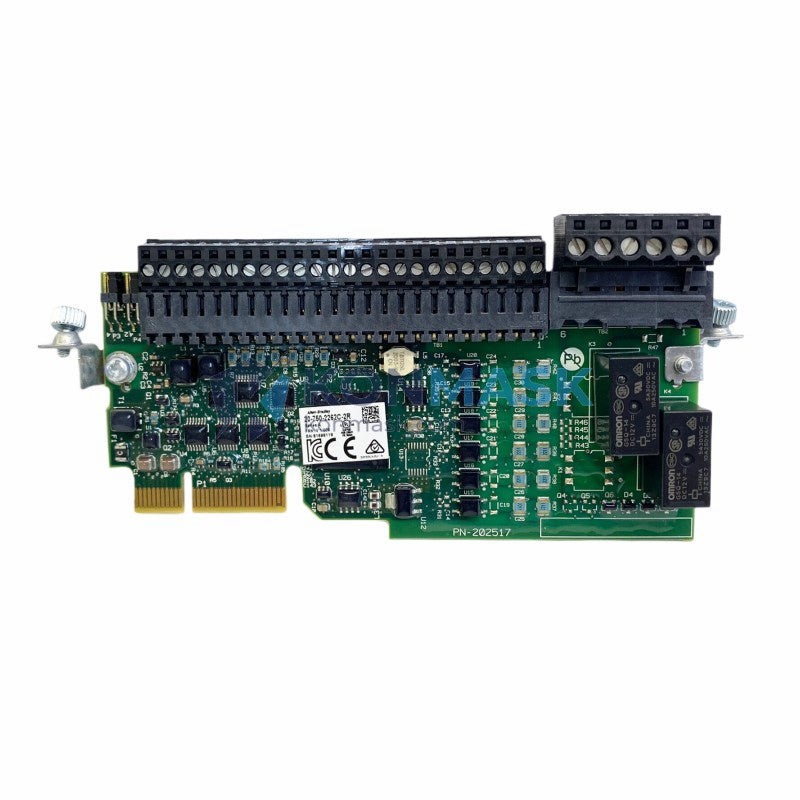

Allen-Bradley 20-750-2262C-2R – 24V DC I/O Option Module | PowerFlex 750 Series
The Allen-Bradley 20-750-2262C-2R is a dedicated 24V DC digital I/O option module engineered for the PowerFlex 750 Series AC drive platform. Designed for demanding industrial automation environments, this module extends the native I/O capability of PowerFlex 755 and 753 drives, enabling precise control integration with PLCs, safety systems, and process controllers without additional external relay panels.
At Konmask.com, we supply this module through verified industrial channels, backed by traceability documentation and pre-shipment inspection — ensuring your procurement team receives exactly what the datasheet specifies.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 20-750-2262C-2R |
| Series / Revision | C, Rev 2R |
| Compatible Platform | PowerFlex 750 Series (PowerFlex 753 / PowerFlex 755) |
| Module Type | Digital I/O Option Module |
| Input Voltage | 24V DC |
| Digital Inputs | 6 × 24V DC sink/source configurable |
| Digital Outputs | 2 × 24V DC solid-state outputs |
| Input Current (per point) | ≤ 6 mA @ 24V DC |
| Output Current (per point) | ≤ 0.5 A continuous |
| Isolation | Optically isolated inputs; outputs referenced to common |
| Option Module Slot | Port 4–6 (peripheral option slot, drive-dependent) |
| Communication Interface | Internal drive backplane (no external wiring required) |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | IP20 (module only; drive enclosure rating applies) |
| Dimensions (H × W × D) | Refer to Rockwell Automation publication 750-IN001 |
| Weight | Approx. 250 g |
| Certifications | UL, CE, RCM (cULus Listed) |
| Country of Origin | USA / Mexico (Rockwell Automation) |
Proven Application Environments
- Variable Speed Drive (VSD) Control Panels — Extend drive I/O for start/stop, fault reset, and speed reference signals without external relay modules.
- Conveyor & Material Handling Systems — Interface proximity sensors, limit switches, and solenoid outputs directly through the drive option slot.
- HVAC & Pump Control — Integrate building automation system (BAS) digital commands with PowerFlex 753/755 drives in fan and pump applications.
- Water & Wastewater Treatment — Reliable 24V DC I/O in wet-area control panels where signal isolation and noise immunity are critical.
- OEM Machine Builders — Reduce panel footprint and BOM cost by consolidating I/O into the drive option slot rather than standalone I/O modules.
- Retrofit & Upgrade Projects — Drop-in replacement for earlier 20-750-2262 series revisions in existing PowerFlex 750 installations.
Engineering Advantages
- Backplane Integration: Communicates directly over the PowerFlex 750 internal option bus — no additional fieldbus wiring, no address configuration, zero latency overhead versus external I/O modules.
- Sink/Source Flexibility: All 6 digital inputs are configurable for NPN (sink) or PNP (source) wiring, accommodating both European and Asian sensor standards on the same module.
- Solid-State Outputs: Transistor outputs eliminate mechanical wear, reduce maintenance intervals, and support high-cycle applications (conveyor indexing, valve actuation).
- Optical Isolation: Input circuits are optically isolated from the drive logic, protecting the drive CPU from field-side transients and ground loops.
- Hot-Swap Capable: Supports drive power-on module insertion per PowerFlex 750 option module guidelines, minimizing planned downtime during maintenance.
- Firmware Transparent: Recognized automatically by PowerFlex 750 firmware; parameters appear in the drive parameter tree without manual configuration files.
System Architecture & Signal Flow
The 20-750-2262C-2R occupies one peripheral option slot (Ports 4–6) on the PowerFlex 750 drive chassis. Upon insertion, the drive firmware enumerates the module and maps its I/O points to the drive’s internal parameter database. A host PLC (e.g., Allen-Bradley ControlLogix or CompactLogix) accesses these I/O points via the drive’s primary network adapter (EtherNet/IP, DeviceNet, or PROFIBUS) using standard drive I/O messaging — no separate I/O scanner required.
Typical signal flow: Field sensor → 24V DC input terminal → optical isolator → drive parameter register → PLC tag (via network adapter) → PLC logic → drive parameter register → solid-state output → field actuator.
Sourcing & Quality Verification
- Traceability: Each unit is sourced with available lot/date code documentation. Certificates of conformance (CoC) available upon request for critical applications.
- Pre-Shipment Inspection: Visual inspection for label integrity, connector condition, and housing damage before dispatch.
- Authenticity Indicators: Genuine Rockwell Automation units carry holographic labels, Rockwell part number laser etching, and RoHS compliance markings. We verify these prior to shipment.
- Packaging: Shipped in anti-static ESD bags with foam cushioning inside double-wall corrugated cartons.
- Warranty: 12-month warranty against manufacturing defects from date of shipment.
Procurement Process
- Submit RFQ — Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive Quotation — We respond within 1 business day with pricing, lead time, and available stock confirmation.
- Order Confirmation — Issue a Purchase Order (PO) referencing catalog number 20-750-2262C-2R.
- Quality Check & Dispatch — Pre-shipment inspection completed; tracking number provided within 24–48 hours of PO receipt.
- Delivery & Support — Post-delivery technical support available for installation and commissioning queries.
Technical FAQ
Q: Is the 20-750-2262C-2R compatible with PowerFlex 753 and PowerFlex 755?
A: Yes. The module is compatible with all PowerFlex 750 Series drives that have available peripheral option slots (Ports 4–6). Verify available slots in your drive’s hardware documentation before ordering.
Q: Can I use this module with a PowerFlex 700 drive?
A: No. The 20-750-2262C-2R is designed exclusively for the PowerFlex 750 Series option slot architecture. It is not compatible with PowerFlex 700 or earlier series.
Q: How many option modules can I install simultaneously?
A: The PowerFlex 755 supports up to 8 option slots (Ports 1–8); the PowerFlex 753 supports fewer. The 20-750-2262C-2R occupies one slot. Consult your drive’s installation manual for slot availability and power budget constraints.
Q: Does this module require a separate 24V DC power supply?
A: The module draws its logic power from the drive’s internal option bus. Field-side 24V DC for input/output circuits must be supplied externally by the panel’s 24V DC power supply.
Q: What is the difference between revision 2R and earlier revisions?
A: Revision designations reflect Rockwell Automation’s internal engineering change notices (ECNs). Functional I/O specifications remain consistent across revisions. For revision-specific change details, consult Rockwell Automation’s product change notification (PCN) database or contact our technical team.
Q: Can Konmask provide a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com and we will provide the relevant Rockwell Automation publication (750-IN001 or equivalent) along with application-specific wiring guidance.
