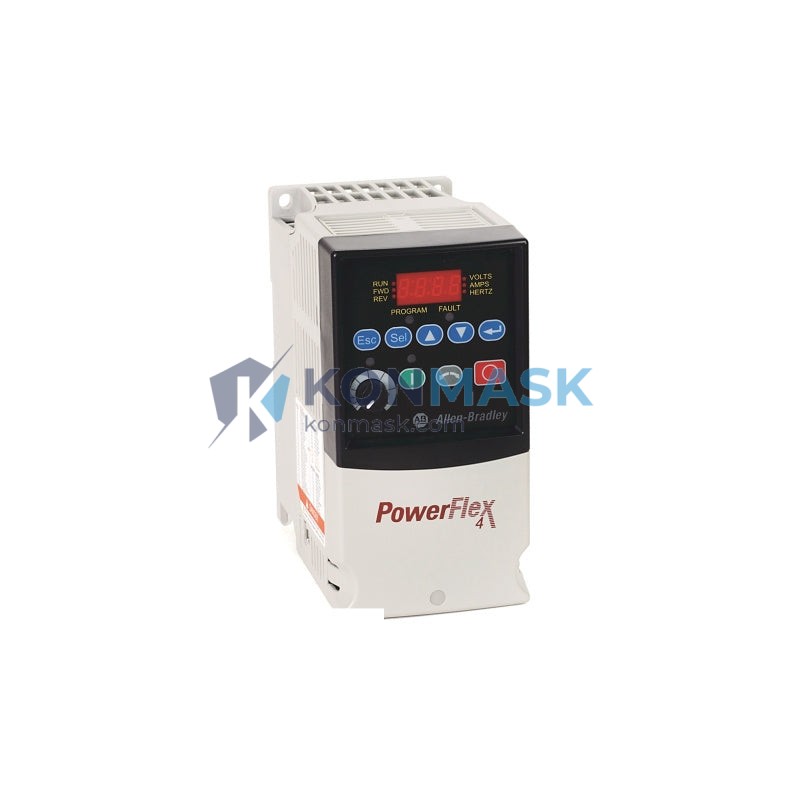

Allen-Bradley 22A-B017N104 PowerFlex 4 AC Drive 7.5HP 480V | Replacement, Equivalent & Selection Guide
The Allen-Bradley 22A-B017N104 is a PowerFlex 4 series AC variable frequency drive (VFD) rated at 7.5 HP (5.5 kW), 480V AC, 3-phase input/output. Designed for general-purpose motor speed control in industrial automation, it delivers reliable performance in a compact package. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams sourcing this drive or its equivalents.
Technical Specifications
- Part Number: 22A-B017N104
- Series: PowerFlex 4
- Brand: Allen-Bradley / Rockwell Automation
- Output Power: 7.5 HP / 5.5 kW
- Input Voltage: 480V AC, 3-Phase, 50/60 Hz
- Output Current: 17 A (continuous)
- Enclosure: IP20 / NEMA Type 1 (open type)
- Control Method: V/Hz (Volts per Hertz)
- Output Frequency Range: 0–400 Hz
- Communication: DSI (Drive Serial Interface) port
- Dimensions (H×W×D): Approx. 260 × 130 × 155 mm
- Weight: Approx. 4.0 kg
- Certifications: UL, CE, cUL
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or functional equivalents for the 22A-B017N104. Always verify electrical ratings and control compatibility before substitution.
- 22B-B017N104 – PowerFlex 40, same power class, enhanced features (PID, preset speeds), direct upgrade path
- 22D-B017N104 – PowerFlex 40P, adds encoder feedback for closed-loop control
- 22F-B017N104 – PowerFlex 4M, compact budget alternative, reduced I/O
- Siemens SINAMICS G120 6SL3224-0BE25-5UA0 – 5.5 kW 400V equivalent, requires wiring adaptation
- ABB ACS355-03E-17A6-4 – 7.5 kW 400V, compatible V/Hz mode, different terminal layout
- Schneider Electric ATV320U75N4B – 7.5 kW 400V, functional equivalent for general-purpose applications
Note: Third-party equivalents may require parameter reconfiguration and mechanical adaptation. Consult your system integrator before substitution.
Why Choose the Original Model
- Seamless Rockwell Integration: Native compatibility with RSLogix 5000 / Studio 5000, ControlLogix, and CompactLogix PLCs via DeviceNet or DSI
- Proven Reliability: Millions of units deployed globally in demanding industrial environments
- Simplified Maintenance: Standardized spare parts, firmware, and Rockwell TechConnect support
- Regulatory Compliance: Pre-certified UL/CE, reducing commissioning time
- Compact Footprint: Space-efficient design for panel-mount installations
Typical Applications
- Conveyor and material handling systems
- Pump and fan speed control (HVAC, water treatment)
- Compressor and blower control
- Packaging and assembly line machinery
- Textile and printing equipment
- General-purpose 3-phase motor control up to 7.5 HP
System Compatibility
- PLC Platforms: ControlLogix, CompactLogix, MicroLogix (via DSI/DeviceNet adapter)
- Communication Adapters: 22-COMM-D (DeviceNet), 22-COMM-E (EtherNet/IP), 22-COMM-P (PROFIBUS)
- HMI: PanelView series via Rockwell communication networks
- Motor Types: Standard NEMA B / IEC induction motors, 3-phase
- Input Power: 480V ±10%, 3-phase, 47–63 Hz
Selection Guide
Use the table below to select the correct PowerFlex 4 model for your application:
- 22A-B012N104 – 5 HP / 3.7 kW, 480V 3-Phase, 12 A
- 22A-B017N104 – 7.5 HP / 5.5 kW, 480V 3-Phase, 17 A ← This Model
- 22A-B024N104 – 10 HP / 7.5 kW, 480V 3-Phase, 24 A
- 22A-B033N104 – 15 HP / 11 kW, 480V 3-Phase, 33 A
- 22A-B045N104 – 20 HP / 15 kW, 480V 3-Phase, 45 A
Selection Tips: Size the drive output current ≥ motor FLA. For high-inertia loads or frequent start/stop cycles, consider derating by 10–15% or upgrading to the next power class.
Quality Assurance & Sourcing
- All units sourced through authorized distributors or verified surplus channels
- Pre-shipment inspection: visual, label verification, and functional power-on test where applicable
- Original factory packaging preserved where available
- Traceability documentation available upon request
- Warranty: 12 months from date of shipment (defects in materials and workmanship)
How to Order
- Confirm part number: 22A-B017N104
- Specify quantity and required delivery timeline
- Contact us via email or phone for availability and pricing
- Receive proforma invoice → confirm payment → shipment with tracking
- Lead time: typically 3–7 business days for in-stock items; 2–4 weeks for sourced orders
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace 22A-B017N104 with 22B-B017N104 (PowerFlex 40)?
A: Yes. The PowerFlex 40 is a direct functional upgrade with the same power rating and mounting footprint. Parameter re-entry is required; wiring is largely compatible.
Q: Is the 22A-B017N104 compatible with EtherNet/IP?
A: Not natively. You must add the 22-COMM-E adapter module to enable EtherNet/IP communication.
Q: Can this drive control a 60 Hz motor on a 50 Hz supply?
A: Yes. The drive accepts 47–63 Hz input and can output any frequency within 0–400 Hz regardless of input frequency.
Q: What is the difference between 22A-B017N104 and 22A-B017N114?
A: The last digit indicates the filter option. N104 = no EMC filter; N114 = with built-in EMC filter. Choose N114 for CE compliance in sensitive environments.
Q: Do you supply original Allen-Bradley units only?
A: We supply original Allen-Bradley / Rockwell Automation units. We do not sell counterfeit or rebranded products.
