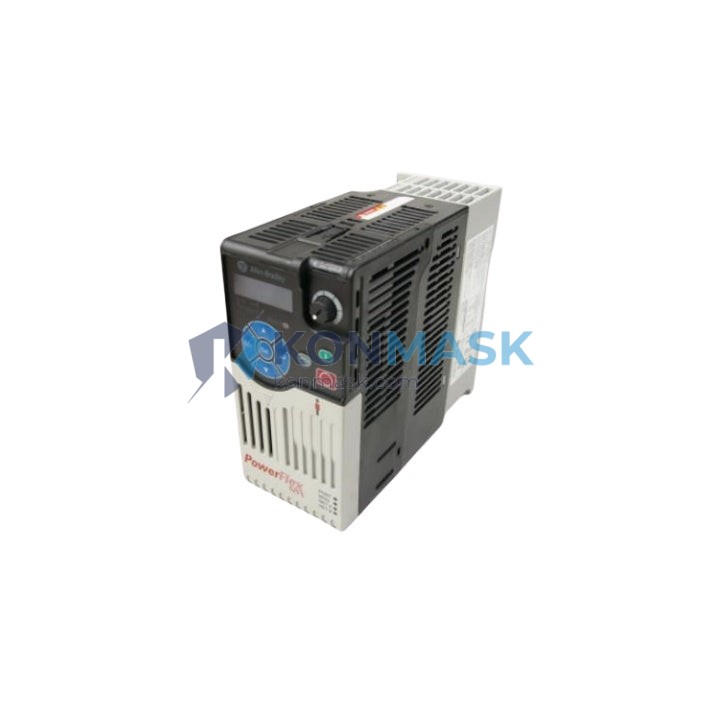

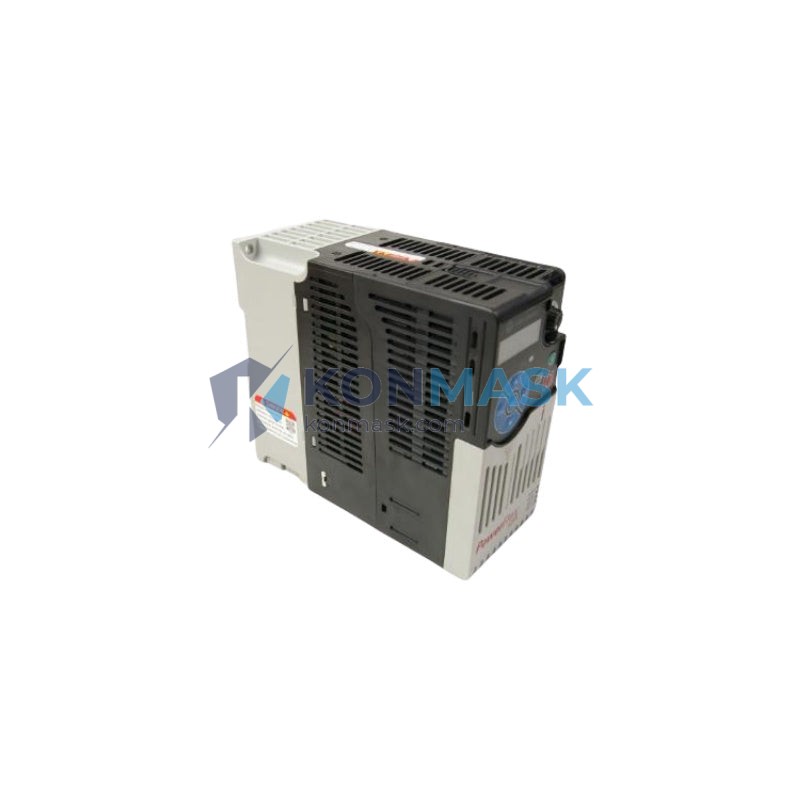

Allen-Bradley 25B-D6P0N114 – Adjustable Frequency AC Drive | PowerFlex 525 Series
Engineering Background: The PowerFlex 525 is Rockwell Automation’s mid-range general-purpose AC drive platform, engineered for flexible machine-level motor control in discrete manufacturing, HVAC, pump, fan, and conveyor applications. The 525 series bridges the gap between entry-level drives and full-featured PowerFlex 755 systems, offering EtherNet/IP connectivity and modular I/O in a compact DIN-rail or panel-mount footprint.
Product Positioning: The 25B-D6P0N114 is a 3 HP (2.2 kW) 480V three-phase drive with 6.0A output current rating, designed for cost-sensitive OEM machine builders and system integrators who require network-ready drives without the overhead of a full safety-rated platform. It is a direct replacement for legacy PowerFlex 40 installations requiring EtherNet/IP capability.
Complete Technical Specifications
| Catalog Number | 25B-D6P0N114 |
| Series | PowerFlex 525 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Output Power | 3 HP / 2.2 kW |
| Input Voltage | 380–480V AC, Three-Phase |
| Input Frequency | 47–63 Hz |
| Output Current (Normal Duty) | 6.0 A |
| Output Frequency Range | 0–500 Hz |
| Control Method | V/Hz, Sensorless Vector (SVC), Closed-Loop Vector (with encoder option) |
| Communication | Embedded EtherNet/IP (dual-port) |
| Digital Inputs | 6 × programmable digital inputs |
| Analog Inputs | 2 × analog inputs (0–10V / 4–20mA) |
| Relay Outputs | 2 × relay outputs |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Ambient Temperature | -10°C to +50°C (operating) |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5–95% RH, non-condensing |
| Altitude | Up to 1000 m without derating |
| Mounting | DIN rail or panel mount |
| Approvals / Certifications | UL, CE, RCM, RoHS |
| Weight | Approx. 1.2 kg |
| Firmware | Compatible with Studio 5000 / RSLogix 5000 AOP |
Proven Application Environments
- Conveyor & Material Handling: Speed regulation and soft-start for belt conveyors, roller tables, and sortation systems.
- Pump & Fan Control: Energy-saving V/Hz mode for centrifugal pumps and HVAC fans with PID feedback loop.
- Packaging Machinery: Precise torque control for form-fill-seal, labeling, and wrapping OEM machines.
- Compressor Drives: Sensorless vector mode for screw and scroll compressor soft-start and speed trim.
- Textile & Printing: Closed-loop tension control with encoder feedback option card.
- Water Treatment: Multi-pump sequencing via EtherNet/IP with SCADA integration.
Engineering Advantages
- Embedded Dual-Port EtherNet/IP: Native Device Level Ring (DLR) topology support eliminates external managed switches for ring redundancy.
- Safe Torque Off (STO) – SIL 2 / PLd: Integrated safety function (25B-D6P0N114 base frame supports STO via option card) reduces panel wiring complexity.
- AppView & CustomView: Configurable LCD keypad with application-specific parameter grouping accelerates commissioning.
- Modular Option Card Architecture: Single slot accepts encoder feedback, expanded I/O, or additional fieldbus cards without drive replacement.
- Energy Savings Reporting: Built-in kWh metering and energy savings estimation for sustainability reporting.
- Compact Footprint: Side-by-side mounting (zero clearance) reduces panel real estate by up to 30% vs. previous generation.
System Architecture & Signal Flow
The 25B-D6P0N114 integrates into a Logix-based control architecture as follows:
- Network Layer: EtherNet/IP connects to CompactLogix / ControlLogix via standard Cat5e/6 patch cable. The drive appears as an Add-On Profile (AOP) device in Studio 5000, enabling implicit I/O messaging (Class 1) and explicit messaging (Class 3).
- Control Layer: Speed reference and direction commands are issued via cyclic I/O connection (RPI as low as 2 ms). Fault status, output frequency, and current are returned in the input assembly.
- Field Layer: Six digital inputs accept 24V DC signals from proximity sensors, limit switches, or PLC output cards. Two analog inputs accept speed reference from PLC analog output modules or process transmitters.
- Safety Layer: STO input (when option card installed) connects to a safety relay or GuardLogix safety output for SIL 2 compliant stop function without full drive power removal.
Sourcing & Quality Verification
- All units sourced from authorized distributors, OEM decommissions, or verified surplus channels with full traceability documentation.
- Pre-shipment inspection includes: visual inspection for counterfeit indicators, firmware version verification, power-on functional test (output voltage, frequency sweep), and parameter reset to factory defaults.
- Catalog number label, date code, and country of manufacture verified against Rockwell Automation authenticity guidelines.
- Units shipped with original packaging where available; anti-static foam and moisture barrier bag used for all shipments.
- Certificate of conformance (CoC) available upon request for regulated industries.
Procurement Process
- Step 1 – Inquiry: Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Step 2 – Quote: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options (DHL Express / sea freight).
- Step 3 – Order Confirmation: Submit PO or place order directly on Konmask.com. Payment via T/T, PayPal, or trade assurance.
- Step 4 – Inspection & Dispatch: Pre-shipment QC completed; tracking number provided within 24–48 hours of payment clearance.
- Step 5 – After-Sales: 12-month warranty on verified units. Technical support available for commissioning and parameter configuration queries.
Technical FAQ
Q: Is the 25B-D6P0N114 compatible with PowerFlex 40 parameter sets?
A: Not directly. The PowerFlex 525 uses a different parameter numbering scheme. However, Rockwell Automation provides a migration guide (Publication 520-AT001) to map PF40 parameters to PF525 equivalents.
Q: Can this drive operate without an EtherNet/IP network connection?
A: Yes. The drive operates fully in standalone mode using the keypad or hardwired analog/digital inputs. EtherNet/IP is optional and does not need to be configured for local control.
Q: What is the difference between Normal Duty and Heavy Duty ratings?
A: The 25B-D6P0N114 is rated 6.0A Normal Duty (3 HP). In Heavy Duty mode (constant torque, high-inertia loads), the effective rating is derated to 5.0A / 2 HP. Select the appropriate duty mode via parameter P047.
Q: Does this unit include a built-in EMC filter?
A: The base catalog number 25B-D6P0N114 does not include an internal EMC filter. An external filter (e.g., 25-RF series) is recommended for CE compliance in residential or light industrial environments.
Q: What option cards are compatible?
A: The single option card slot accepts: 25-COMM-E2P (dual-port EtherNet/IP — already embedded on this unit), 25-ENC-1 (encoder feedback), 25-IO-V (expanded analog I/O), and 25-SAFETY-1 (STO safety option).
