Allen-Bradley 802-5793C – Industrial Servo Motor with Linear Actuator | 802 Series Platform
Engineering Background
The Allen-Bradley 802 Series represents Rockwell Automation’s proven lineage of industrial-grade electromechanical components engineered for demanding factory-floor environments. The 802-5793C integrates a precision servo motor with a direct-coupled linear actuator, delivering controlled linear force and displacement in a single, compact assembly — eliminating the need for external mechanical conversion stages.
Product Positioning
Designed for procurement engineers and system integrators sourcing certified replacement or expansion components for existing Rockwell / Allen-Bradley control architectures. This unit is fully compatible with standard 802-series mounting interfaces and signal conventions, enabling drop-in integration with minimal re-engineering effort.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Part Number / SKU | 802-5793C |
| Configuration Code | N-2304-1-K00AA |
| Secondary Code 1 | SEC-Z100 |
| Secondary Code 2 | SEC-Z313M |

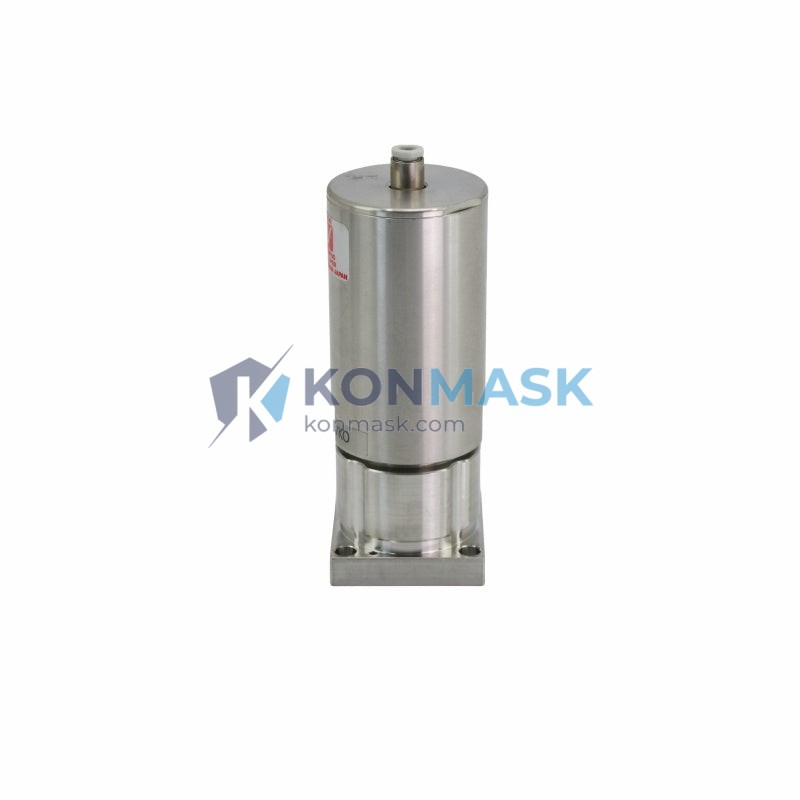

| Rated Output Force | 90 LB (≈ 400 N) |
| Pole Configuration | 2-Pole |
| Actuator Type | Linear (integrated) |
| Motor Type | Servo Motor |
| Product Series | 802 Series |
| Approximate Weight | 800 g |
| Country of Origin | United States |
| Condition | New / Surplus New |
Proven Application Environments
- Discrete Manufacturing: Precision pick-and-place, clamping, and indexing stations on automated assembly lines
- Material Handling: Conveyor diverters, gate actuators, and positioning slides requiring repeatable linear stroke
- Packaging Machinery: Sealing heads, label applicators, and reject mechanisms demanding high-cycle reliability
- Process Control: Valve actuation and damper positioning in HVAC and fluid-handling systems
- Robotics & Gantry Systems: Auxiliary axis drives where compact servo-linear integration saves panel space
Engineering Advantages
- Integrated Design: Servo motor and linear actuator in one housing — reduces BOM complexity and eliminates coupling alignment errors
- High Force Density: 90 LB (≈ 400 N) rated output in a compact form factor suitable for space-constrained machine frames
- Drop-in Compatibility: 802-series standard mounting pattern and connector pinout — no custom brackets or wiring adapters required
- Closed-Loop Precision: Servo architecture enables position, velocity, and force control via standard Rockwell drive interfaces
- Industrial Durability: Designed to Allen-Bradley’s industrial environmental standards for vibration, temperature, and EMI resistance
System Architecture & Signal Flow
The 802-5793C operates within a standard Rockwell Automation servo loop:
- Controller (PLC / Logix): Issues motion commands via EtherNet/IP or hardwired I/O to the servo drive
- Servo Drive: Converts motion commands to PWM current output; closes the velocity/position loop using encoder feedback
- 802-5793C Motor: Converts electrical energy to rotary torque; internal mechanics translate rotation to linear stroke
- Load / End Effector: Receives controlled linear force and displacement for the target process operation
- Feedback Path: Encoder or resolver signal returns to drive for real-time closed-loop correction
Sourcing & Quality Verification
- All units sourced through verified industrial surplus and authorized distribution channels
- Each unit undergoes visual inspection and functional pre-shipment verification
- Original manufacturer labeling, date codes, and configuration codes preserved and documented
- Traceability records available upon request for regulated industries (aerospace, defense, pharma)
- Packaging: anti-static foam-lined carton with moisture barrier; weight ≈ 800 g
Procurement Process
- Confirm Compatibility: Cross-reference your existing 802-series BOM or drive parameter file against the configuration code N-2304-1-K00AA / SEC-Z100 / SEC-Z313M
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and export documentation
- Place Order: Purchase directly via this listing or submit a PO to our sales team
- Shipping: DHL / FedEx international express; EXW Xiamen, China; typical transit 3–7 business days
- Customs & Compliance: Commercial invoice, packing list, and HS code documentation provided; ECCN classification available on request
Technical FAQ
Q: Is this unit new or refurbished?
A: Units are new surplus or surplus-new condition — unused, in original or equivalent packaging, with full manufacturer labeling intact.
Q: What drive is compatible with the 802-5793C?
A: The unit is designed for use within Allen-Bradley / Rockwell Automation servo drive ecosystems. Contact our engineering team with your drive model for a compatibility confirmation.
Q: Can you provide a datasheet or dimensional drawing?
A: Yes. Email support@konmask.com with your inquiry and we will supply available technical documentation.
Q: Do you accept purchase orders (PO)?
A: Yes. We accept corporate POs from qualified industrial buyers. Contact us to establish terms.
Q: What is the warranty?
A: 90-day functional warranty against DOA (dead on arrival). Extended warranty options available — inquire at time of purchase.
