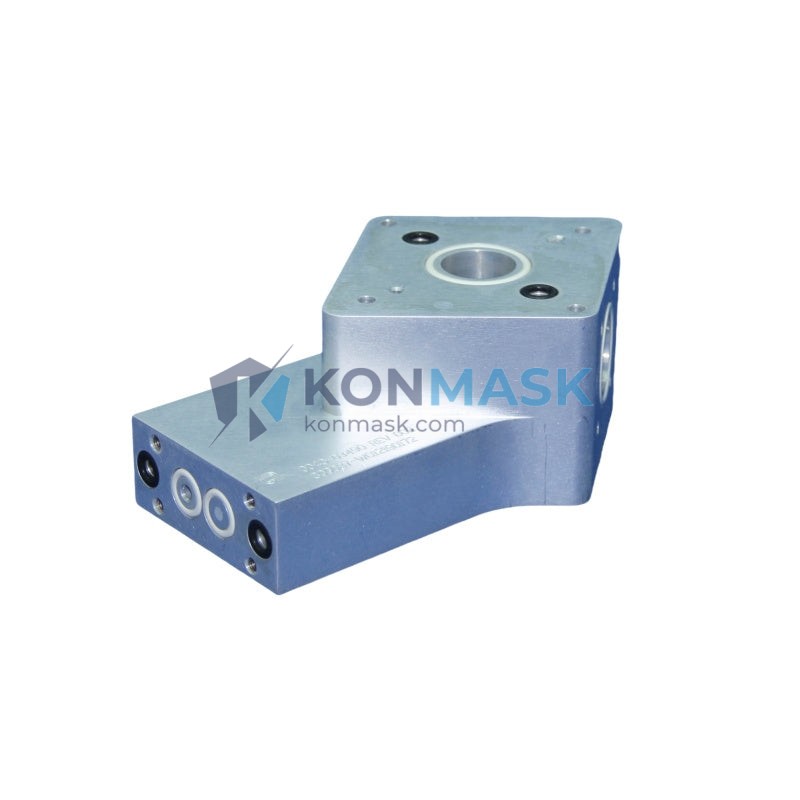

Applied Materials 0040-03490 C3576 Left Output Manifold – VFP15R2 300MM Producer CVD Series
When a gas distribution manifold fails mid-process in a 300mm CVD production environment, the consequences extend far beyond a single wafer batch. Uncontrolled gas flow, cross-contamination between process zones, and unplanned chamber downtime can cascade into days of lost throughput, yield excursions, and costly re-qualification cycles. The Applied Materials 0040-03490 C3576 / 715-011901-006 VFP15R2-R21-301 Left Output Manifold is the precision-engineered component that keeps your Producer platform running at specification — and there is no functional substitute.
Within the Applied Materials Producer CVD platform, the VFP15R2 series represents one of the most widely deployed 300mm multi-station deposition architectures in high-volume semiconductor manufacturing. The left output manifold (P/N 0040-03490, revision C3576) is a critical gas-path assembly that governs process gas delivery to the left-side process stations. Its dimensional tolerances, surface finish, and material compatibility are validated to Applied Materials’ OEM specifications, making it the authoritative replacement choice for fabs operating Producer GT, Producer SE, and compatible VFP15R2-generation chambers worldwide.
Technical Specifications
- Part Number: 0040-03490
- Revision: C3576
- Assembly Reference: 715-011901-006
- Configuration: VFP15R2-R21-301
- Series: VFP15R2 (Producer Platform)
- Wafer Size Compatibility: 300mm
- Position: Left Output Manifold
- Weight: 360 g
- Application: CVD / PECVD Gas Distribution
- OEM: Applied Materials (AMAT)
Key Features & Benefits
- OEM-Grade Dimensional Accuracy: Machined to Applied Materials’ original engineering drawings, ensuring drop-in fit without field modification.
- Process-Inert Materials: Wetted surfaces are compatible with standard CVD precursor chemistries including TEOS, silane-based, and metal-organic precursors.
- Leak-Integrity Design: Precision-lapped sealing faces and validated port geometry minimize the risk of inter-zone cross-contamination.
- Revision-Controlled: C3576 revision status is traceable, supporting your fab’s change-control and qualification documentation requirements.
- Reduced Qualification Risk: Using the correct OEM part number eliminates the re-qualification burden associated with non-standard substitutes.
- Ready-to-Install: Parts are inspected, cleaned, and packaged to cleanroom-compatible standards prior to shipment.
Industry & Equipment Applications
- Semiconductor Fabs (Logic & Memory): High-volume 300mm CVD deposition lines using Applied Materials Producer platforms.
- PECVD / Sub-Atmospheric CVD: Dielectric film deposition (oxide, nitride, oxynitride) in front-end-of-line (FEOL) and back-end-of-line (BEOL) processes.
- Advanced Packaging: Wafer-level packaging fabs utilizing Producer-series chambers for passivation and dielectric layers.
- R&D & Pilot Lines: University and research institutes operating Producer CVD tools for process development.
- Refurbished Tool Builders: Equipment refurbishers restoring Producer VFP15R2-generation systems to OEM specification.
System Integration & Compatible Parts
The 0040-03490 left output manifold is designed for integration within the Applied Materials Producer VFP15R2 gas distribution assembly. When performing manifold replacement or preventive maintenance, consider sourcing the following complementary components to ensure a complete and validated repair:
- Right Output Manifold (mirror assembly, Producer VFP15R2 series)
- Input Manifold Block (upstream gas distribution)
- Manifold O-ring & Seal Kits (VFP15R2-compatible)
- Gas Line Fittings & VCR Gaskets (300mm Producer platform)
- Chamber Lid Assembly components (Producer GT / SE)
Contact our technical team at support@konmask.com for a complete BOM review and compatible parts list.
Our Quality Assurance Process
Every component shipped from Konmask.com undergoes a structured inspection protocol before dispatch:
- Visual & Dimensional Inspection: Parts are examined for surface defects, corrosion, and dimensional conformance against reference specifications.
- Part Number Verification: Physical markings, revision codes, and assembly references are cross-checked against the order to prevent mis-shipment.
- Functional Condition Assessment: Used/refurbished parts are graded and condition-disclosed; new/surplus parts are verified for original packaging integrity where applicable.
- Cleanroom-Compatible Packaging: Parts are bagged, labeled, and packed to protect against contamination and ESD damage during international transit.
- Documentation: Shipment includes packing list with part number, revision, and quantity confirmation.
How to Order
- Submit an Inquiry: Email support@konmask.com or call +0086 19859288691 with your part number (0040-03490), required quantity, and destination country.
- Receive a Quote: Our team will respond with availability, lead time, and a formal quotation within 1 business day.
- Confirm & Pay: Approve the proforma invoice and complete payment via T/T (bank transfer), PayPal, or other agreed method.
- Shipment & Tracking: Parts are dispatched via DHL, FedEx, or UPS Express with full tracking provided.
- After-Sales Support: Our technical team remains available post-delivery for installation guidance and follow-up sourcing needs.
Why Choose Konmask.com?
- Specialist Focus: We source exclusively in semiconductor and industrial automation components — this is our core competency, not a side category.
- Global Sourcing Network: Access to surplus, refurbished, and new-surplus Applied Materials parts through verified supply channels.
- Fast Response: Inquiries answered within 24 hours; urgent requirements handled with priority sourcing.
- Transparent Condition Disclosure: We clearly state part condition (new, surplus, refurbished) — no ambiguity.
- Export Experience: Extensive experience shipping semiconductor components internationally with proper documentation for customs clearance.
- Technical Competence: Our team understands CVD process equipment — we can help you identify the right part, not just fulfill an order number.
Frequently Asked Questions
- Q: Is the 0040-03490 C3576 a new or refurbished part?
- A: Availability varies by stock. Please contact us to confirm current condition and quantity. We disclose condition transparently in every quotation.
- Q: Is this manifold compatible with both Producer GT and Producer SE platforms?
- A: The VFP15R2-R21-301 configuration is associated with the Producer VFP15R2 generation. Compatibility with specific chamber variants (GT, SE, XP) should be verified against your tool’s BOM. Our team can assist with cross-referencing.
- Q: What is the lead time for this part?
- A: Lead time depends on current stock availability. In-stock parts typically ship within 2–5 business days. Out-of-stock items are subject to sourcing lead time, which we will communicate at the time of quotation.
- Q: Can you provide a certificate of conformance or inspection report?
- A: We can provide inspection documentation for parts that have undergone our QA process. Please request this at the time of inquiry.
- Q: Do you accept returns if the part does not fit?
- A: We work with customers on a case-by-case basis for fitment issues. Please ensure you verify the part number and revision against your tool’s BOM before ordering. Our team is available to assist with pre-order verification.
