Applied Materials 0041-07784 / 0190-01401 300mm SPD Slit Valve Door Clamp | Replacement, Equivalent & Selection Guide

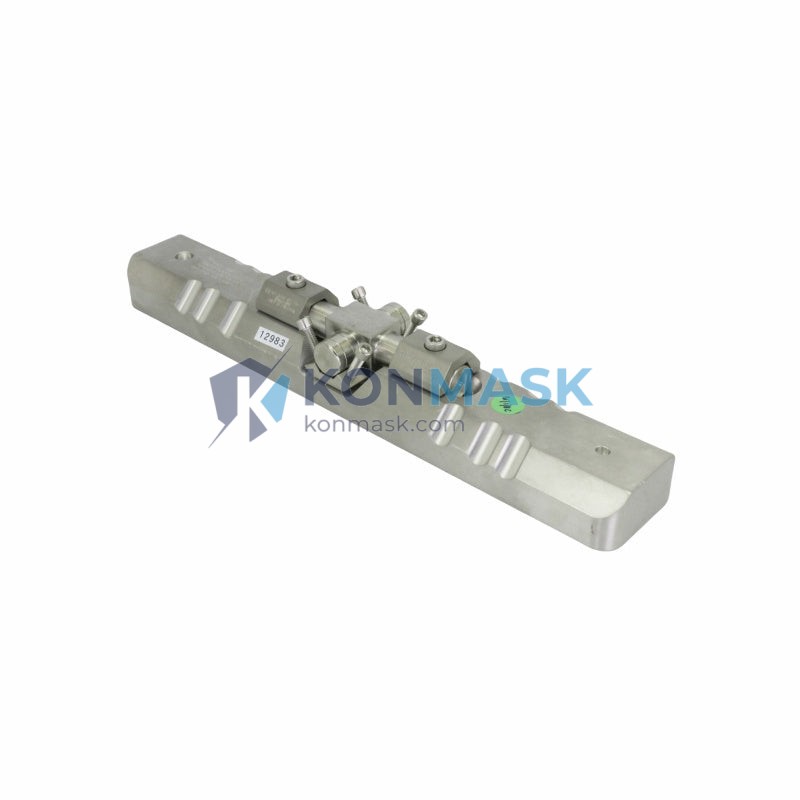

The Applied Materials 0041-07784 (cross-reference: 0190-01401, spec IPC-610-260-E) is a precision-engineered 300mm SPD Slit Valve Door Clamp designed for semiconductor wafer processing equipment. This critical vacuum interface component ensures reliable sealing and repeatable actuation in high-throughput 300mm process chambers. Konmask.com supplies both OEM-original and verified equivalent units to minimize downtime and support global fab operations.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Applied Materials (AMAT) |
| Primary Part Number | 0041-07784 |
| Cross-Reference / Alt P/N | 0190-01401 |
| Specification | IPC-610-260-E |
| Series / Platform | 610 SPD (Single-Wafer Process) |
| Wafer Size Compatibility | 300mm |
| Component Type | Slit Valve Door Clamp |
| Weight | 360 g |
| Condition Available | New OEM / Refurbished / Equivalent |
Compatible Replacement & Equivalent Models
The following parts are verified compatible replacements or functional equivalents for the Applied Materials 0041-07784 slit valve door clamp. Always confirm dimensional and torque specifications before installation:
- Applied Materials 0190-01401 — Direct OEM alternate part number (same assembly)
- Applied Materials 0041-07784-001 — Revision suffix variant; confirm IPC spec revision before ordering
- VAT Group AG equivalent clamp assemblies — Compatible in select SPD slit valve configurations; requires engineering review
- Third-party OEM-spec clamps — Manufactured to IPC-610-260-E dimensional tolerances; suitable for non-critical applications
Contact Konmask.com engineering support to confirm compatibility for your specific chamber configuration.
Why Choose the Original Model
- OEM-certified tolerances — Manufactured to Applied Materials’ IPC-610-260-E specification for guaranteed fit and function
- Vacuum integrity — Precision-machined clamping surfaces maintain consistent door seal under repeated thermal cycling
- Traceability — Full lot traceability and material certification available for qualified fabs
- Reduced risk — OEM parts eliminate qualification overhead versus third-party alternatives in critical process chambers
- Long service life — Engineered for high-cycle durability in 300mm high-volume manufacturing (HVM) environments
Typical Applications
- Applied Materials Centura, Producer, and Endura 300mm process platforms
- SPD (Single-Wafer Process) slit valve door assemblies
- 300mm wafer transfer chambers and load-lock interfaces
- Vacuum isolation gate valve maintenance and rebuild kits
- Semiconductor fab preventive maintenance (PM) and corrective maintenance (CM) programs
System Compatibility
This clamp is designed for use within the Applied Materials 610 SPD slit valve system on 300mm platforms. Verified system compatibility includes:
- Applied Materials Centura 300mm (SPD slit valve variant)
- Applied Materials Producer SE / GT 300mm
- Applied Materials Endura 300mm (confirm valve generation)
- Custom OEM integrations using IPC-610-260-E compliant slit valve doors
Note: Not compatible with 200mm slit valve assemblies without engineering modification. Verify chamber part list (CPL) before ordering.
Selection Guide
Use the following criteria to select the correct slit valve door clamp for your application:
- Step 1 — Confirm wafer size: This part is rated for 300mm platforms only.
- Step 2 — Verify part number: Cross-check 0041-07784 against your chamber CPL or BOM. Alternate P/N 0190-01401 is interchangeable.
- Step 3 — Check IPC revision: Confirm IPC-610-260-E is the active revision for your tool generation.
- Step 4 — Condition requirement: Choose New OEM for critical process chambers; refurbished or equivalent for non-critical or backup tools.
- Step 5 — Lead time vs. cost: Contact Konmask.com for current stock status, pricing, and expedite options.
Quality Assurance & Sourcing
- All OEM units sourced through authorized distribution channels with full documentation
- Refurbished units undergo dimensional inspection, surface reconditioning, and functional verification
- Equivalent units manufactured to IPC-610-260-E tolerances with material certs available on request
- Packaging: ESD-safe, cleanroom-compatible packaging for all units
- Export compliance: ECCN classification and export documentation available for international orders
How to Order
- Add to cart directly, or contact us for volume pricing and lead time confirmation.
- Provide your tool model, chamber ID, and CPL revision when requesting a compatibility check.
- For urgent requirements, email [email protected] or call +0086 19859288691 for expedited sourcing.
- International orders: specify destination country for export documentation and shipping options.
Replacement & Compatibility FAQ
Q: Is 0190-01401 the same as 0041-07784?
A: Yes. These are alternate Applied Materials part numbers for the same 300mm SPD Slit Valve Door Clamp assembly under IPC-610-260-E.
Q: Can I use a third-party equivalent in a critical process chamber?
A: Third-party equivalents manufactured to IPC-610-260-E spec are suitable for non-critical or backup tools. For critical chambers, OEM-original is recommended to avoid re-qualification.
Q: What is the typical lead time?
A: In-stock OEM units ship within 1–3 business days. Refurbished and equivalent units vary; contact us for current availability.
Q: Do you provide a warranty?
A: Yes. All units carry a standard 90-day warranty against manufacturing defects. Extended warranty available on request.
Q: Can Konmask.com source obsolete or end-of-life AMAT parts?
A: Yes. We specialize in hard-to-find and obsolete semiconductor spare parts. Contact us with your full part number and quantity requirement.
