Applied Materials 0040-54799 CMP Side Plate Left & Right | Replacement, Equivalent & Selection Guide

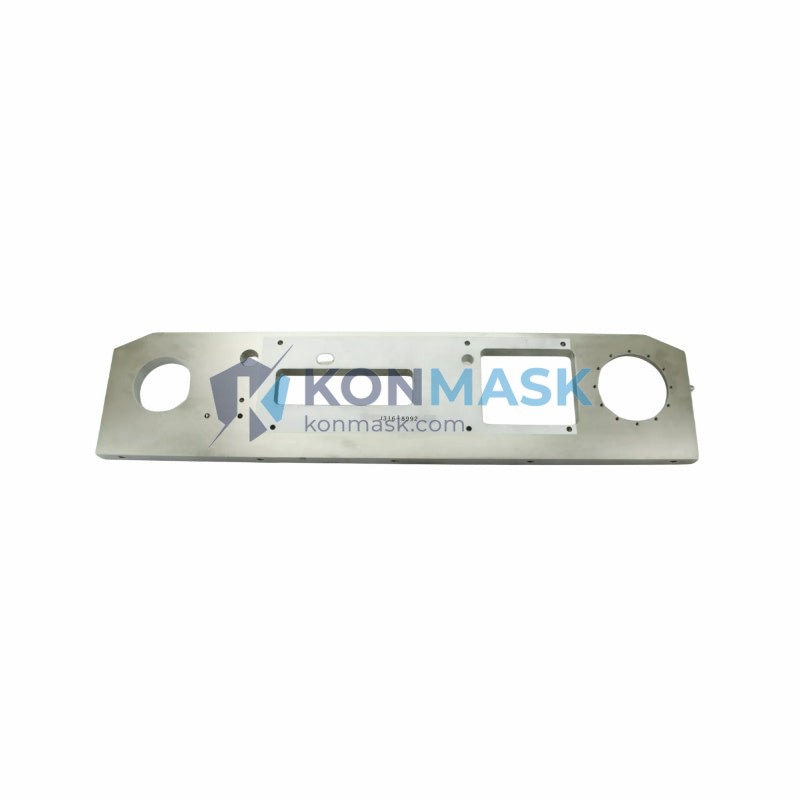

The Applied Materials 0040-54799 (cross-reference: 303-01720-00 / 225-02341-00 / PCI-0204PB-11) is a precision-machined CMP (Chemical Mechanical Planarization) Side Plate assembly designed for the SHR-11 polishing head on Applied Materials Mirra / Reflexion CMP platforms. Konmask.com supplies both OEM originals and verified equivalent replacements to minimize downtime in semiconductor fabs worldwide.
Technical Specifications
- Part Number: 0040-54799
- Cross-Reference: 303-01720-00 | 225-02341-00 | PCI-0204PB-11
- Assembly: Side Plate Left & Right (pair)
- Compatible Head: SHR-11 Polishing Head
- Platform: Applied Materials Mirra / Reflexion CMP
- Material: Precision-machined aluminum alloy / anodized finish
- Weight: ~2,600 g (pair)
- HS Code: 848690
- Origin: USA
- Condition: New OEM / Verified Equivalent / Refurbished (specify on inquiry)
Compatible Replacement & Equivalent Models
The following part numbers are functionally equivalent or directly interchangeable with 0040-54799:
- 303-01720-00 – Applied Materials internal revision
- 225-02341-00 – Applied Materials sub-assembly reference
- PCI-0204PB-11 – Third-party OEM equivalent (SHR-11 series)
Always verify platform revision and head generation before substitution. Contact Konmask for cross-reference confirmation.
Why Choose the Original Model
- Dimensional precision: OEM tolerances ensure correct alignment of the polishing head carrier, preventing wafer edge exclusion zone (EEZ) drift.
- Surface finish: Anodized coating resists slurry corrosion and maintains cleanliness class requirements.
- Validated fit: Factory-tested against SHR-11 head geometry — no shimming or rework required.
- Traceability: Full lot traceability available for SEMI S2 / ISO 9001 compliance audits.
Typical Applications
- CMP polishing head rebuild / preventive maintenance (PM) kits
- Replacement after mechanical impact or slurry ingress damage
- Spare parts inventory for high-volume 200 mm / 300 mm fabs
- Refurbishment of Applied Materials Mirra Mesa and Reflexion LK tools
System Compatibility
- Applied Materials Mirra CMP (200 mm)
- Applied Materials Mirra Mesa CMP (200 mm)
- Applied Materials Reflexion CMP (300 mm) – verify head revision
- SHR-11 polishing head assembly (all sub-revisions)
Not compatible with SHR-8 or SHR-12 head variants without engineering review.
Selection Guide
Use the table below to select the correct part for your configuration:
- New OEM (0040-54799): Best for critical layers (STI, Cu, W) where dimensional tolerance is paramount.
- Verified Equivalent (PCI-0204PB-11): Cost-effective for non-critical oxide CMP or high-volume PM cycles; same fit, form, and function.
- Refurbished OEM: Suitable for backup/spare inventory; inspect surface finish and fastener threads before installation.
- Left vs. Right: This listing covers the matched pair (left + right). Single-side replacements available — specify L or R on order.
Quality Assurance & Sourcing
- All parts sourced from authorized distributors or directly from Applied Materials-certified supply chains.
- 100% visual and dimensional inspection prior to shipment.
- Anti-static packaging; cleanroom-compatible bagging available on request.
- Certificate of Conformance (CoC) and material traceability documentation provided.
- ISO 9001-aligned quality management at Konmask.com.
How to Order
- Confirm your tool model and SHR head revision (check the head serial label or BOM).
- Select condition: New OEM / Equivalent / Refurbished.
- Specify quantity and whether you need a matched pair or single side (L/R).
- Contact us for lead time, volume pricing, and export documentation.
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can PCI-0204PB-11 directly replace 0040-54799?
A: Yes, for SHR-11 head assemblies. Dimensional fit is equivalent; verify torque specs match your PM procedure.
Q: Is this part compatible with the Reflexion LK Prime?
A: Compatibility depends on the head revision installed. Contact Konmask with your tool serial number for confirmation.
Q: Do you supply single-side (left only or right only)?
A: Yes. This listing is for the pair; single-side orders are available — specify L or R when ordering.
Q: What is the typical lead time?
A: In-stock items ship within 1–3 business days. OEM new orders: 2–6 weeks depending on availability.
Q: Can I get a CoC or material cert?
A: Yes, Certificate of Conformance is standard. MSDS and material certs available on request.
