APPLIED MATERIALS 0240-20551 Shield Clamp | Replacement, Equivalent & Selection Guide

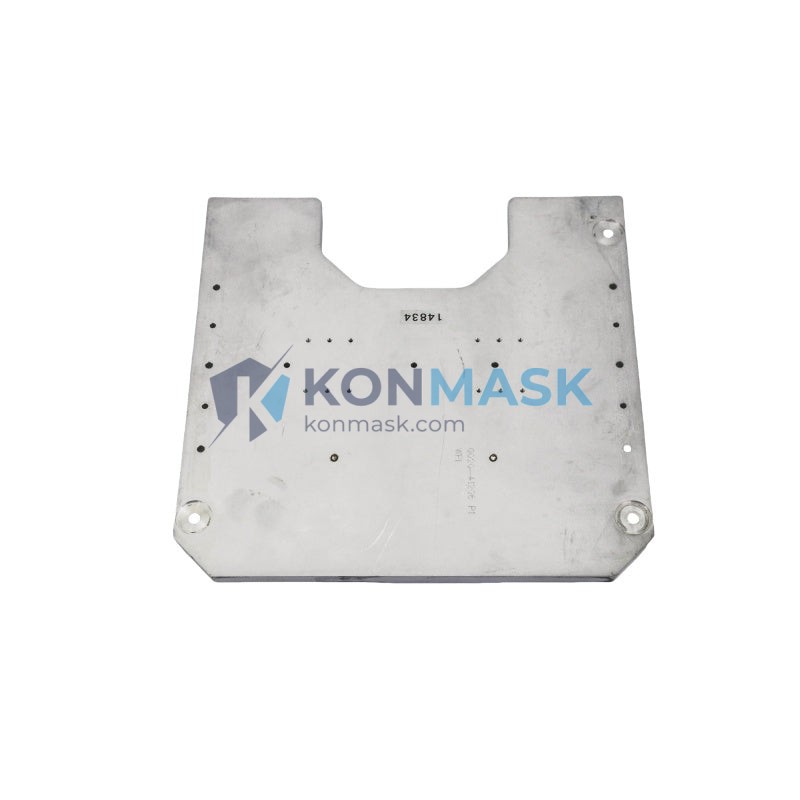

The Applied Materials 0240-20551 (cross-ref: 101102635 / 0050-09821) is a precision Shield Clamp used in CVD and etch process chambers. This guide helps engineers identify verified OEM parts, qualified equivalents, and compatible replacements to minimize downtime and maintain process integrity.
Technical Specifications
| Parameter | Detail |
|---|---|
| Part Number (Primary) | 0240-20551 |
| Cross-Reference | 101102635 / 0050-09821 |
| Description | Shield Clamp |
| Manufacturer | Applied Materials (AMAT) |
| Application | CVD / Etch Process Chamber |
| Material | Aluminum Alloy / Anodized (OEM spec) |
| Function | Secures process shield / liner in chamber |
| Condition Available | New OEM, Refurbished, Equivalent |
Compatible Replacement & Equivalent Models
The following part numbers are known cross-references or functional equivalents for the 0240-20551 Shield Clamp:
- 101102635 – AMAT internal cross-reference
- 0050-09821 – Alternate AMAT catalog number
- OEM-equivalent clamps machined to AMAT dimensional spec (available on request)
- Refurbished 0240-20551 units with full dimensional inspection report
Note: Always verify dimensional tolerances and material spec before substituting in a production chamber.
Why Choose the Original Model
- OEM Dimensional Accuracy – Machined to Applied Materials’ original engineering drawings
- Process Compatibility – Validated for use in AMAT CVD and etch platforms
- Material Certification – Aluminum alloy with anodized finish per AMAT spec
- Reduced Risk – OEM parts eliminate qualification risk in critical process steps
- Traceability – Full lot traceability available for fab compliance requirements
Typical Applications
- Applied Materials CVD process chambers (PECVD, SACVD, HDP-CVD)
- Etch chamber liner and shield retention
- Semiconductor wafer fab preventive maintenance (PM) kits
- 300mm and 200mm wafer process equipment overhaul
- Spare parts inventory for high-uptime fab environments
System Compatibility
- Applied Materials Centura® platform
- Applied Materials Producer® CVD system
- Applied Materials DPS® Etch chamber
- Compatible with chambers using 101102635 / 0050-09821 shield clamp configurations
Please confirm your chamber model and revision with our team before ordering to ensure fit.
Selection Guide
| Requirement | Recommended Option |
|---|---|
| Production-critical chamber, zero-risk | New OEM 0240-20551 |
| Cost-sensitive PM, non-critical chamber | Refurbished 0240-20551 (inspected) |
| Long lead-time OEM, urgent need | OEM-equivalent (dimensional match) |
| R&D or pilot line | Refurbished or equivalent acceptable |
Not sure which option fits your situation? Contact our team with your chamber model and PM schedule — we’ll recommend the right part.
Quality Assurance & Sourcing
- Verified Supply Chain – Parts sourced from authorized distributors and certified refurbishers
- Incoming Inspection – Dimensional check, surface condition, and marking verification
- Documentation – CoC (Certificate of Conformance) available upon request
- Packaging – ESD-safe, anti-static packaging for all semiconductor components
- Export Compliance – ECCN classification and export documentation available
How to Order
- Confirm part number: 0240-20551 (or cross-ref 101102635 / 0050-09821)
- Specify condition: New OEM / Refurbished / Equivalent
- Provide quantity and required delivery timeline
- Contact us via email or phone for a formal quotation
- Receive order confirmation with lead time and shipping details
Email: support@konmask.com | Phone/WhatsApp: +0086 19859288691
Replacement & Compatibility FAQ
Q: Is 101102635 the same as 0240-20551?
A: Yes, 101102635 is an AMAT internal cross-reference for 0240-20551. Both refer to the same Shield Clamp assembly.
Q: Can I use 0050-09821 as a direct replacement?
A: 0050-09821 is a known alternate AMAT part number. We recommend confirming with your chamber documentation before installation.
Q: Do you offer refurbished units with inspection reports?
A: Yes. All refurbished Shield Clamps are dimensionally inspected and include a condition report. CoC available on request.
Q: What is the lead time for new OEM stock?
A: Lead time varies by availability. Contact us for a real-time stock check and delivery estimate.
Q: Can you supply in bulk for PM kits?
A: Yes. We support bulk orders and can consolidate multiple PM kit components in a single shipment.
