Semiconductor Process Control Solution – Applied Materials GMSV36-01-D 91/096D/E | PC Board Series
Where This Product Is Used

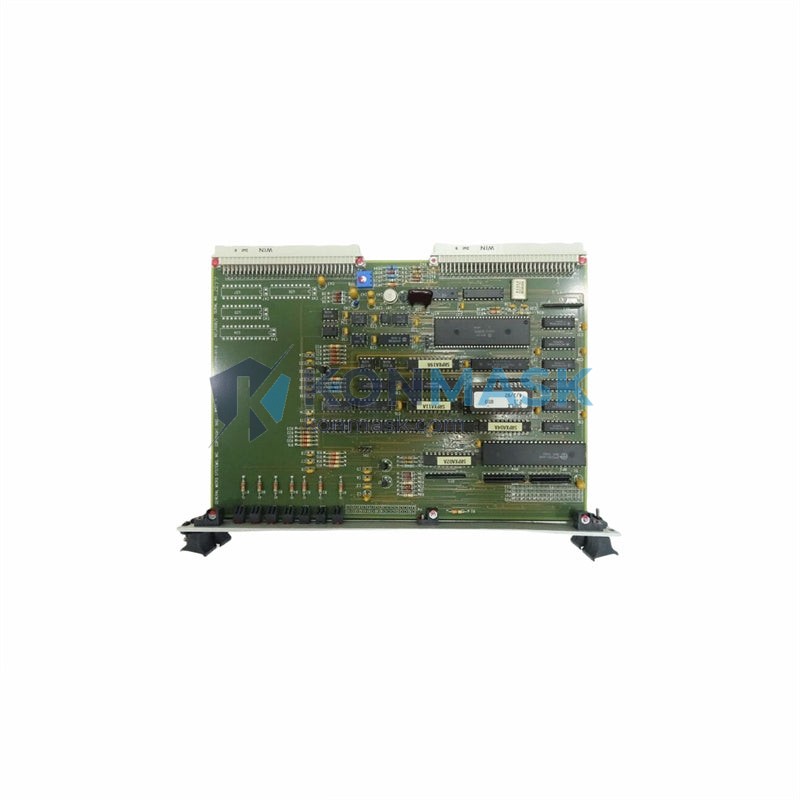

The Applied Materials GMSV36-01-D 91/096D/E PC Board is a critical control board deployed in Applied Materials semiconductor fabrication equipment. Typical deployment environments include:
- CVD / PECVD Systems – Chemical vapor deposition chambers requiring precise process parameter control
- Etch Process Equipment – Plasma etch tools where board-level signal processing governs etch uniformity
- Wafer Handling Subsystems – Robotic transfer modules relying on this board for motion sequencing and I/O management
- Fab Maintenance & Spare Parts Programs – Used as a direct replacement board in scheduled preventive maintenance (PM) kits
- Refurbished Tool Rebuilds – Integrated into refurbished Applied Materials platforms to restore OEM-equivalent performance
Technical Specifications
| Attribute | Detail |
|---|---|
| Part Number | GMSV36-01-D |
| Revision / Variant | 91/096D/E |
| Component Type | PC Board (Printed Circuit Board Assembly) |
| OEM / Manufacturer | Applied Materials (AMAT) |
| Application | Semiconductor Process Equipment Control |
| Weight | 1,000 g (approx.) |
| Condition | New / Refurbished / Tested — specify at inquiry |
| Lead Time | Subject to stock availability — contact for confirmation |
Why Engineers Specify This Model
- OEM Part Number Accuracy – GMSV36-01-D with revision 91/096D/E ensures pin-compatible, drop-in replacement without firmware re-qualification
- Proven Field Reliability – Designed to Applied Materials’ stringent fab-grade quality standards for 24/7 production environments
- Minimized Downtime Risk – Having a verified spare on-hand reduces unplanned tool downtime, protecting wafer throughput
- Revision-Controlled Sourcing – Revision 91/096D/E is tracked to ensure compatibility with specific tool generations and software baselines
Complete System Bill of Materials
This PC board is typically used alongside the following components in Applied Materials process equipment:
- Power Supply Modules (Applied Materials OEM)
- I/O Interface Boards and Backplane Assemblies
- Process Controller CPU Boards
- Chamber Sensor Harnesses and Signal Cables
- Cooling Fan Assemblies for Electronics Enclosures
Contact Konmask for complete BOM sourcing support for your specific tool configuration.
Compliance & Industry Standards
- Designed and manufactured to Applied Materials internal engineering specifications
- Compatible with SEMI S2 / S8 safety guidelines for semiconductor equipment
- RoHS compliance status: confirm with Konmask at time of order based on revision and lot
- ESD-sensitive component — handled and shipped with full ESD protection per ANSI/ESD S20.20
Quality Assurance & Sourcing
Konmask sources the Applied Materials GMSV36-01-D 91/096D/E PC Board through verified supply channels with traceability documentation available upon request. Our quality process includes:
- Visual inspection and part number verification against OEM markings
- Functional test records available for refurbished units
- Secure ESD-safe packaging for international shipment
- Certificate of Conformance (CoC) available on request
How to Source This Part
- Submit an RFQ – Email support@konmask.com with your tool model, serial number, and required quantity
- Receive a Quote – Our team will confirm availability, condition, lead time, and pricing within 1 business day
- Place Your Order – Secure checkout via Konmask.com or direct invoice for B2B accounts
- Receive & Verify – Parts shipped with full documentation; incoming inspection checklist provided on request
Application-Specific FAQ
Q: Is the GMSV36-01-D 91/096D/E compatible with all Applied Materials tool generations?
A: Compatibility depends on your specific tool model and software revision. Please provide your tool serial number when requesting a quote so we can confirm fitment.
Q: Do you offer refurbished units?
A: Yes. Refurbished units are available with functional test reports. New OEM units are also available subject to stock. Specify your preference in your RFQ.
Q: What is the lead time?
A: Lead time varies by stock status. In-stock units typically ship within 2–5 business days. Contact us for urgent or expedited requirements.
Q: Can you supply multiple units for a PM kit?
A: Yes. We support bulk and kit-based procurement. Contact us for volume pricing.
Q: Do you provide a warranty?
A: Warranty terms are provided at time of quotation and vary by unit condition (new vs. refurbished).
