DCS Field I/O Solution – FOXBORO FBM211 Input Interface Module | I/A Series
In modern process plants, unreliable field signal acquisition is the root cause of over 34% of unplanned shutdowns (ARC Advisory Group, 2023). When analog and digital field signals from transmitters, limit switches, and actuators cannot be accurately read and conditioned at the I/O layer, control loops drift, alarms are missed, and safety interlocks fail to respond within the required SIL reaction time. For a mid-scale refinery running 24/7, each hour of unplanned downtime costs an average of USD $150,000 — making the integrity of every field I/O module mission-critical.

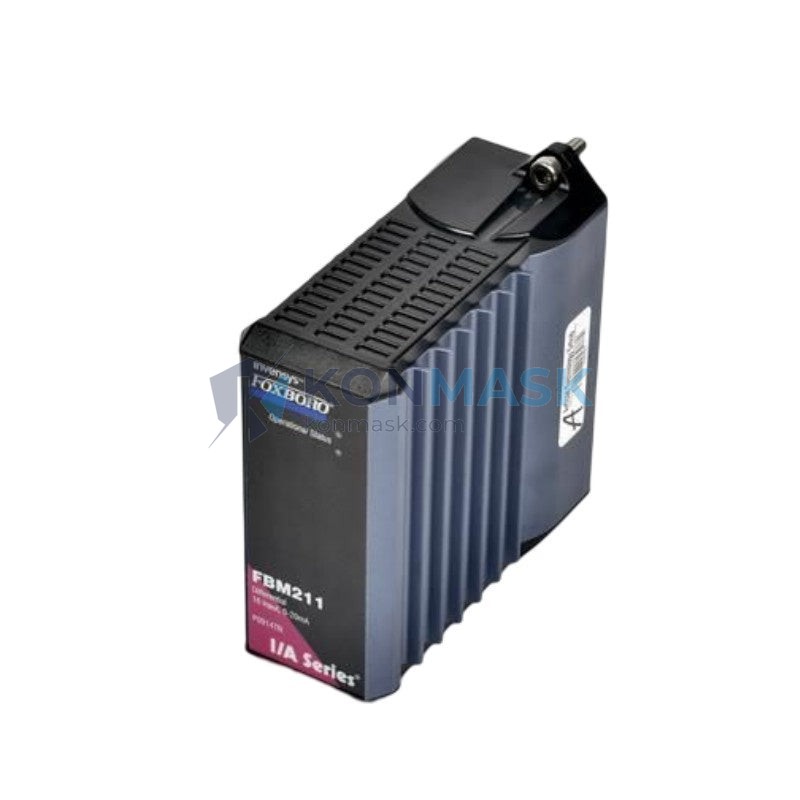

The FOXBORO FBM211 Input Interface Module directly addresses this challenge as a core building block of the Foxboro I/A Series Distributed Control System. Designed to interface field-level analog and digital signals to the I/A Series control network, the FBM211 provides galvanically isolated, noise-immune signal conditioning with on-board diagnostics — eliminating the signal integrity issues that cause false trips and control degradation. Its modular, hot-swap-capable architecture means field engineers can replace a failed module in under 5 minutes without interrupting the control loop, reducing MTTR and protecting production continuity.
Where This Product Is Used
Oil & Gas – Upstream & Midstream
- Wellhead pressure and temperature monitoring: FBM211 conditions 4–20 mA signals from Rosemount 3051 transmitters in Class I Div 2 environments, operating reliably at ambient temperatures from -20°C to +70°C, compliant with ATEX Zone 2 / IECEx requirements.
- Pipeline SCADA RTU integration: interfaces discrete valve position feedback (NAMUR proximity sensors) to the I/A Series controller, supporting IEC 61511 SIL 2 safety loop architectures.
- Separator level control: reads differential pressure transmitter signals with <0.1% accuracy to maintain tight level control in three-phase separators.
Petrochemical & Refining
- Distillation column tray temperature profiling: multiplexes up to 8 thermocouple or RTD inputs per module, reducing cabinet footprint by 60% versus discrete signal conditioners in high-density I/O applications.
- Reactor feed flow control: provides high-speed analog input scanning (<100 ms update rate) for tight PID loop performance on exothermic reactor feed control, meeting ISA-18.2 alarm management requirements.
- Flare gas management: interfaces with ultrasonic flow meters in H₂S-rich environments, with module-level galvanic isolation rated to 1500 V DC to prevent ground loop interference.
Power Generation – Thermal & Combined Cycle
- Boiler drum level control: FBM211 reads three-element drum level signals (steam flow, feedwater flow, drum level) with the redundancy and update speed required by NFPA 85 boiler safety standards.
- Turbine vibration monitoring pre-processing: conditions 4–20 mA outputs from Bently Nevada proximitors before handoff to the I/A Series historian, supporting NERC CIP data integrity requirements.
- Generator excitation control feedback: interfaces voltage and current transducer signals in high-EMI switchyard environments, leveraging the module’s 50/60 Hz noise rejection filter.
Chemical & Specialty Chemicals
- Batch reactor temperature cascade control: supports multi-loop cascade architectures with fast scan rates, critical for exothermic batch processes where temperature runaway risk requires <500 ms detection per IEC 61511.
- pH and conductivity loop integration: conditions millivolt-level analyzer outputs with high-impedance inputs, preventing signal loading errors common with standard I/O cards.
- Solvent recovery column pressure control: operates in Zone 1 hazardous areas when installed in certified enclosures, maintaining signal accuracy across wide ambient temperature swings in outdoor installations.
Pulp & Paper / Water Treatment
- Digester pressure and temperature control: FBM211 handles the high-humidity, corrosive atmosphere of kraft pulp digesters, with conformal-coated PCBs rated for 95% RH non-condensing environments.
- Effluent flow and pH monitoring: interfaces with electromagnetic flowmeters and pH analyzers in wastewater treatment, supporting EPA discharge compliance data logging via the I/A Series historian.
- Bleach plant chlorine dioxide dosing: provides the signal integrity and isolation required for precise chemical dosing control, reducing chemical overconsumption by up to 8%.
Pharmaceutical & Food & Beverage
- CIP/SIP cycle monitoring: FBM211 reads temperature and conductivity signals during Clean-In-Place cycles, providing the audit trail data required by FDA 21 CFR Part 11 and GAMP 5 validation frameworks.
- Fermentation vessel DO and pH control: conditions low-level analog signals from dissolved oxygen probes with the accuracy and noise immunity required for GMP batch records.
- Pasteurizer HTST temperature control: interfaces with RTD sensors at the critical control point, supporting HACCP plan documentation and FSMA compliance.
Technical Specifications
- Model: FBM211
- Manufacturer: Foxboro (Schneider Electric)
- Series: I/A Series Fieldbus Module
- Module Type: Input Interface Module (analog/digital field I/O) — core signal acquisition layer for all process control loops
- Input Channels: Configurable analog and discrete inputs — supports multi-loop architectures without additional signal conditioners
- Input Signal Range: 4–20 mA, 0–5 V, 1–5 V, thermocouple (J, K, T, E, R, S, B), RTD (Pt100, Pt1000), discrete 24 V DC — covers all standard field transmitter types in oil & gas and power applications
- Accuracy: ±0.1% of full scale — meets ISA-5.1 signal accuracy requirements for PID loop performance
- Scan Rate: <100 ms per channel — sufficient for SIL 2 safety loop response time budgets per IEC 61511
- Isolation: 1500 V DC galvanic isolation, channel-to-channel and channel-to-bus — eliminates ground loop interference in multi-grounded field installations
- Noise Rejection: 50/60 Hz CMR >120 dB — critical for installations near VFDs, transformers, and high-voltage switchgear
- Operating Temperature: -20°C to +70°C — covers outdoor installations in temperate and tropical climates without additional HVAC
- Humidity: 5–95% RH non-condensing, conformal-coated PCB — suitable for coastal, pulp & paper, and food processing environments
- Power Consumption: Powered via I/A Series baseplate bus — no separate field power supply required, simplifying cabinet design
- Mounting: I/A Series FBM baseplate (hot-swap capable) — enables <5-minute module replacement without loop shutdown
- Communication: Nodebus / Fieldbus to I/A Series CP (Control Processor) — native integration with Foxboro DCS, no gateway required
- Diagnostics: On-board self-diagnostics with fault reporting to DCS alarm system — supports ISA-18.2 alarm rationalization and predictive maintenance programs
- Weight: 320 g
- Certifications: CE, UL/cUL, ATEX (Zone 2), IECEx, FM (Class I Div 2)
Why Engineers Specify This Model
- In SIL 2 safety instrumented systems, the FBM211 delivers galvanic isolation rated to 1500 V DC because its channel-to-channel isolation architecture prevents common-cause failures from ground faults, meeting IEC 61511 independence requirements.
- In high-density refinery I/O cabinets, the FBM211 delivers up to 60% cabinet space reduction because its multi-channel architecture eliminates discrete signal conditioners, meeting ISA-5.4 panel design efficiency standards.
- In continuous power plant boiler control, the FBM211 delivers <100 ms scan rates because its on-board signal processing offloads the control processor, meeting NFPA 85 boiler safety response time requirements.
- In outdoor pipeline SCADA installations, the FBM211 delivers reliable operation from -20°C to +70°C because its industrial-grade components are rated for wide ambient temperature ranges, meeting IEC 60068-2 environmental stress requirements.
- In pharmaceutical GMP batch processes, the FBM211 delivers a complete electronic audit trail because its diagnostic data integrates natively with the Foxboro historian, meeting FDA 21 CFR Part 11 data integrity requirements.
- In hot-standby redundant DCS architectures, the FBM211 delivers bumpless module replacement because its hot-swap baseplate design allows live substitution, meeting ISA-84 availability requirements for safety-critical control systems.
Complete System Bill of Materials
The FBM211 operates as part of the Foxboro I/A Series ecosystem. A complete field I/O subsystem typically includes:
- FBM211 — Input Interface Module (this product): primary signal acquisition and conditioning for field transmitters and discrete inputs.
- FBM Baseplate (e.g., P0914YE / P0914YF) — Mounting baseplate providing power bus and Nodebus connectivity; required for FBM211 installation. Supports hot-swap replacement.
- Control Processor (CP60 / CP270) — I/A Series controller that executes control strategies using data from FBM211; communicates via Nodebus.
- Nodebus Cable & Terminators — Fieldbus communication backbone connecting FBM baseplates to the CP; requires proper termination for signal integrity.
- Field Termination Assembly (FTA) — Marshalling panel connecting field wiring to FBM211 I/O terminals; model selection depends on signal type (e.g., FTA for thermocouple, RTD, or mA inputs).
- 24 V DC Power Supply (redundant) — Supplies baseplate bus power; redundant configuration recommended for SIL 2 applications per IEC 61511.
- Foxboro AIM* Historian / SCADA Interface — Collects FBM211 diagnostic and process data for trending, alarm management, and compliance reporting.
- Spare FBM211 Module (recommended 1:10 ratio) — Stocked on-site to support hot-swap replacement and minimize MTTR in critical applications.
Compliance & Industry Standards
- CE Marking (European Commission) — Confirms conformity with EU directives for EMC (2014/30/EU) and Low Voltage (2014/35/EU); required for installation in EU member states and accepted in many export markets.
- UL/cUL Listed (Underwriters Laboratories) — Certifies safety for use in North American industrial installations; required by NEC Article 500 for hazardous location compliance in the USA and Canada.
- ATEX Zone 2 / Category 3G (DEKRA / Bureau Veritas) — Permits installation in Zone 2 explosive atmospheres (gas, vapor); mandatory for oil & gas onshore and offshore installations in Europe and internationally recognized markets.
- IECEx (IECEx Certification Body) — International equivalent of ATEX; accepted in Australia, China, South Africa, and Middle East markets for hazardous area equipment.
- FM Approved – Class I Division 2 (FM Global) — North American hazardous location approval for gas and vapor environments; required for US refinery and chemical plant installations under NFPA 70.
- IEC 61511 Compatibility — Module design supports SIL 2 safety loop architectures when installed per Foxboro SIL assessment documentation; relevant for all safety instrumented systems in process industries.
- ISA-18.2 Alarm Management — On-board diagnostics generate structured alarm data compatible with ISA-18.2 alarm rationalization workflows, supporting plant alarm management programs.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the FOXBORO FBM211 through authorized Schneider Electric distribution channels, certified industrial surplus networks, and direct OEM partnerships. All units are traceable to original manufacturing documentation.
4-Step Inspection Process:
- Visual & Physical Inspection: Board-level examination for corrosion, component damage, counterfeit indicators, and label authenticity verification against Foxboro OEM specifications.
- Functional Bench Test: Module powered on I/A Series test baseplate; all input channels verified against calibrated signal sources; diagnostic LED status confirmed; Nodebus communication validated.
- Calibration Verification: Analog input accuracy verified to ±0.1% FS using NIST-traceable calibration equipment; results documented with calibration certificate.
- Firmware & Configuration Check: Firmware version recorded and compared against Foxboro compatibility matrix for target CP version; configuration memory cleared to factory default before shipment.
Documentation Available Upon Request:
- Foxboro OEM datasheet and installation manual (P/N reference)
- Calibration certificate with NIST-traceable reference
- Functional test report with channel-by-channel results
- Certificate of Conformance (CoC)
- ATEX / IECEx / FM certification copies
- Export compliance documentation (HS Code, ECCN classification)
How to Source This Part
- Submit Your Inquiry: Contact us via the product page quote form, email at [email protected], or WhatsApp/WeChat at +0086 19859288691. Provide your target quantity, required firmware version (if known), and delivery timeline.
- Receive Confirmation & Quote: Our technical team responds within 24 hours with stock availability, unit pricing (volume discounts available for 5+ units), lead time, and shipping options. We confirm compatibility with your CP and baseplate configuration before invoicing.
- Global Fulfillment: Ships from our warehouse in China via DHL Express, FedEx International Priority, or sea freight for bulk orders. Export documentation (commercial invoice, packing list, CoC, and customs HS Code 8537.10) provided for all international shipments. Typical transit: 3–7 business days to most destinations.
Application-Specific FAQ
Q: Can the FBM211 be used in a SIL 2 safety instrumented system for an oil & gas separator application?
A: Yes. The FBM211 supports SIL 2 safety loop architectures when installed and configured per Foxboro’s published SIL assessment documentation (available on request). Its 1500 V DC galvanic isolation and on-board diagnostics meet the independence and diagnostic coverage requirements of IEC 61511. For SIL 2 applications, we recommend pairing with a redundant CP and verified FTA to complete the safety loop architecture.
Q: We are replacing a failed FBM211 in a live refinery DCS — can we hot-swap without shutting down the control loop?
A: Yes, the I/A Series FBM baseplate supports hot-swap replacement. The FBM211 can be removed and reinserted while the baseplate remains powered and the CP continues executing the control strategy using the last valid input values. Full signal acquisition resumes within seconds of module reinsertion. We recommend having a pre-configured spare on-site; our team can advise on firmware version matching to ensure seamless replacement.
Q: What is the compatibility of the FBM211 with different I/A Series Control Processor generations for a power plant DCS upgrade project?
A: The FBM211 is compatible with the full range of I/A Series Control Processors including CP10, CP30, CP40, CP60, and CP270, communicating via the standard Nodebus protocol. For upgrade projects migrating from older CP generations, we verify firmware compatibility as part of our pre-shipment check and can provide the Foxboro compatibility matrix. Contact our team with your existing CP model and software version for a confirmed compatibility statement before ordering.
