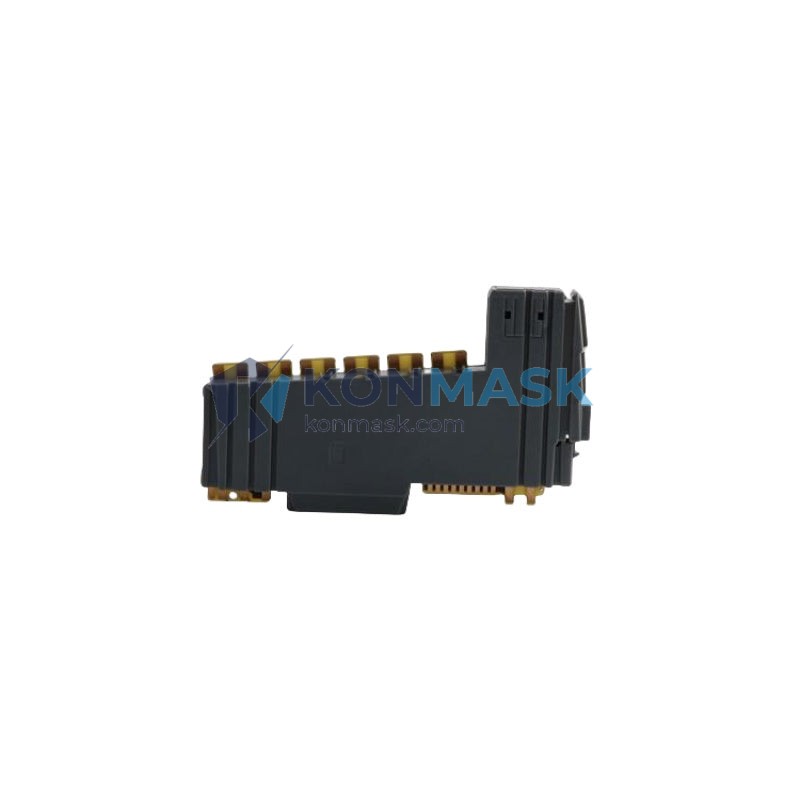

Genuine B&R X20AT4222 Analog Input I/O Module | X20 Series – Verified Source
Konmask.com is a dedicated industrial automation components supplier specializing in genuine B&R Automation parts. The X20AT4222 is a high-precision analog input module from B&R’s X20 modular I/O system, designed for demanding process control and machine automation environments. Every unit we supply is sourced through verified channels and undergoes our rigorous 4-step quality verification before shipment.
Technical Specifications
- Part Number: X20AT4222
- Manufacturer: B&R Automation (Bernecker + Rainer)
- Series: X20 Modular I/O System
- Module Type: Analog Input
- Analog Inputs: 4 channels
- Input Signal: ±10 V / 0–20 mA / 4–20 mA (configurable per channel)
- Resolution: 16-bit
- Isolation: Electrically isolated channels
- Bus System: X2X Link (B&R proprietary high-speed backplane bus)
- Operating Temperature: 0°C to +55°C
- Protection Rating: IP20
- Power Supply: Via X2X Link bus
- Dimensions: Standard X20 module form factor
- Certifications: CE, UL, cUL
Our 4-Step Quality Verification Process
Every B&R X20AT4222 module shipped from Konmask.com passes through our standardized verification protocol:
- Step 1 – Source Authentication: All units are procured exclusively from authorized distributors, certified resellers, or verified OEM surplus channels. No grey-market or counterfeit sources are accepted.
- Step 2 – Physical Inspection: Each module is visually inspected for label integrity, housing condition, connector pin alignment, and manufacturer markings. Any unit showing signs of tampering or refurbishment is rejected.
- Step 3 – Functional Bench Test: Where applicable, modules are powered up and tested for basic communication and I/O response using B&R-compatible test rigs to confirm operational status.
- Step 4 – Documentation & Traceability: Serial numbers are logged, and a traceability record is maintained for every unit. Customers can request documentation upon order confirmation.
Key Features & Benefits
- ✅ High-Resolution Analog Acquisition: 16-bit resolution ensures precise measurement for temperature, pressure, flow, and other process variables.
- ✅ Flexible Signal Configuration: Each channel independently configurable for voltage or current input — reduces wiring complexity and module count.
- ✅ Seamless X20 System Integration: Plug-and-play compatibility with B&R X20 CPUs, bus controllers, and power supply modules.
- ✅ Electrically Isolated Channels: Protects sensitive measurement circuits from ground loops and electrical noise in industrial environments.
- ✅ Compact Modular Design: Space-efficient X20 form factor simplifies cabinet layout and future expansion.
- ✅ Genuine Part Guarantee: Every unit is authentic B&R — not a clone, not a refurbished substitute.
Typical Applications
- Process automation: temperature, pressure, and flow monitoring in chemical, pharmaceutical, and food & beverage plants
- Machine tool control: servo feedback and spindle load monitoring
- Energy management: power quality measurement and demand monitoring
- Packaging machinery: tension control and fill-level sensing
- Water treatment: sensor signal acquisition for SCADA integration
- OEM machine builders using B&R X20 as their standard control platform
Compatible System Components
- Bus Controllers: X20BC0083, X20BC0063, X20BC0073 and other X20 bus controller variants
- CPUs: X20CP1382, X20CP1584, X20CP3585 and compatible X20 CPU modules
- Power Supplies: X20PS9400, X20PS9402 series
- Digital I/O Modules: X20DI9371, X20DO9322 and full X20 digital I/O range
- Software: B&R Automation Studio 4.x and above
Contact us to verify compatibility with your specific system configuration before ordering.
Global Sourcing & Shipping Capabilities
- Stock Location: China (Mainland) — with international forwarding partners
- Shipping Methods: DHL Express, FedEx International Priority, EMS, sea freight (for bulk orders)
- Lead Time: In-stock items typically ship within 1–3 business days of payment confirmation
- Export Documentation: Commercial invoice, packing list, and certificate of origin available upon request
- Customs Support: HS code and product documentation provided to facilitate smooth customs clearance
- Bulk & Project Orders: Contact us for volume pricing, reserved stock agreements, and project-based supply contracts
Certifications & Compliance Statement
The B&R X20AT4222 carries the following certifications as issued by the original manufacturer:
- CE Marking — Compliant with EU Machinery Directive and EMC Directive
- UL / cUL Listed — Recognized for use in North American industrial installations
- RoHS Compliant — Meets EU Directive 2011/65/EU on restriction of hazardous substances
Konmask.com does not modify, repair, or alter any hardware. All units are supplied in their original manufacturer condition. We do not make independent certification claims beyond those issued by B&R Automation.
How to Order
- Confirm your requirement: Verify the part number (X20AT4222) matches your system’s BOM or replacement need.
- Request a quote: For bulk orders or special pricing, email support@konmask.com with your quantity and delivery timeline.
- Place your order: Add to cart and complete checkout — we accept T/T bank transfer, PayPal, and major credit cards.
- Receive tracking: Shipping confirmation and tracking number sent within 24 hours of dispatch.
- After-sales support: Contact us within 7 days of receipt for any quality concerns — we stand behind every unit we ship.
Authenticity & Trust FAQ
Q: How do I know the module is genuine B&R?
A: All units pass our 4-step verification process. We can provide sourcing documentation and serial number records upon request. B&R part labels, holographic stickers, and housing markings are inspected as part of our standard intake process.
Q: Is this a new or used module?
A: We clearly state the condition of each unit in the product listing. Unless explicitly noted as “tested surplus” or “refurbished,” all units are new-in-box or new-open-box from verified stock.
Q: Can you provide a warranty?
A: Yes. We offer a 90-day functional warranty on all modules. If a unit fails under normal operating conditions within 90 days, we will replace it or issue a full refund.
Q: Do you accept returns?
A: Returns are accepted within 30 days for unused, unopened units. Please contact support@konmask.com to initiate a return authorization.
Q: Can I get a datasheet or manual?
A: Yes — the official B&R X20AT4222 datasheet is available from B&R’s documentation portal. We can also provide a direct link upon request.
Q: Do you ship to my country?
A: We ship globally. Contact us if you have specific import restrictions or require special export documentation.
