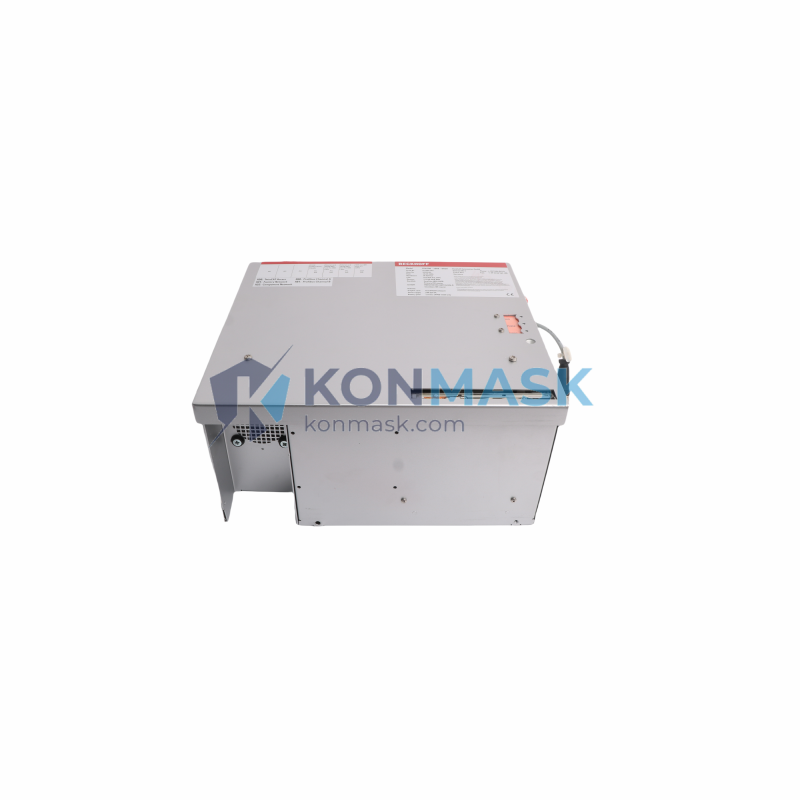

Beckhoff CP6500-1006-0020 – 15″ Widescreen Built-in Industrial Panel | CP65xx Series
Engineering Background
The CP6500 series represents Beckhoff’s dedicated line of built-in Control Panels engineered for seamless integration into machine cabinets, operator consoles, and control enclosures. Designed to complement TwinCAT-based automation architectures, these panels deliver industrial-grade HMI performance in demanding production environments where reliability, precision, and long-term availability are non-negotiable.
Product Positioning
The CP6500-1006-0020 is a 15″ widescreen (1366×768) multi-touch built-in panel optimized for procurement engineers specifying HMI solutions in discrete manufacturing, process automation, and machine tool applications. Its fanless, sealed-front design eliminates mechanical wear points, while its DVI/USB interface ensures compatibility with a broad range of Beckhoff Industrial PCs and third-party controllers.
Complete Technical Specifications
- Part Number / SKU: CP6500-1006-0020
- Series: CP65xx Built-in Control Panel
- Manufacturer: Beckhoff Automation GmbH & Co. KG
- Country of Origin: Germany
- Display Size: 15.6″ Widescreen TFT LCD
- Resolution: 1366 × 768 (WXGA)
- Brightness: 300 cd/m²
- Touch Technology: Projected Capacitive (PCT) Multi-Touch
- Touch Points: 5-point multi-touch
- Interface: DVI-D + USB 2.0 (combined cable)
- Cable Length: 2 m (standard); extensions available
- Front Protection: IP65 (front panel)
- Rear Protection: IP20
- Operating Temperature: 0 °C … +50 °C
- Storage Temperature: -20 °C … +60 °C
- Relative Humidity: 5 % … 95 % (non-condensing)
- Power Supply: 24 V DC (via IPC or external)
- Dimensions (W × H × D): ~395 × 255 × 55 mm (panel cutout per datasheet)
- Weight: approx. 4.5 kg
- Mounting: Panel cutout, front-mount with clamps
- Certifications: CE, UL (pending configuration)
- MTBF: >50,000 hours (display backlight)
Proven Application Environments
- CNC machine tool operator stations requiring multi-touch HMI
- Packaging line control panels integrated with Beckhoff CX/IPC series
- Pharmaceutical and food-grade production lines (IP65 front seal)
- Automotive assembly automation with TwinCAT PLC runtime
- Energy management and SCADA visualization terminals
- Robotics cell operator interfaces requiring widescreen layout
- Water treatment and utilities control room panels
Engineering Advantages
- Fanless & Sealed Front: Eliminates particulate ingress and mechanical failure modes in dusty or humid environments.
- PCT Multi-Touch: Supports gloved-hand operation and gesture-based navigation for modern HMI UX design.
- DVI + USB Single-Cable Architecture: Reduces wiring complexity and cabinet space; cable lengths up to 50 m with extenders.
- TwinCAT Native Integration: Plug-and-play with Beckhoff CX2000, CX5000, C6000, and C6900 IPC series.
- Long-Term Availability: Beckhoff’s 10-year product lifecycle commitment supports long-running machine programs.
- Widescreen WXGA: Optimized for modern SCADA/HMI software layouts with side-by-side process visualization.
System Architecture & Signal Flow
The CP6500-1006-0020 operates as a pure display/input peripheral — it contains no CPU or storage. Signal flow is as follows:
- Host IPC (e.g., Beckhoff C6920) generates DVI video signal and USB HID data.
- Combined DVI+USB cable transmits both signals over a single shielded cable run to the panel.
- Panel display controller decodes DVI signal → drives TFT backlight and pixel matrix.
- PCT touch controller captures finger/stylus input → returns USB HID events to host IPC.
- TwinCAT HMI / SCADA software on host processes touch events and updates display output in real time.
No additional drivers are required on Windows-based Beckhoff IPCs. Linux-based deployments may require standard USB HID kernel modules.
Sourcing & Quality Verification
- Source: Authorized distribution channel; genuine Beckhoff factory-sealed units.
- Condition: New-in-box (NIB) unless explicitly stated as refurbished/tested.
- Traceability: Each unit ships with Beckhoff serial number label; verifiable via Beckhoff’s online product registration.
- Inspection: Pre-shipment functional check — display power-on, touch calibration verification, connector integrity.
- Packaging: Original Beckhoff anti-static packaging with foam insert; suitable for international air/sea freight.
- Lead Time: In-stock units ship within 1–3 business days; contact us for volume availability.
Procurement Process
- Confirm Part Number: Verify CP6500-1006-0020 against your BOM or Beckhoff project specification sheet.
- Request Quote: Contact [email protected] for volume pricing, lead time, and export documentation (CO, packing list, commercial invoice).
- Place Order: Add to cart and complete checkout, or submit a PO via email for net-terms arrangements.
- Shipping & Customs: We handle HS code classification (HS 8537.10), export licensing (if applicable), and DDP/DAP Incoterms on request.
- Incoming Inspection: We recommend verifying serial number, checking for physical damage, and powering on within 48 hours of receipt.
Technical FAQ
Q: Is the CP6500-1006-0020 compatible with non-Beckhoff IPCs?
A: Yes. Any host system with a DVI-D output and USB 2.0 port can drive this panel. Windows, Linux, and real-time OS environments are supported.
Q: Can the touch function be used with industrial gloves?
A: Yes. The PCT (Projected Capacitive Touch) technology supports standard industrial gloves up to 1 mm thickness. Thick rubber gloves may reduce sensitivity.
Q: What is the maximum cable run length?
A: The standard cable is 2 m. With Beckhoff-approved DVI+USB extenders (e.g., ZK7000-0100 series), runs up to 50 m are supported.
Q: Does this panel include a CPU or run software independently?
A: No. The CP6500-1006-0020 is a pure display/input device. It requires a host IPC (e.g., Beckhoff CX or C-series) to function.
Q: What is the panel cutout dimension?
A: Refer to the official Beckhoff CP6500-1006-0020 datasheet for exact cutout dimensions. Contact us if you need the drawing file.
Q: Is CE certification included?
A: Yes. The CP6500 series carries CE marking per EU Machinery Directive and EMC Directive. Declaration of Conformity available on request.
