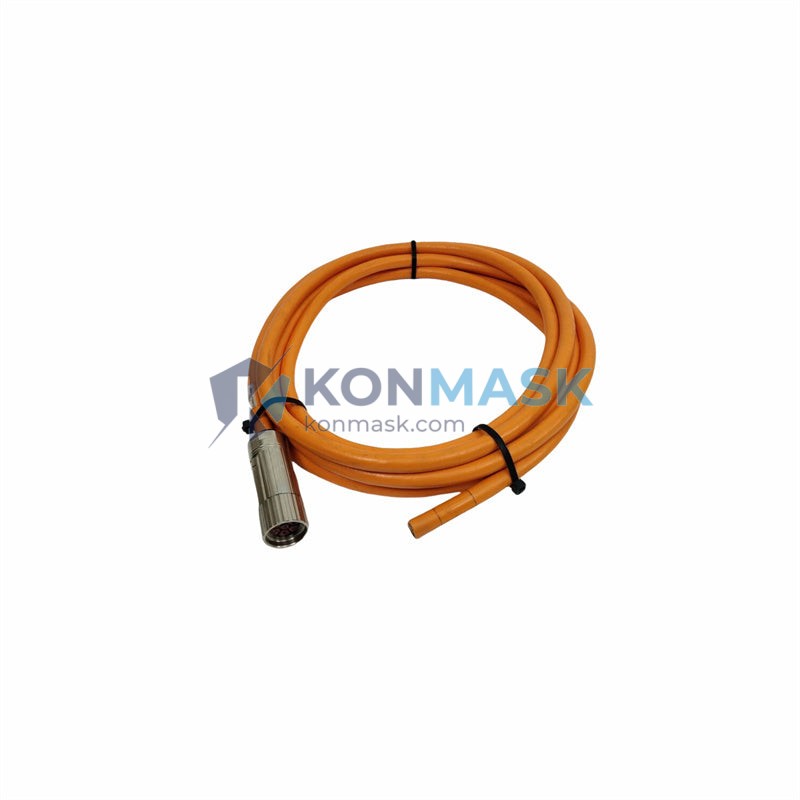

Genuine Beckhoff ZK4000-2111-2050 Motor Cable | AX5000 Servo Drive Series – Verified Source
The Beckhoff ZK4000-2111-2050 is a pre-assembled, shielded motor power cable engineered for Beckhoff AX5000 servo drive systems. Designed for demanding industrial environments, this 5-metre cable delivers reliable power transmission between servo drives and synchronous servomotors, ensuring signal integrity and mechanical durability in continuous-duty automation applications.
At Konmask.com, every unit is sourced through verified supply channels and undergoes our 4-step quality verification process before dispatch — giving B2B buyers the confidence they need when specifying critical motion-control components.
Technical Specifications
- Part Number: ZK4000-2111-2050
- Manufacturer: Beckhoff Automation GmbH & Co. KG
- Series: ZK4000 (AX5000 Motor Cable Series)
- Cable Length: 5.0 m (16.4 ft)
- Cable Type: Pre-assembled motor power cable, shielded
- Connector (Drive End): M23 circular connector, 8-pin
- Connector (Motor End): M23 circular connector, 8-pin
- Conductor Cross-Section: 4 × 1.5 mm²
- Shield: Braided copper shield, 85% coverage
- Outer Jacket: PUR (polyurethane), oil- and UV-resistant
- Rated Voltage: 600 V AC
- Operating Temperature: −30 °C to +80 °C (fixed); −20 °C to +80 °C (flexible)
- Bending Radius (min.): 7.5 × cable OD (dynamic); 5 × cable OD (static)
- Weight: Approx. 1,800 g
- Compliance: CE, RoHS
Our 4-Step Quality Verification Process
Every Beckhoff ZK4000-2111-2050 unit shipped from Konmask.com passes through the following verification stages:
- Source Authentication — We verify the supply chain origin and cross-reference batch documentation against Beckhoff’s authorised distributor records.
- Physical Inspection — Connectors, jacket integrity, shield continuity, and labelling are inspected against OEM specifications.
- Electrical Continuity Test — Each cable is tested for conductor continuity and insulation resistance prior to packaging.
- Documentation Review — Shipment includes a packing list with part number, batch reference, and inspection sign-off. Certificate of conformity available on request.
Key Features & Benefits
- ✅ Genuine OEM Part — Sourced from verified Beckhoff supply channels; not aftermarket or compatible substitute
- ✅ Plug-and-Play Compatibility — Pre-assembled with factory-crimped M23 connectors; no field termination required
- ✅ High Flex Durability — PUR jacket rated for dynamic cable-track (energy chain) applications
- ✅ EMC-Optimised Shielding — Braided copper shield minimises radiated emissions and protects against external interference
- ✅ Oil & Chemical Resistance — Suitable for machine-tool and factory-floor environments
- ✅ Rapid Dispatch — In-stock units ship within 1–3 business days; expedited options available
Typical Applications
- Beckhoff AX5000 series servo drive to AM8000/AM8500 servomotor connections
- CNC machine tool axis drives
- Robotic arm and gantry motion systems
- Packaging and labelling machinery
- Semiconductor and electronics manufacturing equipment
- Conveyor and material-handling automation
Compatible System Components
| Component | Part Number | Notes |
|---|---|---|
| Servo Drive | AX5106, AX5112, AX5125 | Single-axis, 6–25 A |
| Servomotor | AM8031, AM8041, AM8051 | Flange size 3–5 |
| Feedback Cable | ZK4500-8012-xxxx | Resolver / OCT encoder |
| Drive Controller | CX5140, CX5240 | EtherCAT-based IPC |
Always verify connector type and current rating against your specific drive and motor nameplate data before ordering.
Global Sourcing & Shipping Capabilities
Konmask.com ships industrial automation components worldwide from our warehouse in China. We support:
- Express Air Freight — DHL / FedEx / UPS; typical transit 3–7 business days to most destinations
- Sea Freight (LCL/FCL) — Cost-effective for bulk orders; transit 15–35 days depending on destination port
- Export Documentation — Commercial invoice, packing list, certificate of origin, and HS code declaration (HS: 8544.42) provided as standard
- Customs Support — We can provide additional documentation to facilitate import clearance in the EU, US, UK, and Southeast Asia
Certifications & Compliance Statement
The Beckhoff ZK4000-2111-2050 is manufactured in compliance with the following standards:
- CE Marking — Conforms to EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- RoHS 3 (EU 2015/863) — Restriction of Hazardous Substances compliant
- UL/CSA — Conductor insulation rated per UL 758 (where applicable)
Konmask.com does not manufacture or modify OEM products. All items are sold as-is in original manufacturer packaging where available. Certificates of conformity are available upon written request.
How to Order
- Confirm Quantity & Delivery Timeline — Contact us via email or WhatsApp to check real-time stock and lead time before placing a large order.
- Add to Cart & Checkout — Secure checkout with T/T bank transfer, PayPal, or credit card accepted.
- Receive Order Confirmation — You will receive a proforma invoice and shipping estimate within 1 business day.
- Track Your Shipment — Tracking number provided upon dispatch; DDP (Delivered Duty Paid) terms available for select destinations.
📧 Email: [email protected]
📞 WhatsApp / Tel: +0086 19859288691
🌐 Website: https://konmask.com
Authenticity & Trust FAQ
Q: How do I know this is a genuine Beckhoff product?
A: We source exclusively from verified industrial distributors and authorised channels. Each unit is inspected and documented. We can provide batch references and supply chain documentation upon request.
Q: Can you provide a certificate of conformity or test report?
A: Yes. Please contact us at [email protected] with your order number and we will issue the relevant documentation within 2 business days.
Q: What if the part number doesn’t match my system exactly?
A: Our technical team can assist with cross-referencing. Please share your drive model, motor model, and required cable length and we will confirm compatibility or suggest the correct variant.
Q: Do you offer a warranty?
A: Yes — 12 months from date of shipment against manufacturing defects. Warranty claims require photographic evidence and the original packing list.
Q: Can I order in bulk?
A: Yes. Volume pricing is available for orders of 5+ units. Contact us for a formal quotation.
