BECKHOFF EP1018-0001 8-Channel Digital Input EtherCAT Box | Replacement, Equivalent & Selection Guide

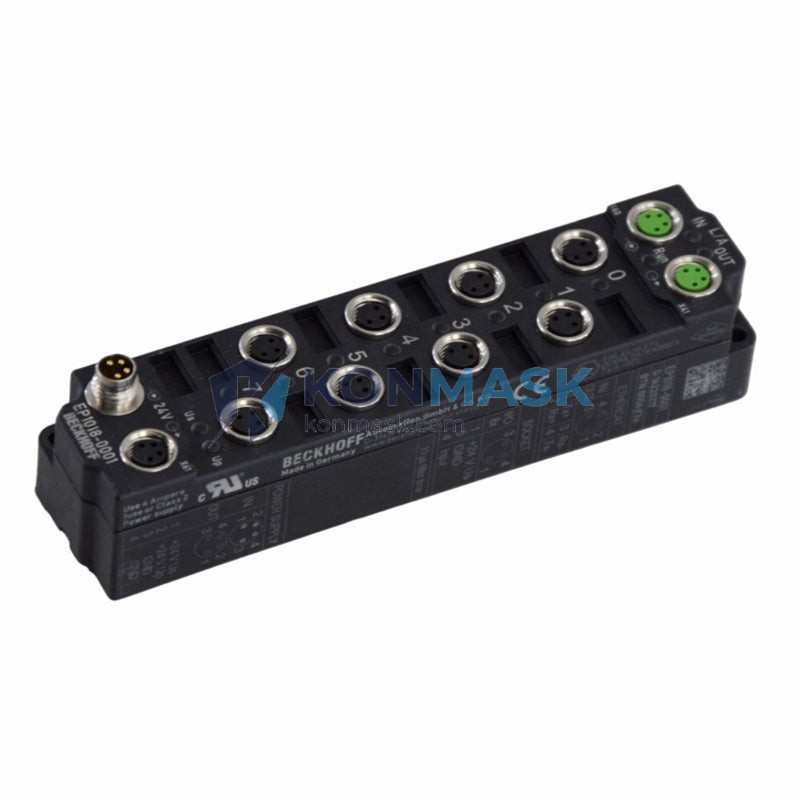

The BECKHOFF EP1018-0001 is a compact, IP67-rated EtherCAT Box module featuring 8 digital inputs (24 V DC, 3 ms filter). Designed for direct field-level installation without a control cabinet, it integrates seamlessly into Beckhoff TwinCAT-based automation systems. This page provides full technical specifications, compatible replacement options, application guidance, and sourcing information.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | EP1018-0001 |
| Manufacturer | BECKHOFF Automation |
| Module Type | EtherCAT Box – Digital Input |
| Number of Inputs | 8 × digital input, 24 V DC |
| Input Filter | 3 ms (default) |
| Signal Standard | IEC 61131-2, Type 1/3 |
| Connection Type | M8 screw-type connectors |
| EtherCAT Interface | 2 × M8 EtherCAT ports (in/out) |
| Power Supply | 24 V DC (−15% / +20%) |
| Current Consumption | approx. 80 mA from US |
| Protection Rating | IP67 |
| Operating Temperature | −25 °C … +60 °C |
| Dimensions (W × H × D) | 126 mm × 30 mm × 26.5 mm |
| Weight | approx. 300 g |
| Certifications | CE, UL, ATEX (Zone 2/22) |
Compatible Replacement & Equivalent Models
The following modules are functionally compatible or serve as direct/near-direct replacements for the EP1018-0001 in most applications. Always verify electrical and mechanical compatibility before substitution.
| Model | Manufacturer | Channels | Interface | Notes |
|---|---|---|---|---|
| EP1008-0001 | BECKHOFF | 8 DI | EtherCAT Box | Same family; 1 ms filter variant |
| EP1018-0002 | BECKHOFF | 8 DI | EtherCAT Box | M12 connector variant |
| EL1008 | BECKHOFF | 8 DI | EtherCAT Terminal | Cabinet-mount equivalent; same I/O logic |
| EL1018 | BECKHOFF | 8 DI | EtherCAT Terminal | High-density cabinet-mount alternative |
| SM-8DI-EC | Weidmüller | 8 DI | EtherCAT | Third-party equivalent; verify ESI file |
| IL ETH BK DI 8 | Phoenix Contact | 8 DI | EtherCAT | Alternative fieldbus box; IP67 |
Note: Third-party replacements require ESI (EtherCAT Slave Information) file import into TwinCAT. Contact us for compatibility verification.
Why Choose the Original Model
- Native TwinCAT Integration — Zero-configuration auto-detection in TwinCAT 2/3 environments; no ESI import required.
- Proven IP67 Reliability — Fully sealed housing rated for direct machine-level mounting in wet, dusty, or harsh environments.
- Consistent Filter Timing — Factory-calibrated 3 ms input filter ensures deterministic signal processing across all 8 channels.
- ATEX Certification — Approved for Zone 2/22 hazardous area installations where alternatives may not qualify.
- Long-term Availability — Active production status with Beckhoff’s standard 10+ year lifecycle commitment.
- Unified Diagnostics — Full process data and diagnostic PDOs accessible via standard TwinCAT System Manager.
Typical Applications
- Machine tool and CNC equipment — proximity switch and limit switch signal acquisition
- Packaging and conveyor lines — sensor feedback at field level without cabinet routing
- Automotive assembly — distributed I/O in body-in-white and press shop environments
- Food & beverage — IP67 wash-down compatible digital input collection
- Robotics cells — end-of-arm tooling and safety interlock signal monitoring
- Building automation — field-level status monitoring for HVAC and access control
System Compatibility
- PLC / Controller: Beckhoff CX series (CX5120, CX5140, CX2040, etc.), C6015–C6030 Industrial PCs
- Software: TwinCAT 2.11 R3+, TwinCAT 3.1 (Build 4022+)
- EtherCAT Topology: Line, tree, and star (with EtherCAT junction); daisy-chain via M8 ports
- Power Feed: Compatible with EP9214 and EP9224 EtherCAT Box power distribution modules
- Sensor Types: PNP (sourcing) 3-wire sensors; NPN requires signal inversion in software
Selection Guide
Use the decision criteria below to confirm the EP1018-0001 is the right choice — or to identify the best alternative:
- Need IP67 field mounting? → EP1018-0001 (M8) or EP1018-0002 (M12) ✓
- Cabinet DIN-rail mounting preferred? → Switch to EL1008 or EL1018 EtherCAT Terminals
- Require faster input filter (<3 ms)? → Consider EP1008-0001 (1 ms) or EL1004 (configurable)
- ATEX Zone 1 required? → Consult Beckhoff for EPxxxx-xxxx ATEX Zone 1 variants
- Budget-sensitive / third-party acceptable? → Weidmüller or Phoenix Contact equivalents with ESI file support
- Expanding existing EP-series system? → EP1018-0001 is the recommended drop-in addition for consistency
Quality Assurance & Sourcing
- Authentic Stock: All EP1018-0001 units sourced directly from authorized Beckhoff distribution channels or verified surplus with full traceability.
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on check prior to shipment.
- Packaging: Ships in original or equivalent ESD-safe packaging with protective foam inserts.
- Documentation: CE Declaration of Conformity and Beckhoff datasheet available upon request.
- Warranty: 12-month warranty against manufacturing defects; return/exchange supported.
How to Order
- Confirm your required quantity and delivery timeline.
- Add to cart or contact us directly for bulk/project pricing.
- Provide your TwinCAT version and EtherCAT topology if requesting compatibility verification.
- Orders ship within 1–3 business days from verified stock; expedited options available.
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I replace EP1018-0001 with EL1008 without software changes?
A: The I/O mapping is identical in TwinCAT, but the EL1008 is a cabinet-mount terminal — physical installation differs. No software changes required if the process image is preserved.
Q: Is EP1018-0002 a direct replacement for EP1018-0001?
A: Yes, functionally identical. The -0002 variant uses M12 connectors instead of M8 — verify your field cabling before substituting.
Q: Do third-party equivalents work with TwinCAT?
A: Most EtherCAT-compliant modules work with TwinCAT after importing the vendor’s ESI file. Performance and diagnostic depth may differ from native Beckhoff modules.
Q: What is the lead time for new stock EP1018-0001?
A: Standard lead time from authorized channels is 2–6 weeks. We maintain spot stock for immediate dispatch — contact us to confirm availability.
Q: Can EP1018-0001 be used in ATEX Zone 2 environments?
A: Yes. The EP1018-0001 carries ATEX certification for Zone 2 (gas) and Zone 22 (dust). Verify installation requirements per ATEX directive 2014/34/EU.
