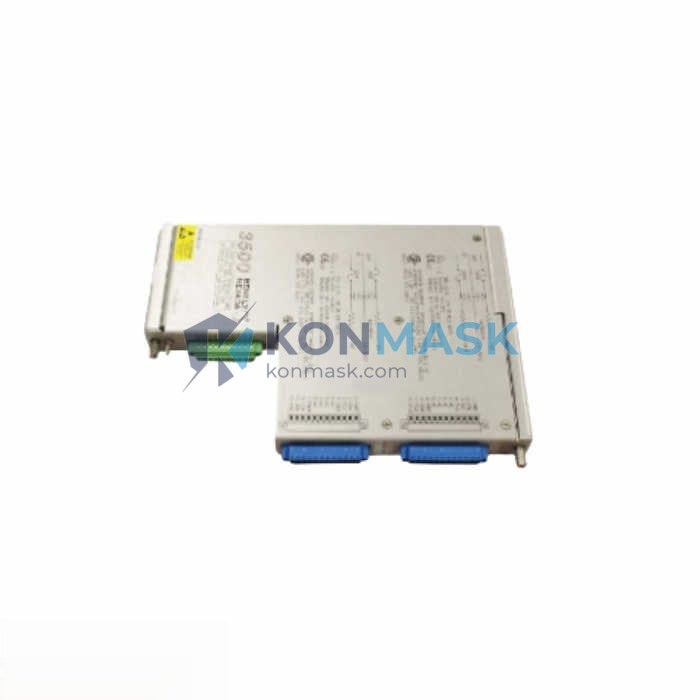

Bently Nevada 135489-02 – I/O Interface Module | 3500 Series Vibration Monitoring Platform
Engineering Background
The Bently Nevada 3500 Series is the industry benchmark for continuous machinery protection in rotating equipment applications — turbines, compressors, pumps, and motors across oil & gas, power generation, and petrochemical sectors. The 135489-02 is a dedicated I/O interface module engineered to extend the rack’s signal routing and communication capability, enabling seamless integration between field sensors and the 3500 monitoring rack backplane.
Product Positioning
Designed for procurement engineers and reliability teams who require a drop-in, OEM-specification replacement or expansion module. The 135489-02 maintains full backward compatibility within the 3500 rack architecture, eliminating re-engineering costs and minimizing downtime during maintenance windows.
Complete Technical Specifications
| Part Number | 135489-02 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series / Platform | 3500 Series Machinery Protection System |
| Module Type | I/O Interface Module |
| Form Factor | Single-slot 3500 rack card |
| Backplane Interface | 3500 Series rack backplane bus |
| Signal Compatibility | Compatible with 3500 Series transducer and relay modules |
| Operating Temperature | 0 °C to +60 °C (32 °F to 140 °F) |
| Storage Temperature | -40 °C to +85 °C |
| Power Supply | Supplied via 3500 rack backplane (no external PSU required) |
| Approvals / Certifications | CE, cULus (per 3500 platform certification) |
| Weight | Approx. 500 g |
| Condition Available | New surplus / Refurbished / Used tested |
Proven Application Environments
- Steam and gas turbine protection systems (power generation)
- Centrifugal and reciprocating compressor monitoring (upstream/midstream oil & gas)
- Pump and motor vibration surveillance (refinery and chemical plant)
- Gearbox and fan train condition monitoring
- Offshore platform rotating equipment protection
- LNG liquefaction train machinery safety systems
Engineering Advantages
- OEM-Specification Compatibility: Direct plug-in replacement within any 3500 Series rack — no firmware changes or re-wiring required.
- Rack-Powered Architecture: Eliminates external power supply complexity; module draws regulated power from the 3500 backplane.
- Minimal Downtime Replacement: Hot-swap capable within 3500 rack design guidelines, reducing MTTR for critical machinery protection loops.
- Long Service Life: Bently Nevada 3500 platform modules are designed for 10+ year operational lifecycles in continuous-duty industrial environments.
- Broad Sensor Compatibility: Interfaces with Bently Nevada proximity probes, accelerometers, and velocity transducers across the 3500 module family.
System Architecture & Signal Flow
The 135489-02 occupies a dedicated slot in the 3500 rack chassis. Field sensor signals are routed through the I/O module to the appropriate monitor cards via the backplane bus. The module provides the physical and electrical interface layer between external wiring terminations and the rack’s internal signal processing chain. Integration with the 3500 System 1 software platform enables real-time data acquisition, alarm management, and trend analysis at the DCS or SCADA level.
Sourcing & Quality Verification
- All units sourced from authorized distributors, OEM surplus channels, or certified refurbishers.
- Each module undergoes functional power-on testing and visual inspection prior to shipment.
- Serialized traceability records available upon request for critical-service applications.
- Packaging: ESD-safe anti-static bag + foam-lined carton for international transit.
- Certificate of Conformance (CoC) and test report available for qualified orders.
Procurement Process
- Submit your RFQ via konmask.com/pages/contact or email support@konmask.com.
- Receive a formal quotation with lead time, condition grade, and warranty terms within 24 business hours.
- Confirm purchase order — we accept T/T wire transfer, PayPal, and major credit cards.
- Shipment via DHL / FedEx / UPS Express with full tracking; export documentation (commercial invoice, packing list, COO) included.
- Post-delivery technical support available via email and WhatsApp.
Technical FAQ
Q: Is the 135489-02 compatible with all 3500 rack frame sizes?
A: Yes. The module is designed to fit all standard 3500 Series rack chassis (19-inch and 24-inch frames) without modification.
Q: What warranty is provided?
A: Konmask offers a 90-day functional warranty on all tested units. Extended warranty options are available — contact us for details.
Q: Can you provide documentation or datasheets?
A: Yes. Bently Nevada 3500 Series technical manuals and the specific module datasheet can be provided upon request with your RFQ.
Q: Do you ship internationally?
A: Yes. We ship worldwide from China with full export documentation. Typical transit time is 3–7 business days via express courier.
Q: Is this a new or refurbished unit?
A: We stock both new surplus and refurbished units. Condition grade is confirmed at time of quotation based on current inventory.
