Bently Nevada 16710-20 Interconnect Cable | Replacement, Equivalent & Selection Guide

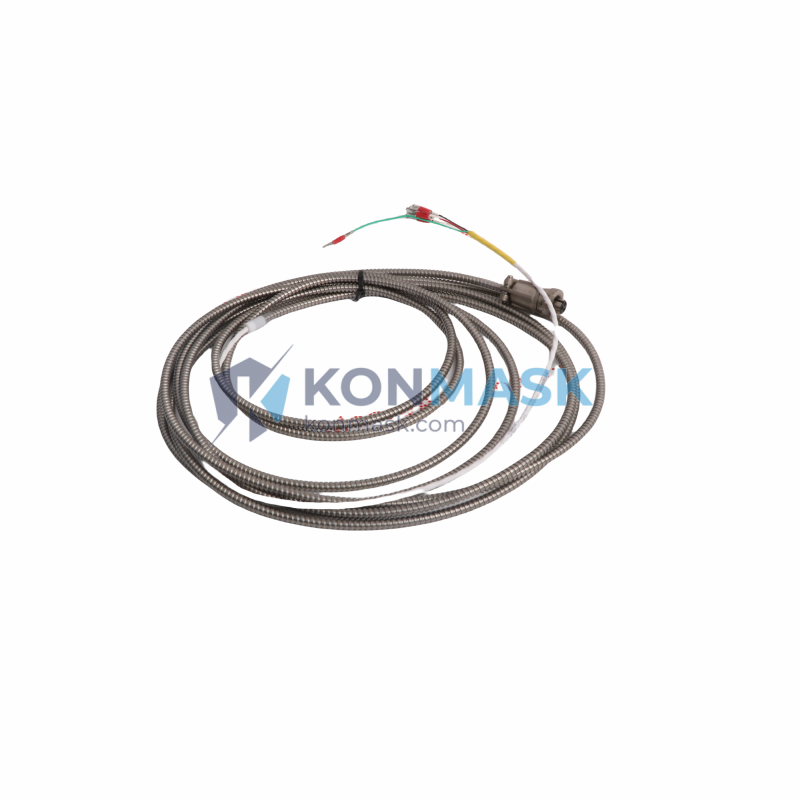

The Bently Nevada 16710-20 is a precision interconnect cable engineered for the 3300 Series vibration monitoring system. Whether you are sourcing an original replacement, evaluating compatible equivalents, or selecting the right cable length for your application, this guide provides the technical clarity and sourcing confidence you need.
Technical Specifications
- Part Number: 16710-20
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 Series
- Type: Interconnect Cable
- Cable Length: 20 ft (6.1 m)
- Connector Type: Multi-pin, keyed industrial connector
- Application: Connects proximitor/monitor modules within 3300 Series rack systems
- Operating Temperature: -40°C to +85°C
- Shielding: Foil + braid shielded for EMI/RFI immunity
- Compliance: CE, RoHS compatible
Compatible Replacement & Equivalent Models
When the exact part is unavailable or lead times are critical, the following models may serve as functional equivalents depending on your system configuration. Always verify connector pinout and cable length before substitution.
- 16710-10 — Same series, 10 ft length variant
- 16710-30 — Same series, 30 ft length variant
- 16710-50 — Same series, 50 ft length variant
- 330130-045-00-00 — Extension cable for proximitor sensor, may serve in certain rack-to-sensor configurations
- 3300 XL Series cables — Verify backward compatibility with your specific monitor module revision
Note: Konmask.com recommends using OEM original parts wherever possible. Substitutions should be validated by a qualified instrumentation engineer.
Why Choose the Original Model
- Guaranteed Signal Integrity: Factory-matched impedance and shielding for 3300 Series monitors
- Plug-and-Play Fit: Keyed connectors eliminate mis-wiring risk during installation
- Long-Term Reliability: Industrial-grade materials rated for continuous operation in harsh plant environments
- OEM Traceability: Full manufacturer documentation and part traceability available upon request
- Warranty Compliance: Using original parts preserves your system warranty and maintenance contract validity
Typical Applications
- Gas turbine vibration monitoring systems
- Steam turbine shaft displacement measurement
- Compressor and pump machinery protection panels
- Petrochemical and refinery control rooms
- Power generation plant DCS/PLC integration racks
- Offshore platform rotating equipment monitoring
System Compatibility
The 16710-20 is designed for use within the Bently Nevada 3300 Series monitoring system ecosystem. Confirm compatibility with the following components before ordering:
- 3300/16 Proximitor Monitor
- 3300/20 Dual Proximitor Monitor
- 3300/25 Keyphasor Monitor
- 3300/46 Tachometer Monitor
- 3300/55 Dual Thrust Position Monitor
- 3300 Series Rack Backplane (verify revision level)
Selection Guide
Use the table below to select the correct cable length for your installation:
- 16710-10 — Up to 10 ft rack-to-rack distance
- 16710-20 — Up to 20 ft; most common for standard control room layouts
- 16710-30 — Up to 30 ft for extended panel distances
- 16710-50 — Up to 50 ft for remote monitoring enclosures
Selection Tips:
- Measure the actual cable routing path, not straight-line distance — add 15–20% for bends and service loops
- Avoid routing signal cables parallel to high-voltage power cables
- For outdoor or high-vibration environments, request armored cable options
Quality Assurance & Sourcing
- Verified Inventory: All units inspected for connector integrity, shielding continuity, and labeling accuracy before dispatch
- Authentic Parts Only: Konmask.com sources exclusively from authorized distributors and certified surplus channels
- Traceability Documentation: Certificate of conformance and packing list provided with every shipment
- Global Sourcing Network: Access to new, refurbished, and surplus stock across North America, Europe, and Asia-Pacific
- Fast Dispatch: In-stock items ship within 1–3 business days; expedited options available
How to Order
- Confirm your part number: Bently Nevada 16710-20
- Specify quantity and required delivery timeline
- Request a formal quotation via support@konmask.com or use the Add to Cart button above
- Receive order confirmation with lead time and shipping details within 24 hours
- Track your shipment with our provided logistics reference number
Replacement & Compatibility FAQ
Q: Can I use a 16710-10 instead of a 16710-20?
A: Only if your rack-to-rack distance is within 10 ft. Using a shorter cable than required will prevent proper installation.
Q: Is the 16710-20 compatible with the 3500 Series?
A: No. The 3500 Series uses a different connector standard. Please contact us for 3500 Series cable options.
Q: Do you supply refurbished units?
A: Yes. All refurbished units undergo full continuity and connector inspection. Condition is clearly stated on the product listing and invoice.
Q: Can you source the 16710-20 urgently?
A: Yes. Contact us directly for expedited sourcing — we maintain relationships with global surplus and OEM distribution networks.
Q: What documentation comes with the cable?
A: Every shipment includes a packing list and certificate of conformance. Full OEM datasheet available upon request.
